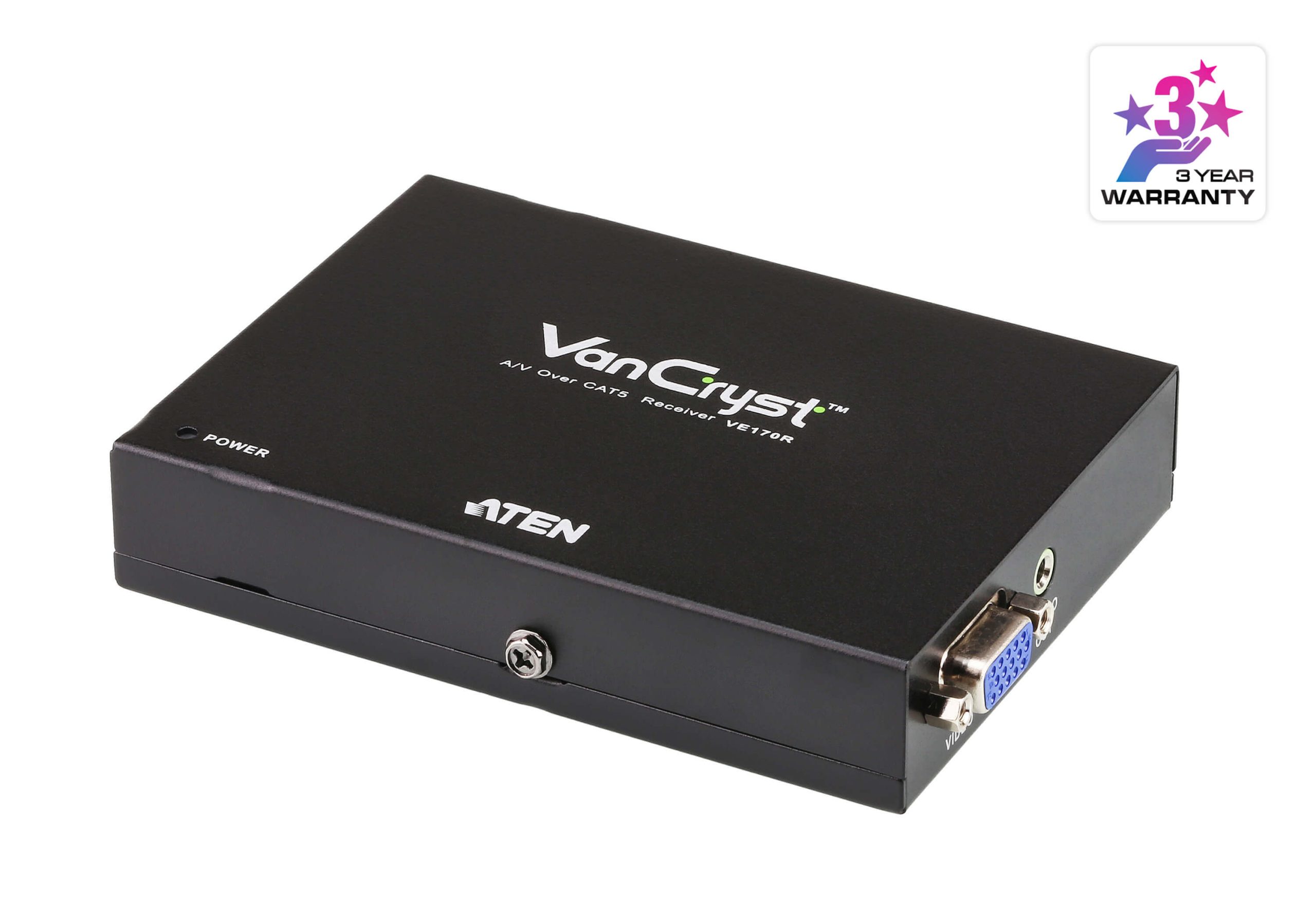

ATEN VE170R
VGA/Audio Cat 5 Receiver (1024 x 768@300m)
ATEN VE170R A/V Over Cat 5 Receiver connects to a transmitter* to extend signals up to 300m from the source using a Cat 5e cable. It is a cost-effective and efficient solution for sending and receiving high quality audio and video content.
- 1x VE170R A/V Over Cat 5 Receiver
- 1x Power Adapter
- 1x Mounting Kit (1 pc)
- 1x User Instructions
Features
- Long distance transmission up to 300 m
- Superior video quality –
1920×1200 @ 60Hz (30 m);1600×1200 @ 60Hz (150 m);1024×768@ 60Hz (300 m) - Audio enabled (mono)
- Adjustable gain/compensation control
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard
Specifications
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ω |
| Max. Distance | 1.8 m |
| Video | |
| Max. Bandwidth | 300 MHz |
| Max. Resolutions / Distance | Up to 1920 x 1200@30m; 1600 x 1200@150m; 1024 x 768@300m |
| Audio | |
| Output | 1 x Mini Stereo Jack Female (Green) |
| Connectors | |
| Power | 1 x DC Jack (Black) |
| Power Consumption | DC5.3V:3.32W:16BTU/h Note: |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.24 kg ( 0.53 lb ) |
| Dimensions (L x W x H) | 12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.) |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
