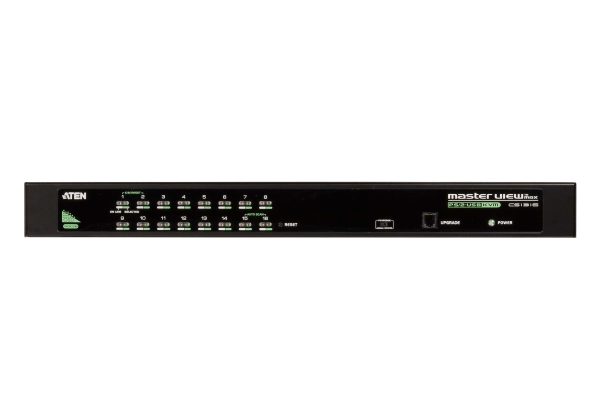

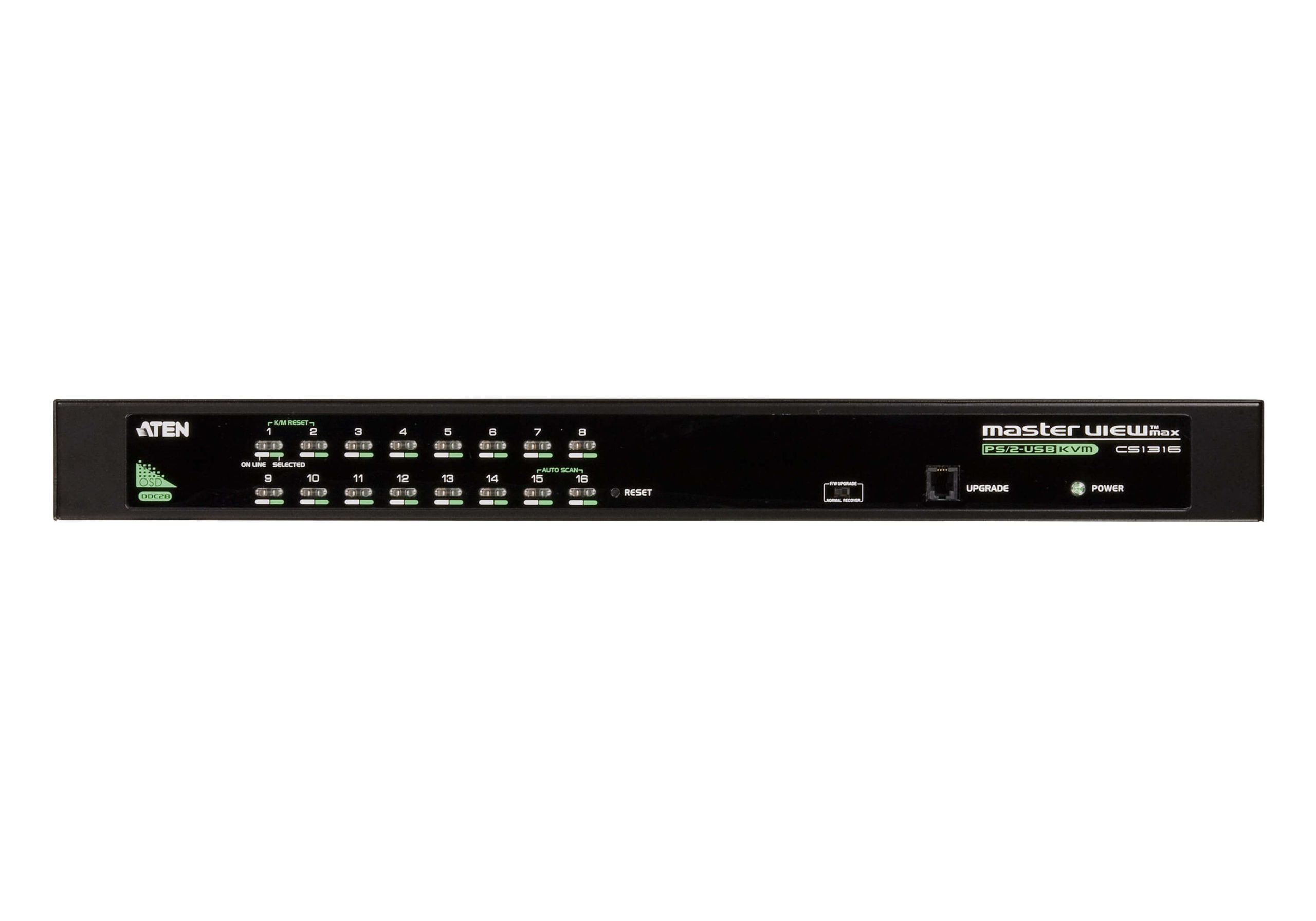

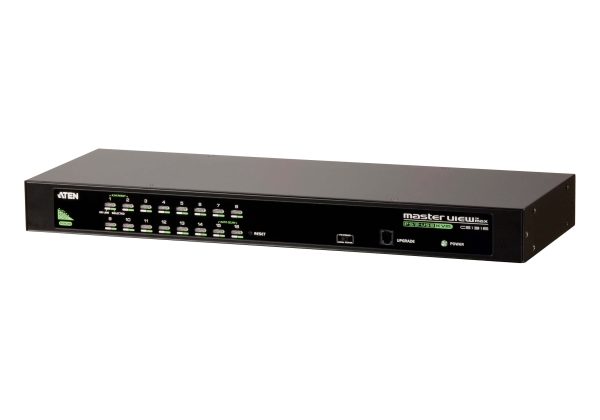

ATEN CS1316-AT-G
16-Port PS/2-USB VGA KVM Switch

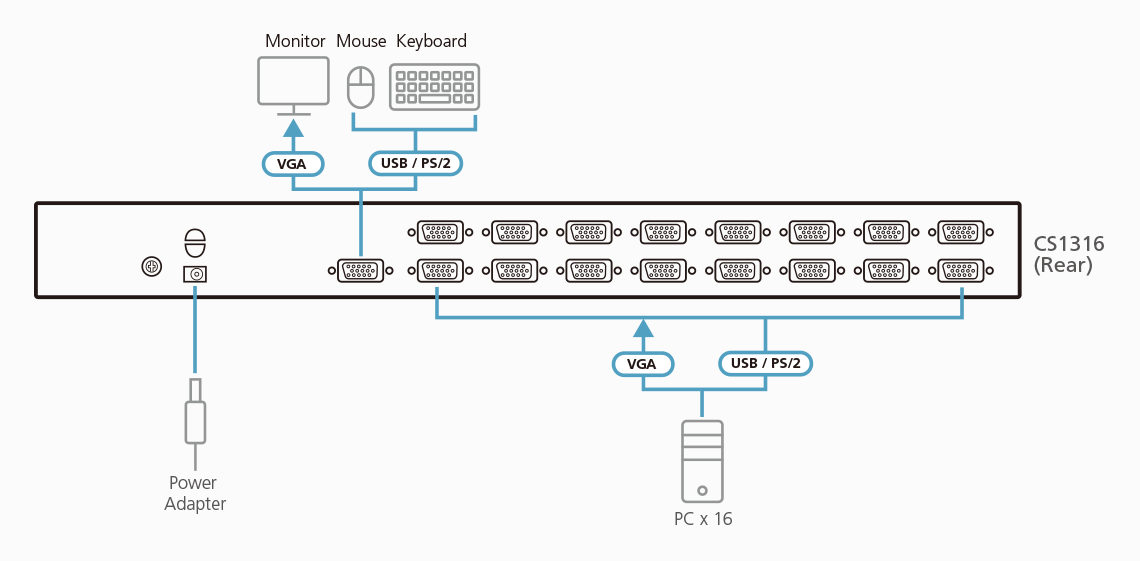

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers.
Package Contents
- 1x CS1316 KVM Switch with Rack Mount Kit
- 1x Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x Power Adapter
- 1x User Instructions
Features
- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels – control up to 256 computers
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
- Superior video quality – up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security – only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable – add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19″ system rack, 1U)
Spesification
| Computer Connections | |
| Direct | 16 |
| Maximum | 256 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |

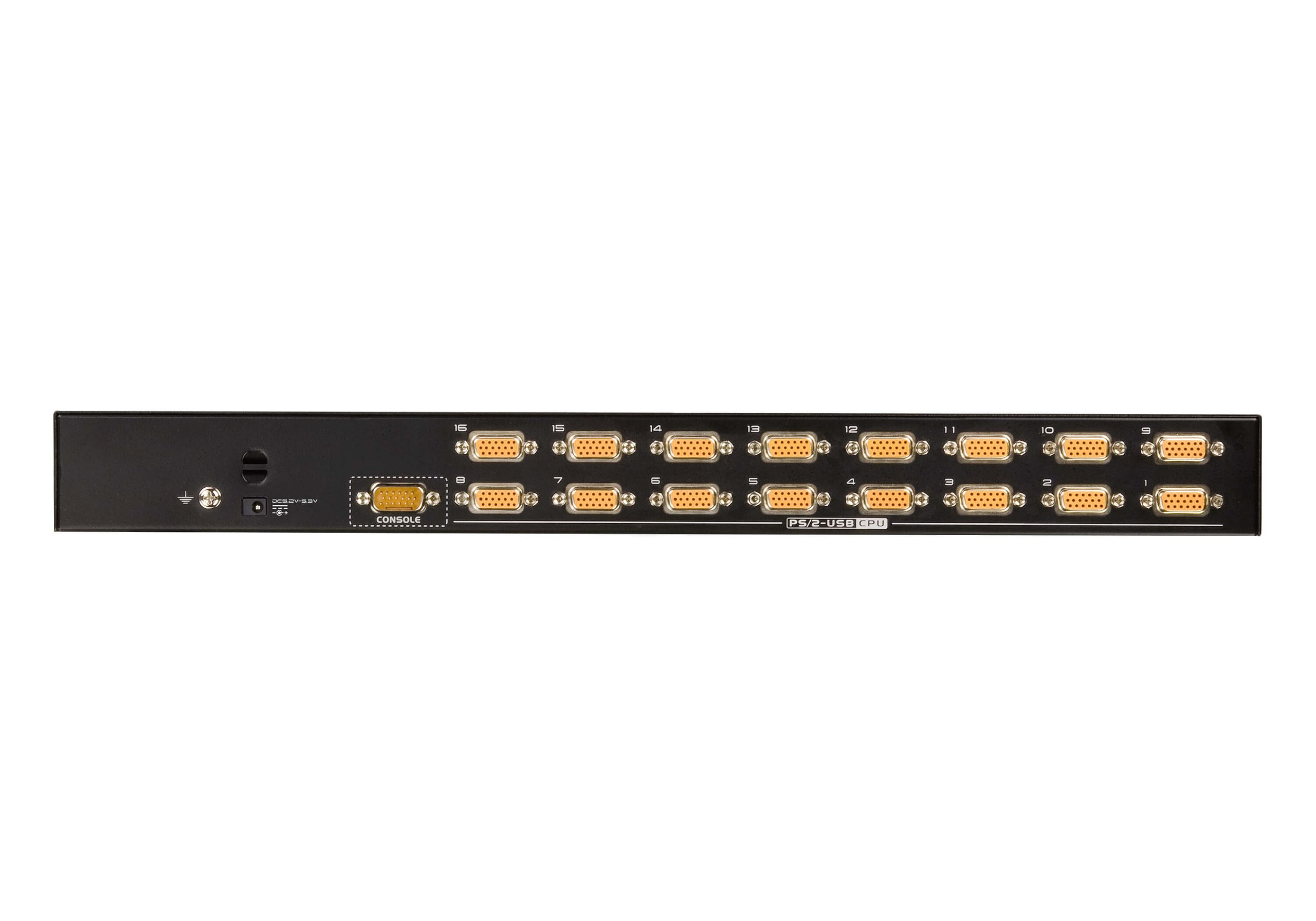

| Connectors | |
| Console Ports | 1 x SPHD-18 Male (Yellow) |
| Firmware Upgrade | 1 x RJ-11 Female (Black) |
| Power | 1 x DC Jack |
| KVM Ports | 16 x SPHD-18 Female (Yellow) |
| Switches | |
| Ports | 16 x Pushbutton |
| Firmware Upgrade | 1 x Slide |
| LEDs | |
| Online | 16 (Orange) |
| Selected | 16 (Green) |
| Power | 1 (Dark Green) |
| Emulation | |
| Keyboard / Mouse | PS/2, USB |
| Video | 2048 x 1536; DDC2B |
| Scan Interval | 1-255 Seconds |
| Power Consumption | DC5.3V:3.83W:26BTU/h Note: |
| Environmental | |
| Operating Temperature | 0-50˚C |
| Storage Temperature | -20-60˚C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 2.10 kg ( 4.63 lb ) |
| Dimensions (L x W x H) | 43.72 x 16.13 x 4.40 cm (17.21 x 6.35 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Data Sheet
CS1308-CS1316-8-16-Port-PS-2-USB-VGA-KVM-Switch-datasheet-en.pdf (620.31 KB)
User Manual
| File Name | Release Date |
| cs1308-cs1308d-cs1316-user-manual-w.pdf (3.52 MB) | 2025-03-24 |
