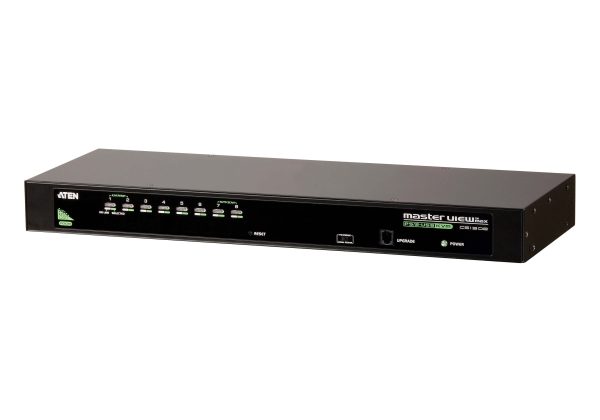

ATEN CS1308-AT-G
8-Port PS/2-USB VGA KVM Switch
ATEN CS1308 expedites access to up to 8 PCs via one set of keyboard, mouse and monitor, allowing IT staff to productively manage multiple computers all at once via easy switching. ATEN CS1308 is also expandable and allows 8 more switches to be cascaded to enable centralized management of up to 64 PCs via one KVM console.
One Console Cable, Two Connection Options
ATEN CS1308 offers two types of console KVM cables in different lengths for selection, allowing connection to either PS/2 or USB keyboard/mouse to flexibly accommodate installation requirements.
Smooth Cross-Platform Integration
ATEN CS1308 enables the integration of different computer systems (Windows, Mac, Linux, and Sun) that are accessible from one KVM console.

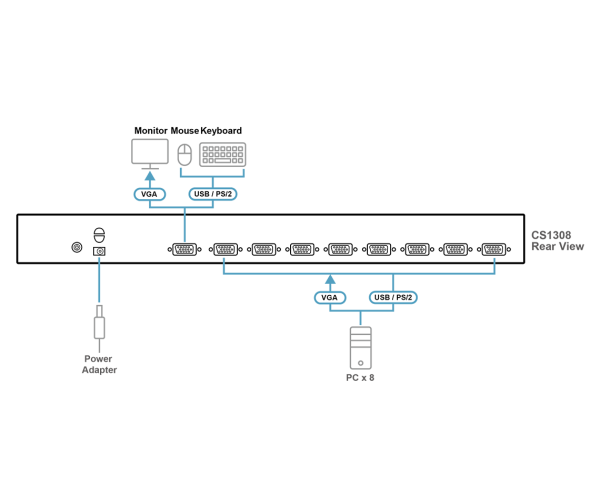

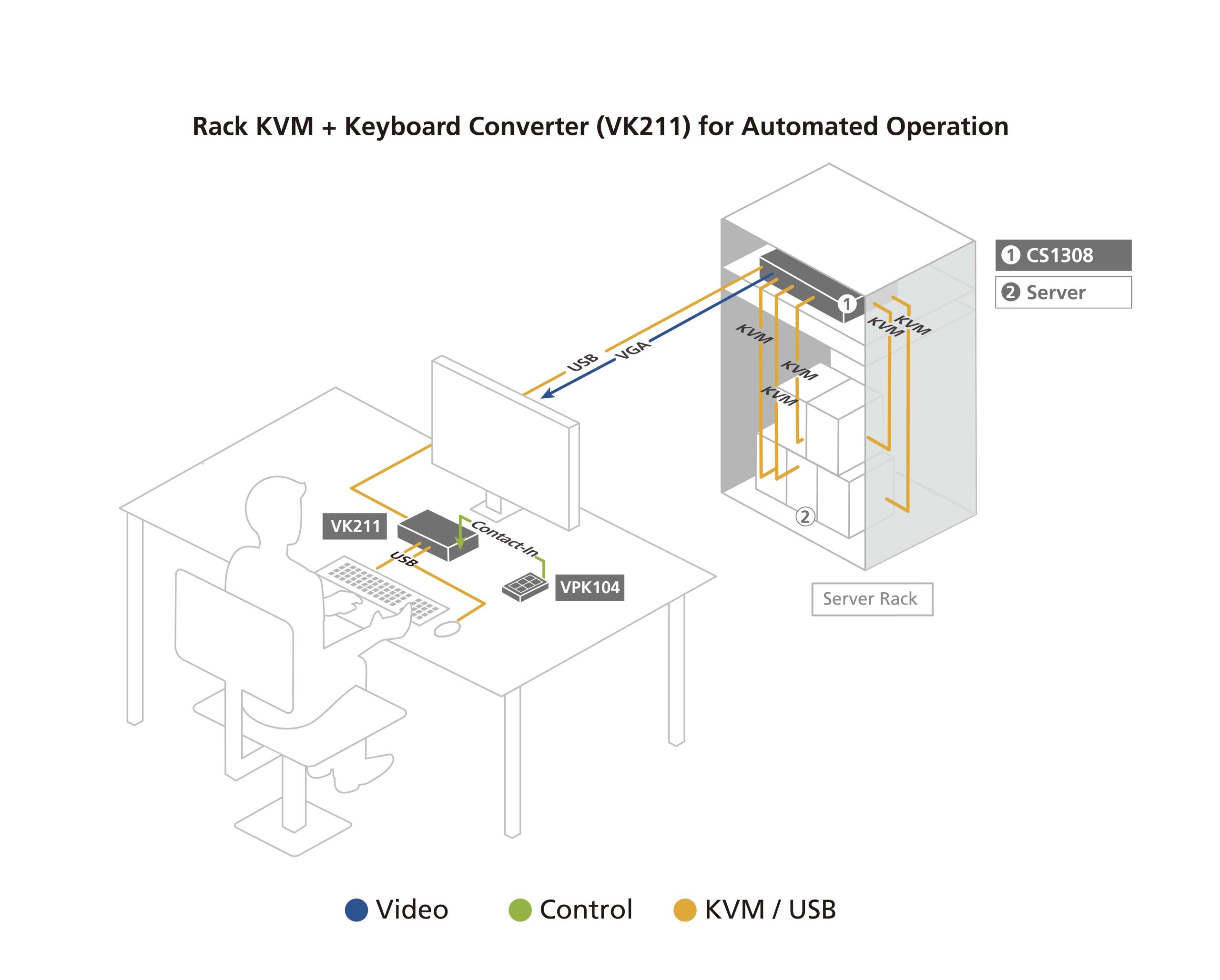

Application
Product Comparison
| Option | 8-Port PS/2-USB VGA KVM Switch | 8-Port PS/2-USB VGA KVM Switch with Daisy-Chain Port and USB Peripheral Support | 8-Port USB DVI/Audio KVM Switch |
|---|---|---|---|
| Number of Computers | 8 | 8 | 8 |
| Console Interface | PS/2 USB VGA (SPHD) | PS/2 USB VGA (SPHD) | USB VGA DVI-I |
| Number of Consoles | 1 | 1 | 1 |
| Max. Computers controlled | 64 | 256 | 512 |
| Computer Interface | PS/2 USB VGA (SPHD) | PS/2 USB VGA (SPHD) | USB VGA DVI-I |
| Port Selection | OSD Hotkey Pushbutton | OSD Hotkey Pushbutton | OSD Hotkey Pushbutton |
| Expansion Method | (Cascade) | (Daisy Chain) | (Cascade) |
| Max. Resolution | 2048 x 1536 | 2048 x 1536 | 2048 x 1536 |
| USB Peripheral | N/A | ||
| Firmware Upgradable | |||
| Audio Enable | N/A | N/A | |
| Video DynaSync™ | |||
| Auto Scan | |||
| Mounting Kit | |||
| Independent Switching | N/A | N/A | |
| Multilingual Support | |||
| Cascadable | N/A | ||
| Daisy Chain | N/A | N/A | |
| Broadcast Mode | |||
| Hotkeys | |||
| Audio | N/A | N/A | Speaker Microphone |
| Multi-Platform Support | Windows Mac Sun Linux | Windows Mac Sun Linux | Windows Mac Sun Linux |
Features
ATEN CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers.
- One USB-PS/2 console controls 8 computers
- Cascade up to 2 levels – control up to 64 computers
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
- Superior video quality – up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security – only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable – add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19″ system rack, 1U)
Spesification
| Computer Connections | |
| Direct | 8 |
| Maximum | 64 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |

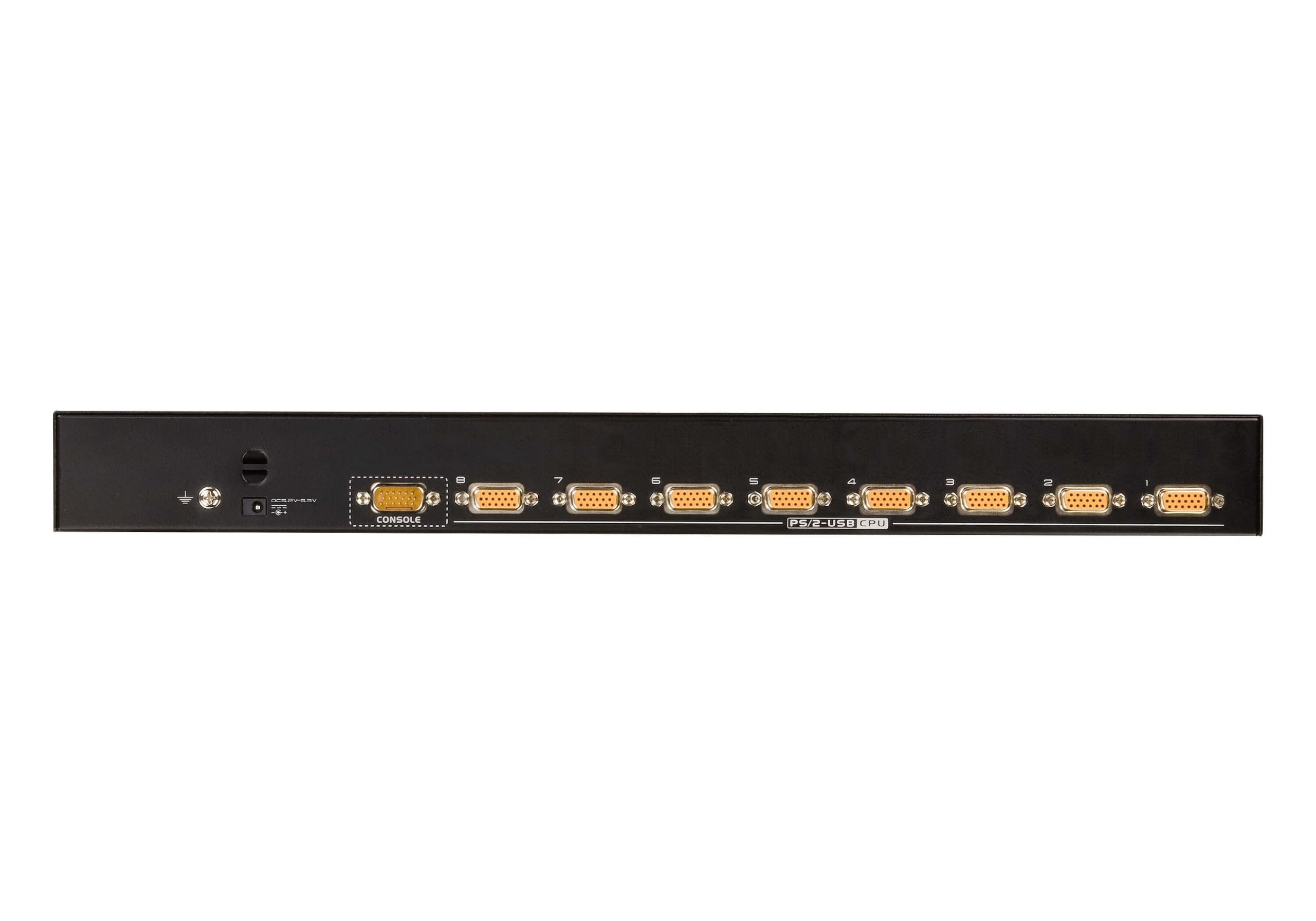

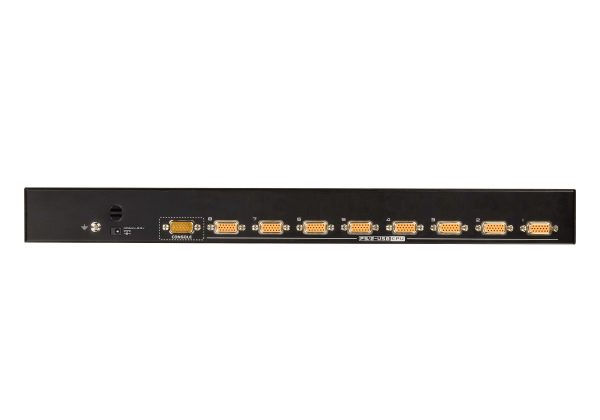

| Connectors | |
| Console Ports | 1 x SPHD-18 Male (Yellow) |
| KVM Ports | 8 x SPHD-18 Female (Yellow) |
| Firmware Upgrade | 1 x RJ-11 Female (Black) |
| Power | 1 x DC Jack |

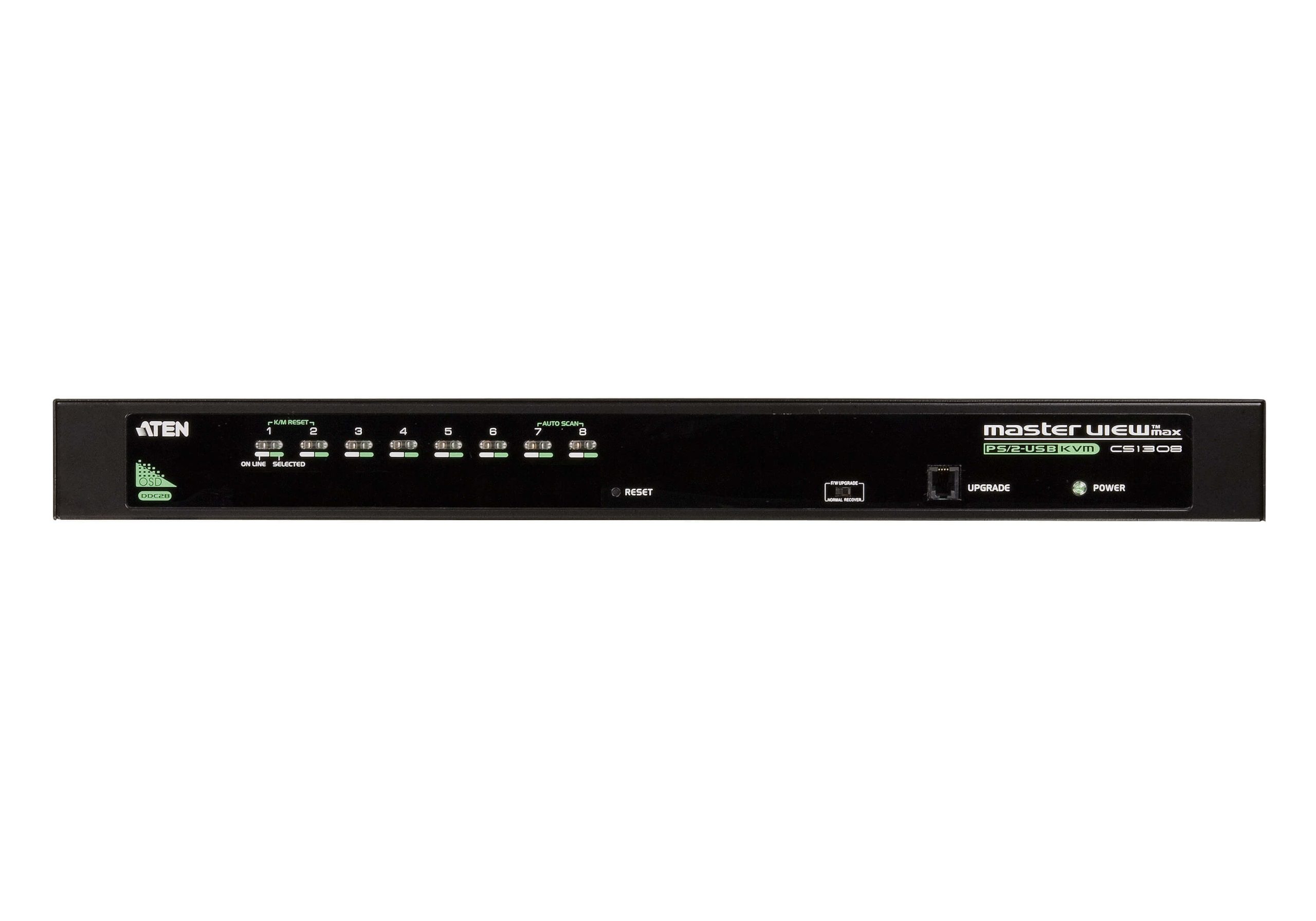

| Switches | |
| Ports | 8 x Pushbutton |
| Firmware Upgrade | 1 x Slide |
| LEDs | |
| Online | 8 (Orange) |
| Selected | 8 (Green) |
| Power | 1 (Dark Green) |
| Emulation | |
| Keyboard / Mouse | PS/2, USB |
| Video | 2048 x 1536; DDC2B |
| Scan Interval | 1 – 255 Seconds (Default: 5 secs) |
| Power Consumption | DC5.3V:2.34W:19BTU/h Note: |
| Environmental | |
| Operating Temperature | 0-50˚C |
| Storage Temperature | -20-60˚C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.89 kg ( 4.16 lb ) |
| Dimensions (L x W x H) | 43.72 x 16.13 x 4.40 cm (17.21 x 6.35 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Datasheet
CS1308-CS1316-8-16-Port-PS-2-USB-VGA-KVM-Switch-datasheet-en.pdf (620.31 KB)
User Manual
| File Name | Release Date |
| cs1308-cs1308d-cs1316-user-manual-w.pdf (3.52 MB) | 2025-03-24 |
