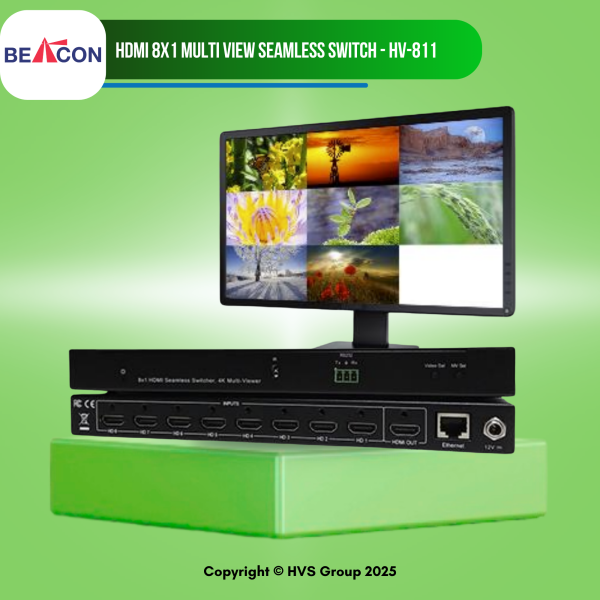

BEACON HV-811 HDMI 8×1 Multi View Seamless Switch with 3×3, 2×2, and Full screen display

BEACON HV-811 HDMI 8x1 Multi View Seamless Switch with 3x3, 2x2, and Full screen display

HV-811 is an 8×1 HDMI multi-view switcher that allows real-time display of up to 8 HDMI inputs on a single screen in 3×3, 2×2, or full-screen modes. Ideal for surveillance, broadcasting, and control room applications.

Follow

Share

Facebook
Twitter
LinkedIn

The HV-811 is a powerful and versatile 8×1 HDMI Multi-View Seamless Switch that enables you to simultaneously display real-time HDMI video from up to 8 different input sources on a single display. Designed for demanding video environments, this device supports multiple viewing layouts, including 3×3 grid, 2×2 quad-view, and full-screen modes, offering exceptional flexibility for monitoring and content management.

This multi-view switch is ideal for applications such as broadcast control rooms, surveillance systems, video conferencing, digital signage, and any scenario requiring real-time multi-source display. The seamless switching technology ensures smooth transitions between sources without black screens, flickering, or delay—delivering a professional viewing experience at all times.

The HV-811 can be easily controlled via multiple interfaces, including the front panel buttons for direct access, an IR remote control for convenient operation, and RS-232 serial control for integration with control systems or automation platforms. These control options make it adaptable to various AV setups and user preferences.

Compact, efficient, and simple to install, the HV-811 offers a complete solution for environments that require real-time monitoring of multiple HDMI sources on a single screen, with seamless switching and high-resolution video output.

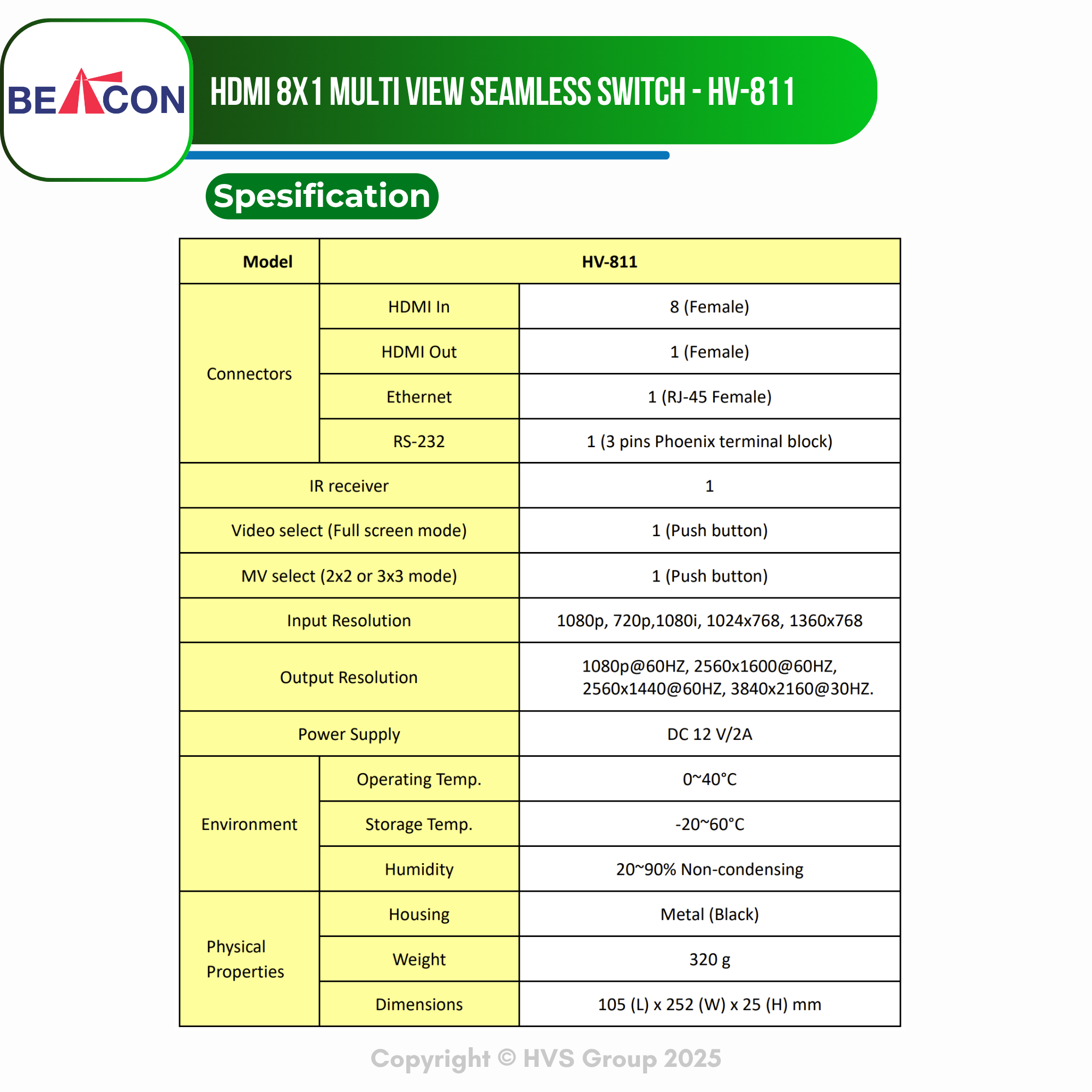

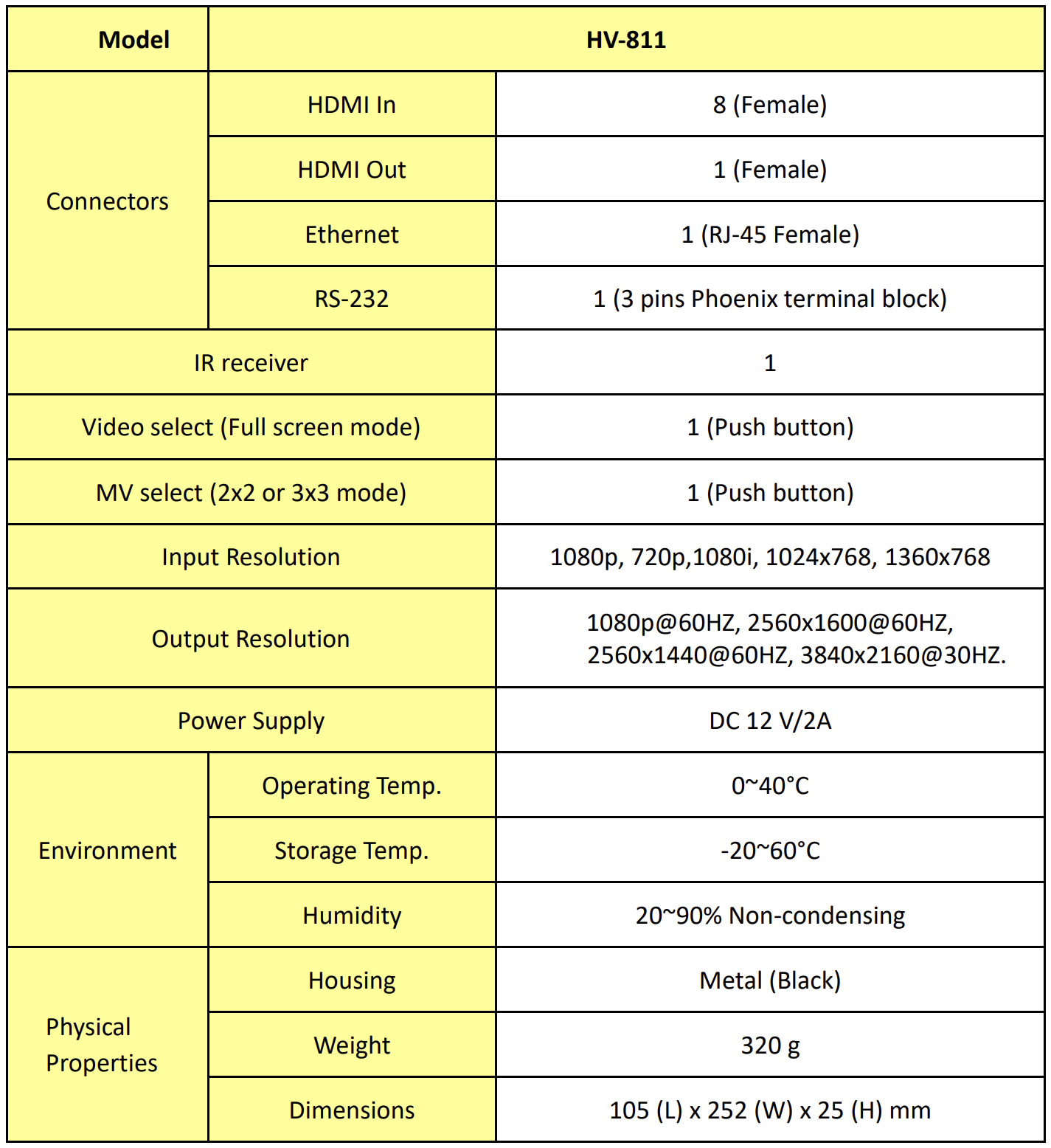

  • Support 8 x 1080p input sources and 1 x 4K output display in 3×3 or 2×2 or Full Screen modes.
  • Compliant with HDMI 1.4, HDCP 1.4, and DVI 1.0.
  • Supports input resolution up to 1080p, 720p,1080i, 1024×768, 1360×768 etc.
  • Supports output resolutions up to 1080p@60HZ, 2560×1600@60HZ, 2560×1440@60HZ, 3840×2160@30HZ.
  • Supports audio and video superposition.

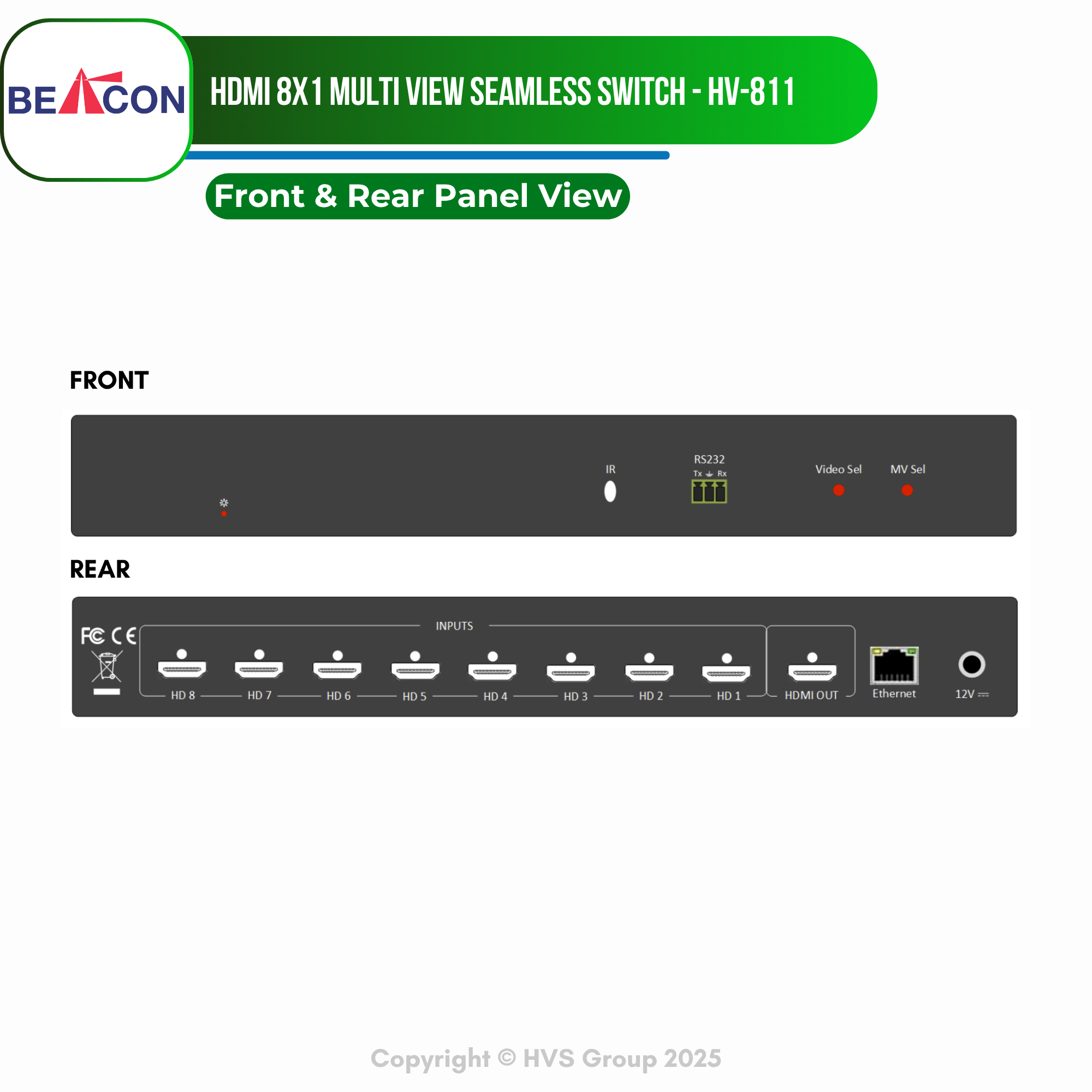

  • Control provided with front panel buttons, IR remote, RS-232.
  • HDMI input and output transmission distance: high speed HDMI cable can reach 15M.
  • Supports three display mode for switching.
    1. Quad mode: The screen is split into (4) fields of equal size each displaying the entire contents of (4) different video sources.
    2. 3×3 mode: The screen is split into (9) fields of equal size each displaying the entire contents of (8) different video sources.
    3. Full Screen Mode: (1) of the (8) video sources is displayed in full screen size with maximum resolution.
