| Event Action | System Events | Tamper Detection, Alarm In, Virtual Alarm In, Video Loss/Recovery, Disarm, Recurrence, Login, System Start |
| Action Handlers | HTTP, TCP, FTP, E-mail, S3, VMS, Onvif, Audio Back Channel (Camera speaker) |
| Combining Rules with Other Events | Yes |
| Pre/Post Snapshot | Yes |
| Annotated Video Stream | Yes |
| Video | Max. Video Input Resolution | 4K @ 30 fps (2M @ 120 fps) |
| Video Input Method | RTSP, RTSP over HTTP/S, Onvif |
| Supported Input Video Format | H.265 / H.264 |
| Video Output Stream Method | RTSP over TCP/UDP, RTSP over Websocket, RTSP over HTTP/S |

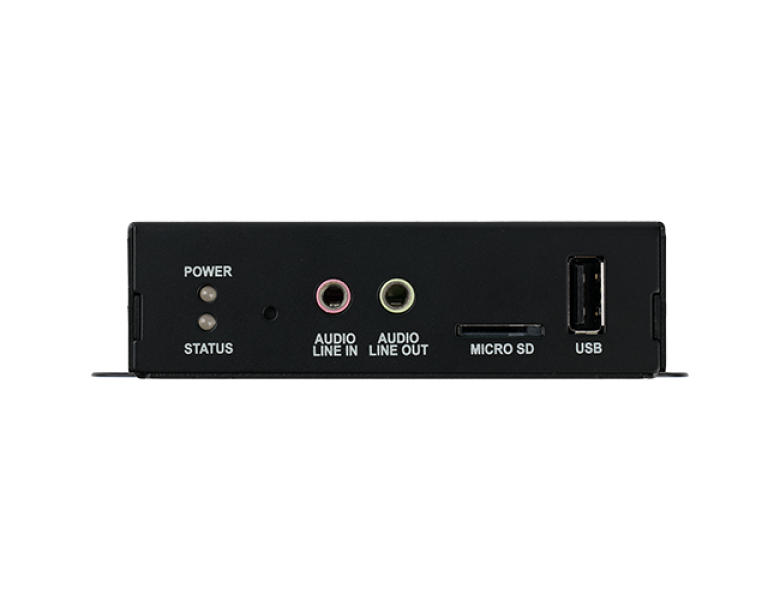

| Audio | Audio Input | 1 x Audio Line-In (3.5mm audio phone jack) |
| Audio Output | 1 x Audio Line-Out (3.5mm audio phone jack) |
| Interface | USB | 1 x USB2.0 |

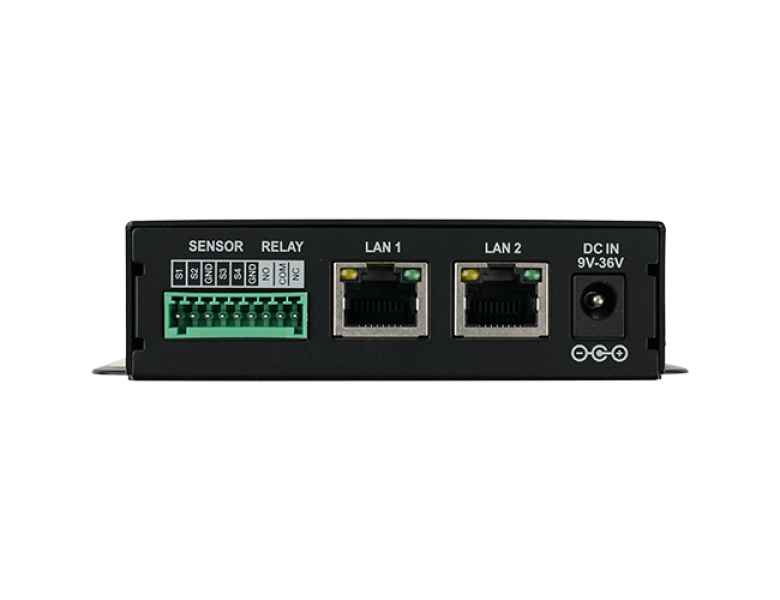

| LAN | 2 x 10/100/1000 BASE-T Ethernet (ETH1/ETH2) |
| Alarm I/O | Alarm Input | 4CH, DI (0–30V Input), Pulled up to 5V via 10KOhm |
| Relay Output | 1CH, Dry contact Relay (30VDC/250VAC), NO/COM/NC (Terminal Block) |
| Storage | Internal SD | 1 x Internal SD Card Slot |
| NVMe SSD | 1 x M.2 M-Key Slot (for M.2 2280 NVMe SSD), Recording license 4-ch (OPTION) |
| ETC | Watchdog | Yes |
| RTC | Yes |
| Cooling Fan | – |
| Factory Reset Button | Yes |
| LED Indicators | 1 x PWR LED (3 Color), 1 x Status LED (3 Color) |
| Power | Power Supply | 12V/3.3A adaptor, DC +9V ~ +36V (DC Input Voltage) |
| Power Consumption | 6.7 Watts (Without NVMe SSD) |
| Environment | Temperature / Humidity | -30°C ~ 70°C (-22°F~158°F) / 10~90% NC (Without NVMe SSD); -15°C ~ 50°C / 10~90% NC (With NVMe SSD) |
| Chassis | Dimension (W x D x H) | 94 x 153 x 28 mm |
| Weight (Net / Gross, KG) | 0.45 / 1.05 |
| Additional Information | Mounting | Desk, Wall |
| Certification | CE, FCC, KC, UKCA |
