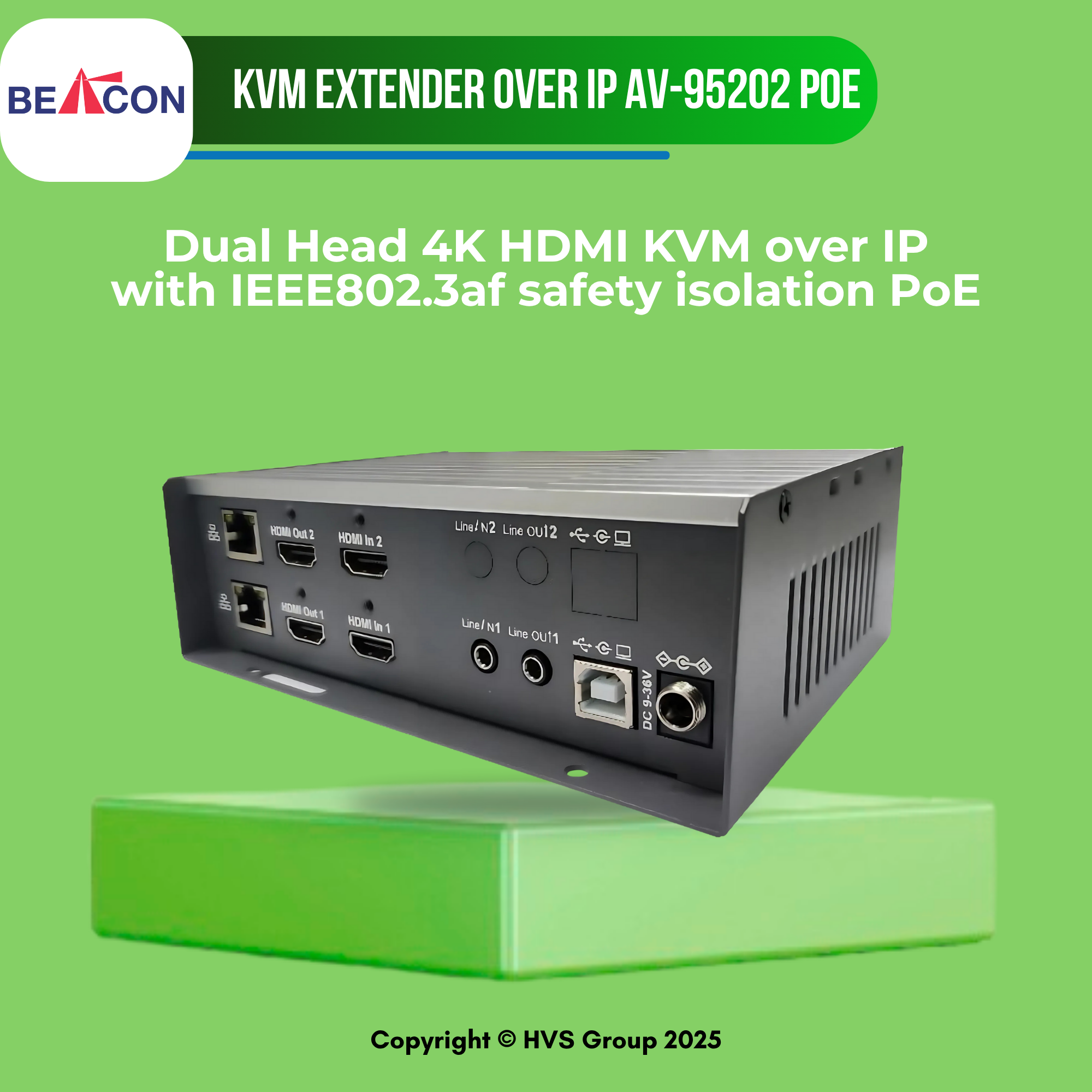

AV-95202 rev. PoE – Dual-Head 4K HDMI USB KVM Extender over Gigabit PoE Ethernet

The AV-95202 rev. PoE is an ideal solution for extending dual 4K HDMI video, audio, and USB signals over a Gigabit Ethernet network with PoE (Power over Ethernet) support. This system consists of the AV-95202LT-P Dual-Head Transmitter and the AV-95202R-P Dual-Head Receiver.

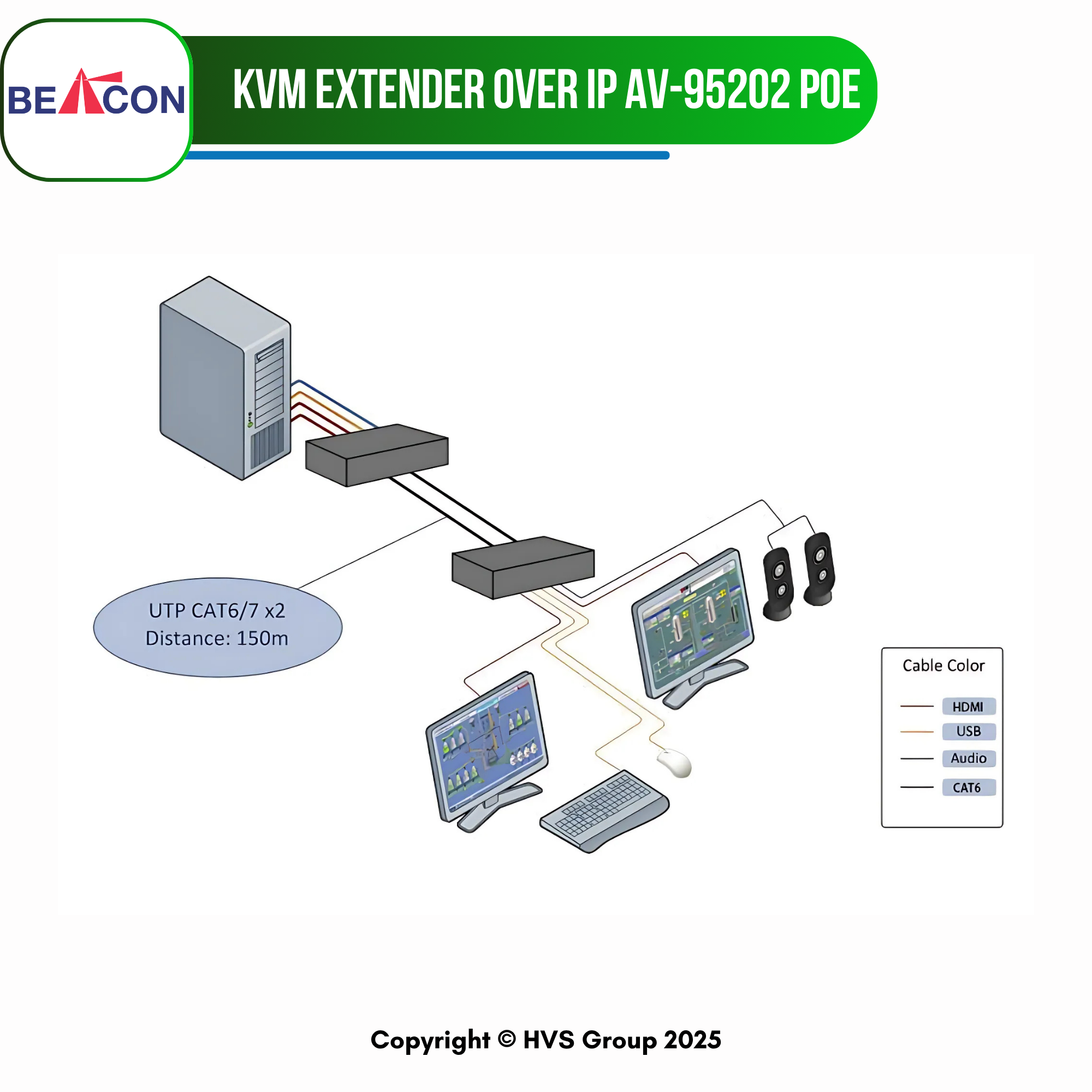

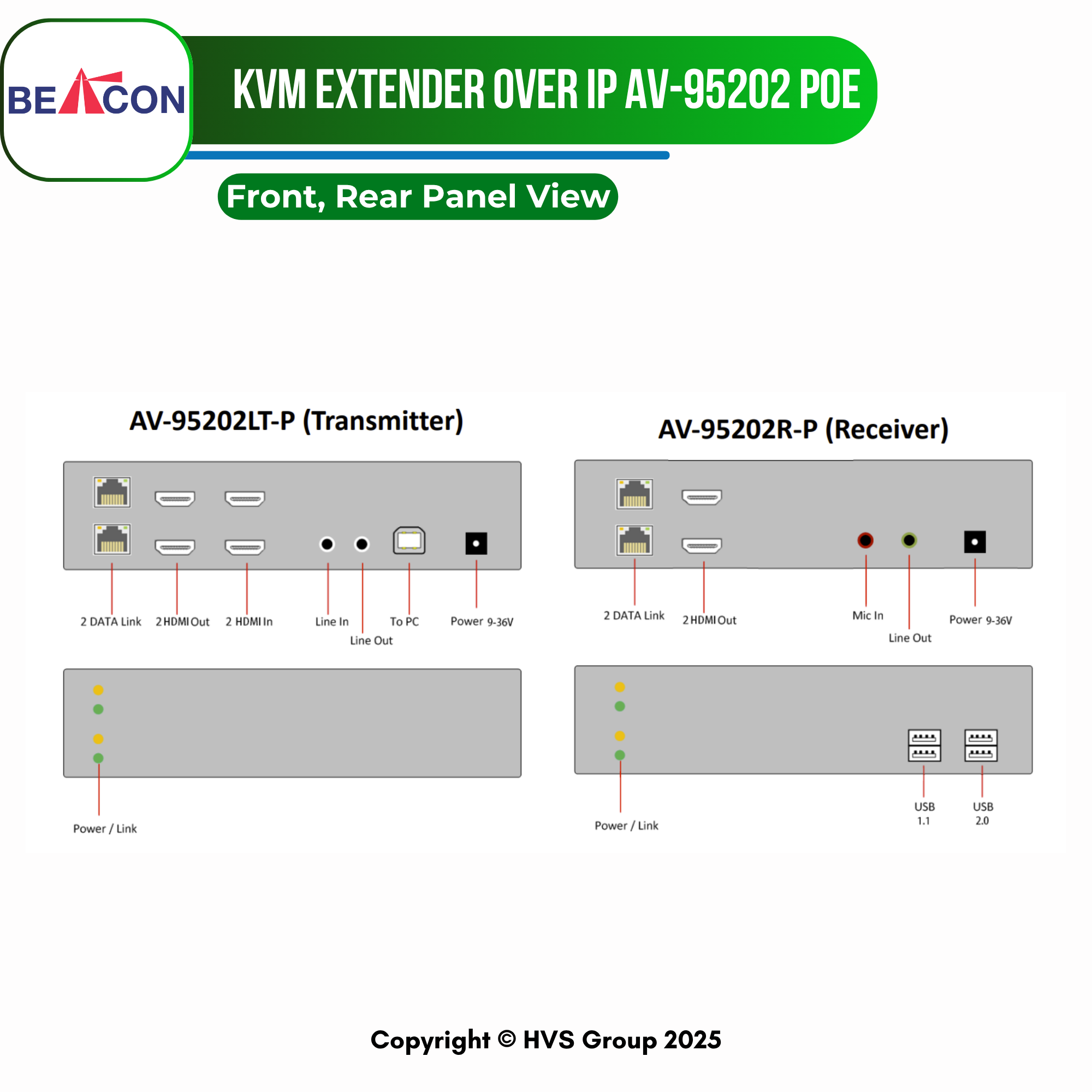

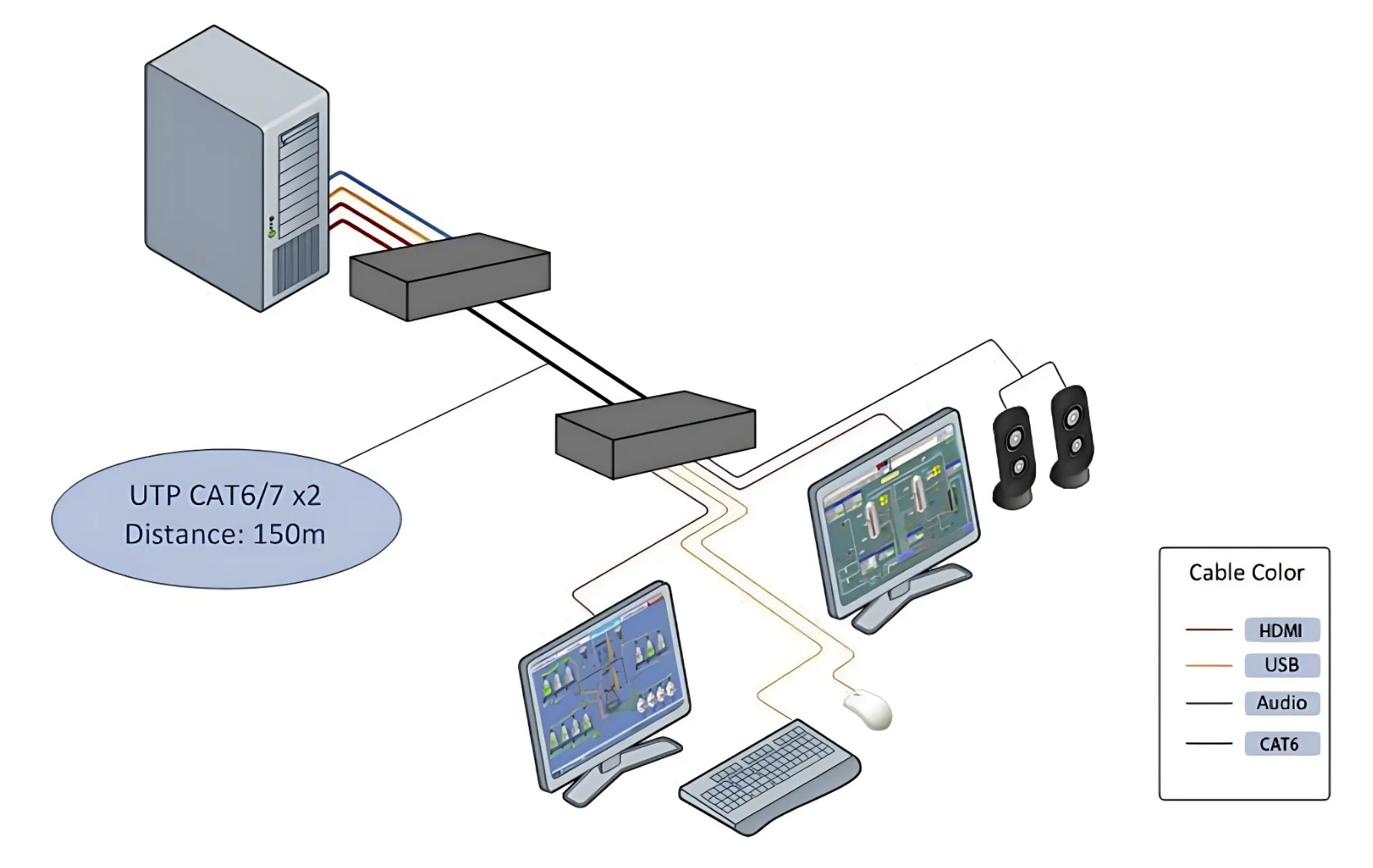

• The Transmitter (Tx) connects to a PC or workstation with dual HDMI outputs, audio, and USB ports. It converts these signals into IP packets for transmission over the network.

• The Receiver (Rx) connects to two HDMI displays, speakers, a microphone, and USB devices. It receives the IP stream from the transmitter, decodes the signals, and delivers them to the connected output devices.

Built on standard IP-based Gigabit Ethernet technology, this solution supports flexible and scalable deployments. With PoE capability, both Tx and Rx units can be powered directly through the Ethernet cable, simplifying installation by eliminating the need for separate power supplies.

Ideal for:

• Central control room applications requiring dual-display setups

• Command centers and monitoring stations

• Enterprise AV/KVM deployments in corporate, medical, broadcast, or military environments

The AV-95202 rev. PoE offers high-performance, dual-head 4K video extension with full KVM functionality, making it the perfect choice for mission-critical and professional AV-over-IP applications.
