BEACON DV-95252 Dual Head DVI-I USB KVM Extender over IP

BEACON DV-95252 Dual Head DVI-I USB KVM Extender over IP

DV-95252 is an IP-based KVM extender for Dual-Head DVI-I video, USB 2.0, audio, and RS-232 transmission over Gigabit Ethernet. Supports both single-PC dual-video and dual-PC single-video modes, ideal for centralized control and video wall systems.

Follow

Share

Facebook
Twitter
LinkedIn

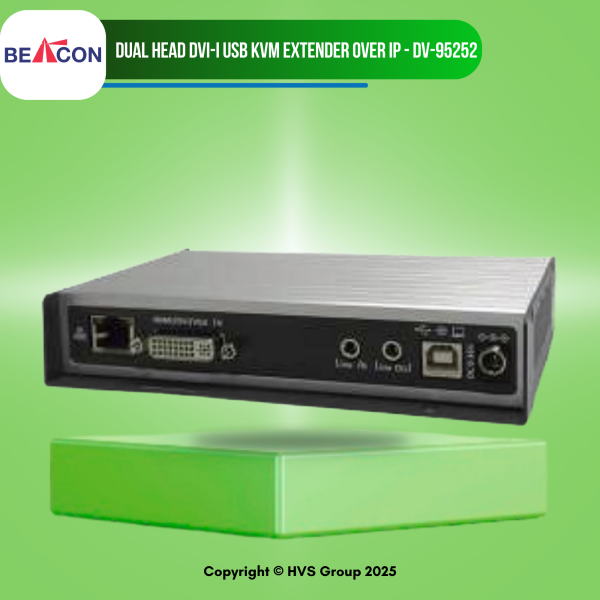

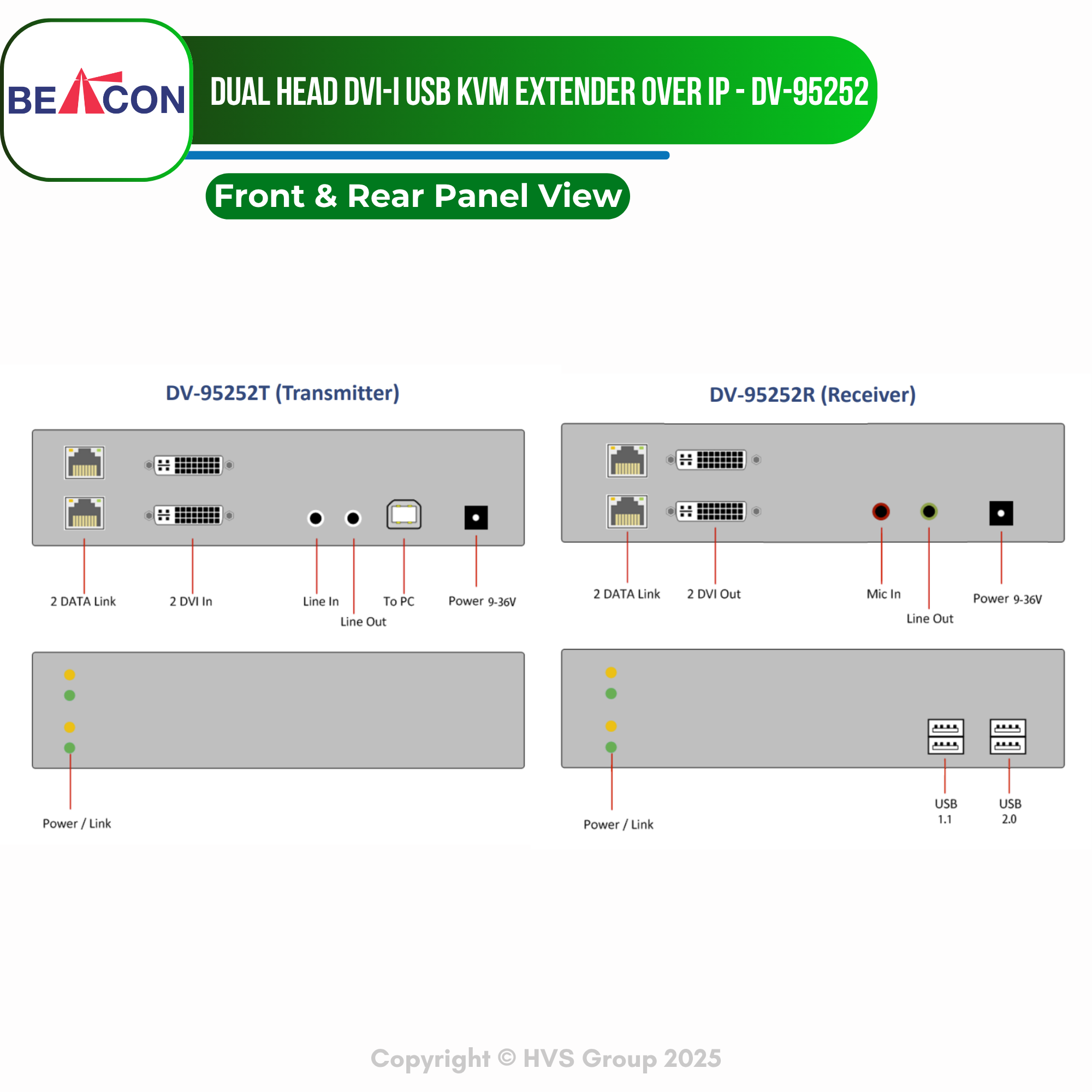

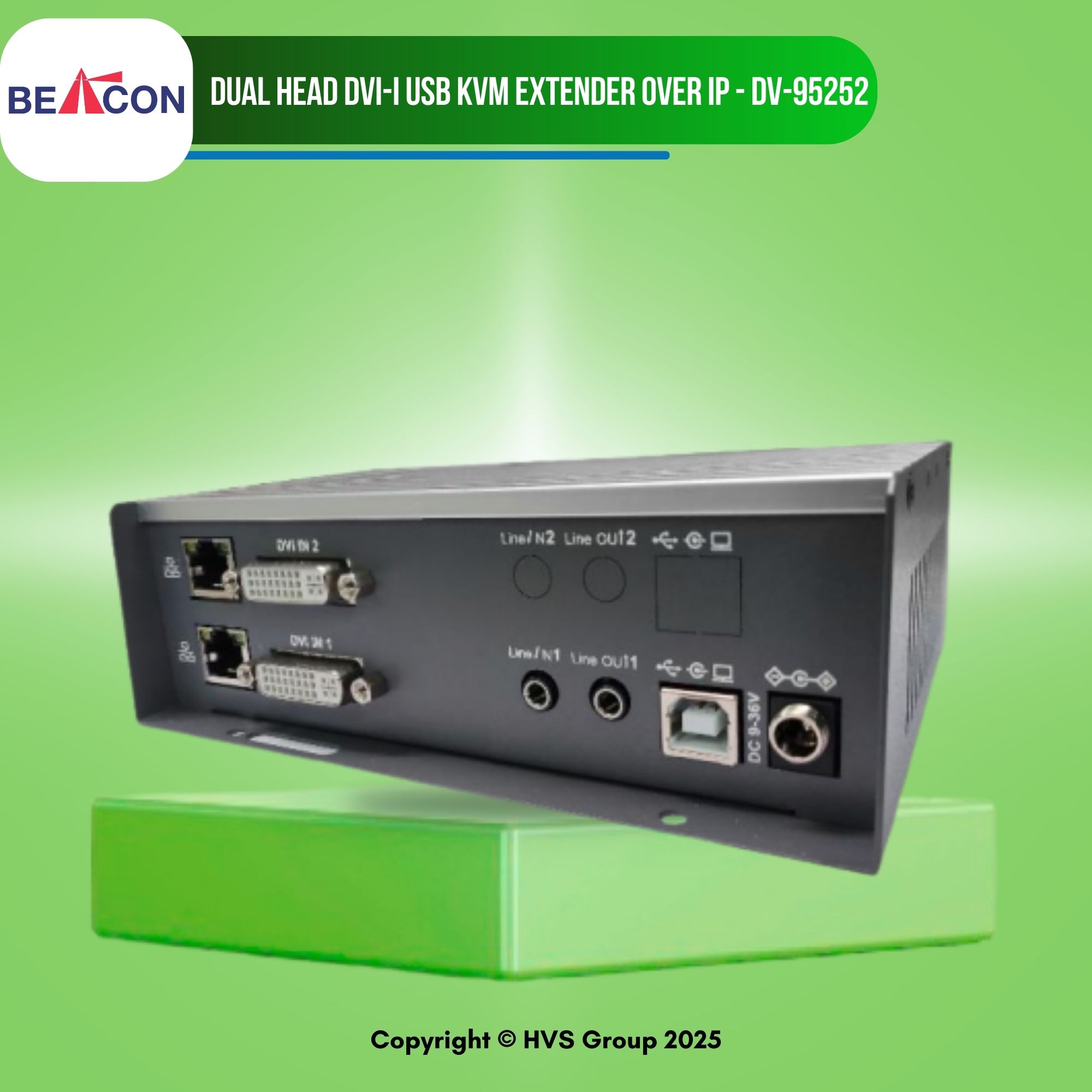

The DV-95252 is a high-performance Dual Head DVI-I + Audio + USB KVM Extender designed for seamless transmission of dual video, audio, and USB signals over Gigabit IP Ethernet. The system includes a DV-95252T Dual Head Transmitter and a DV-95252R Dual Head Receiver, forming a complete end-to-end solution ideal for applications requiring multi-display control, such as central control rooms, command centers, and professional workstation environments.

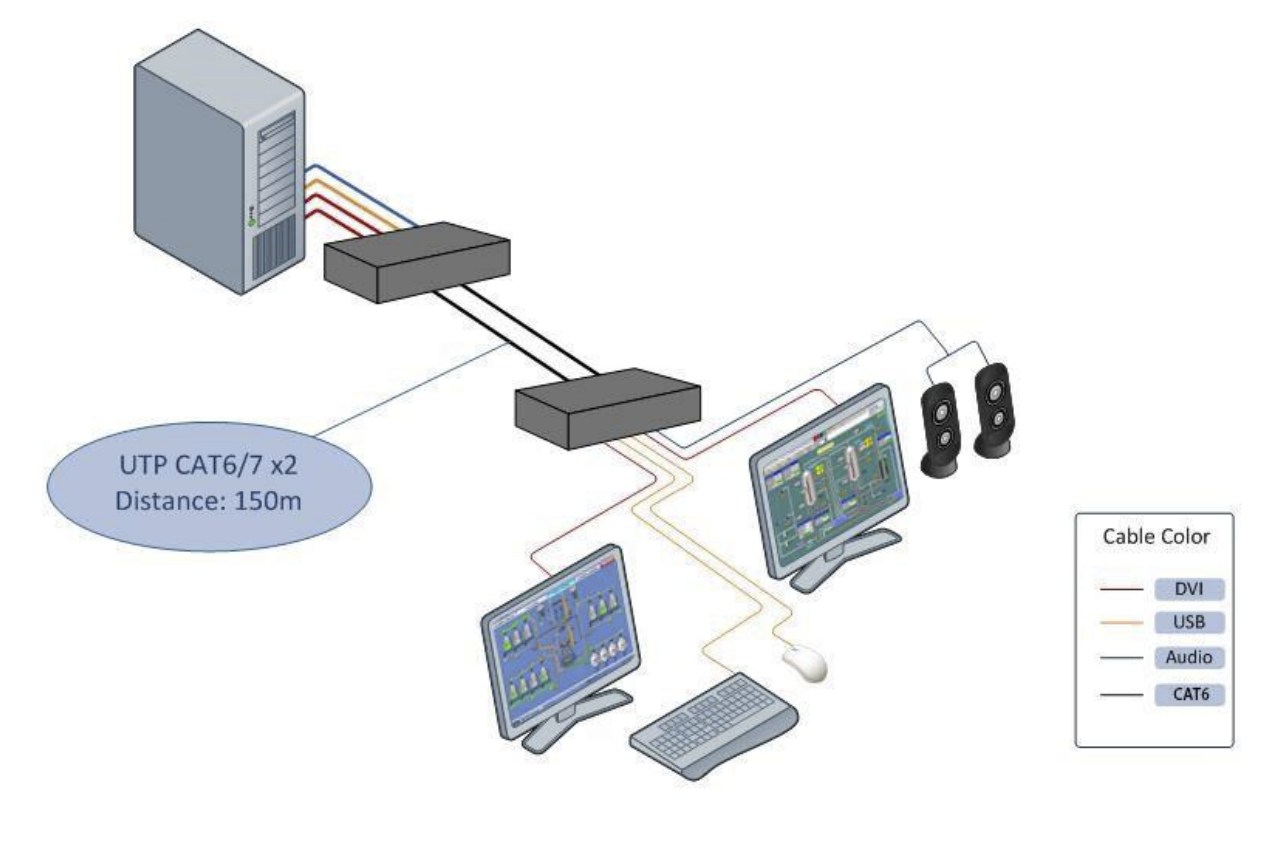

This flexible solution supports two operating modes: it can be configured for a single PC with dual video outputs, or two PCs each with a single video output, along with audio and USB peripheral support. The Transmitter connects to the source device(s), while the Receiver outputs to two DVI or VGA displays, USB devices, microphone, and speakers, enabling full KVM (Keyboard, Video, Mouse) control over IP.

Built on standard IP technology, the DV-95252 enables real-time signal conversion and transmission without the need for complex networking setups. The Transmitter captures and encodes the input signals—video, audio, and USB—then sends them directly over the network to the Receiver. On the receiving end, the DV-95252R decodes and outputs the signals to connected displays and peripherals with zero-latency performance, providing a smooth and responsive user experience.

With support for DVI-I, the system accommodates both digital and analog video signals (VGA), making it highly adaptable to a range of display types. The DV-95252 is an ideal solution for dual-display workstation control, offering remote access, centralized management, and high-quality video/audio transmission across standard network infrastructure. Whether in mission-critical environments or multi-screen workflows, this extender ensures reliable, crystal-clear, and responsive operation.

  • Support Single PC with Dual video, or Dual PC with Single video.
  • DV-95252R supports Dual head DVI-I (DVI-D + VGA) video 1080p or PC 1920×1200@60Hz.
  • Standard Gigabit Ethernet IP based, UDP API support.
  • Support Web GUI for the configuration.
  • Support OSD Menu for Transmitter connection, Push Video-Wall.
  • Support Matrix Connection, Video-Wall Management Software.
  • Support Virtual USB HUB in Exclusive or Sharing mode.
  • Support USB 2.0 extension for keyboard, mouse, touch, storage.
  • Support both HDMI and 3.5mm stereo audio and microphone.
  • Support Bi-Direction RS-232 extension.
  • Pure hardware design, plug-and-play, no additional software is required.
  • FCC, CE, RoHS
