BEACON DP-962b Dual DP KVM Extender over UTP and SFP Fiber

BEACON DP-962b Dual DP KVM Extender over UTP and SFP Fiber

Category

DP-962b is a dual-channel DisplayPort KVM extender that transmits two 4K@30Hz DP video signals, USB 2.0, bi-directional audio, and RS-232 over IP via CAT6 or SFP fiber. Ideal for high-resolution dual-monitor control systems across long distances.

Follow

Share

Facebook
Twitter
LinkedIn

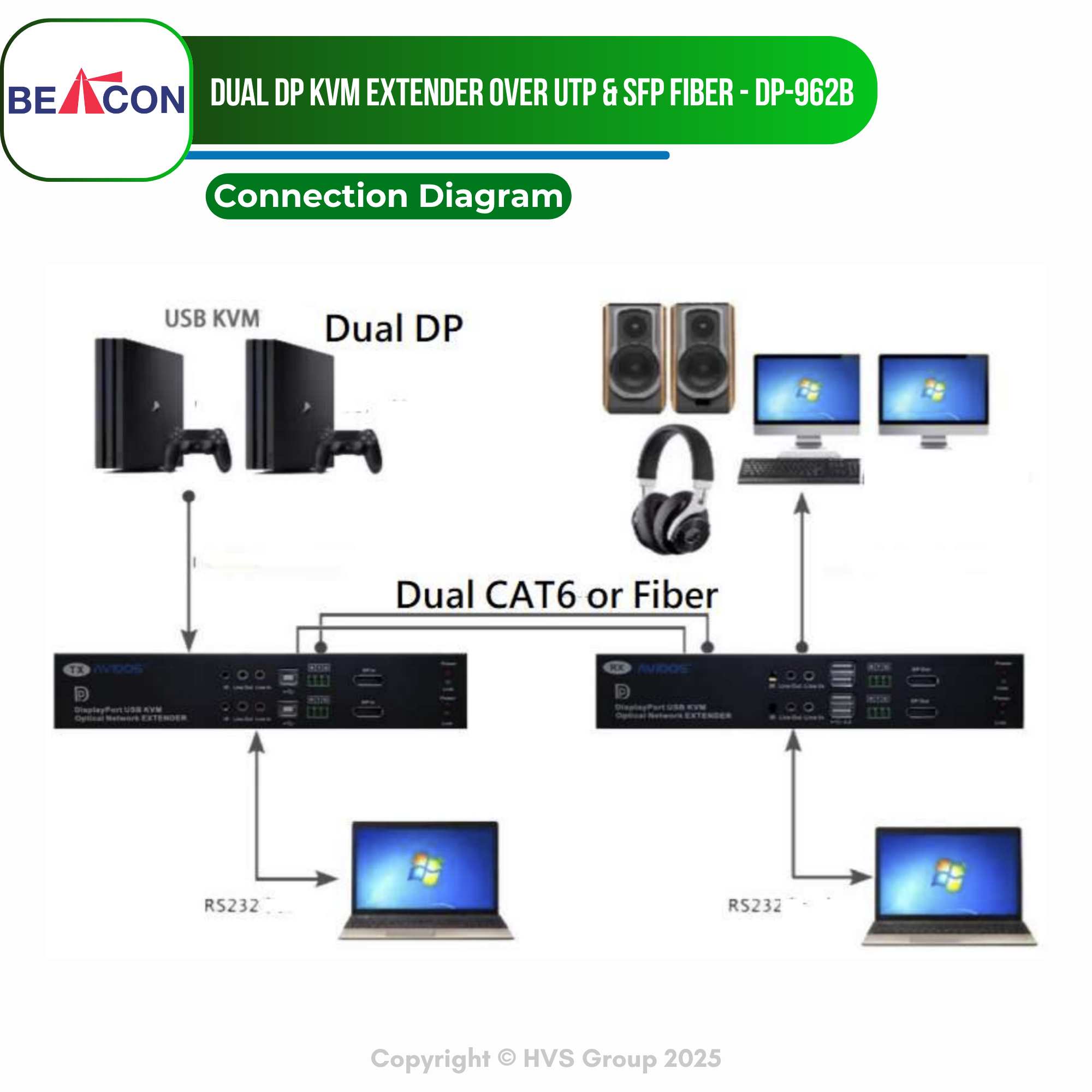

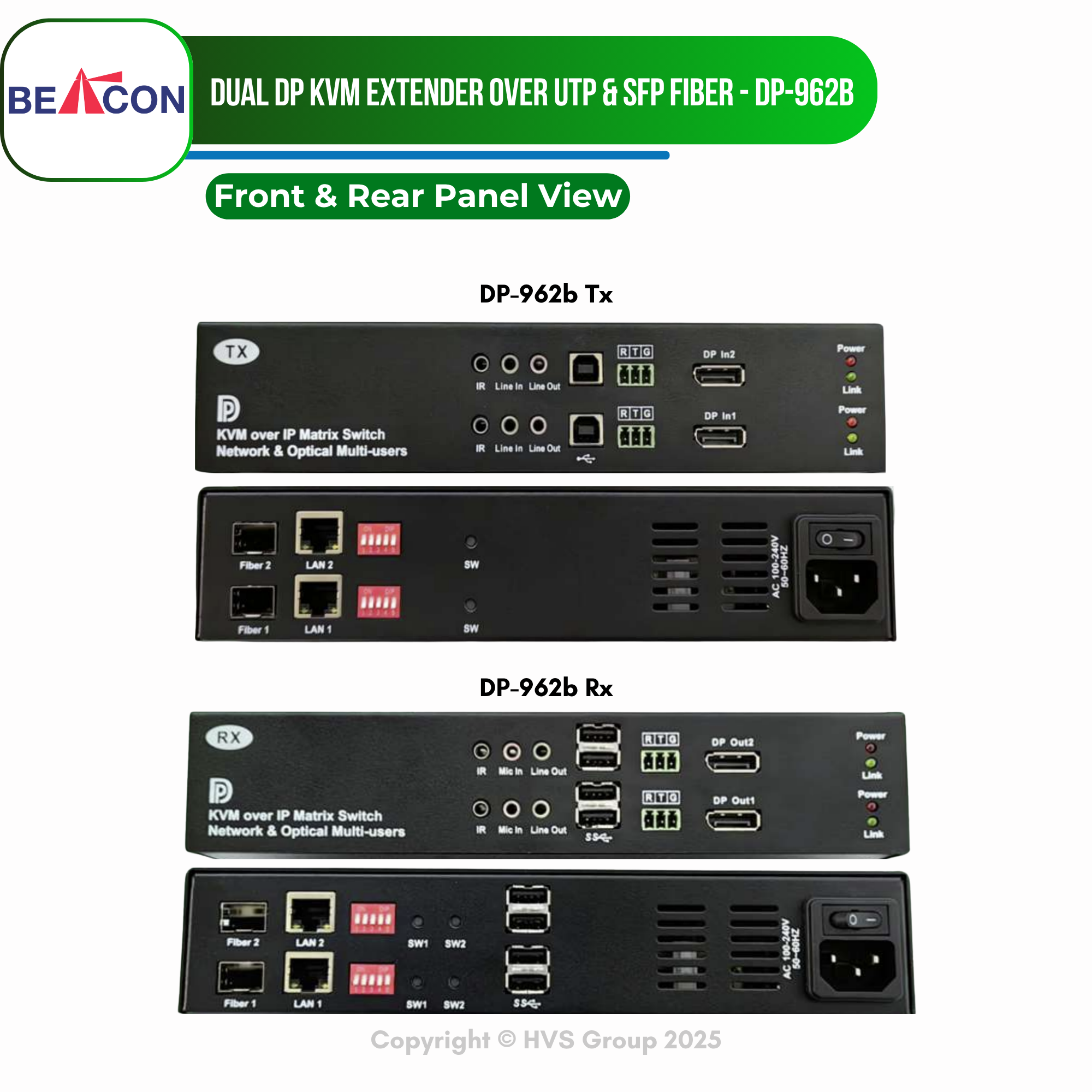

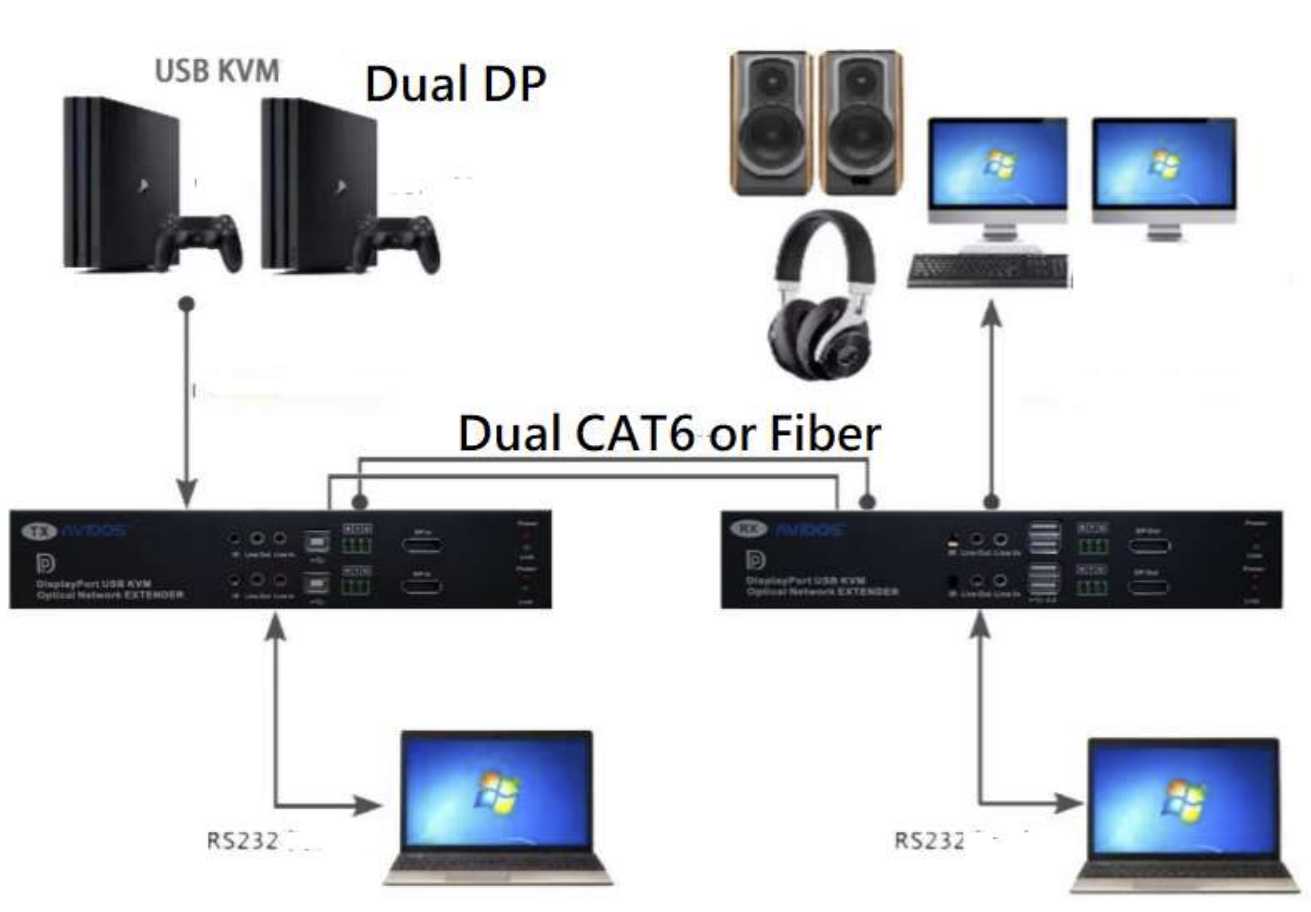

The DP-962B is a high-performance IP-based extender that enables the transmission of dual 4K30 DisplayPort video signals, along with USB, 3.5mm stereo audio, and bi-directional RS-232 control, over long distances with exceptional reliability and video quality. The system consists of a Transmitter unit and a Receiver unit, forming a complete point-to-point solution ideal for demanding professional AV environments.

Using a single CAT6 cable, the DP-962B can extend signals up to 150 meters at 1080p or 100 meters at 4K30 resolution. For even greater distances, the system supports SFP fiber modules, providing transmission up to 10 kilometers using single-mode fiber (SM) or 300 meters using multi-mode fiber (MM)—making it suitable for applications that span across buildings or large installations.

The DP-962B is built on a Gigabit Ethernet physical layer and incorporates a visually lossless video compression algorithm, ensuring ultra-clear, razor-sharp video quality with minimal latency and no noticeable degradation. Its robust design provides stable performance even in electrically noisy environments, making it an ideal choice for control rooms, broadcast studios, command centers, and any setting where dual-display extension is needed with uncompromising visual fidelity.

In addition to high-resolution video, the extender supports USB peripheral devices, analog audio, and 2-way RS-232 communication, offering full interactivity and control over long distances. With plug-and-play setup and no software installation required, the DP-962B delivers a simple yet powerful solution for dual DisplayPort extension in complex professional AV installations.

  • Support Dual DP 4K30, 1920×1200@60Hz resolution with Low Latency.
  • Support IP based Gigabit Ethernet Switch for transmission, built in both RJ45 and SFP connection.
  • Rx Supports 4 x USB 2.0 ports for Keyboard, Mouse, Touch, Joystick.
  • Support bi-directional 3.5mm audio, and RS-232.
  • Support Auto EDID from Rx screen.
  • Pure hardware design, plug-and-play, no additional software installation is required.
