- Support 1080p or 4K (3840 x 2160) resolution.
- All TX/RX are based on Gigabit Ethernet Switch, easy cabling, easy installation, easily maintain.
- Support one-to-one (Unicast), one-to-many (Multicast) for Audio/Video real time broadcasting.
- Support many-to-many Group Broadcasting if the Ethernet switch enabled the IGMP.
- Support USB for KVM PC control, you can attach keyboard, mouse, touch screen, storage at the Receiver site to control the PC at the Transmitter site.
- The 4K2K Encoder/Decoder engine built with Scaling function, multiple RXs are flexible to be
configured as Video-Wall displays with 180, 270゜Rotation. - Support both HD and 3.5mm stereo audio, you can use speaker/microphone at the Receiver.
- Support IR option, you can use the IR remote controller at Receiver site to control the set-top box at
the Transmitter site. - Support RS-232 bridge option, you can send RS-232 data in between PC and screens.
- Pure hardware design, plug-and-play, no any additional software installation required.
- Built-in HTTP for the IP address, device name, Multi/Unicast, Baud Rate, … settings.
- Provide Connection Manager Software for Transmitters/Receivers connection Management.
- Provide Video-Wall Manager Software for Video-Wall Configuration and Operation Management.
- FCC, CE, RoHS compliant.

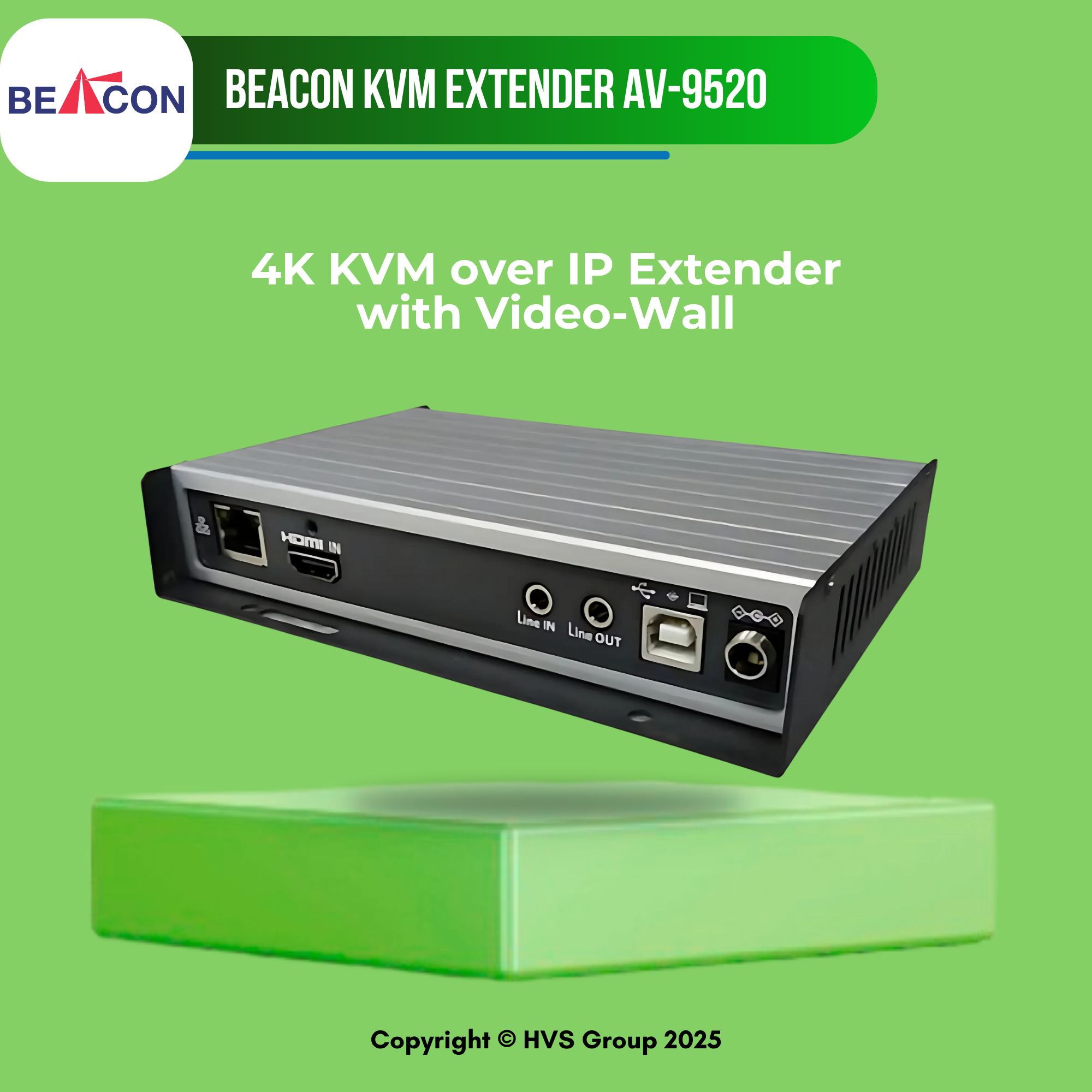

BEACON AV-9520 4K KVM over IP Extender with Video-Wall
BEACON AV-9520
4K KVM over IP Extender with Video-Wall
AV-9520 – 4K KVM over IP Solution with USB/IR/RS232 via Gigabit Ethernet
The AV-9520 is a high-performance solution for extending 4K video, audio, USB, IR, and RS232 over Gigabit IP Ethernet, ideal for modern AV and KVM applications. The system includes the AV-9520T Transmitter (TX) and AV-9520R Receiver (RX).
The TX connects to a 4K source device such as a PC or Blu-ray player, converting input signals (video, audio, USB, etc.) into IP packets. These packets are transmitted via Multicast or Unicast through a Gigabit Ethernet switch.
The RX connects to output devices such as a display, speakers, microphone, and USB peripherals, receiving the IP stream and converting it back to original signals.

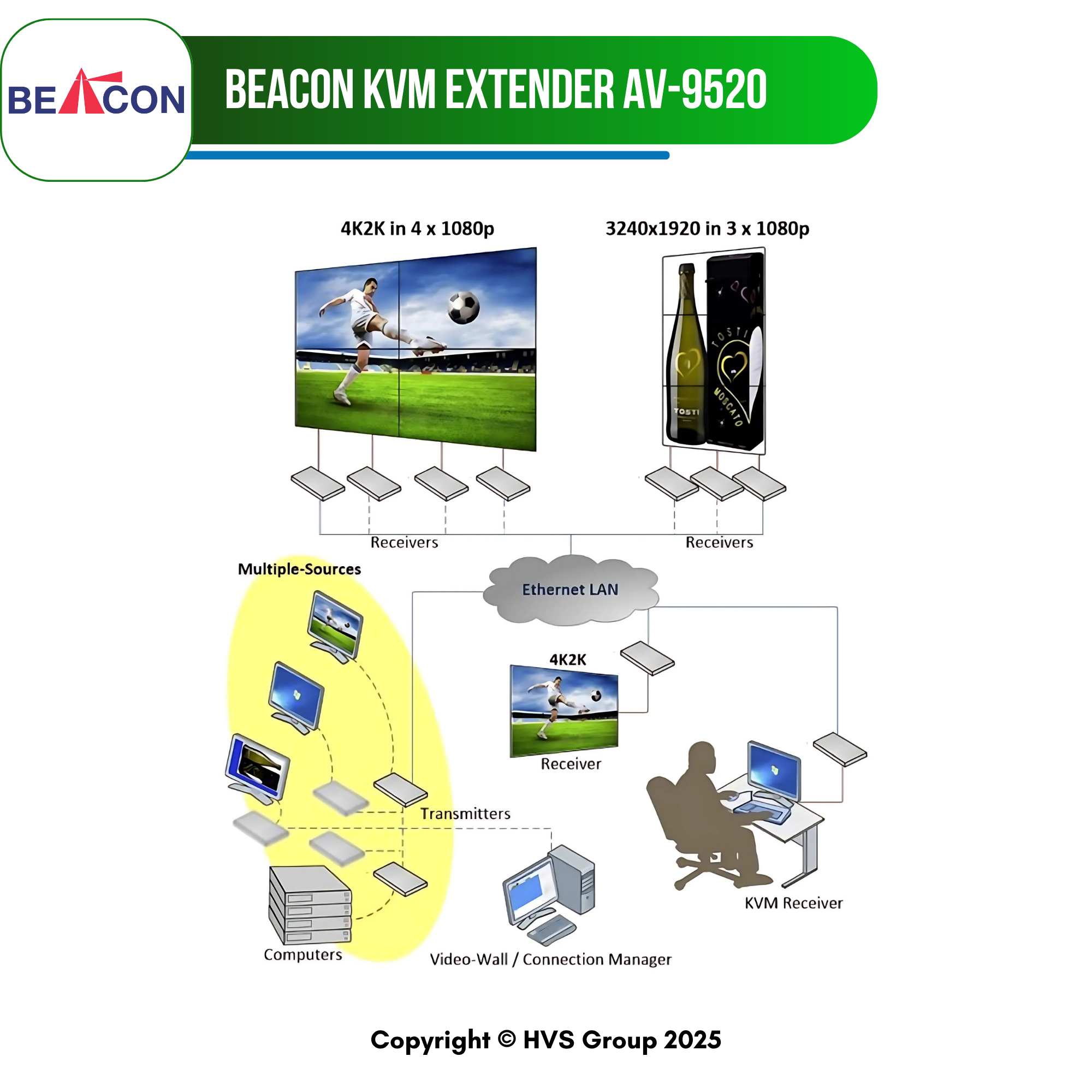

Built on standard IP technology, the AV-9520 system features a powerful 4K2K Encoder/Decoder engine with integrated scaling functionality, enabling flexible video wall configurations using multiple RX units.
This makes the AV-9520 an ideal choice for:
AV broadcasting
KVM matrix control
Video wall displays
Digital signage in:
Corporate boardrooms
Courtrooms
Educational environments
Medical and military facilities
Public and entertainment venues
The AV-9520 offers a scalable, flexible, and reliable AV-over-IP solution for demanding professional environments.
