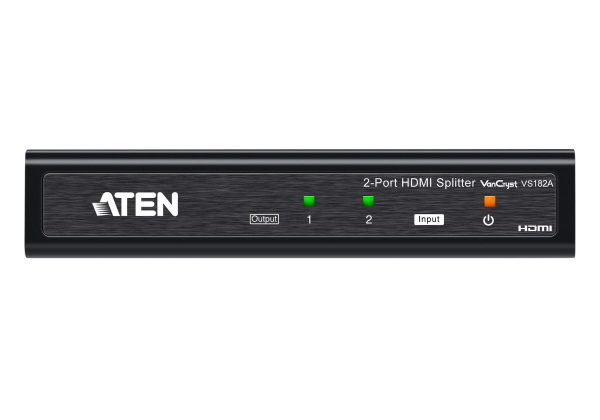

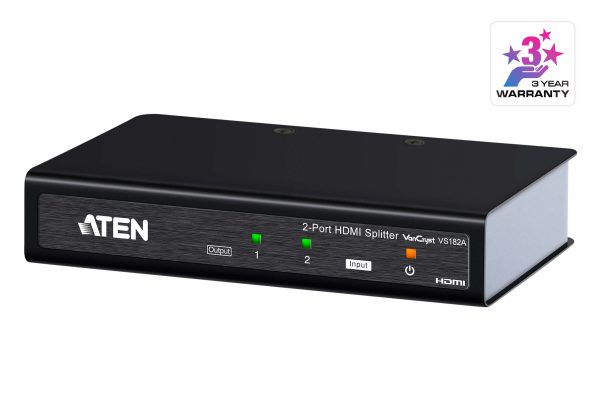

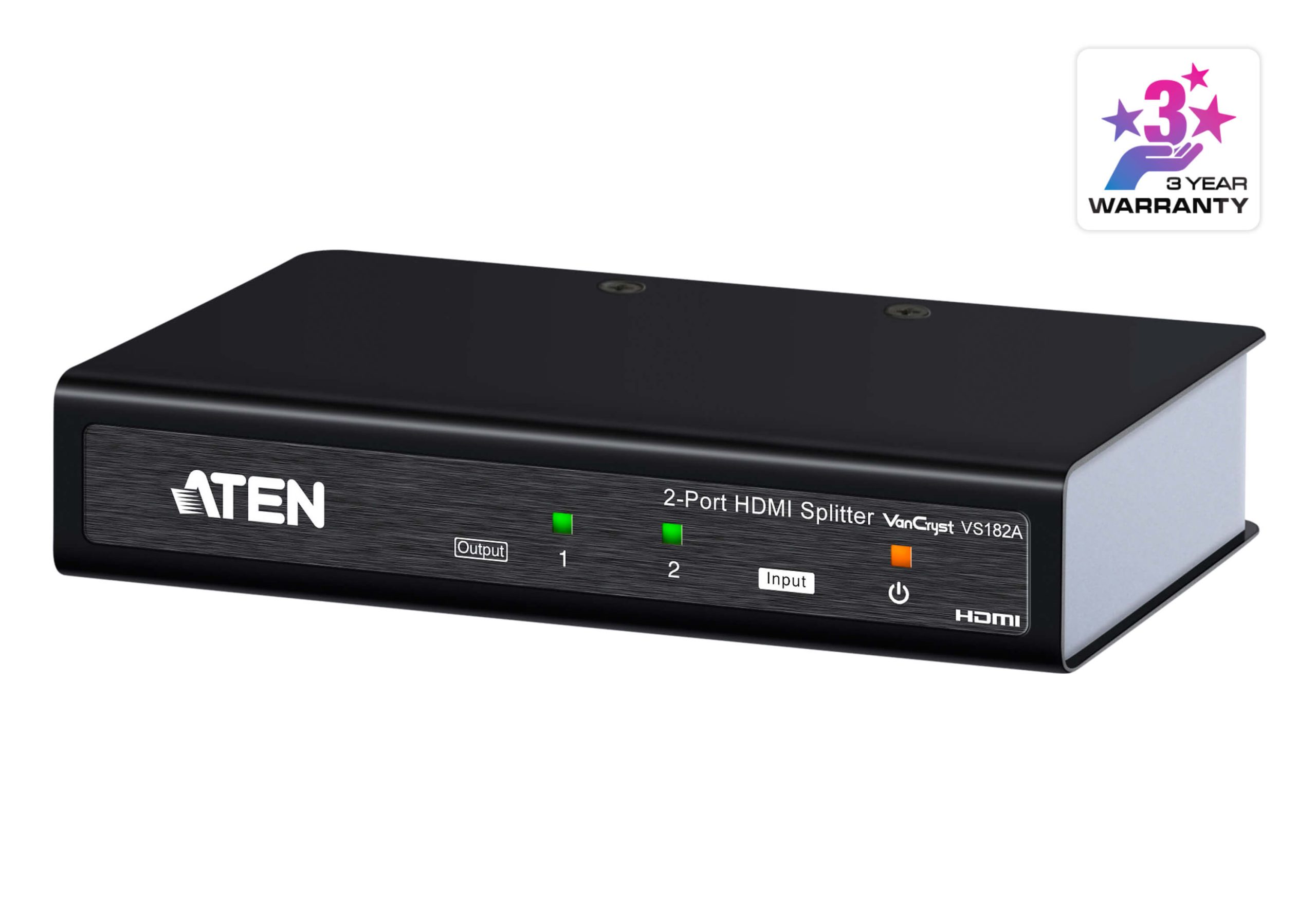

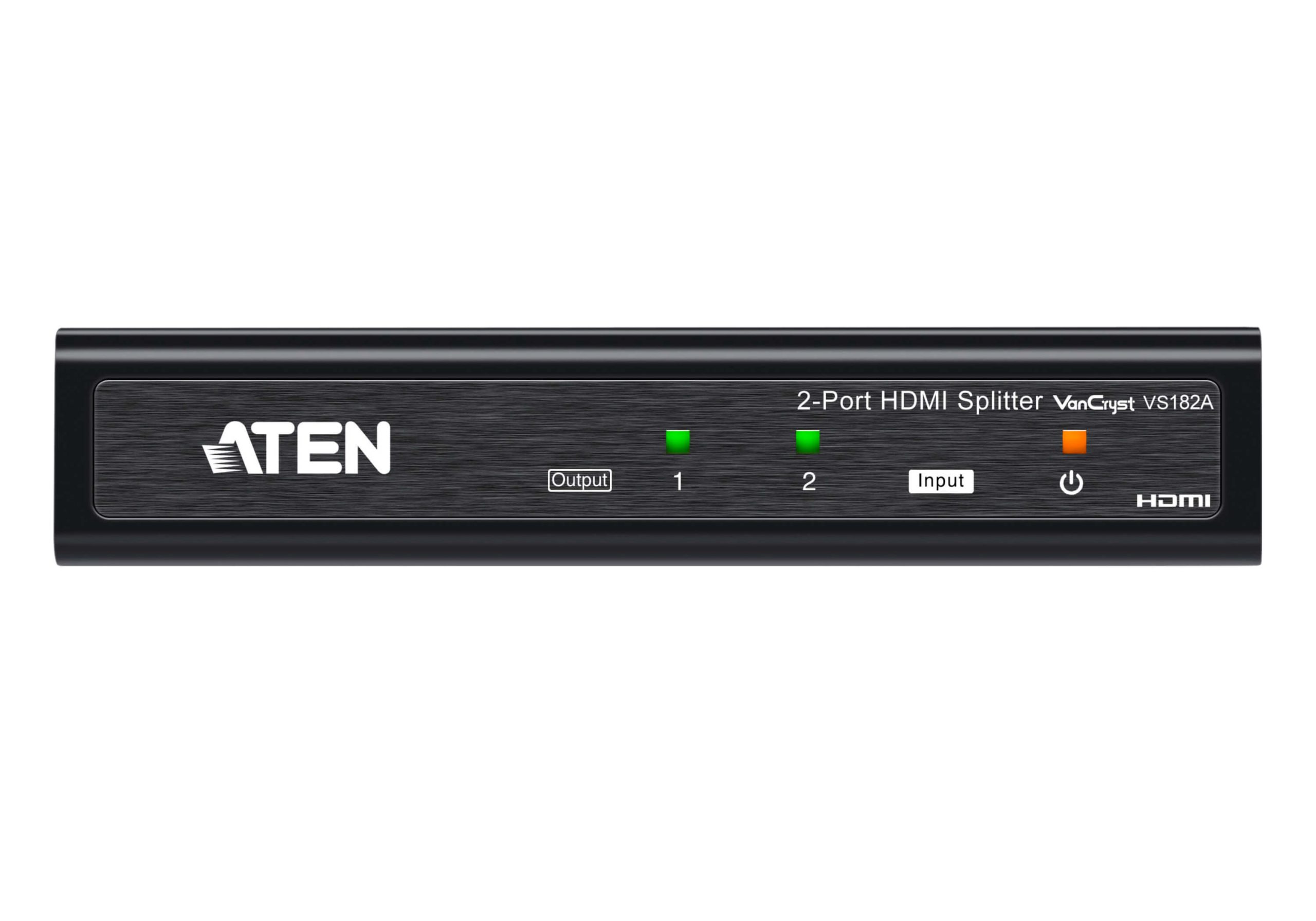

ATEN VS182A
2-Port 4K HDMI Splitter
The VS182A is a 2-port video splitter that mirrors 4K audiovisual content from a single HDMI source to two HDMI displays simultaneously. It’s an ideal addition to any AV setup where reliable content sharing is essential – such as home entertainment systems, SOHO studios, meeting rooms, classrooms, and more.
One Source, Dual Video Distribution

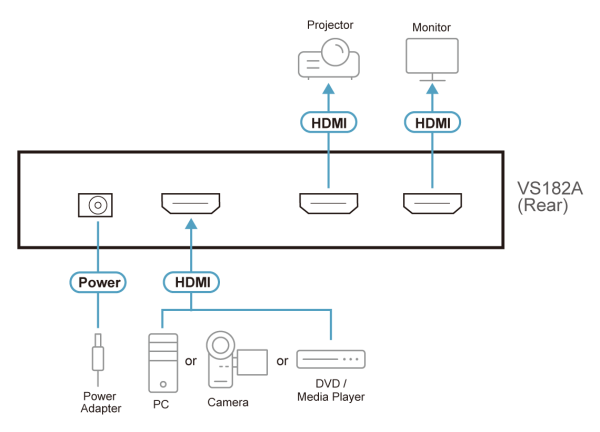

The splitter accepts input from an HDMI device – such as a PC, laptop, media player, and more – and streams the AV content to up to two HDMI-enabled displays, making it suitable for both consumer and professional applications.
Pristine 4K Clarity
The VS184A supports Ultra HD resolutions up to 4K (3840×2160 @ 30Hz, 4:4:4), delivering crystal-clear detail.
Flexible Long-Distance Cabling
Applications
The video splitter is ideal for applications that require seamless distribution of pristine audiovisual content across multiple displays, ensuring a stunning viewing experience in any AV setup.
Commitment to Best Quality
Each product is rigorously tested under diverse environmental conditions to ensure high-quality, reliable, and cost-effective performance for our customers.
Spesification

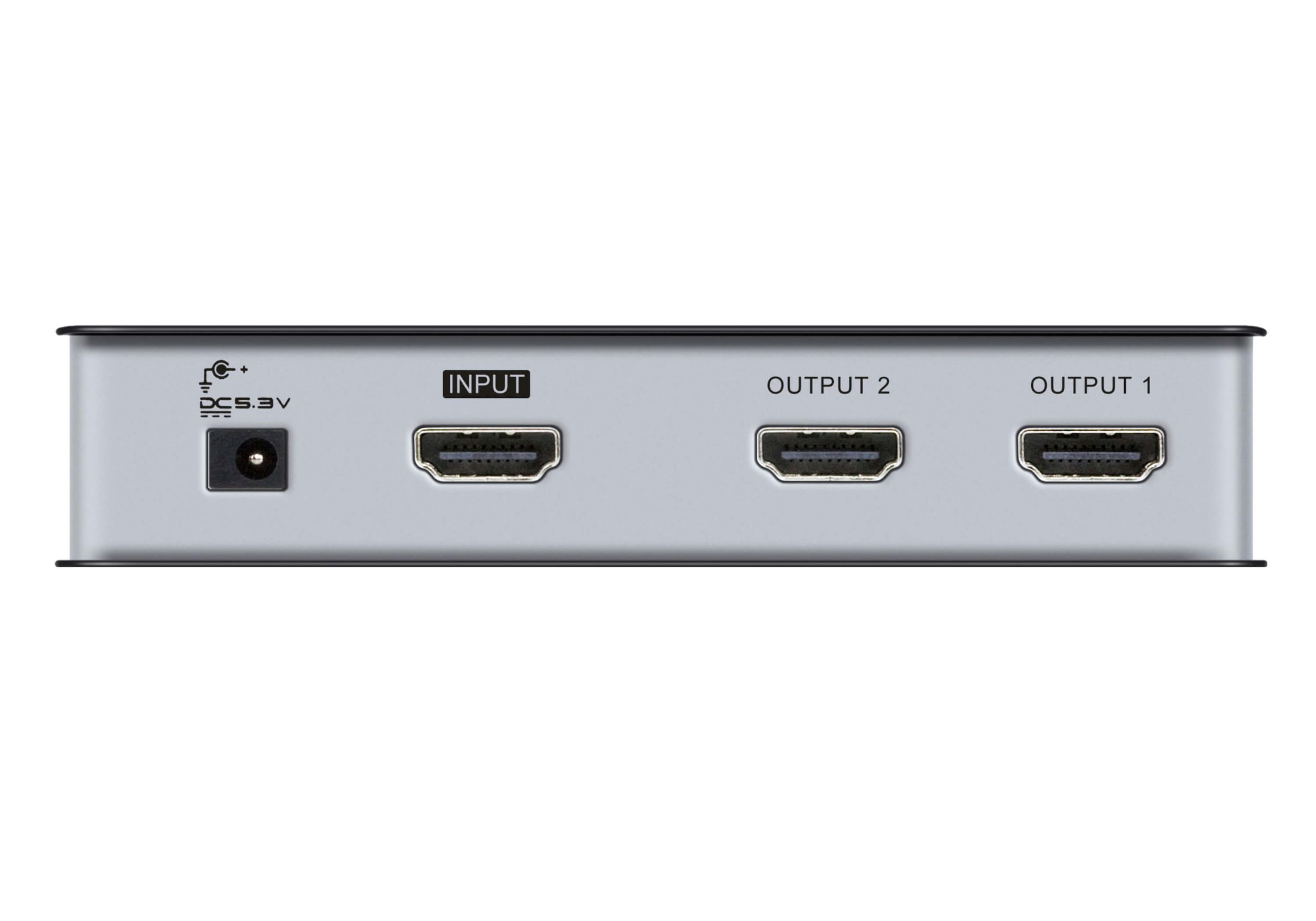

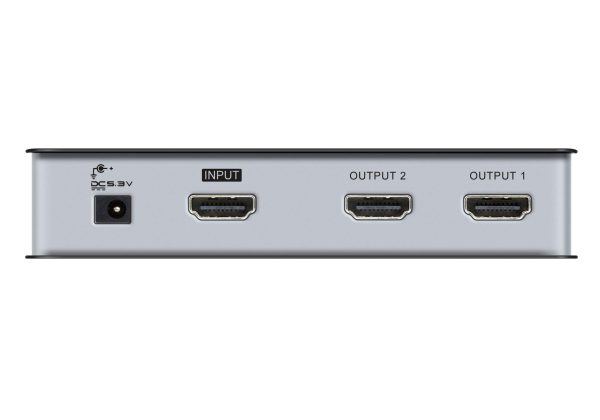

| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 3m @3840×2160@30Hz (4:4:4) |
| Video Output | |
| Interfaces | 2 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 15m @3840×2160@30Hz (4:4:4) |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP Compatible |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | |
| Input | 1 x HDMI Type A Female (Black) |
| Output | 2 x HDMI Type A Female (Black) |
| Connectors | |
| Power | 1 x DC Jack |
| Environmental | |
| Operating Temperature | 0-50 °C |
| Storage Temperature | -20 – 60 °C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.31 kg ( 0.68 lb ) |
| Dimensions (L x W x H) | 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.) |
| Carton Lot | 20 pcs |
| Power Consumption | DC5.3V:3.12W:15BTU/h Note: |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
