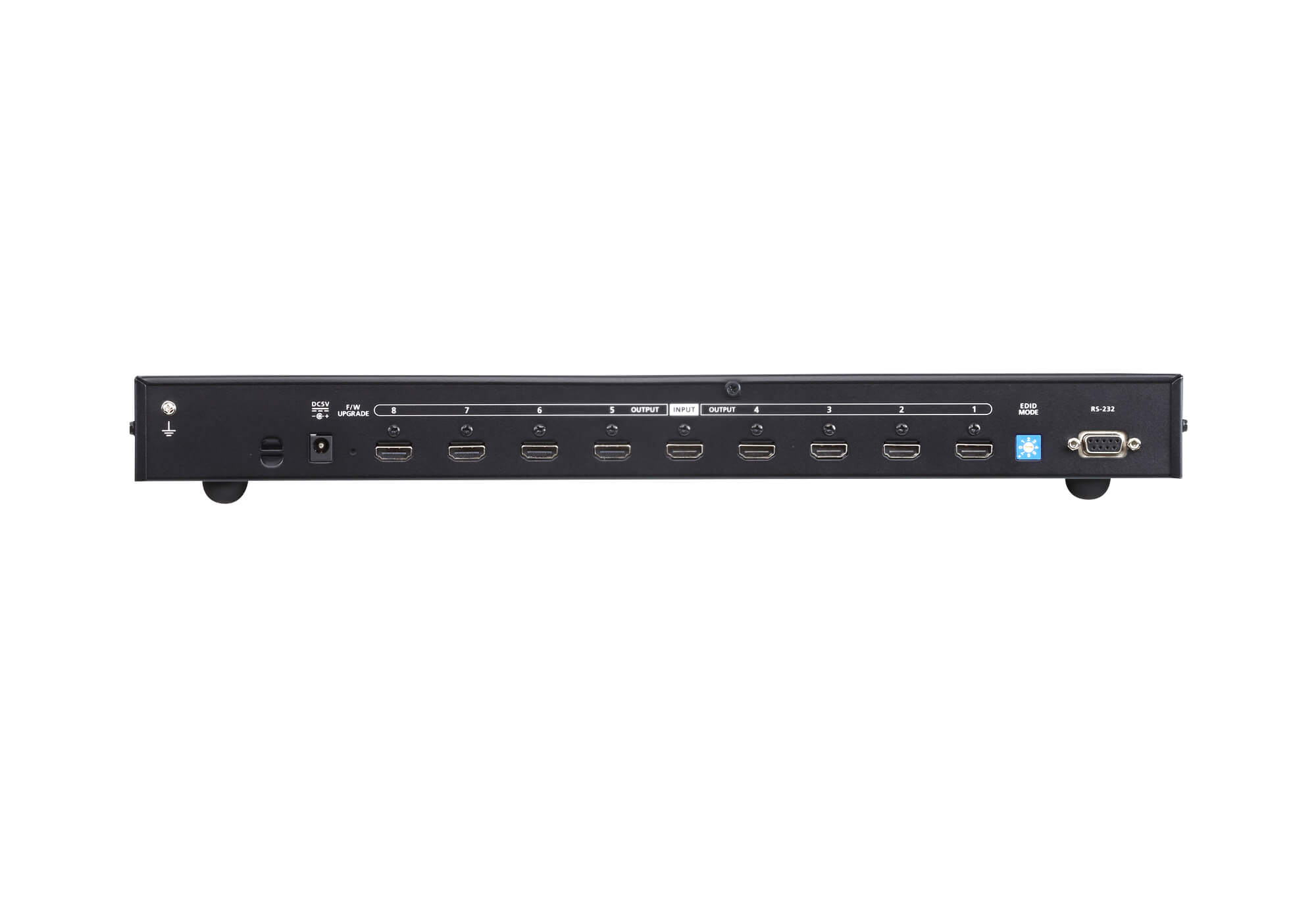

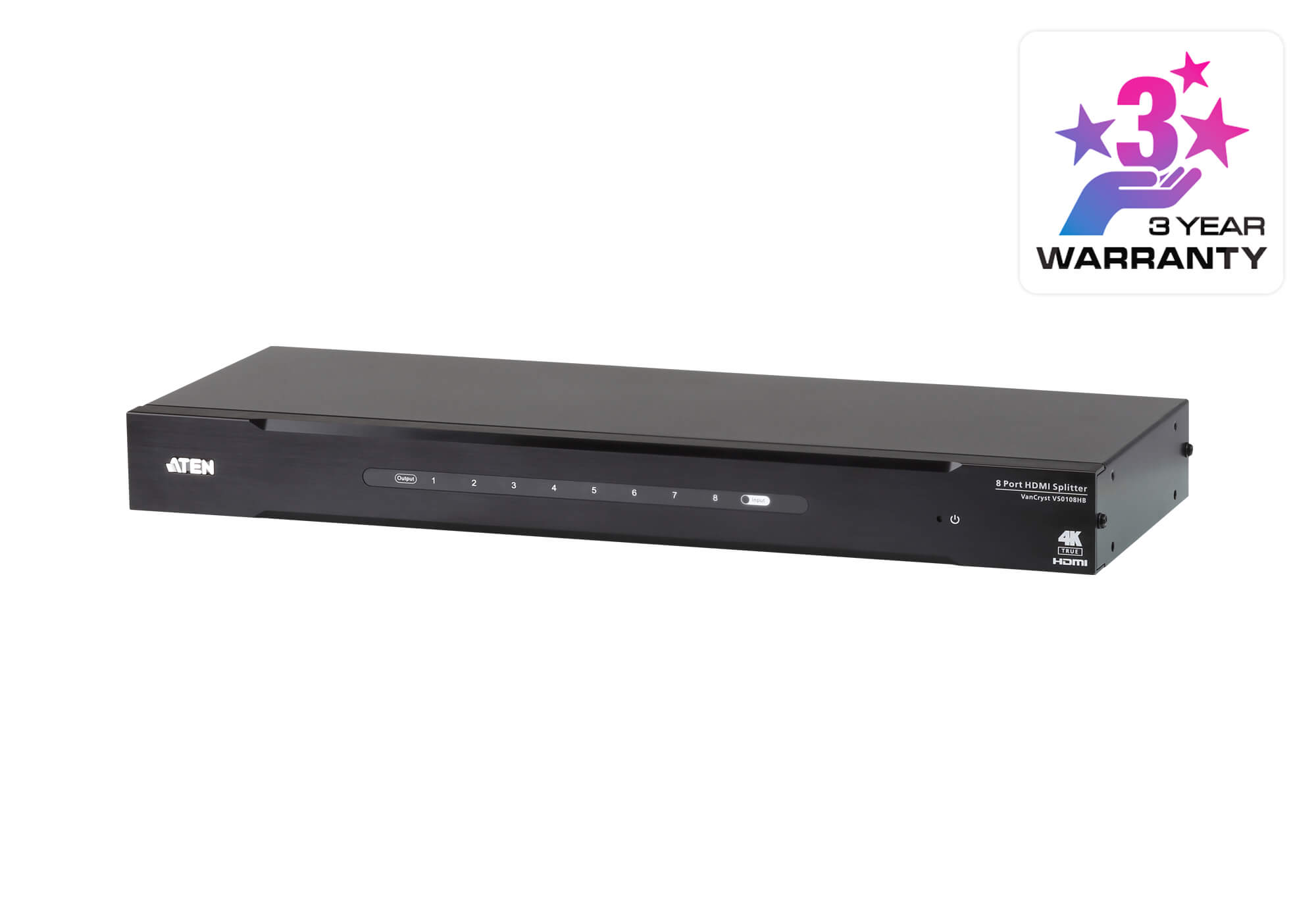

ATEN VS0108HB
8-Port True 4K HDMI Splitter
The ATEN VS0108HB is designed for applications that require the routing of one HDMI source to 8 compatible display devices. It supports Dolby True HD and DTS HD Master Audio, video signals up to True 4K, data rates up to 18 Gbps, 3D, and HD lossless audio formats. Featuring ATEN EDID technology, the VS0108HB guarantees continuous EDID communication with connected devices and ensures that the HDMI sources power-up properly and maintain correct video outputs.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, ATEN VS0108HB is a powerful solution for a wide range of settings, such as home theater, commercial settings, educational centers, meeting rooms, or wherever needed to meet application requirements.
Package Contents
- 1x VS0108HB 8-Port True 4K HDMI Splitter
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions
Specifications
| LEDs | |
| Input | 1 x LED (Green) |
| Video Output | 8 X LED (Green) |
| Power | 1 x LED (Green) |
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5M at 4K@60Hz (4:4:4) |
| Video Output | |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5M at 4K@60Hz (4:4:4) |
| Video | |
| Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Control | |
| RS-232 | Connector: DB-9 Female (Black) x 1 Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| EDID Settings | EDID Slide Switch x 1 EDID Mode: Port 1 / Default / Auto / Switch |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:11.95W:56BTU/h Note: |
| Environmental | |
| Operating Temperature | 0-40 °C |
| Storage Temperature | -20 – 60 °C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 2.18 kg ( 4.8 lb ) |
| Dimensions (L x W x H) | 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.) |
| Carton Lot | 3 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Datasheet
vs0108hb_video_splitter_ds_en.pdf (1.31 MB)
User Manual
| File Name | Release Date |
| vs0108hb_um_w_2020-12-16.pdf (1.54 MB) | 2020-12-16 |
