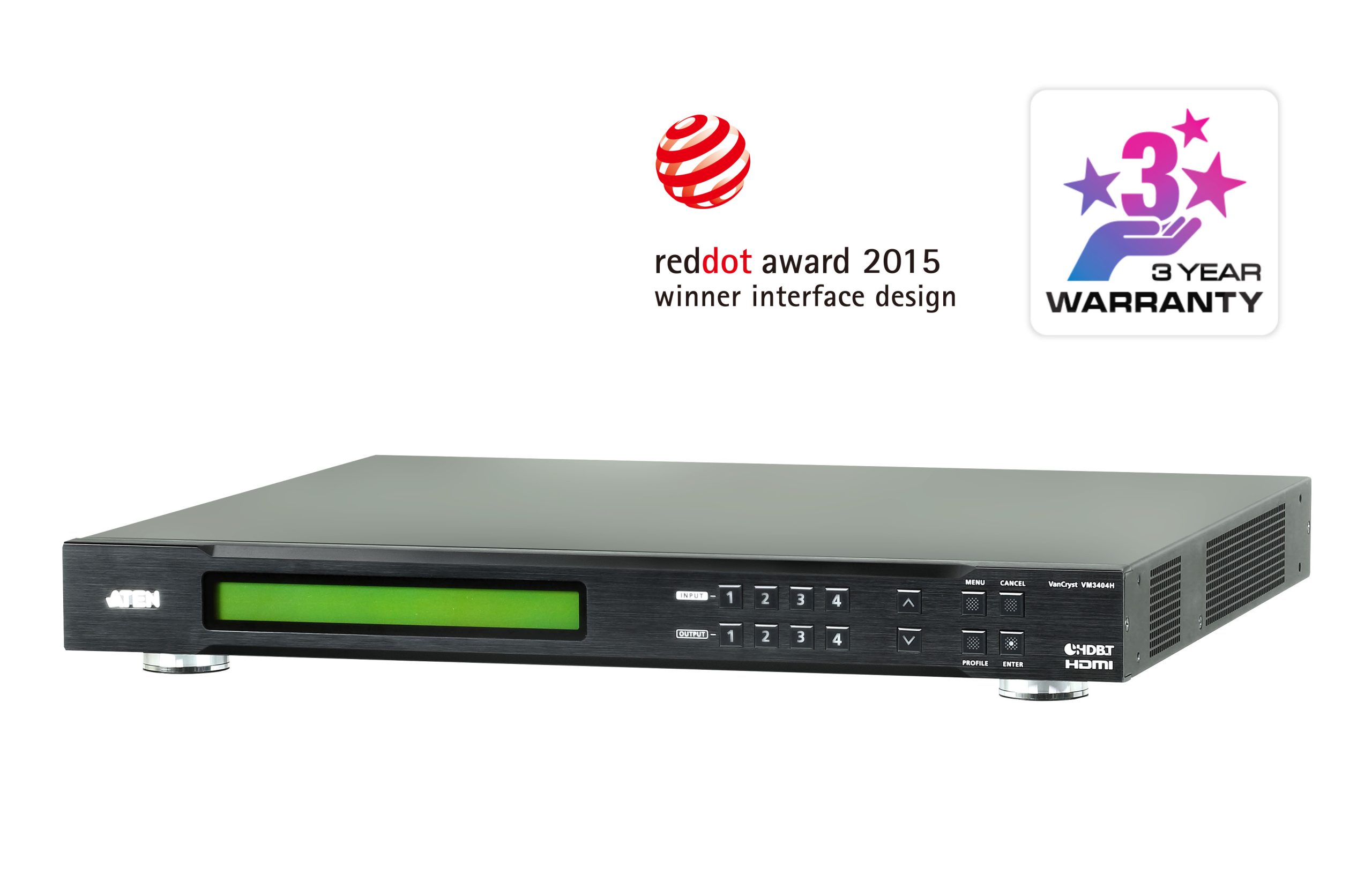

ATEN VM3404H-AT-G
4 x 4 4K HDMI HDBaseT-Lite Matrix Switch
With the rapid development of HDBaseT technology, ATEN has released the new VM3404H HDMI HDBaseT-Lite Matrix Switch. The switch extends uncompressed 4K / Full HD digital video, audio, IR and power via HDBaseT technology through a single Cat 6a cable up to 40/70 meters.
When the VM3404H is combined with VE805R/VE816R receivers, it supports both ATEN Seamless Switch™ technology and Video Wall functionality. ATEN’s exclusive Seamless Switch™ technology employs an FPGA graphics processor to ensure continuous video streaming, real-time control and stable signal transmission across all sources.

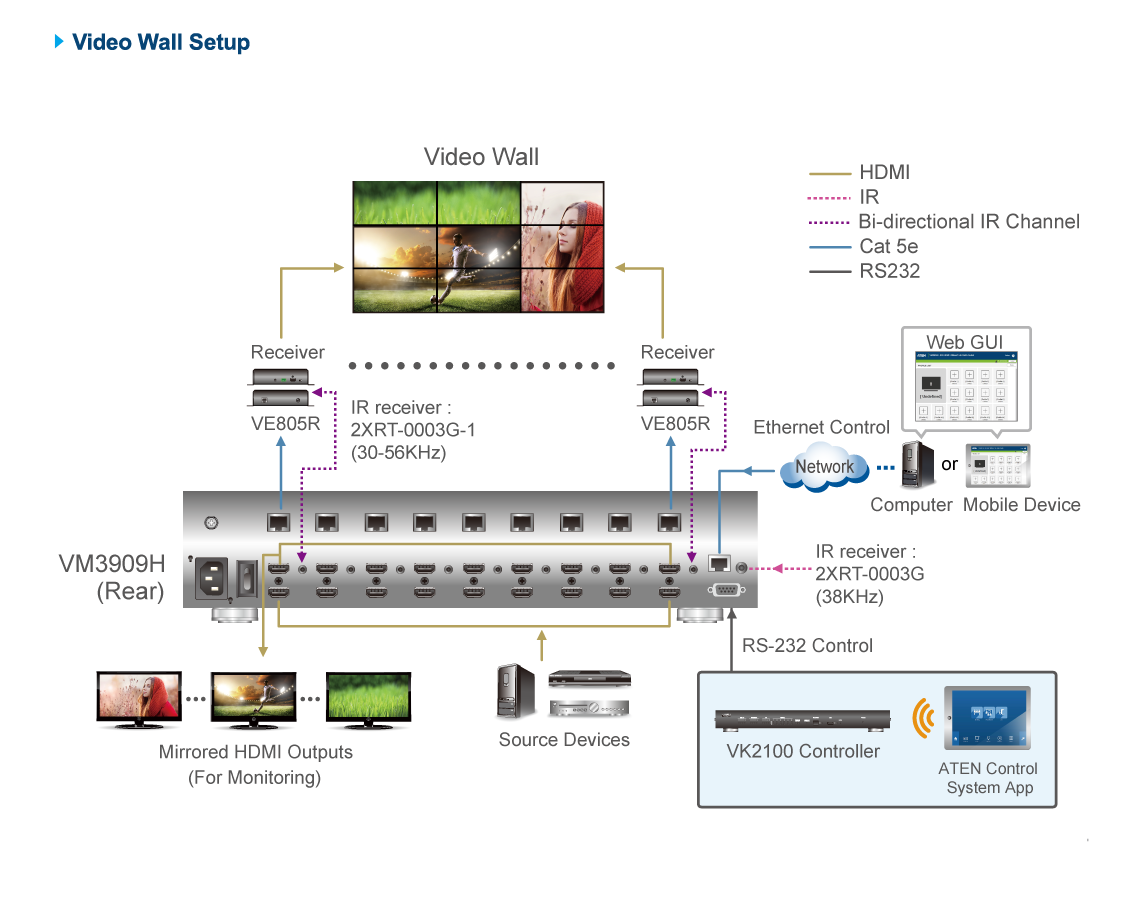

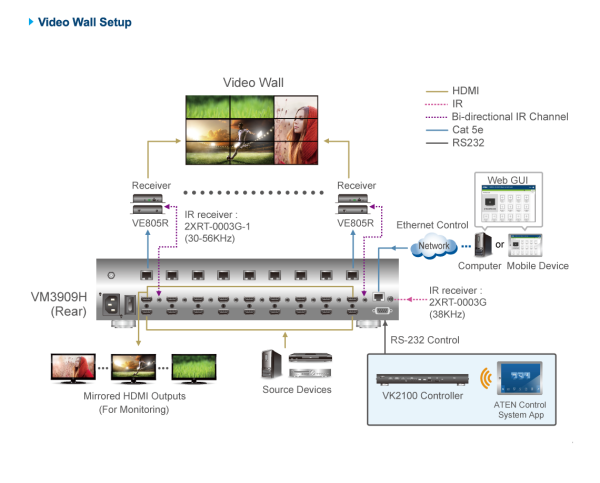

The Video Wall functionality allows you to create 8 video wall profiles for custom screen layouts through an easy-to-use web interface. The Power over HDBaseT (POH) feature provides an ingenious way to power the VE802R receivers through the Cat 5e cable without the need of using an additional power supply.

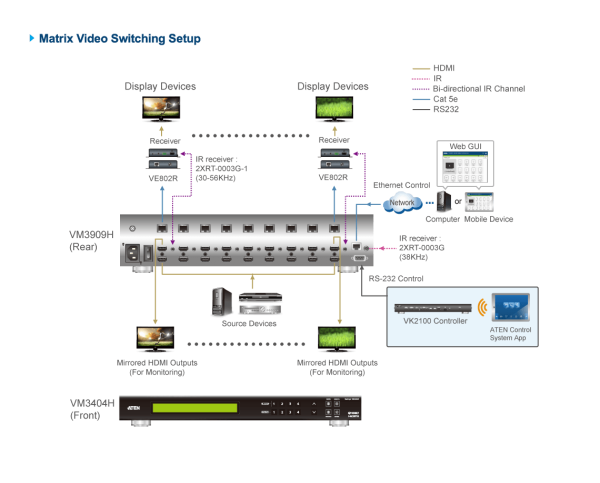

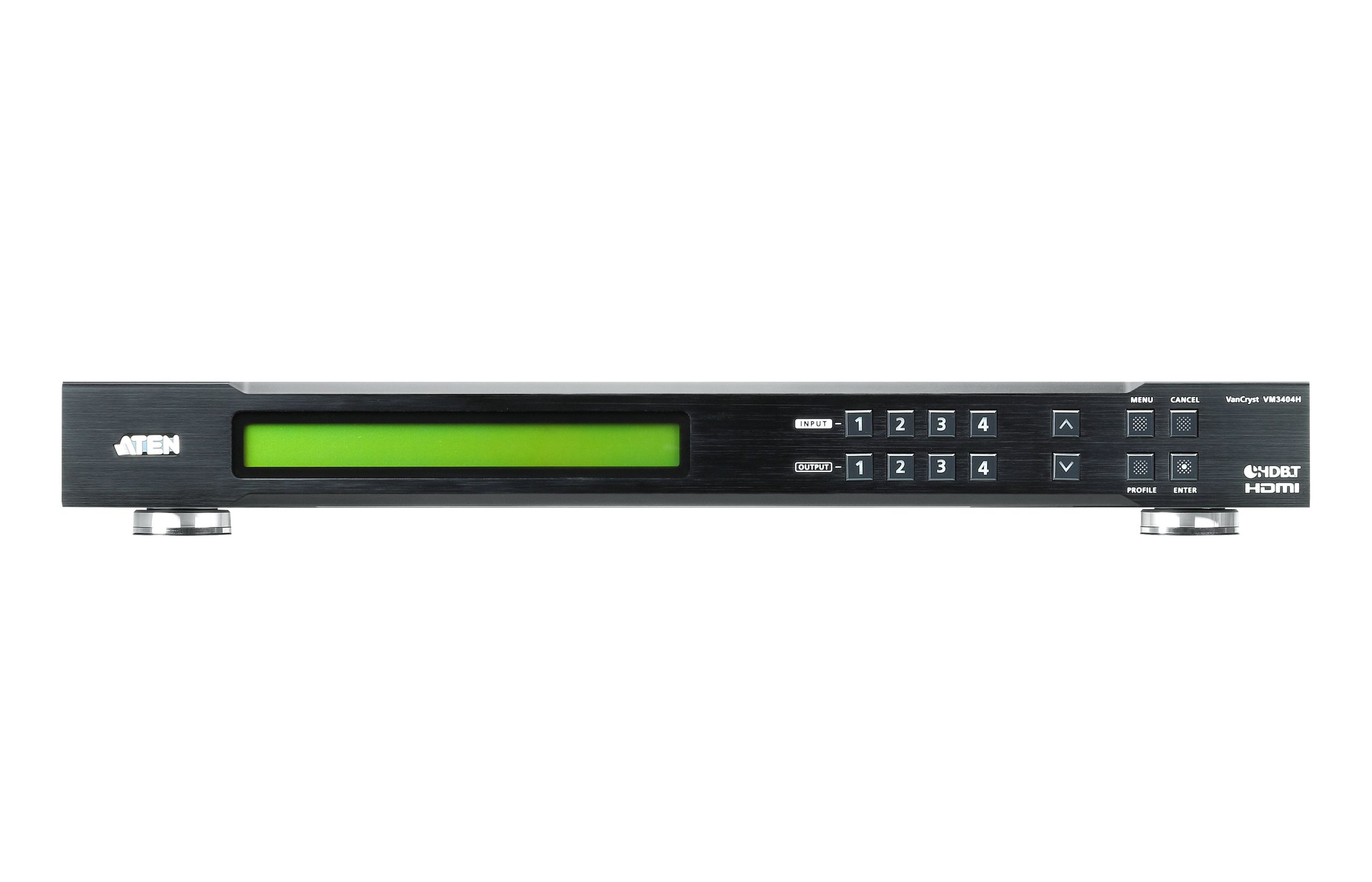

The VM3404H offers flexibility with reliable signal distribution controlled via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections. It’s designed as a functional and integrated control system built for residential, commercial and conference center settings.
Package Contents
- 1x VM3404H HDMI HDBaseT-Lite Matrix Switch
- 1x Power Cord
- 1x Mounting Kit
- 1x User Instructions
Specifications

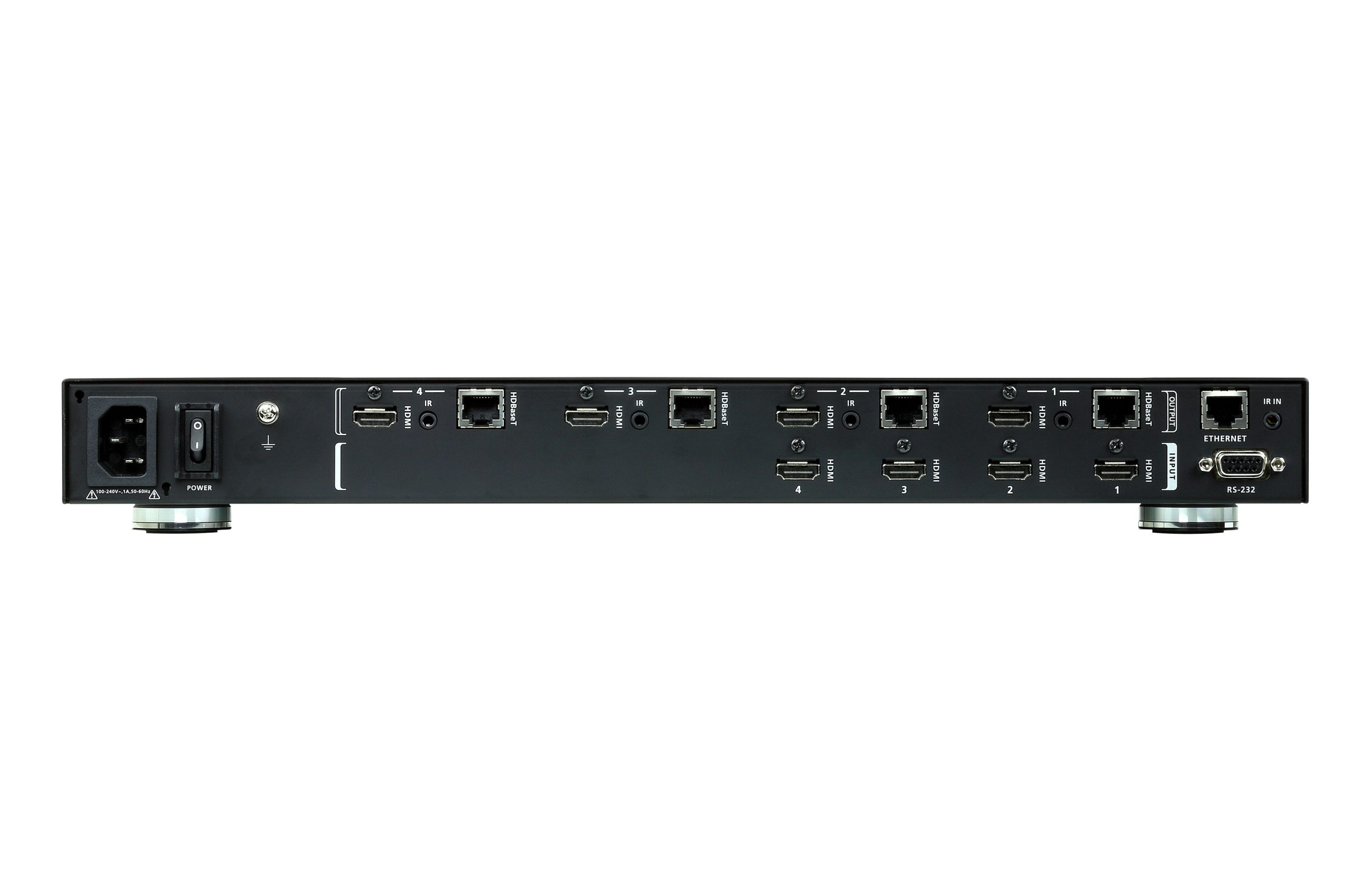

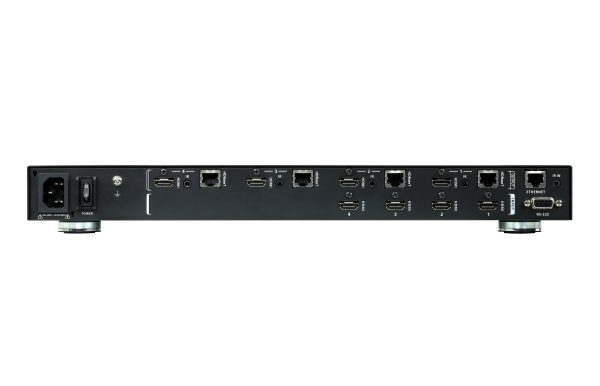

| Video Input | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 3.0 m |
| Video Output | |
| Interfaces | 4 x HDMI Type A Female (Black); 4 x RJ-45 Female |
| Impedance | 100 Ω |
| Max. Distance | HDMI: up to 15 m HDBaseT (Class B): 4K up to 35 m (Cat 5e/6) / 40 m (Cat 6a); 1080p up to 60 m (Cat 5e/6) / 70 m (Cat 6a) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR Channel | 4 x Mini Stereo Jack Female (Black); 30~60 KHz full range transmission |
| Ethernet | 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port1 / Remix / Customized |
| Connectors | |
| Power | 1 x 3-Prong AC Socket |
| Carton Lot | 1 pc |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Power Consumption | AC110V:62W:291BTU/h AC220V:60.6W:284BTU/h Note: |
| Power | |
| Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1.0A |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP 1.4 Compatible Consumer Electronic Control (CEC) HDBaseT Compatible |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Distance | Up to 70 m |
| Physical Properties | |
| Housing | Metal |
| Weight | 5.62 kg ( 12.38 lb ) |
| Dimensions (L x W x H) | 43.24 x 38.23 x 4.40 cm (17.02 x 15.05 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
