ATEN VE8662
True 4K HDMI H.265 over IP Transceiver with PoE
The VE8662 True 4K HDMI H.265 over IP Transceiver with PoE sets a new standard for AV transmission, combining unparalleled efficiency with crystal-clear clarity. The transceiver, functioning as either a transmitter or receiver, enables flexible AV-over-IP expansion from a simple point-to-point setup to hundreds of endpoints. Powered by H.265 video compression, the VE8662 delivers ultra-clear True 4K visuals (4K60 4:4:4, HDCP 2.2) while requiring just 100 Mbps bandwidth, ensuring stable, low-latency streaming of video, audio, and control signals over standard networks. Quickly switch between multiple sources and displays with intuitive real-time control, offering instant visual feedback for both vertical and horizontal video walls. Designed for scalable AV setups, the VE8662 perfectly fits into the ATEN Networked AV solution, expanding coverage for various digital signage scenarios, including but not limited to sports venues, transportation hubs, and also control rooms where AV content can be efficiently shared and managed across workstations and video walls for real-time distribution.
Streamlined Transceiver Setup in Seconds

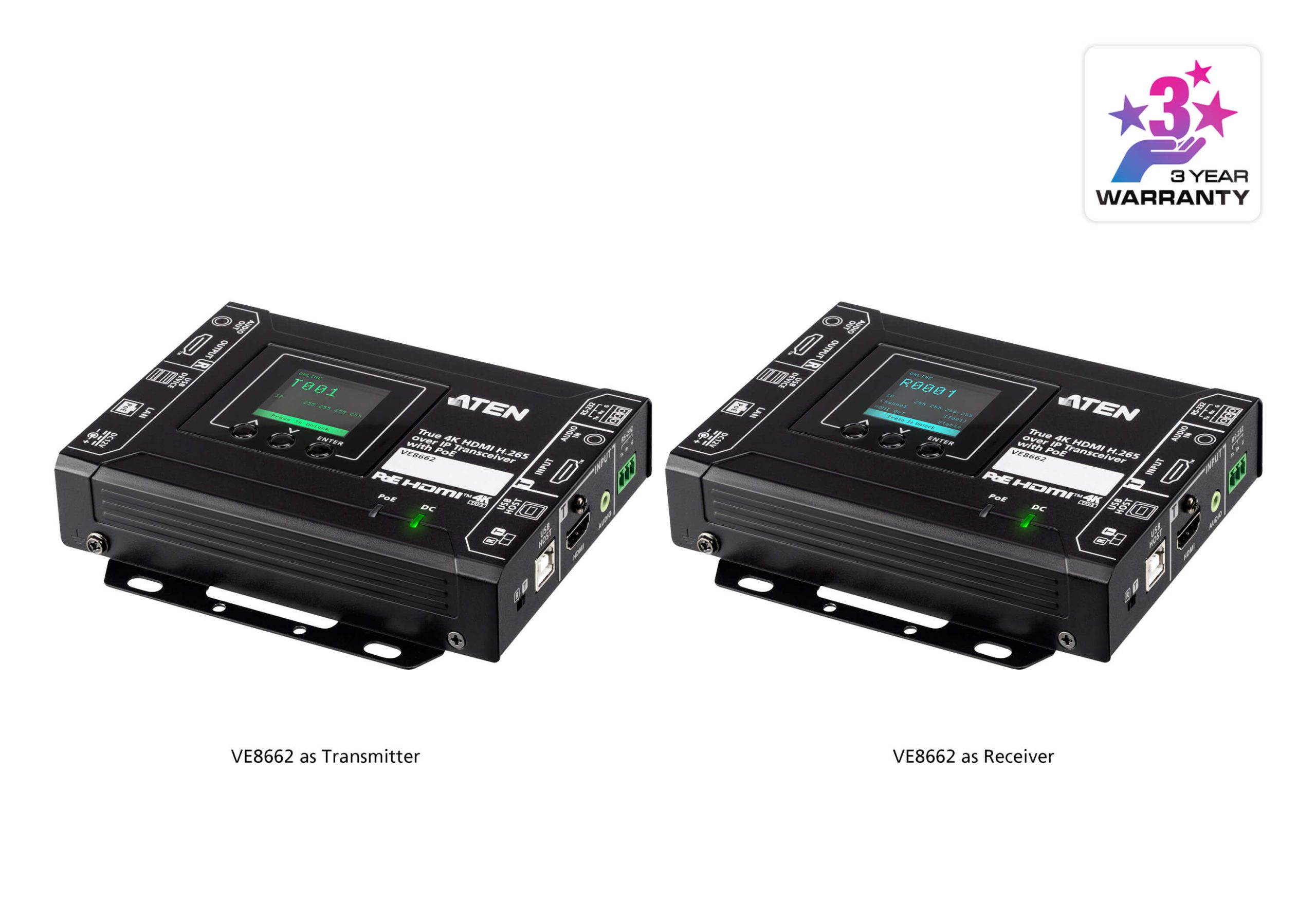

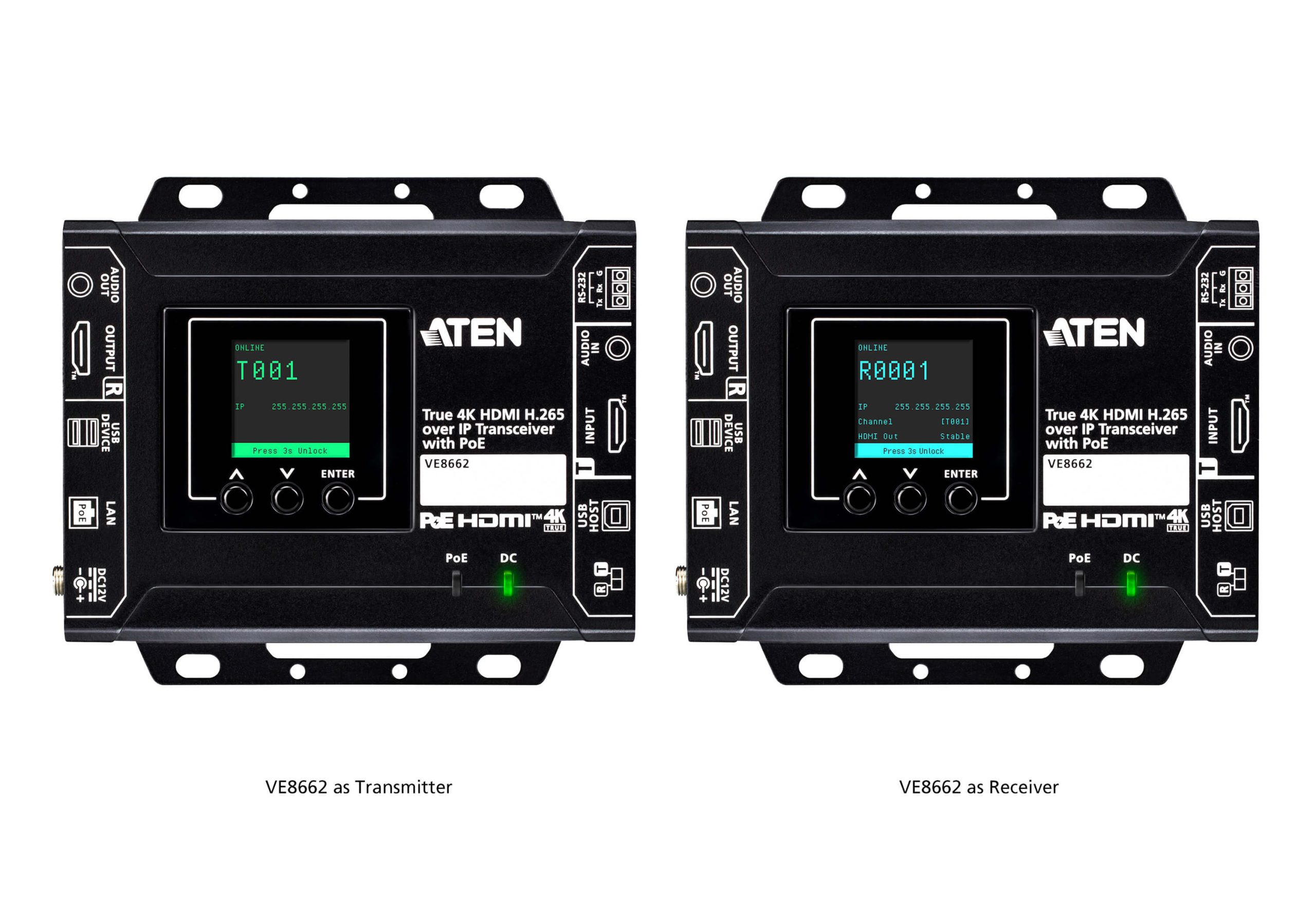

The VE8662 ensures effortless setup and is easily configurable as a transmitter for video sources or a receiver for displays. Simply assign an ID number instead of complex IP settings for fast, hassle-free installation.

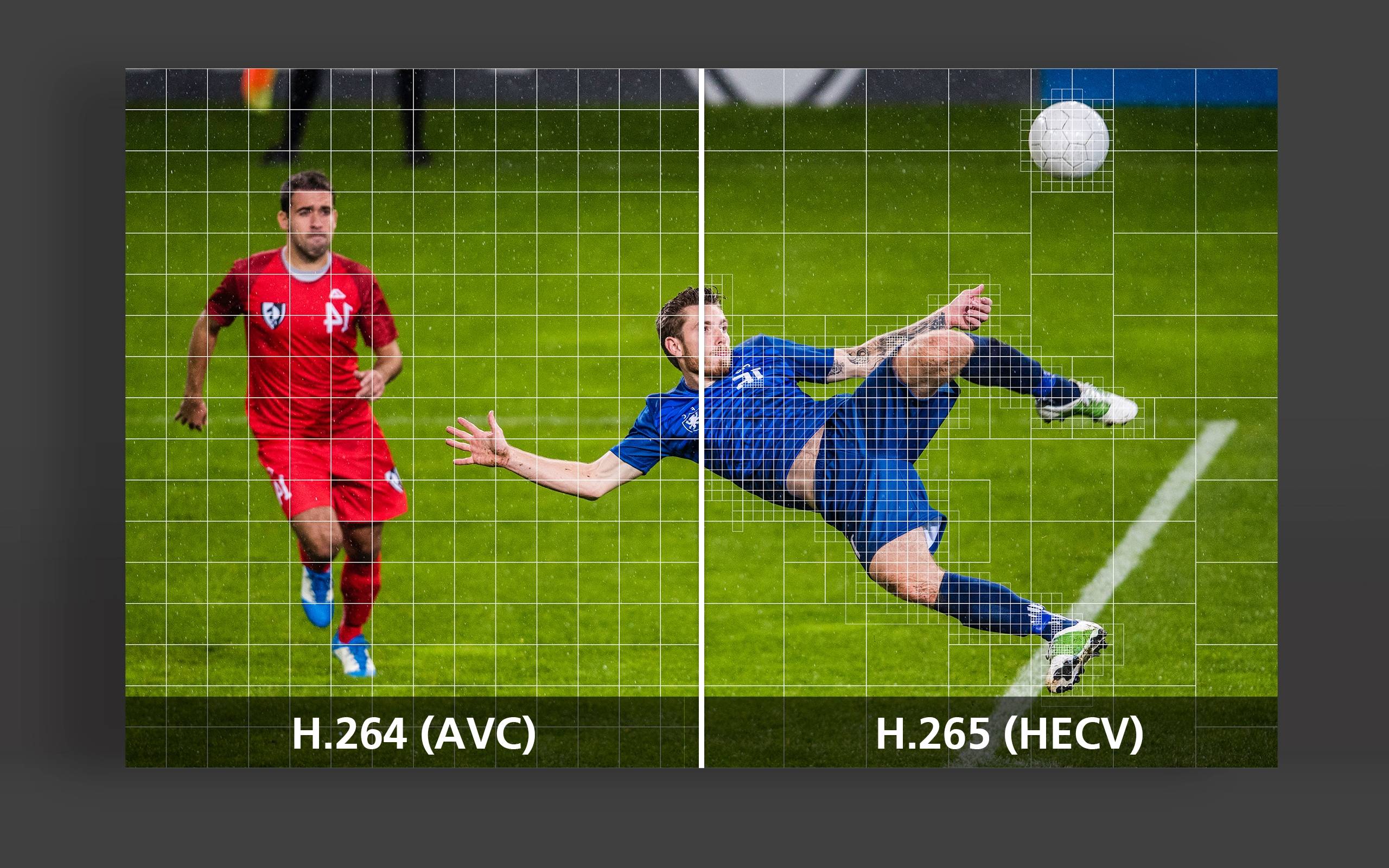

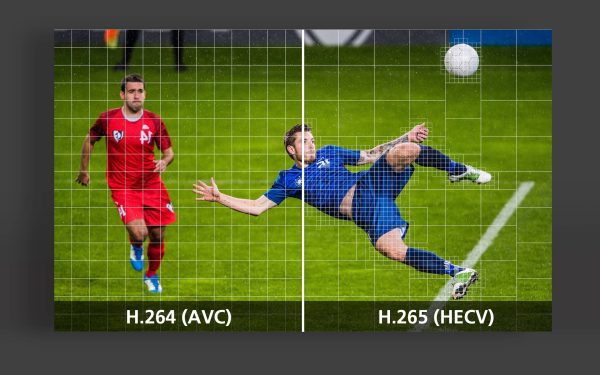

Optimized AV Transmission with H.265 Efficiency
The VE8662 employs the H.265 video compression standard with better compression efficiency that preserves quality while minimizing bandwidth usage, latency and signal loss, delivering sharper, more refined high-definition visuals than H.264.
Audio Embedding/De-Embedding for Flexible AV Configurations
By embedding audio directly into the HDMI signal, both audio and video are consolidated into a single connection, streamlining setup. When needed, the audio can also be de-embedded, separating it from the video stream to ensure compatibility with various audio systems.
Intuitive Web GUI Management with Customizable Layout
Managing the VE8662 is simple with its user-friendly Web GUI. Video from each source and display can be easily dragged and dropped into a customizable background or layout for better management, enabling quick switching between video sources and displays.
Integrated Video Wall Control for Collaborative Workflows
To enhance video distribution and optimize collaboration, video content can be flexibly pushed or pulled between operators and a video wall using KVM control with an On-Screen Display (OSD) menu, enabling intuitive source selection and video feed management. Additionally, Boundless Switching allows effortless switching between video sources simply by moving the mouse cursor across screens, enhancing real-time situational awareness and informed decision-making.
Dual Power Redundancy for Uninterrupted AV Excellence
Engineered for maximum stability, the VE8662’s PoE (Power over Ethernet) and DC power redundancy ensures consistent uptime and reliable AV performance from unexpected power failures.

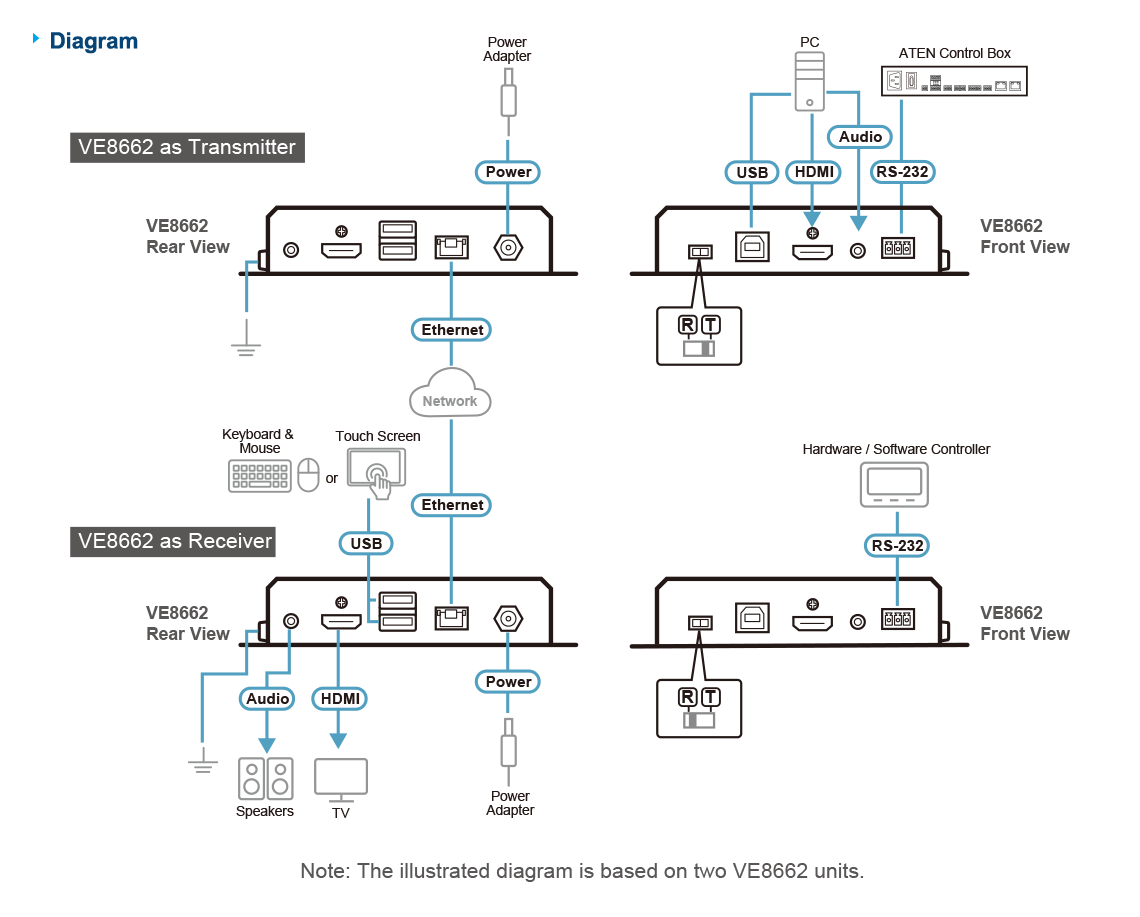

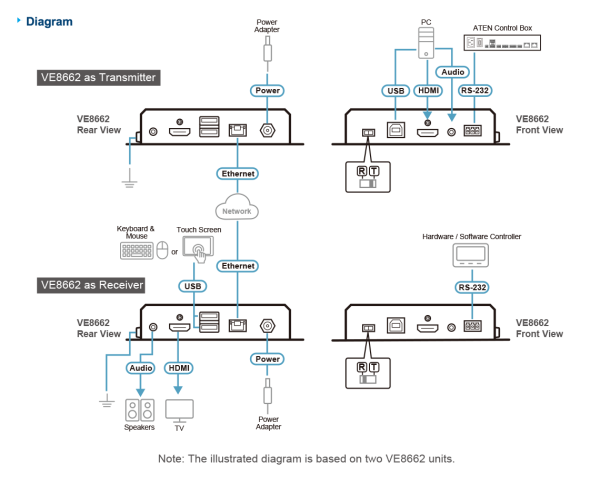

Scalable AV over IP Network Setup
The VE8662 provides a scalable AV over IP solution that integrates effortlessly into a local area network, supporting multicast streaming and scalable cascading. This ensures flexibility and convenience for dynamic AV setups at any time.
Applications
The VE8662 is ideal for digital signage scenarios, including sports venues, transportation hubs, and also control rooms, where AV content can be effectively managed and efficiently distributed within any networked AV setup.
Spesification

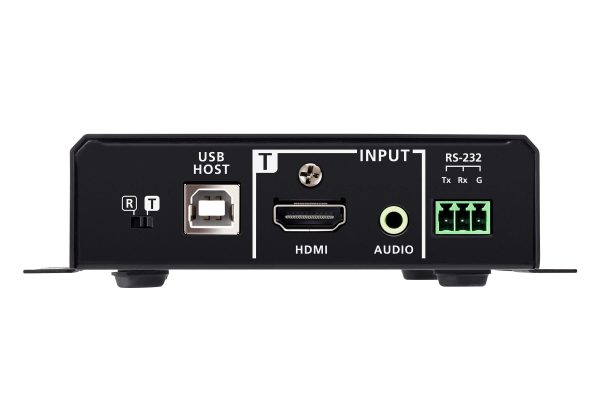

| Video Input | |
| Max. Distance | 5m |
| Impedance | 100 Ω |
| Interfaces | 1 x HDMI Type A Female (Black) |

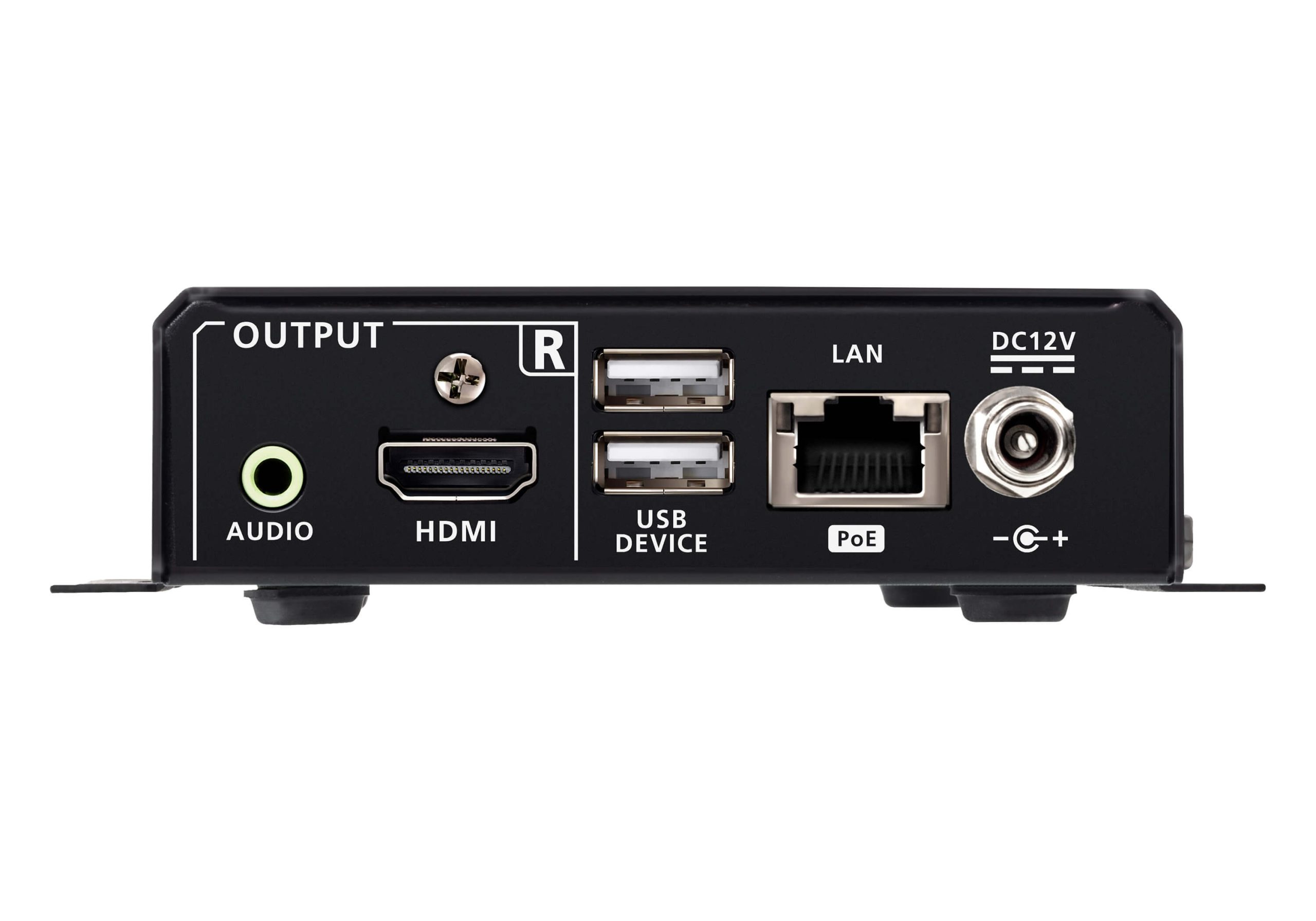

| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5m |
| Video | |
| Max. Data Rate | Average: 20 ~ 25Mbps |
| Compliance | HDMI HDCP2.3 & HDCP2.2 Compatible |
| Max. Resolutions / Distance | Up to True 4K@100m (Cat 5e/6, point to point) *True 4K supported: |
| Video Compression | H.265 Codec Latency: 3~5 frames |
| Audio | |
| Input | 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) |
| Output | 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) |
| Connectors | |
| Unit To Unit | 1 x RJ-45 Female ( with POE) |
| Power | 1 x DC Jack (Black) with locking or 1 x RJ-45 POE PD (Power Over Ethernet, Powered Device) port |
| Control | |
| RS-232 | Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control |
| USB Channel | 1 x USB Type B Female (Host) 2 x USB Type A Female (Device) |
| Pushbuttons | |
| Operating Mode Selection | 3 x Push buttons for LCM operation |
| Switches | |
| Selection Mode | 1 x Slide Switch – T (Be a Transmitter) / R (Be a Receiver) selection |
| LEDs | |
| Power | 1 x DC IN LED (Green) 1 x POE LED (Green) |
| Power Consumption | DC12V:4.79W:22BTU/h (Tx) DC12V:4.98W:45BTU/h (Rx) Note: |
| Power | |
| Power over Ethernet (PoE) | IEEE 802.af POE compliant 5.99W:28BTU/h (Tx) 6.23W:51BTU/h (Rx) |
| Environmental | |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.51 kg ( 1.12 lb ) |
| Dimensions (L x W x H) with bracket | 14.02 x 12.30 x 3.00 cm (5.52 x 4.84 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.) |
| Input Resolutions | 3840 x 2160p 24 / 25 / 30 / 60 Hz | 1080p 24 / 25 / 30 / 50 / 60 Hz |
| 2560 x 1440 @ 30 / 60 Hz | 1080i 50 / 60 Hz | |
| 1920 x 1200 @ 60 Hz | 1024 x 768 @ 60 / 70 / 75 Hz | |
| 1920 x 1080 @ 24 / 25 / 30 / 50 / 60 Hz | 800 x 600 @ 56 / 60 / 72 / 75 Hz | |
| 1680 x 1050 @ 60 Hz | 720 x 480 @ 60 Hz | |
| 1600 x 1200 @ 60 Hz | 720 x 400 @ 70 Hz | |
| 1440 x 900 @ 60 Hz | 720p 50 / 60 Hz | |
| 1400 x 1050 @ 60 Hz | 640 x 480 @ 60 / 67 / 72 / 75 Hz | |
| 1280 x 1024 @ 60 / 75 Hz | 640 x 480 @ 60 Hz (4:3) | |
| 1280 x 800 @ 60 Hz | 576p 50 Hz (4:3 / 16:9) | |
| 1280 x 720 @ 25 / 30 / 50 / 60 Hz | 480p 60 Hz (4:3 / 16:9) |
