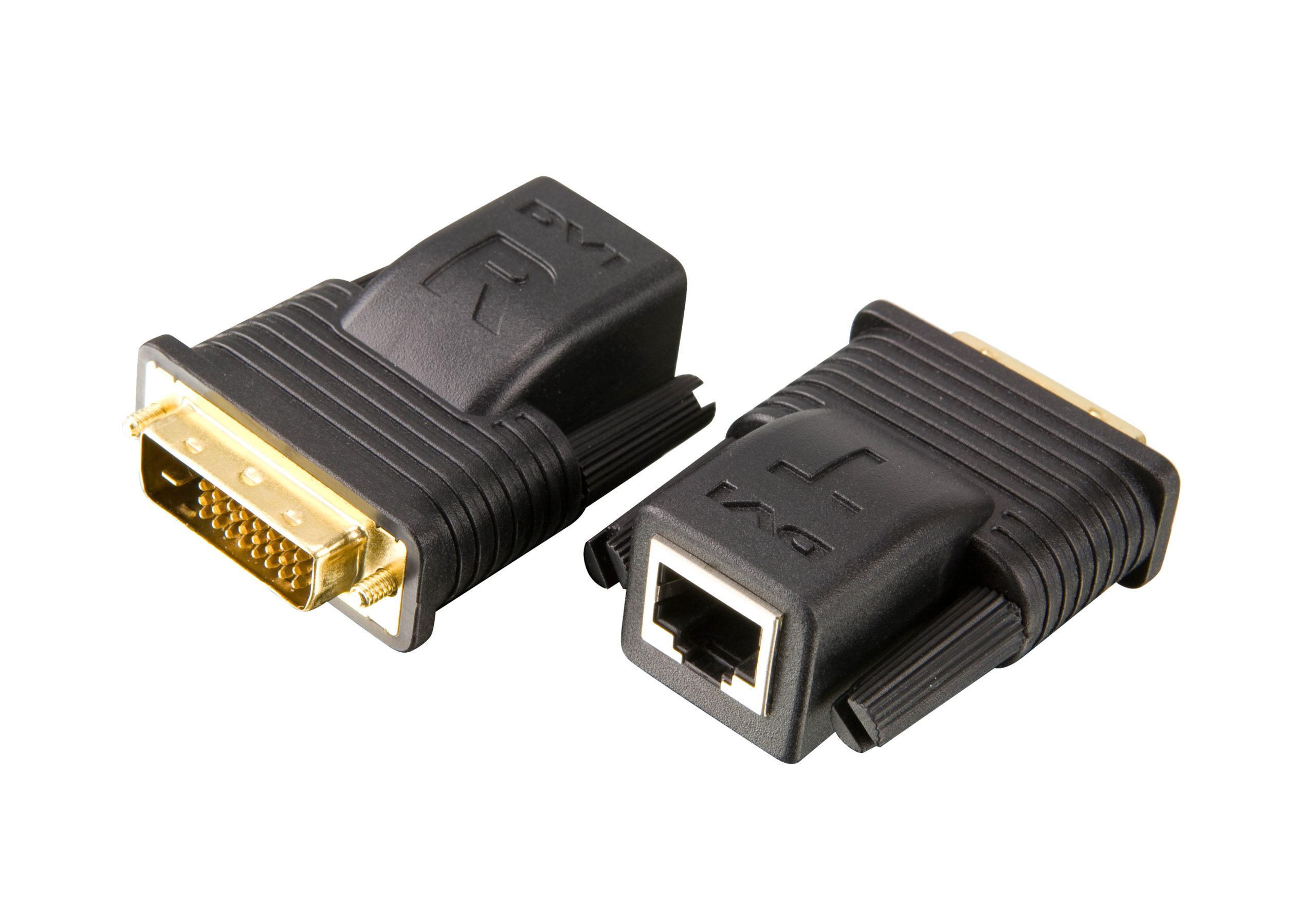

ATEN VE066
Mini Cat 5 DVI Extender (1080p @ 15m/1080i @ 20m)

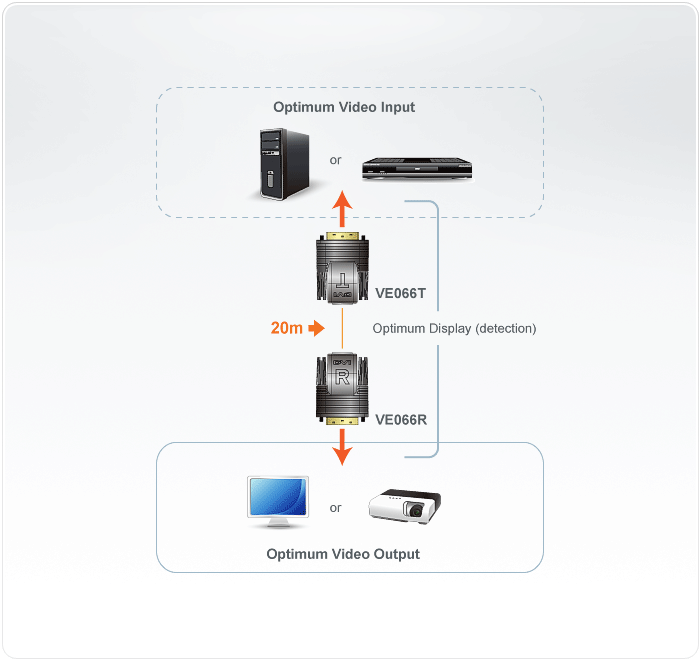

The VE066 Mini Cat 5 DVI Extender allows you to increase the distance between your DVI display and DVI source by up to 20 m using only one Cat 5e or Cat 6 cable, providing a convenient way to replace heavy and expensive DVI cables. With hot-plugging support, easily add or remove the VE066 Transmitter connected to the source or the VE066 Receiver connected to the display without having to power down the devices. Compatible with all ATEN DVI switches and DVI splitters, the VE066 Mini Cat 5 DVI Extender is a compact, convenient and economical way to extend your DVI display.
Spesification
| Function | VE066R | VE066T |
| Physical Properties | ||
| Weight | 0.05 kg ( 0.11 lb ) | 0.05 kg ( 0.11 lb ) |
| Dimensions (L x W x H) | 5.66 x 4.07 x 2.15 cm (2.23 x 1.6 x 0.85 in.) | 5.66 x 4.07 x 2.15 cm (2.23 x 1.6 x 0.85 in.) |
| Housing | Plastic | Plastic |
| Carton Lot | 20 pcs | 20 pcs |
| Video Input | ||
| Interfaces | N/A | 1 x DVI-D Male (Gold) |
| Impedance | N/A | 100 Ω |
| Video Output | ||
| Interfaces | 1 x DVI-D Male (Gold) | N/A |
| Impedance | 100 Ω | N/A |
| Video | ||
| Max. Data Rate | 4.95 Gbps (1.65 Gbps Per Lane) | 4.95 Gbps (1.65 Gbps Per Lane) |
| Max. Pixel Clock | 165 MHz | 165 MHz |
| Compliance | HDCP Compatible | HDCP Compatible |
| Max. Resolutions / Distance | Up to 1080P@15m; 1080i@20m | Up to 1080P@15m; 1080i@20m |
| Environmental | ||
| Operating Temperature | 0 – 50°C | 0 – 50°C |
| Storage Temperature | -20 – 60°C | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing | 0 – 80% RH, Non-Condensing |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
