Plug-n-Play

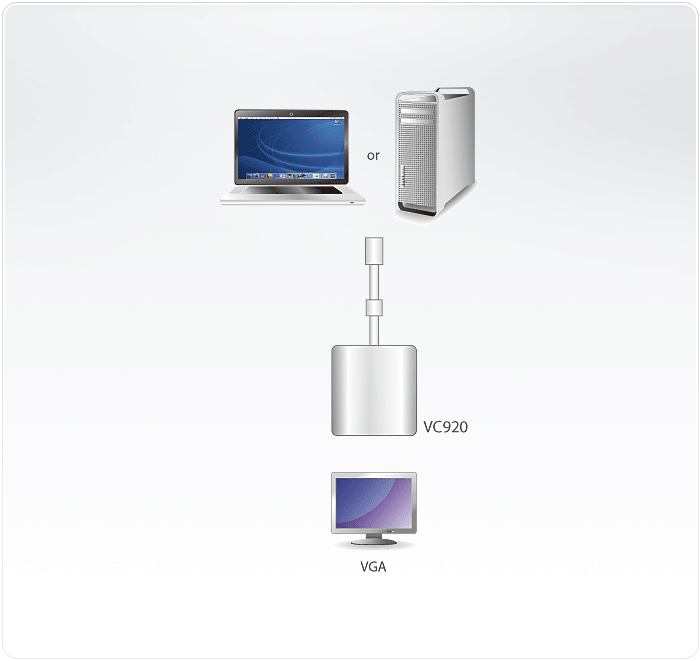

No installation software or drivers required. The VC920 is the perfect solution for connecting Mini DisplayPort inputs to VGA output displays.
| Video Input | |
| Interfaces | 1 x Mini DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Blue) |
| Video | |
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | Input DP 1.2 up to 4096 x 2160@60Hz (4:4:4) Output up to 1920 x 1200 |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 20.00 x 4.30 x 2.01 cm (7.87 x 1.69 x 0.79 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
