Stunning visual clarity with true 4K & HDR

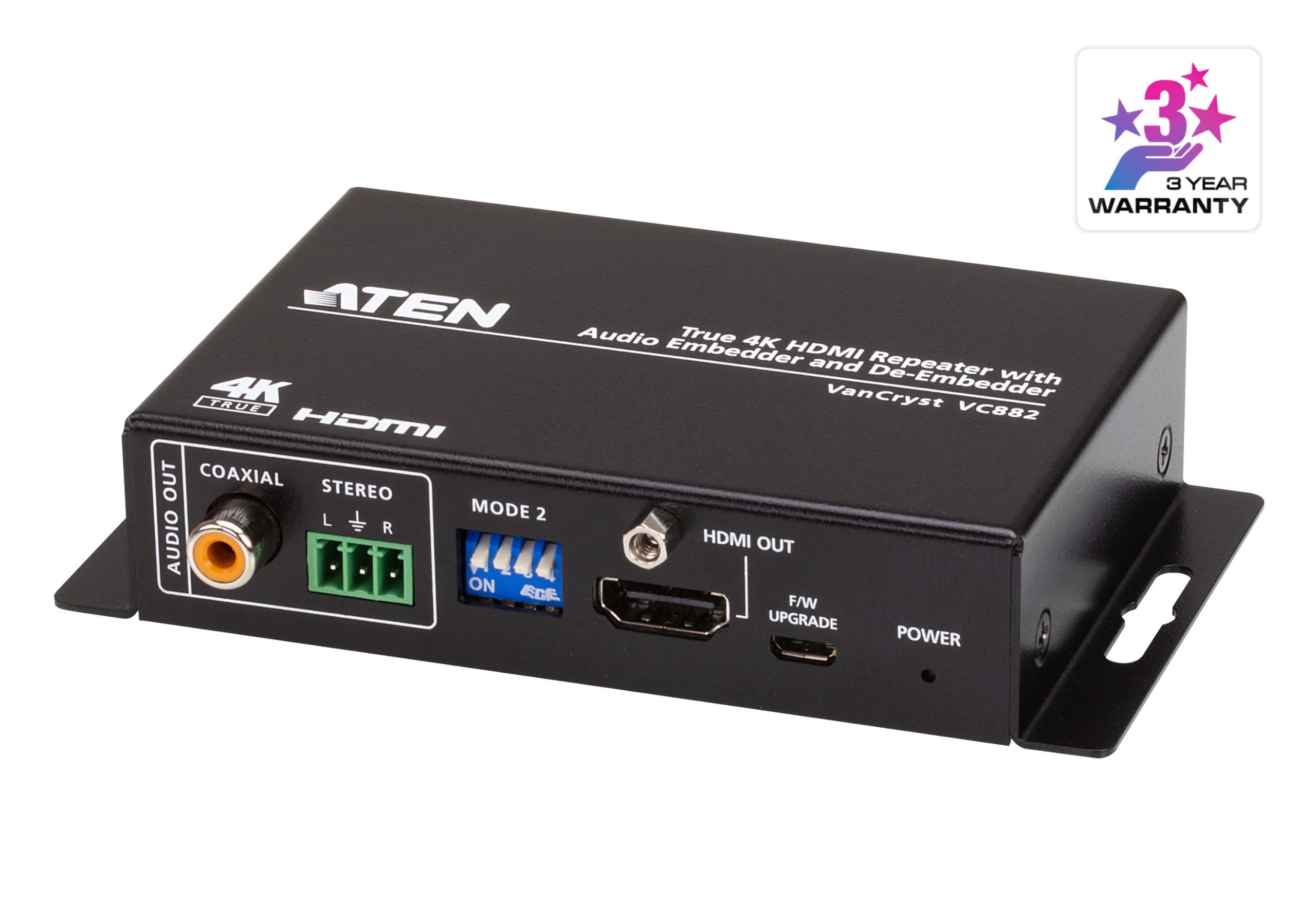

Indulge in breathtaking clarity and vibrant colors with the VC882 HDMI switcher, featuring support for 4K HDR 10+ video at 60Hz that will elevate your viewing to a whole new level.
True 4K long-distance transmission

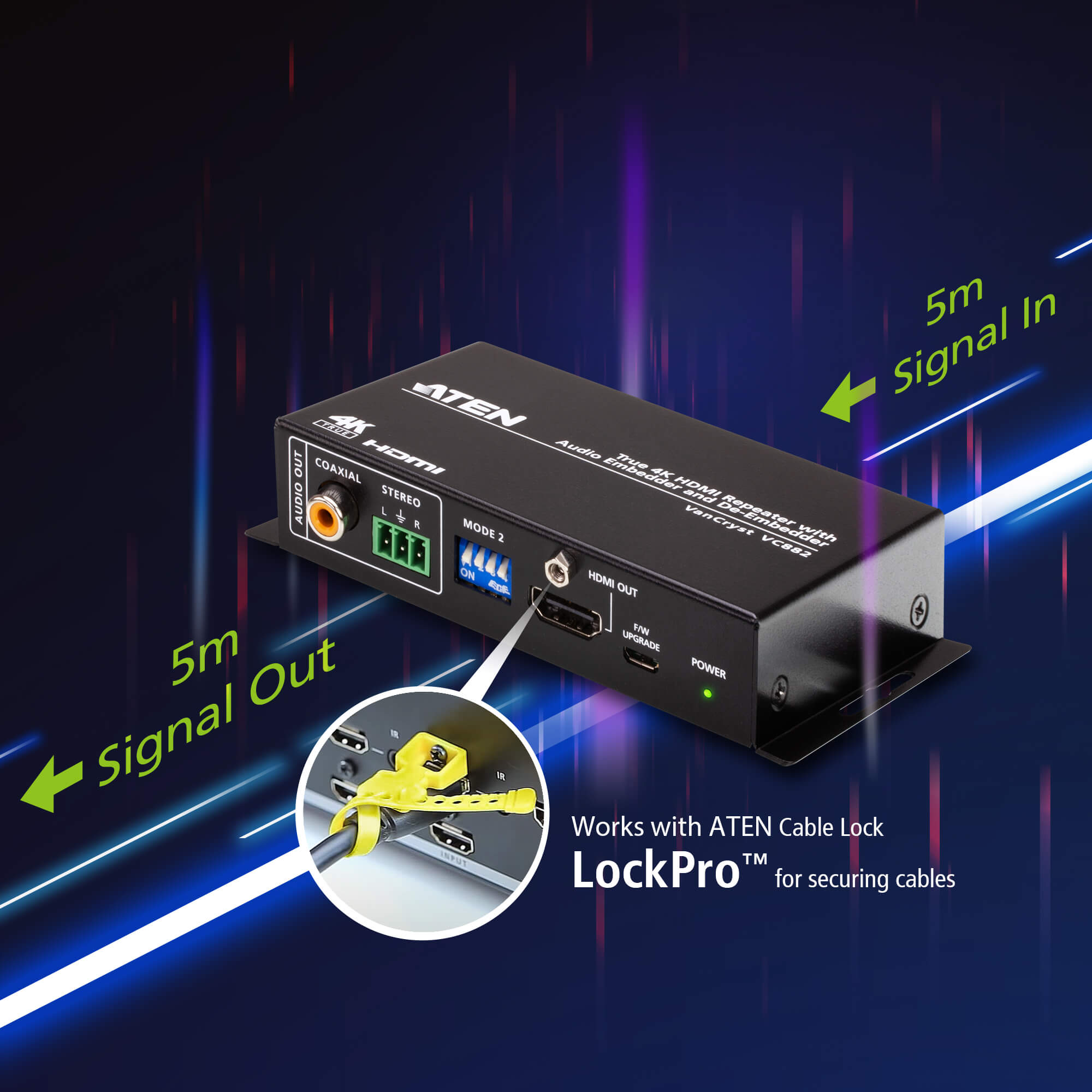

Enjoy stunning visuals with this HDMI switcher’s support for input and output resolutions of 3840 x 2160@60Hz (4:4:4) / 4096 x 2160@60Hz (4:4:4) up to 5 meters*, providing you with a clear and vivid image even at longer distances.
*Tested with ATEN HDMI Cable 2L-7D05H-1.
**Note: ATEN LockPro™ (2X-EA12) is available separately upon purchase.
Simplified configuration
Easily configure VC882 with the included printed setup guide that covers audio embed/de-embed, ARC, and EDID options for hassle-free setup.
| LEDs | |
| Power | LED (blue) x1 |
| Reset Button | Push button x1 (to activate mode configuration) |
| Switches | |

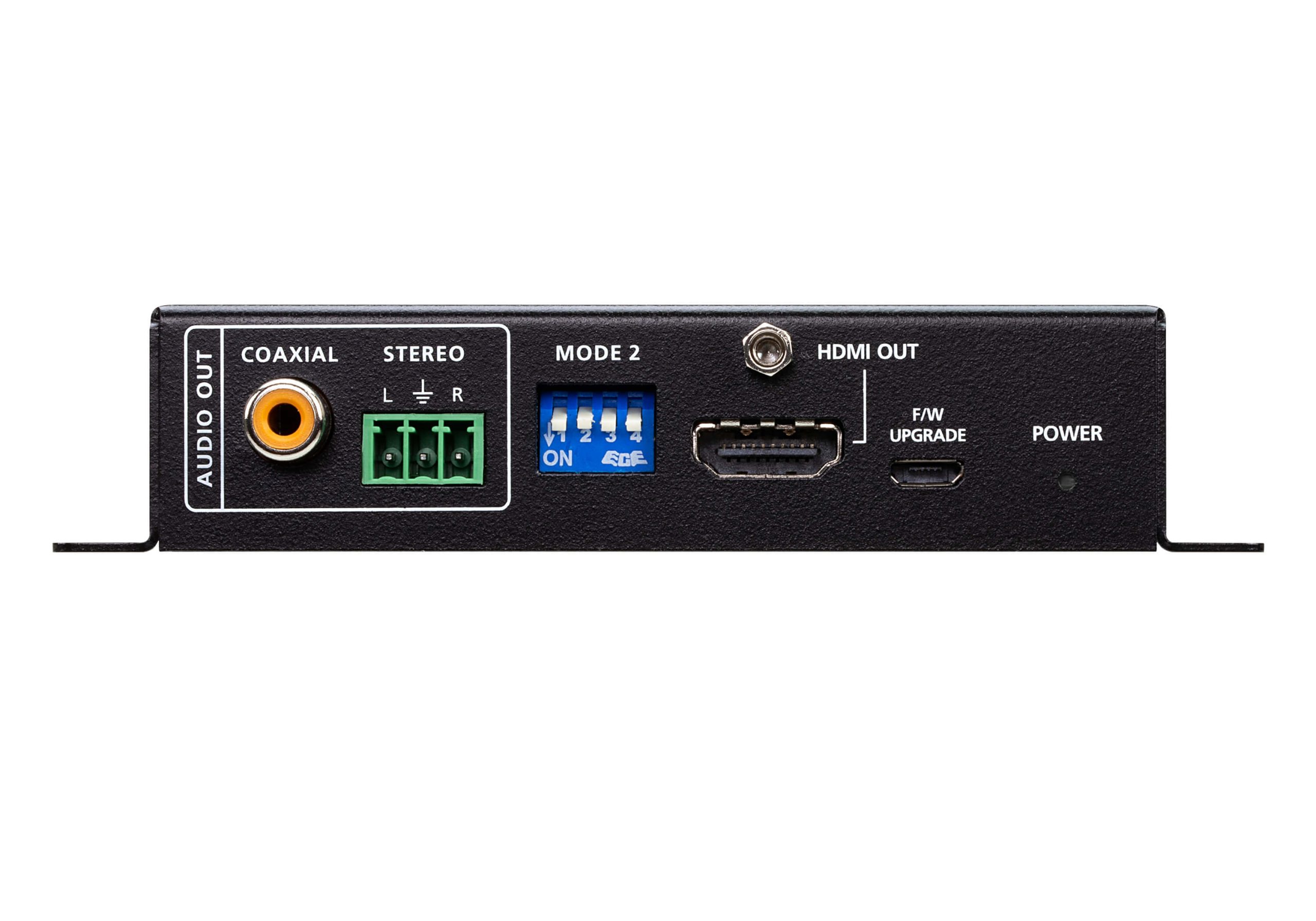

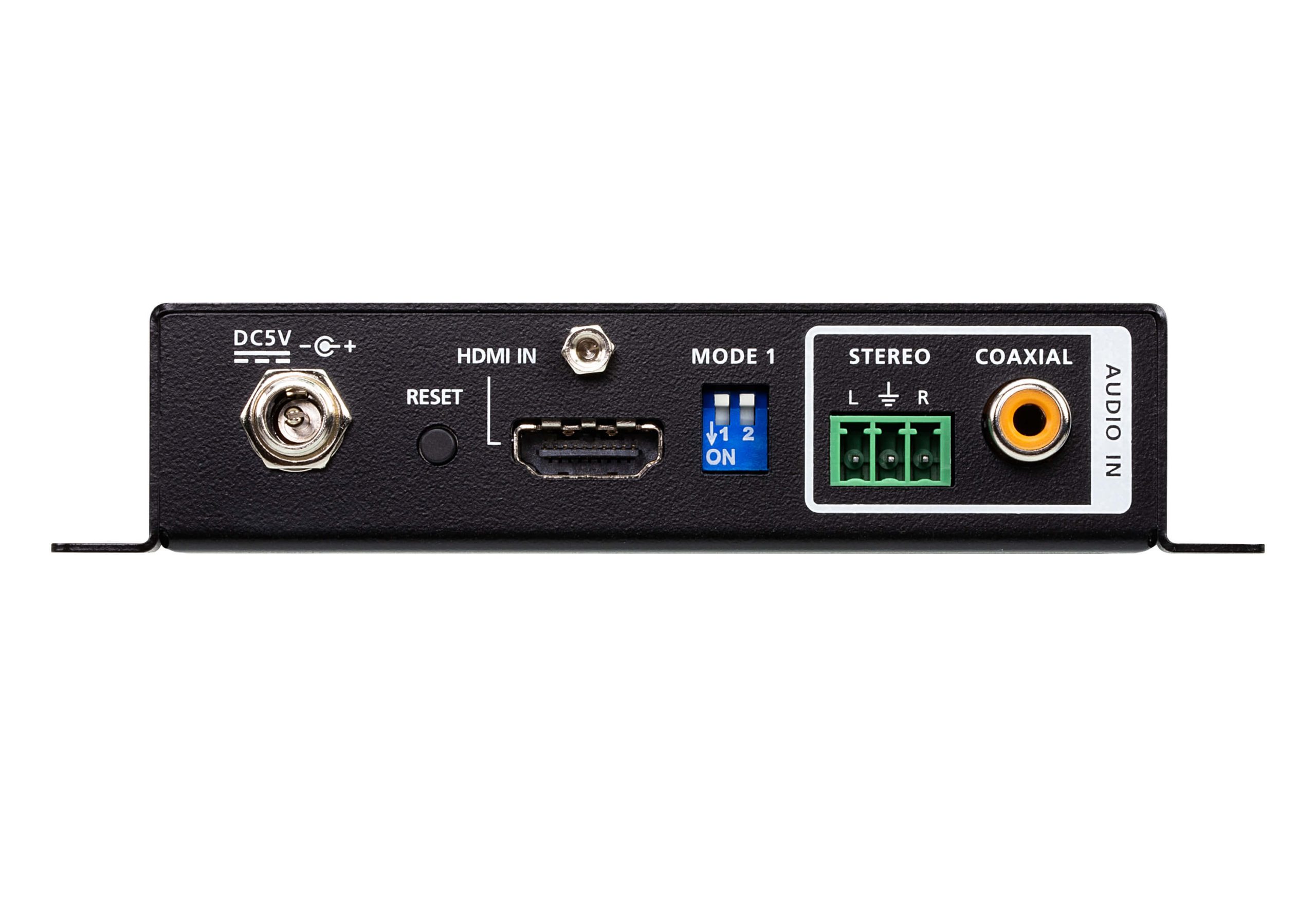

| Mode Selection | MODE 1 (2-PIN) PIN#1 (Enable / Disable Audio Embedder Function) PIN#2 (Audio embed from Coaxial / Stereo) MODE 2 (4-PIN) |
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5 meters |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5 meters |
| Video | |
| Max. Data Rate | 18 Gps |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI 2.0 (3D, Deep Color) HDCP 2.2 |
| Max. Resolution | 4096 X 2160@60Hz(4:4:4) 8 bit |
| Audio | |
| Output | Coaxial x1 Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1 3-pin terminal block x 1 Format: Analog, stereo, unbalanced, LPCM2.0 |
| Input | Coaxial x1 Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1 3-pin terminal block x 1 Format: Analog, stereo, unbalanced, LPCM2.0 |
| Connectors | |
| Power | 1 x DC Jack, 5V 1A, Lockable |
| Firmware Upgrade | 1 x Micro USB |
| Power Consumption | DC5V:2.905W:9.92BTU/h Note: |
| Environmental | |
| Operating Temperature | 0 – 40 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.24 kg ( 0.53 lb ) |
| Dimensions (L x W x H) | 12.22 x 8.22 x 2.50 cm (4.81 x 3.24 x 0.98 in.) |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
