Note:

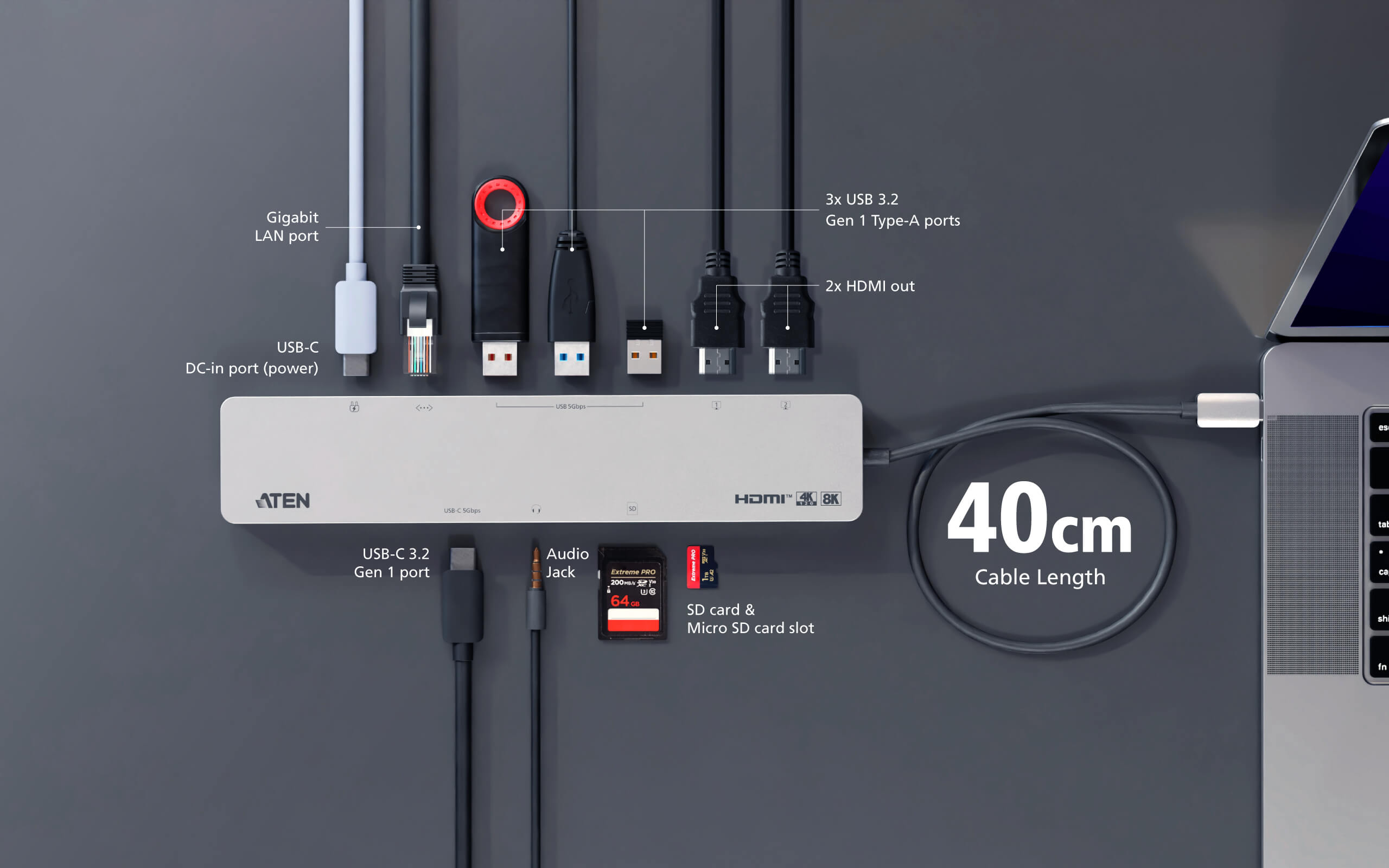

* 3 x USB Type-A and 1 x USB-C ports share total of 5V, 15W when UH3240 powered by external USB-C PD power adapter.
* 3 x USB Type-A and 1 x USB-C ports share total of 5V, 12W power output when the UH3240 is powered by PC via USB-C (@ 5V, 3A bus-powered).

Note:

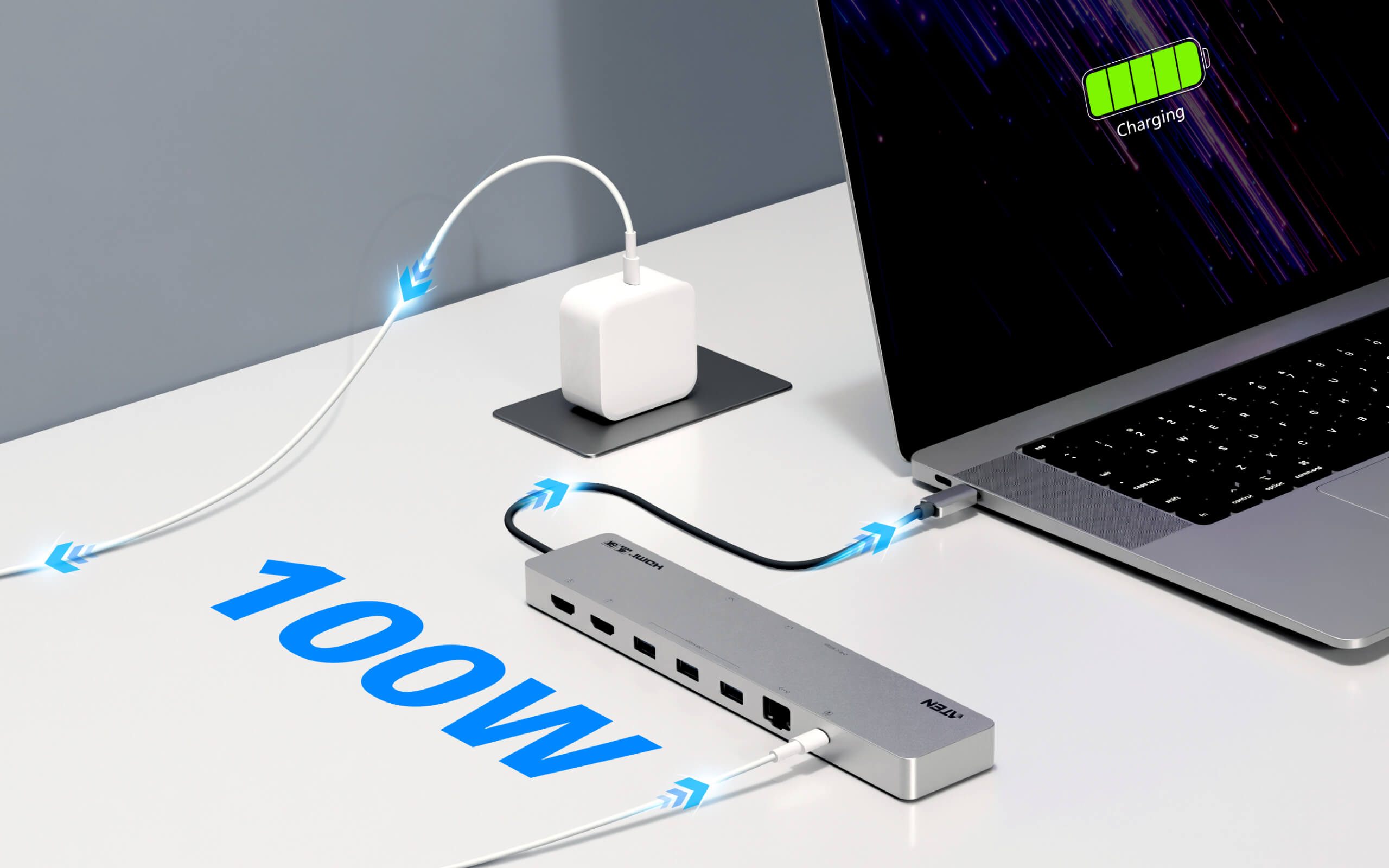

*Supports USB Power Delivery 3.0 for charging up to 100W, power profiles include 5V, 9V, 12V, 15V, and 20V.
*The minimum system power requirement for basic USB functions and video output should be at least 5V, 6W.
*A self-supplied (original USB-C PD power adapter and cable from the host device is highly recommended) USB-C PD power adapter is needed.

Note:
*The max. resolution supported for only HDMI 2 is 4K @ 120 Hz.
*We recommend using self-supplied HDMI 2.1 cable or our ATEN 2L-7D02H21 HDMI cable for 8K resolution. For system requirement of the host device, it is highly recommended that the Intel 12thGeneration Core Processor is used to achieve 8K resolution.
*To get max bandwidth, the host should support standard DP 1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP 1.2 Alt mode supported device, the max resolution of HDMI is 4K @ 30 Hz due to bandwidth limitation.

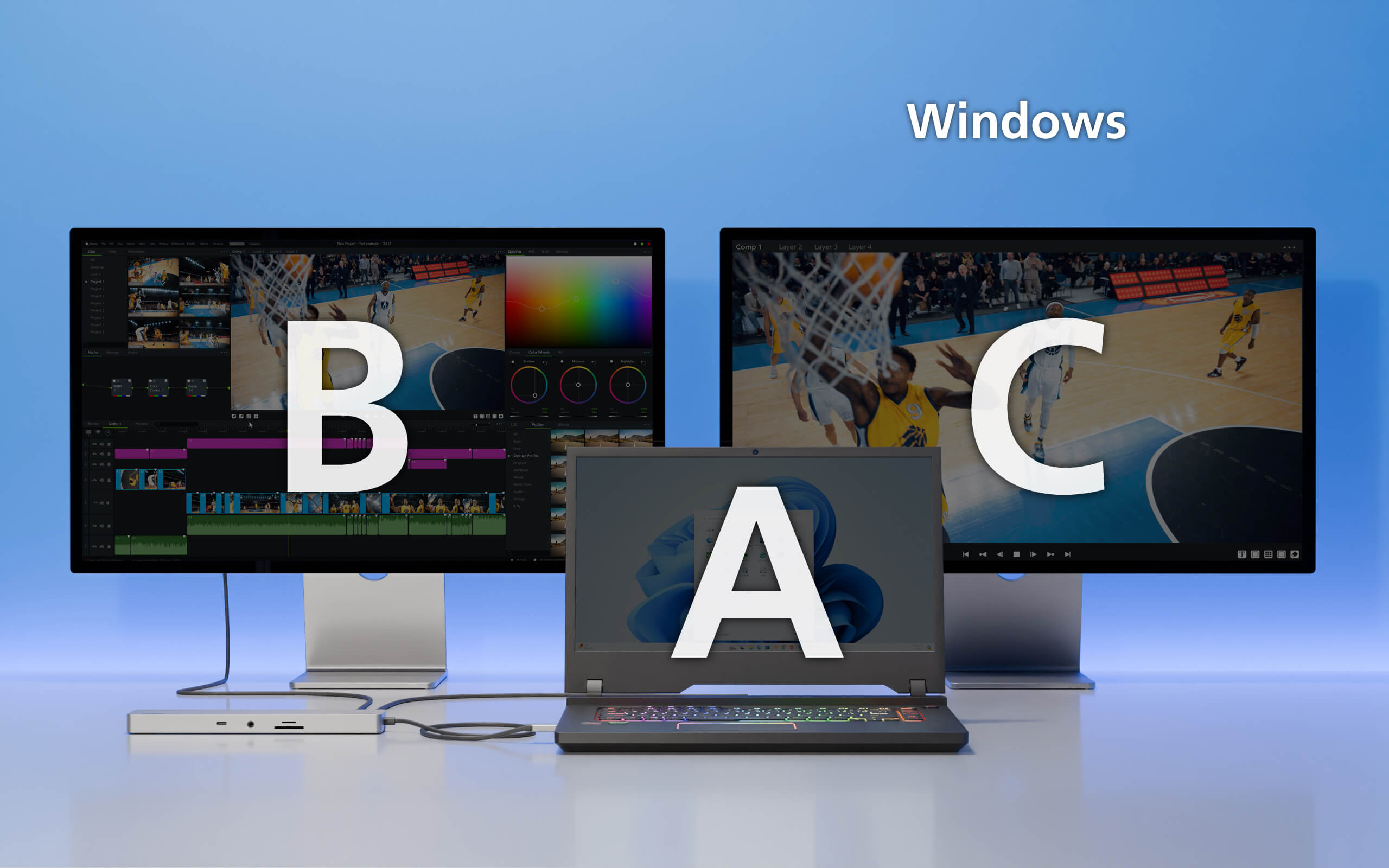

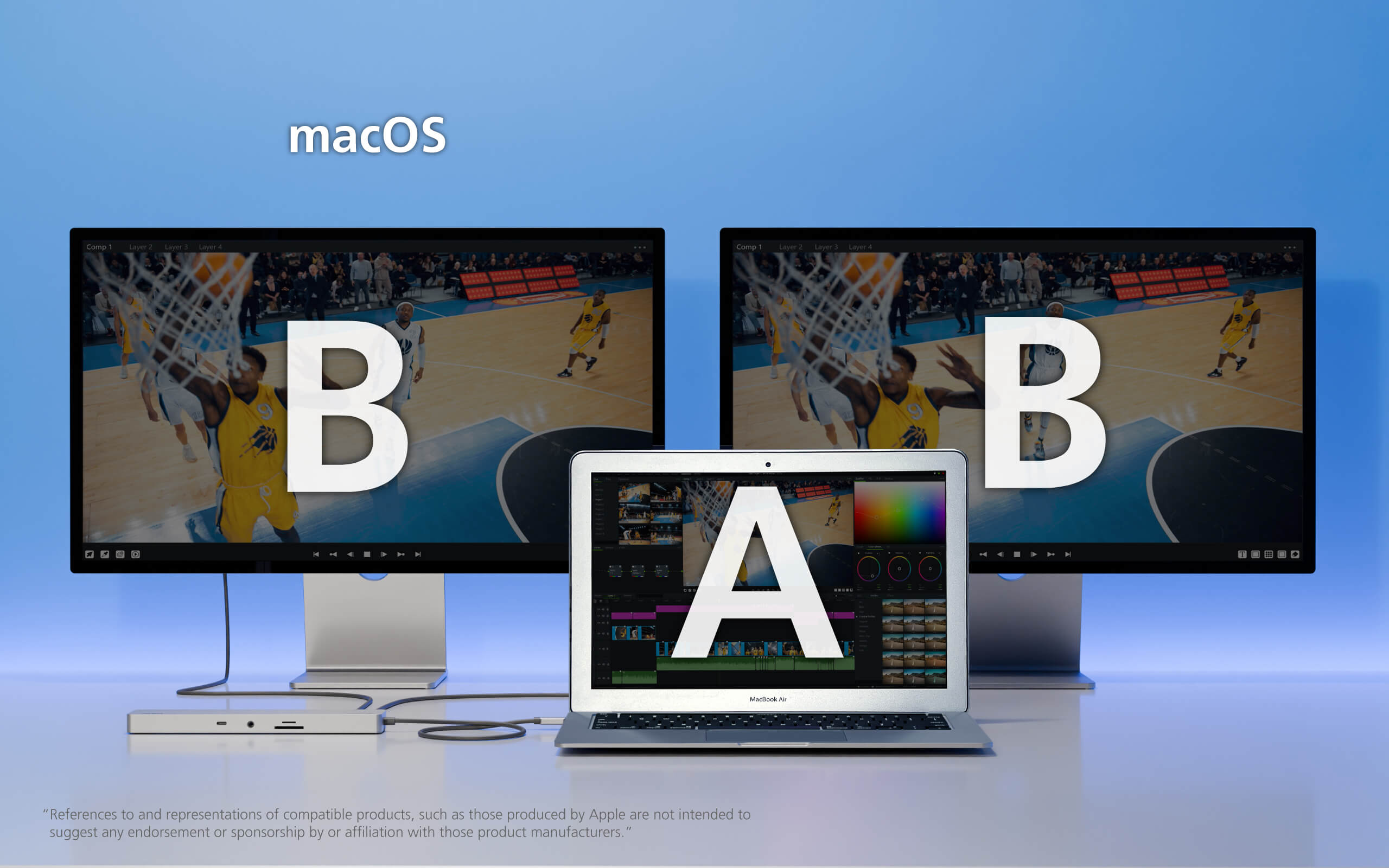

*For extend mode to work, a computer’s graphics card must support MST technology. Mac computers only support single-extended display with identical content on the two connected monitors.
*For MST (Extend Mode) – supports up 4K 3840 X 2160 @ 30 Hz; for SST (Mirror Mode) – supports up to 4K 3840 x 2160 @ 60 Hz.

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

macOS 10.12 or later, USB-C enabled computer

Android 8.0 or later, USB-C enabled Smartphone with DP Alt Mode

iPadOS 13.1 or later, iPad (USB-C)*
*iPad only supports single view in mirror mode.

iOS 17.0 or later, iPhone (USB-C)*
*iPhone only supports single view in mirror mode.
