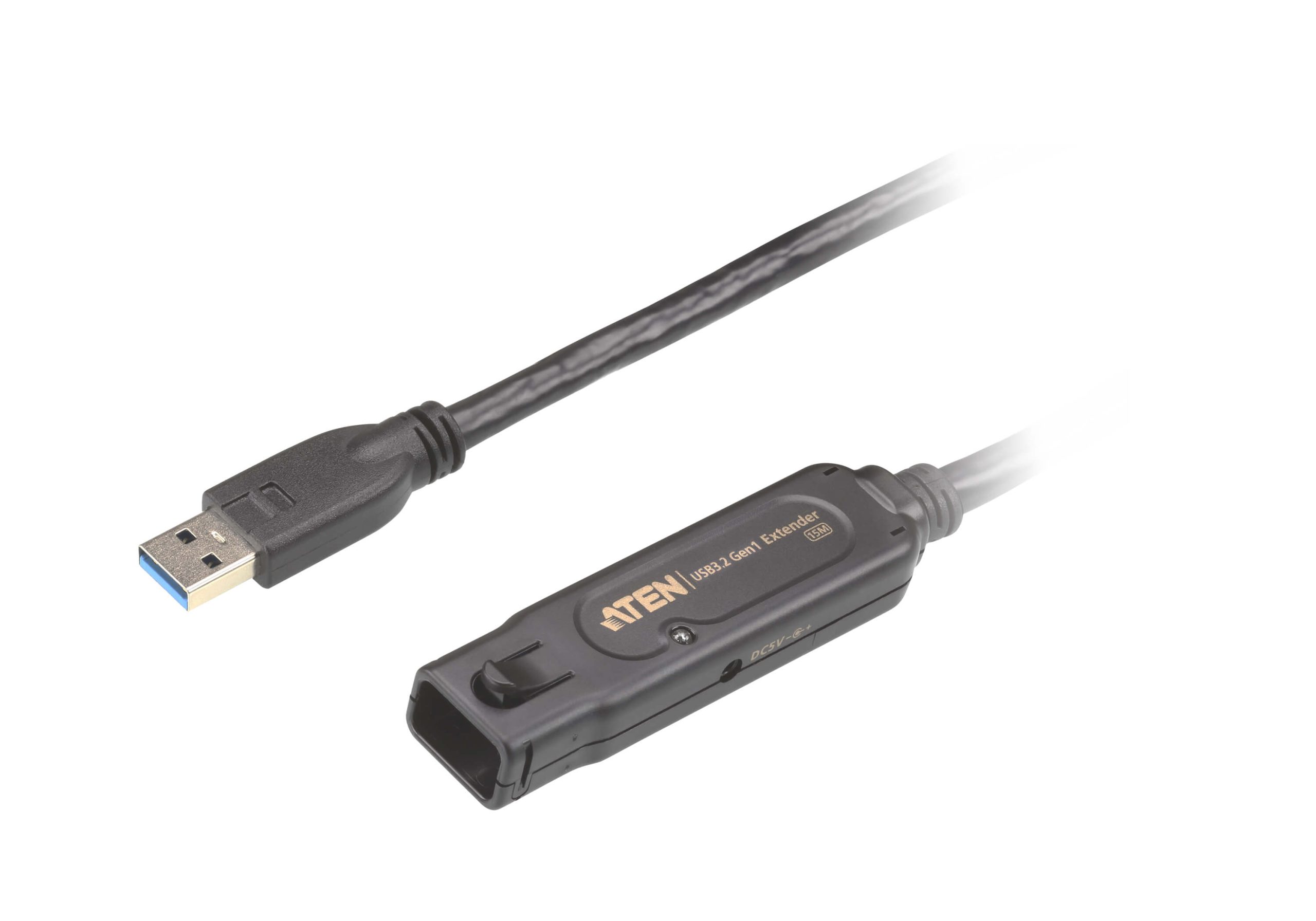

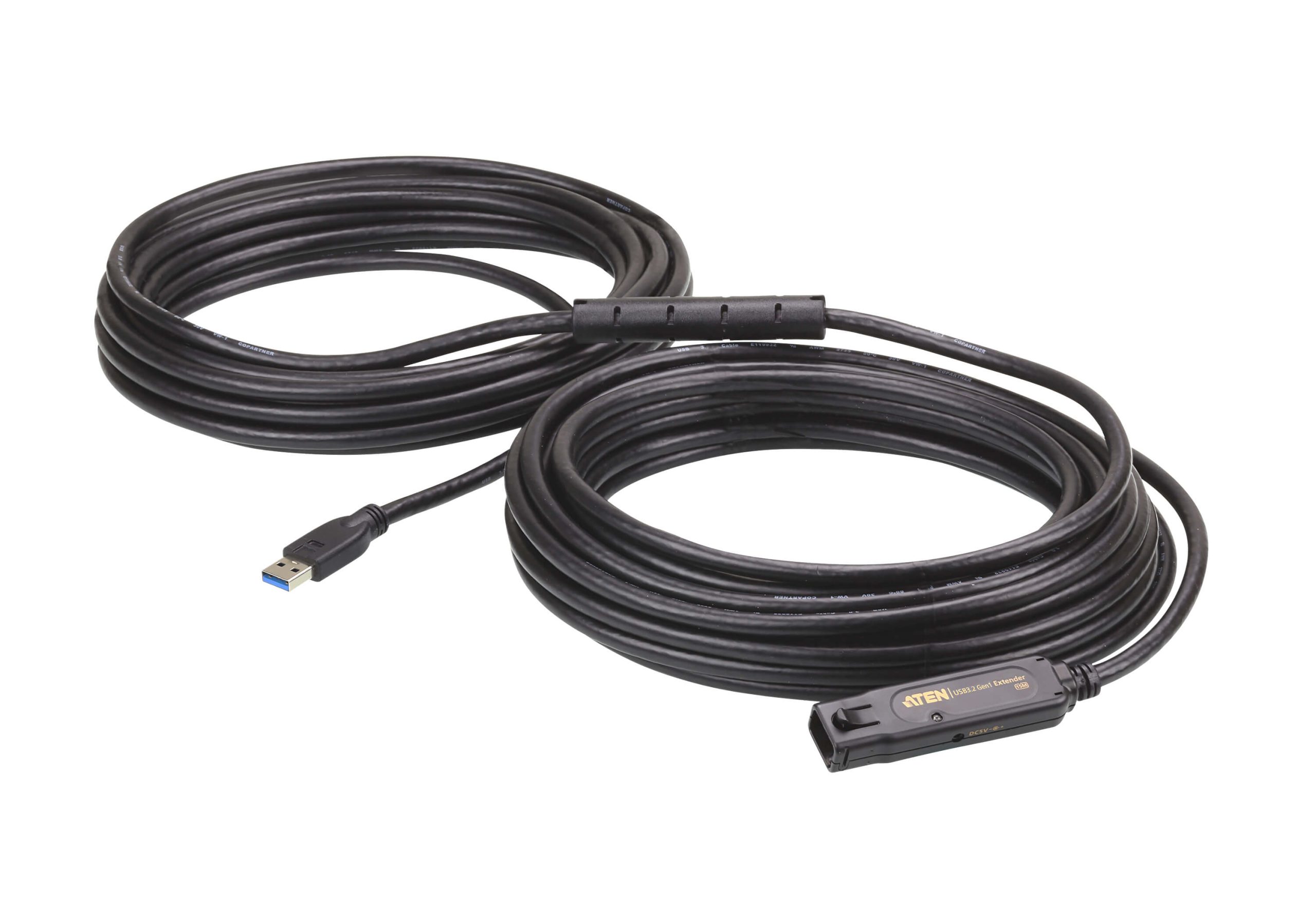

The ATEN UE3315A USB3.2 Gen1 Extender Cable allows users to extend the distance between the computer and USB devices up to 15 m. The UE3315A provides a reliable, high performance data transmission that utilizes USB 3.2 Gen1 data bandwidth up to 5Gb/s and also backward compatible with USB 2.0/1.1 standard. It’s plug and play and no additional software installation required, easy to deploy and operate on the fields.
The UE3315A provides a quick and high quality cost effective solution for all kinds of professional environments like: hospitals, factories, or business facilities.
Note: Please visit ATEN Support Center to view the test report for the compatible webcams for more information.
Package Contents
- 1x UE3315A 15m USB3.2 Gen1 Extender Cable
- 1x Power Adapter
- 1x USB Extension Cable
- 1x user instructions
| Connectors | |
| USB Port | 1 x USB3.2 Gen1 Type A Male |
| Downstream | 1 x USB3.2 Gen1 Type A Female |
| USB Specification | USB3.2 Gen1 / 2.0 / 1.1 for Super / High / Full or Low speed |
| Cable Length | 15 m |
| Data Rate | Up to 5 Gbps |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 1.19 kg ( 2.62 lb ) |
| Dimensions (L x W x H) | 8.19 x 2.22 x 1.75 cm (3.22 x 0.87 x 0.69 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
