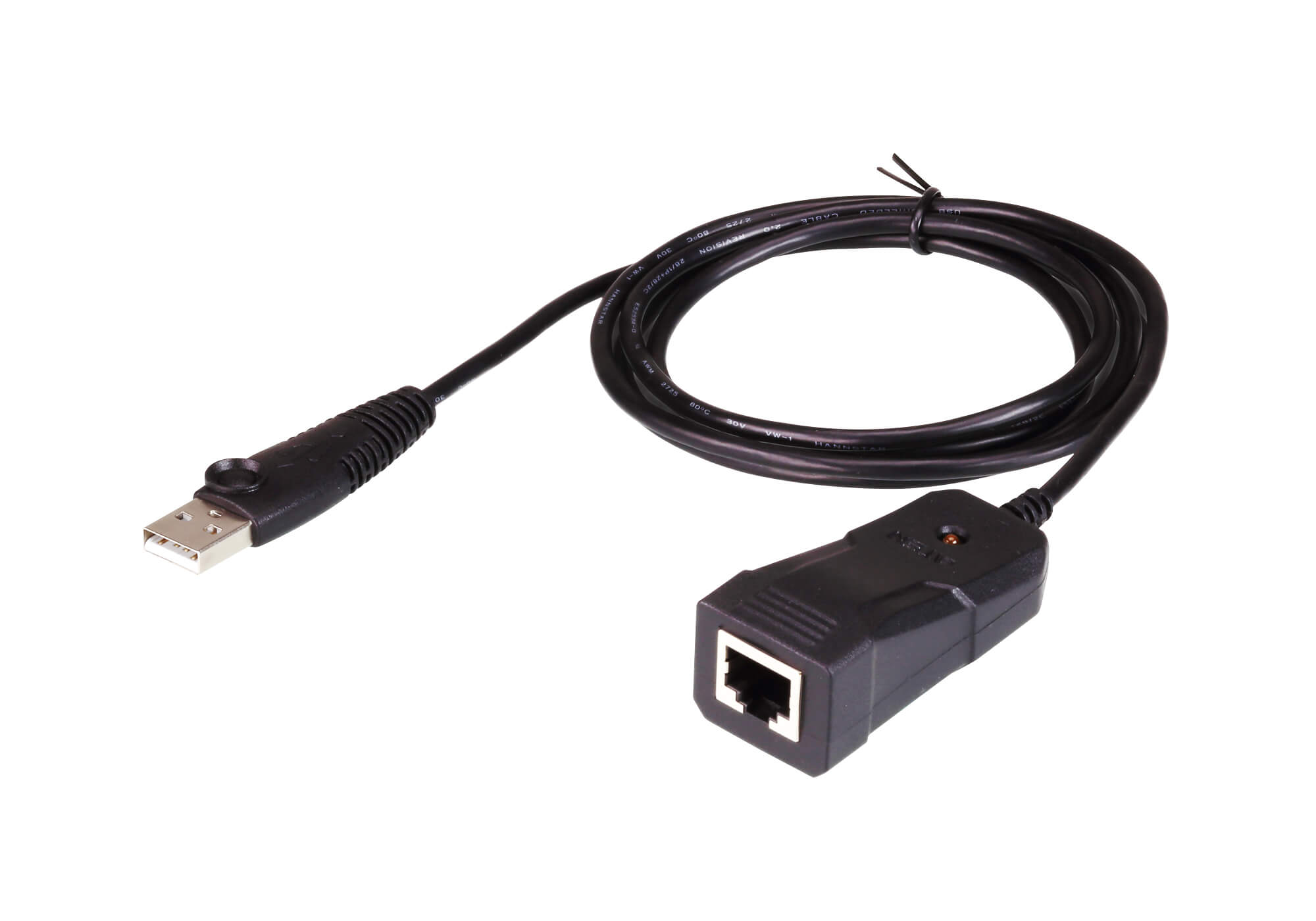

The ATEN UC232B is a one port USB-to-Serial console adapter. This high quality industrial adapter cable is designed to instantly add single RS-232 console port connectivity for networking appliances via a USB port. The adapter is powered via the USB connection.
The UC232B is compatible with the USB 2.0 standard and works conveniently with desktop and notebook PCs. It also can be used with large integrated computer-based systems or other specialized applications, such as point-of-sale applications, networking equipment, industrial automation systems, and native serial transfer instruments to offer a convenient connectivity solution. The UC232B converter provides a plug & play solution. Windows, Mac and Linux drivers are included.
NOTICE
If your Linux kernel is between v2.6.15 ~ v5.4 and your device has a new chipset version, please update the Linux driver
Note: This driver works with 2021 or later chipset version device only.
Use the link below to identify which chipset version your device is
Product Comparison
| Option | USB to RS-232 Adapter (35 cm) | USB to RS-232 Adapter (1 m) | USB to RJ-45 (RS-232) Console Adapter (1.2 m) | USB-C to RS-232 Adapter (45 cm) | USB to RS-422/485 Adapter (1.2 m) |
|---|---|---|---|---|---|
| Number of Device Port | 1 | 1 | 1 | 1 | 1 |
| Input Interface | USB Type-A | USB Type-A | USB Type-A | USB Type-C | USB Type-A |
| Output Interface | RS-232 | RS-232 | RS-232 RJ-45 | RS-232 | RS-485 RS-422 |
| Data Transfer Rate | 921.6 Kbps | 921.6 Kbps | 921.6 Kbps | 921.6 Kbps | 921.6 Kbps |
| Cable Length | 0.35 m | 1 m | 1.2 m | 0.45 m | 1.2 m |
| USB Standard | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Package Contents
- 1x USB to RS-232 Console Adapter
- 1x User Instructions
