Multi-System Support
The UC232A is compatible with multiple operating systems, such as macOS, Linux, and Windows 7/8/10.
Stable Performance, Fast Transmission
The UC232A offers USB 2.0 connectivity and is equipped with a robust cable that ensures proven anti-EMI performance for reliable signal transmission at speeds of up to 921.6 Kbps baud rate.
Broadly Compatible with Serial Devices

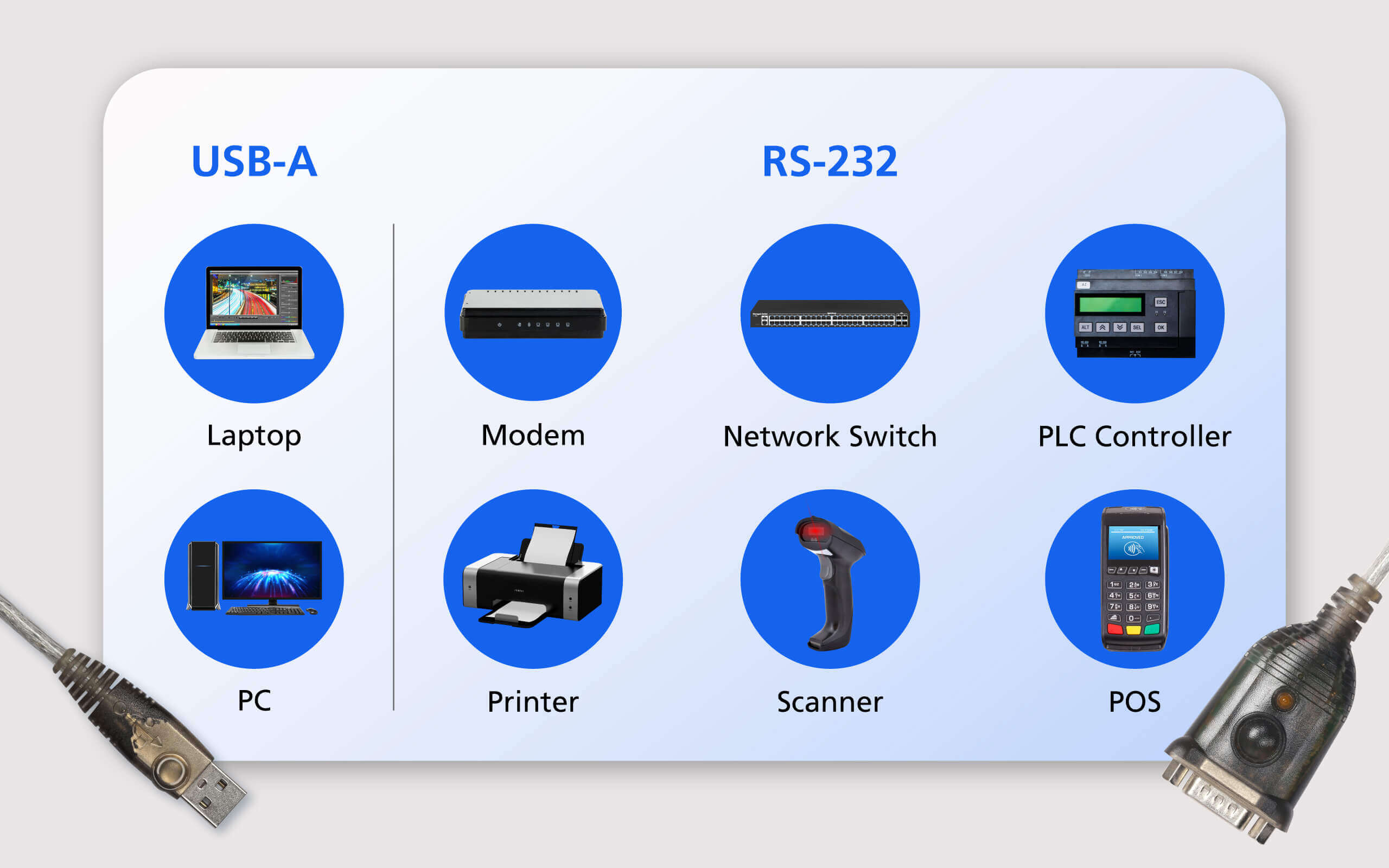

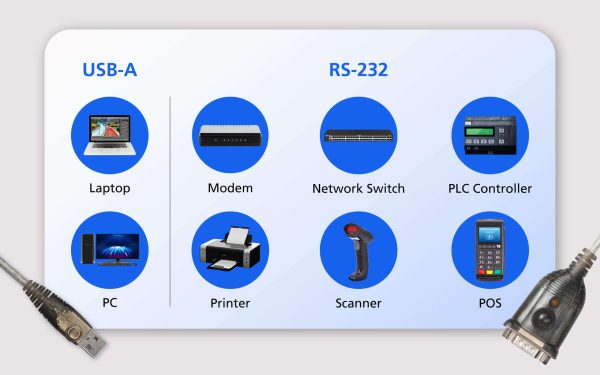

The UC232A allows your PC or laptop to control and communicate with various RS232 serial devices such as modem, network switch, PLC controller, printer, scanner, POS and so on.
Product Comparison
The UC232 lineup is well-suited for a variety of applications including industrial automation, IT networking, and control systems.
| Option | USB to RS-232 Adapter (FTDI/1.2 m) | USB to RS-232 Adapter (35 cm) | USB to RS-232 Adapter (1 m) | USB-C to RS-232 Adapter (45 cm) | USB to RJ-45 (RS-232) Console Adapter (FTDI/1.2 m) |
|---|---|---|---|---|---|
| Number of Device Port | 1 | 1 | 1 | 1 | 1 |
| Input Interface | USB Type-A | USB Type-A | USB Type-A | USB Type-C | USB Type-A |
| Output Interface | RS-232 | RS-232 | RS-232 | RS-232 | RS-232 RJ-45 |
| Data Transfer Rate | 921.6 Kbps | 921.6 Kbps | 921.6 Kbps | 921.6 Kbps | 921.6 Kbps |
| Legacy OS | N/A | N/A | N/A | ||
| Cable Length | 1.2 m | 0.35 m | 1 m | 0.45 m | 1.2 m |
| USB Standard | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
*Notes: Models equipped with FTDI chip provide better signal transmission with legacy Windows OS.
| Connectors | |
| USB Port | 1 x USB Type A Male (White) |
| Serial | 1 x DB-9 Male (Silver) |
| Data Rate | Up to 921.6 Kbps |
| Cable Length | 35cm |
| LEDs | Power (Orange) |
| Power Mode | Bus Powered |
| USB Specification | USB compliant |
| Environmental | |
| Operating Temperature | 0–40˚C |
| Storage Temperature | -20–60˚C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 6.59 x 3.40 x 1.60 cm (2.59 x 1.34 x 0.63 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
