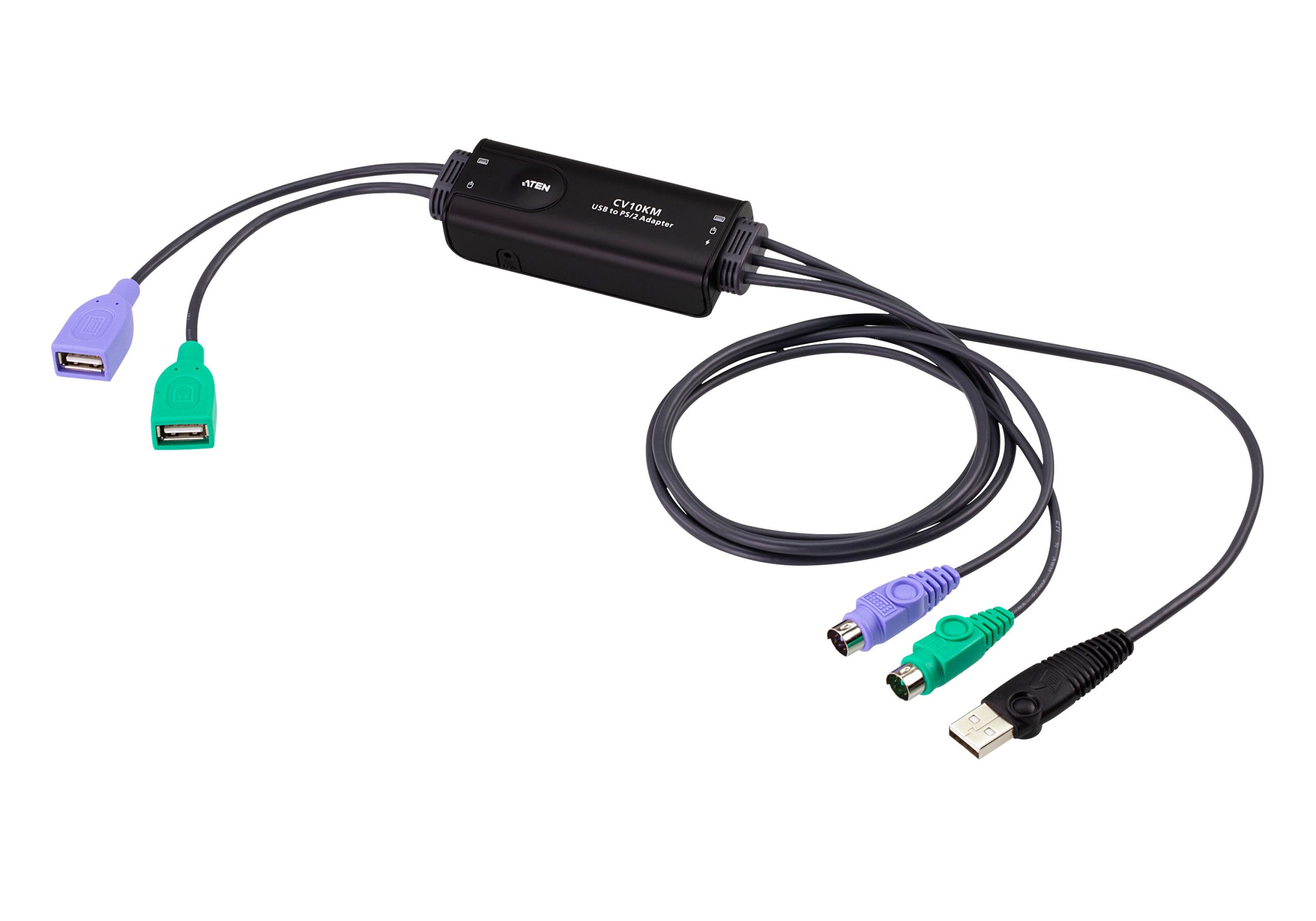

The CV10KM is a USB to PS/2 signal converter that converts USB keyboard and mouse signals into PS/2 signals. When installed with the KE / CN / RCM series products, it eliminates the high cost with replacing KVM switches. With the compact and bus-powered design, the CV10KM fits perfectly into most of the PS/2 computers.
Package Contents
- 1x USB to PS/2 Converter (80 cm)
- 1x user instructions
| Connectors | |
| Keyboard | 1 x PS/2 6-pin Mini-DIN Male (Purple) 1 x USB Type A Female (Purple) |
| Mouse | 1 x PS/2 6-pin Mini-DIN Male (Green) 1 x USB Type A Female (Green) |
| Power (Optional) | 1 x USB Type A Male (Black) |
| Cable Length | 80cm |
| Reset Button | 1 x Push Button |
| Platforms | Windows/Linux |
| USB Specification | USB 1.1 – 2.0 (Full speed & Low speed) Compatible |
| Power Mode | Bus Powered (via the USB and PS/2 cables) |
| Power Consumption | DC5V:0.2W:5BTU/h Note: |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.11 kg ( 0.24 lb ) |
| Dimensions (L x W x H) | 8.45 x 3.40 x 2.21 cm (3.33 x 1.34 x 0.87 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
