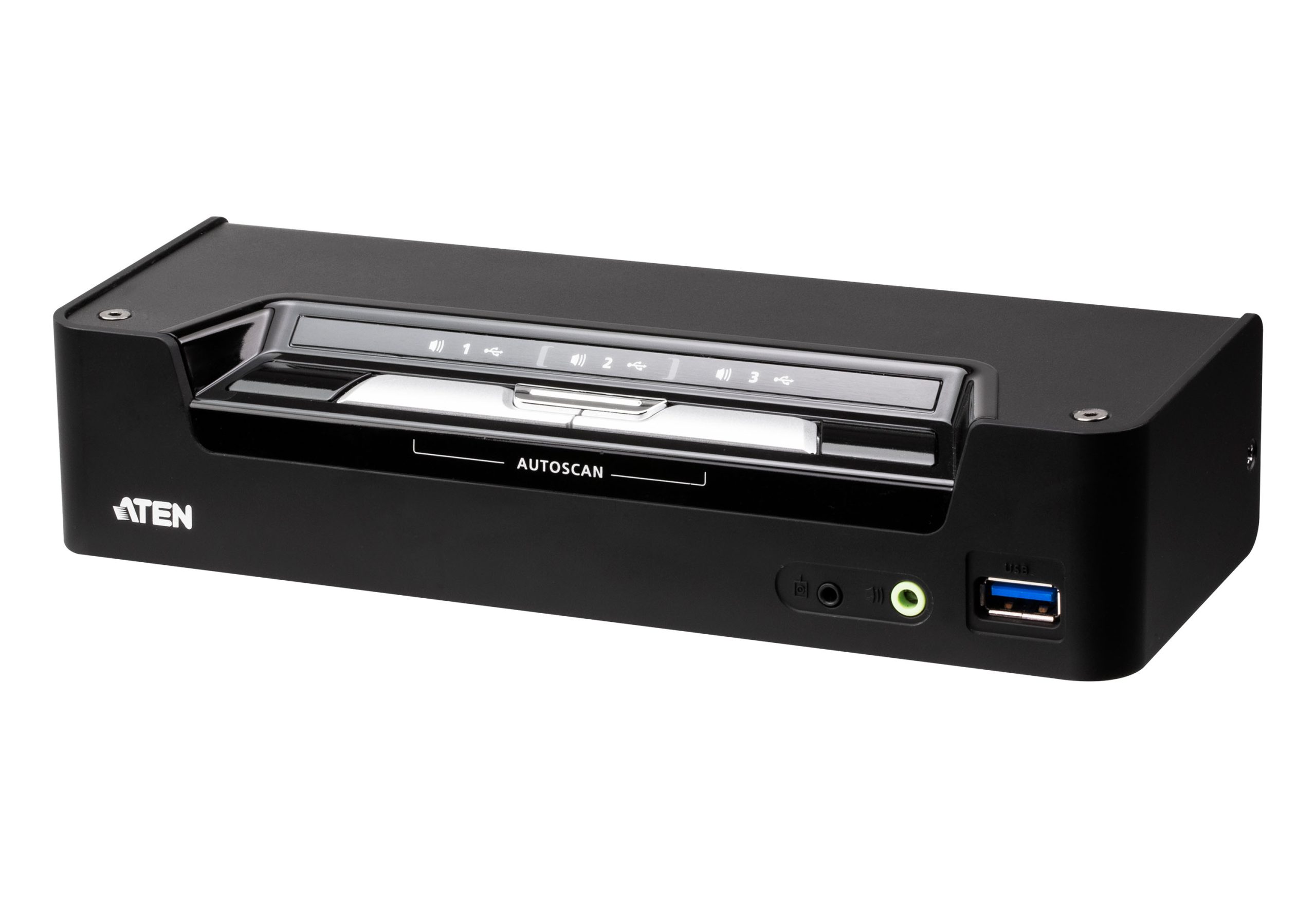

ATEN CS1953-AT-G
3-Port USB-C DisplayPort Hybrid KVMP Switch
The CS1953, the industry’s first 3-port USB-C DisplayPort Hybrid KVMP™ Switch, carries out ergonomic desktop style with the power of a KVM and the popularity of USB-C connectivity to facilitate professional and commercial workstation applications with better mobility, so as to enhance total desktop productivity. With the DisplayPort monitor set up on your desktop and access to up to two PCs via DisplayPort and a laptop (or other mobile device) via USB-C, you can expect a rich experience with outstanding 4K visual clarity, as well as fast switching between multiple computers and mobile flexibility.
USB-C for Space-Cost Efficiency
The CS1953 boasts the increasingly popular USB-C interface to facilitate a plug-n-play connection to mobile devices (laptops, tablets, smartphones) without going through a docking station, making it a true space and money saver for your desktop workspace.
DisplayPort for Exceptional AV Performance

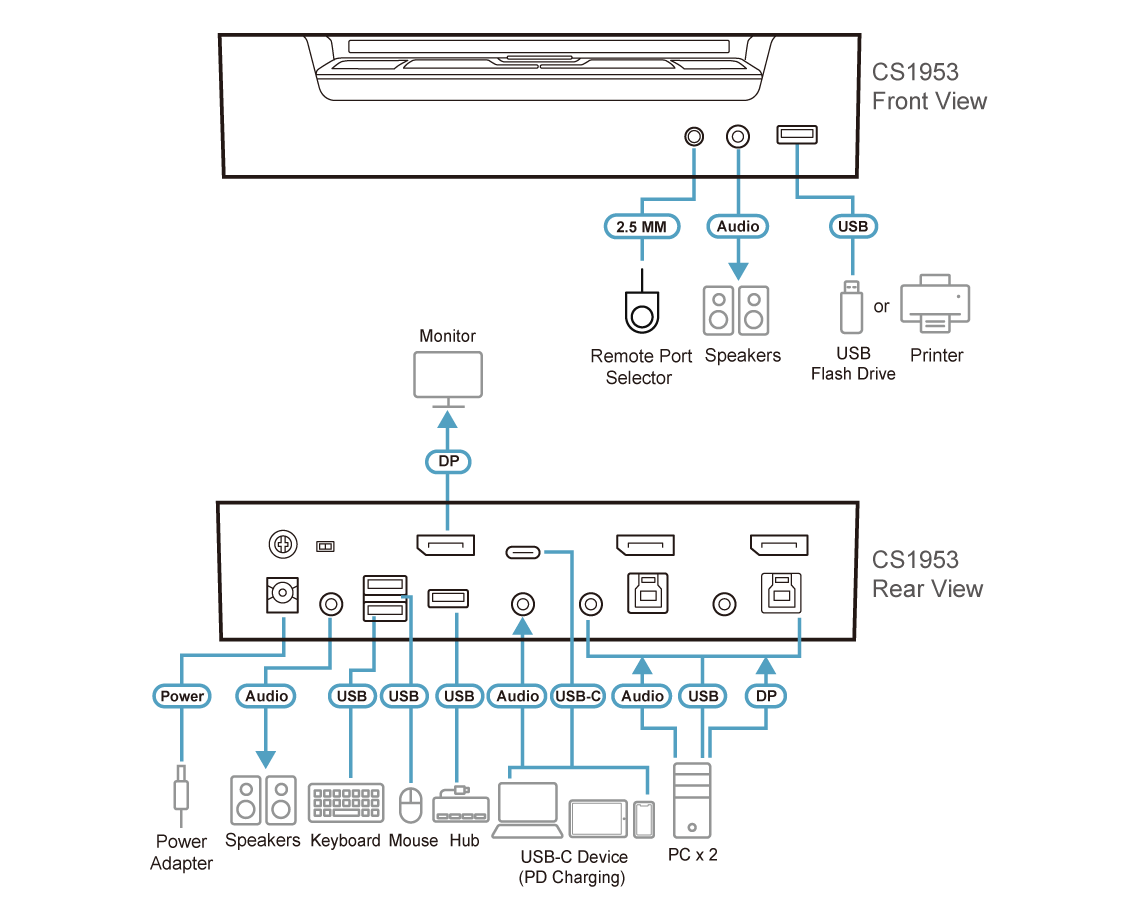

The CS1953 supports DisplayPort connectivity between up to two computers, a monitor, and a mobile device (over USB-C). It brings 4K superior viewing quality to your desktop, revealing all your visual content, text and numerical digits in outstanding precision.
Plug In, Power On
By enabling the USB-C device power delivery 3.0 standard, your mobile devices start charging upon connection to the CS1953, elevating your desktop productivity with even quicker mobility.
Extended Desktop for Productive Multitasking
Taking advantage of DisplayPort MST (Multi-Stream Transport) support, you can daisy-chain two monitors to form an extended desktop for productive multitasking on a dual-display workspace setup.
Flexible Port Switching, Any Way You Like
Port switching is flexible and you can choose from using the pushbuttons, mouse, hotkeys and remote port selector, whichever works best for you.
Specifications
| Computer Connections | 3 |
| Port Selection | Hotkey, Pushbutton, Mouse, Remote Port Selector |
| Connectors | |

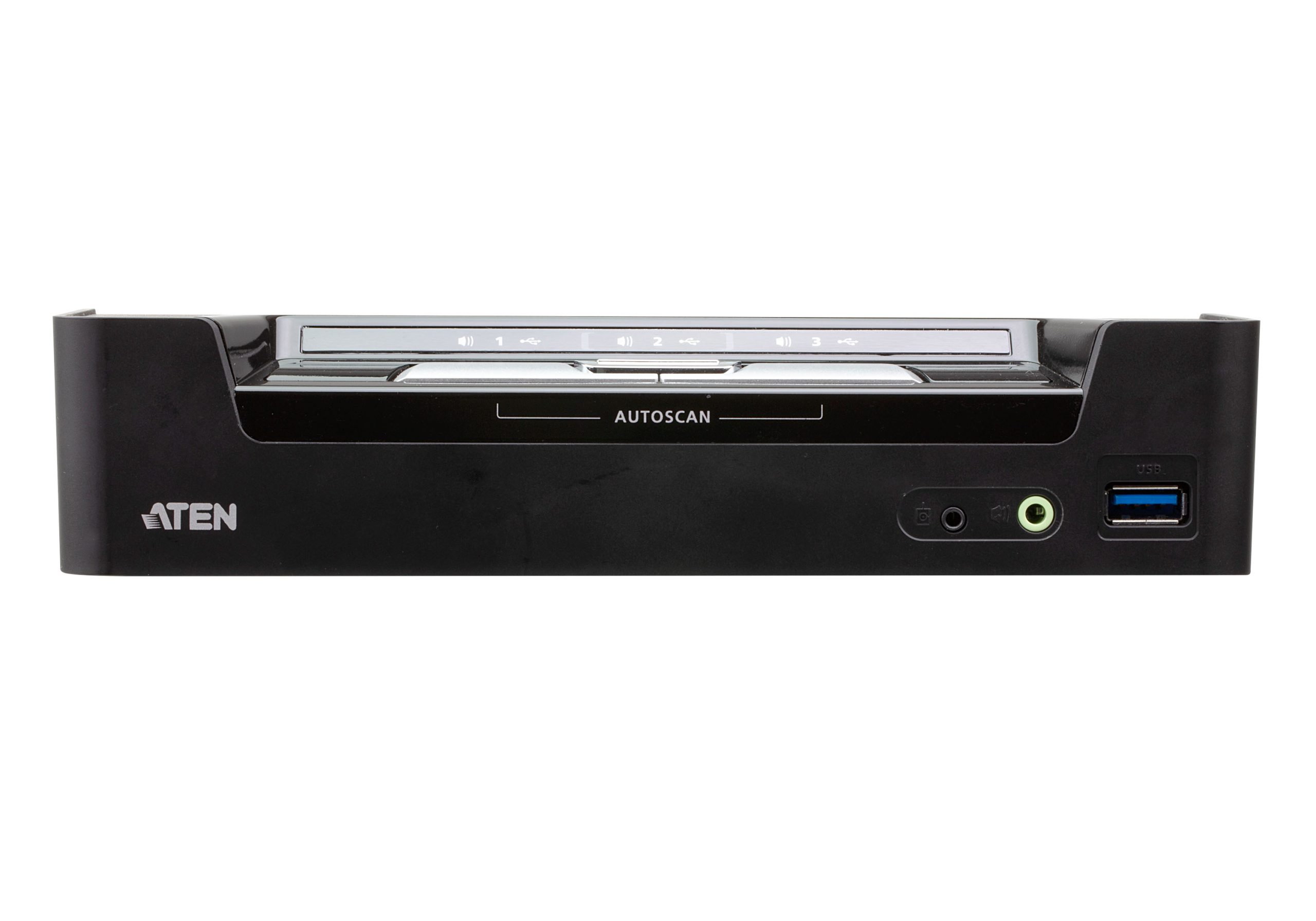

| Console Ports | 2 x USB Type A Female 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) |

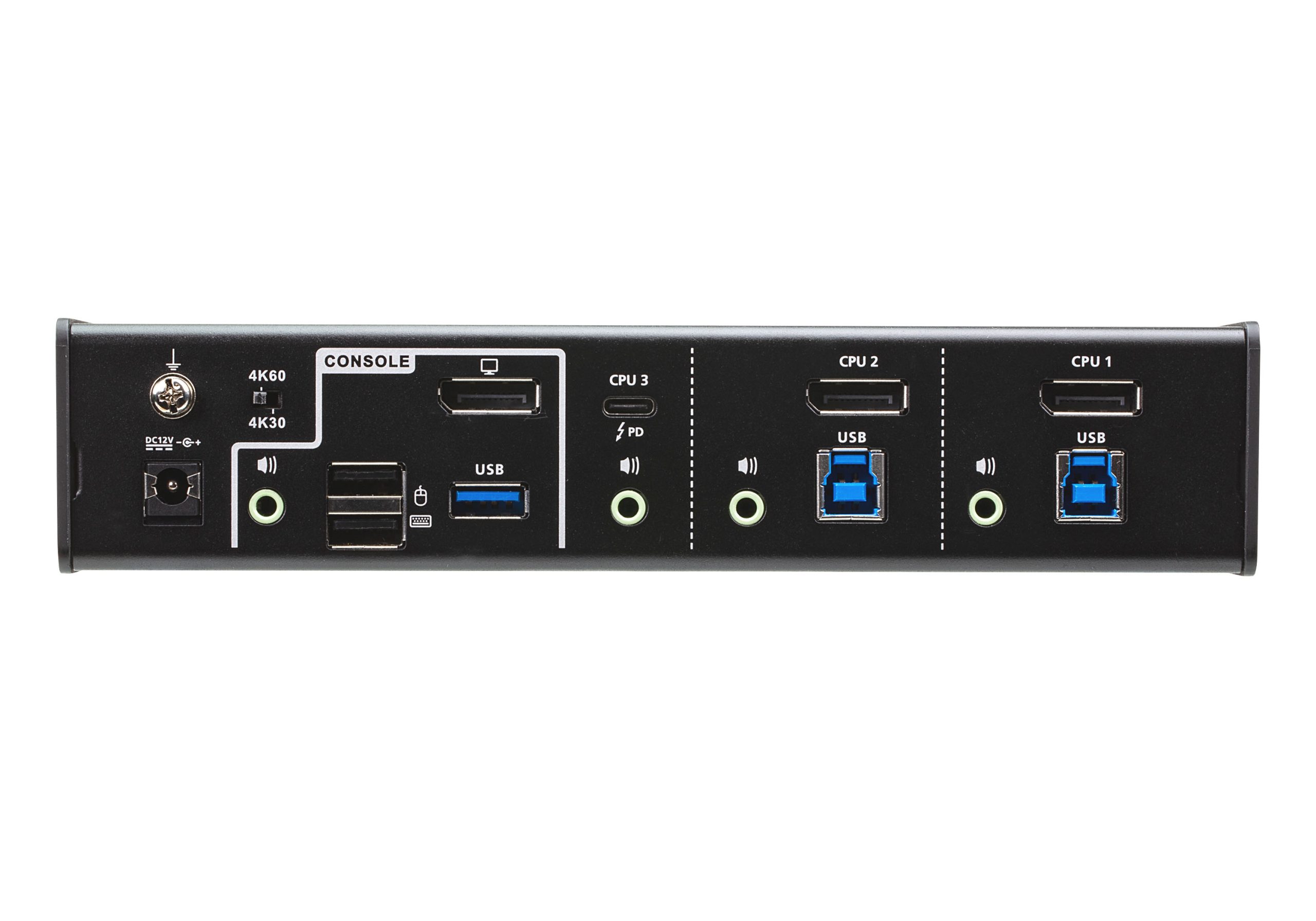

| KVM (Computer) Ports | CPU1 and CPU2: 2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) CPU3: 1 x USB Type-C Female (Black) 1 x 3.5mm Audio Jack Female (Green) |
| Remote Port Selector | 1 x 2.5mm Audio Jack Female (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front, 1 x rear) |
| Switches | |
| Selected | 3 x Pushbutton |
| Mode Switch | 1 x Slide Switch |
| LEDs | |
| Audio | 3 (Green) |
| KVM | 3 (Orange) |
| USB | 3 (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz |
| Scan Interval | 1-99 Seconds (Default: 5 sec.) |
| Power Consumption | DC12V:5.78W:269BTU/h Note: |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal, Plastic |
| Weight | 0.50 kg ( 1.1 lb ) |
| Dimensions (L x W x H) | 20.63 x 7.54 x 4.40 cm (8.12 x 2.97 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
