ATEN CL5708I
1-Local/Remote Shared Access 8-Port PS/2-USB VGA Single Rail LCD KVM over IP switch

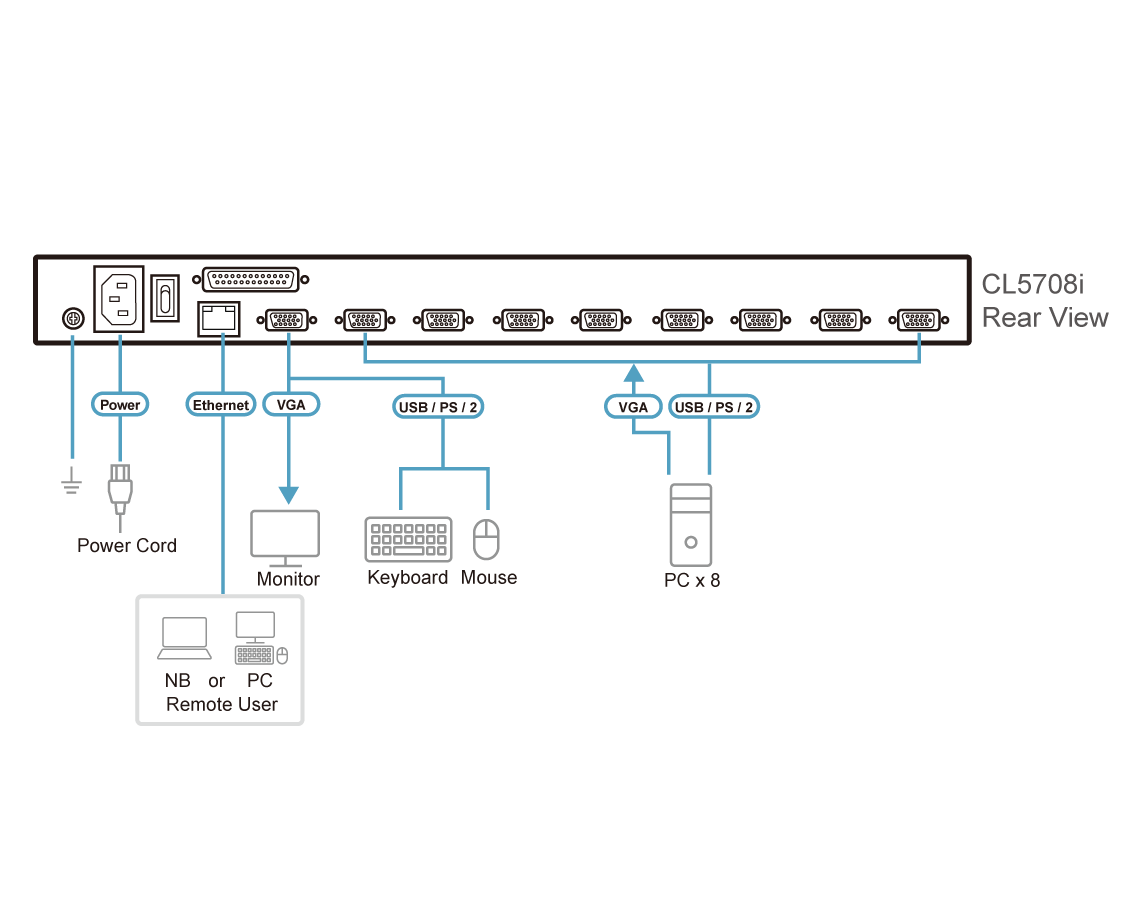

The CL5708I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708I can control up to 8 computers. Up to 15 additional KVM switches can be daisy-chained to the CL5708I, so that up to 128 computers can all be controlled from a single KVM console.
The CL5708I LCD KVM Switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP / IP for its remote communications protocol. The CL5708I supports up to 32 concurrent user logins for a single-bus computer access. A built-in feature that resembles an Internet chat program – the Message Board – lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

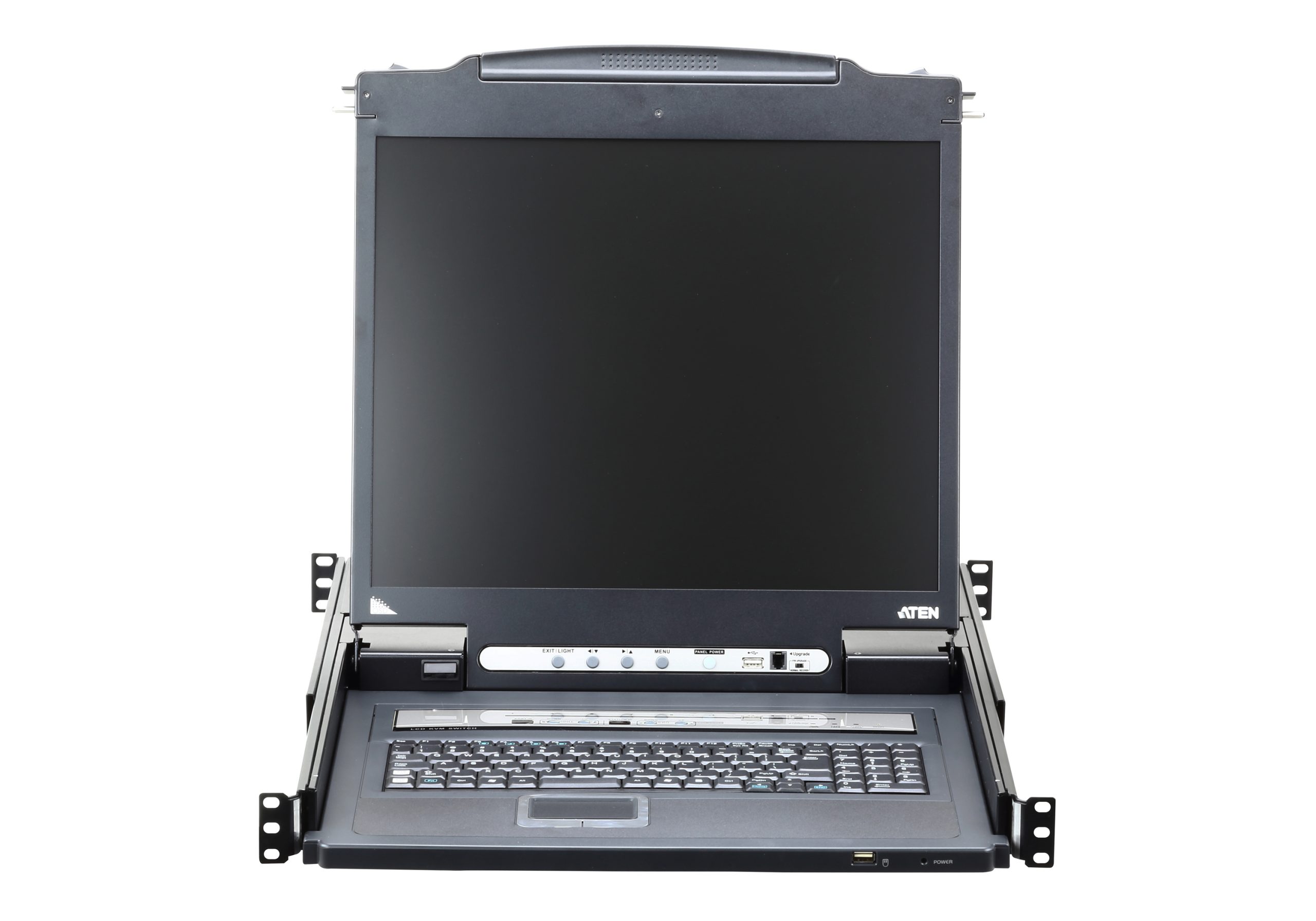

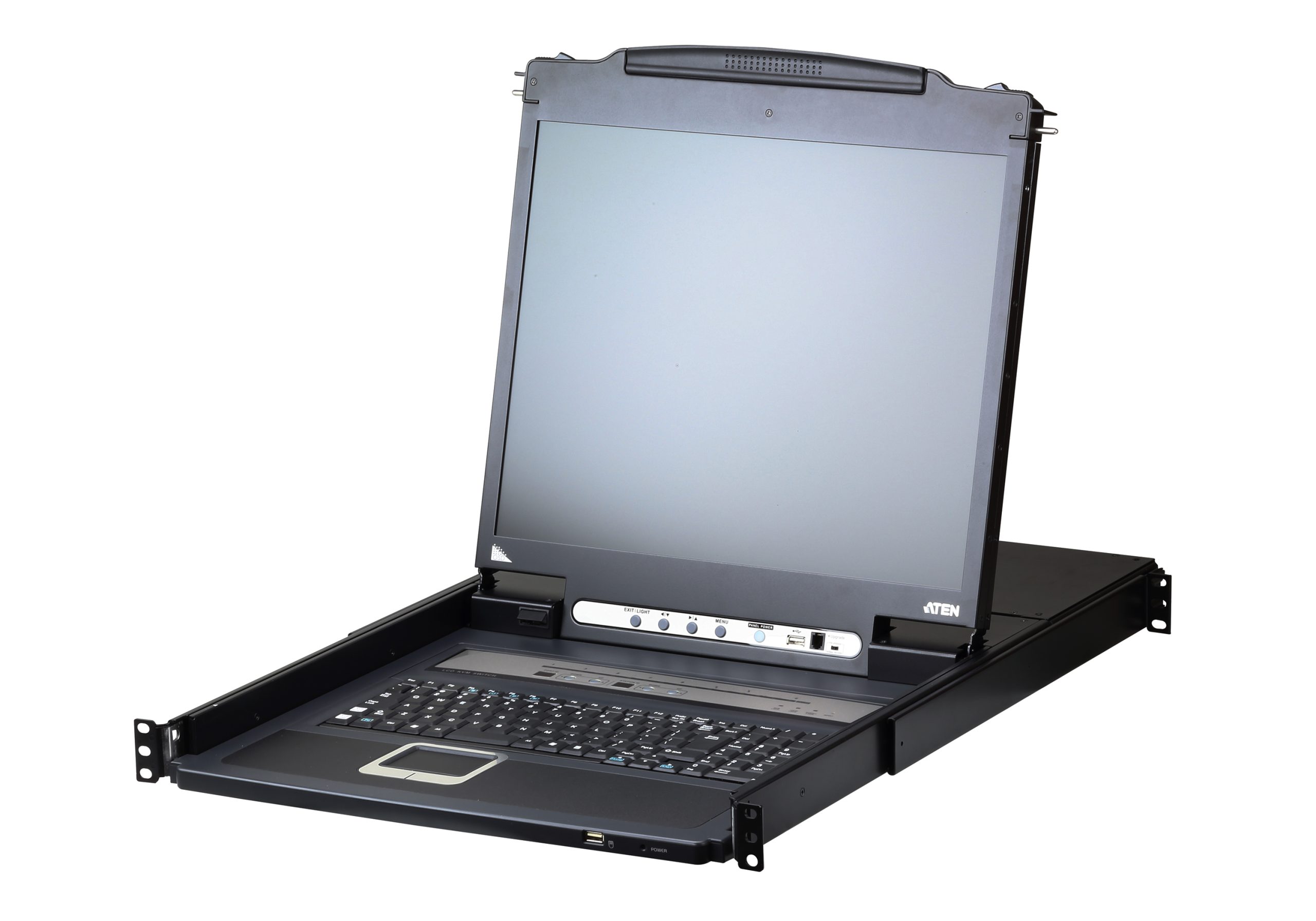

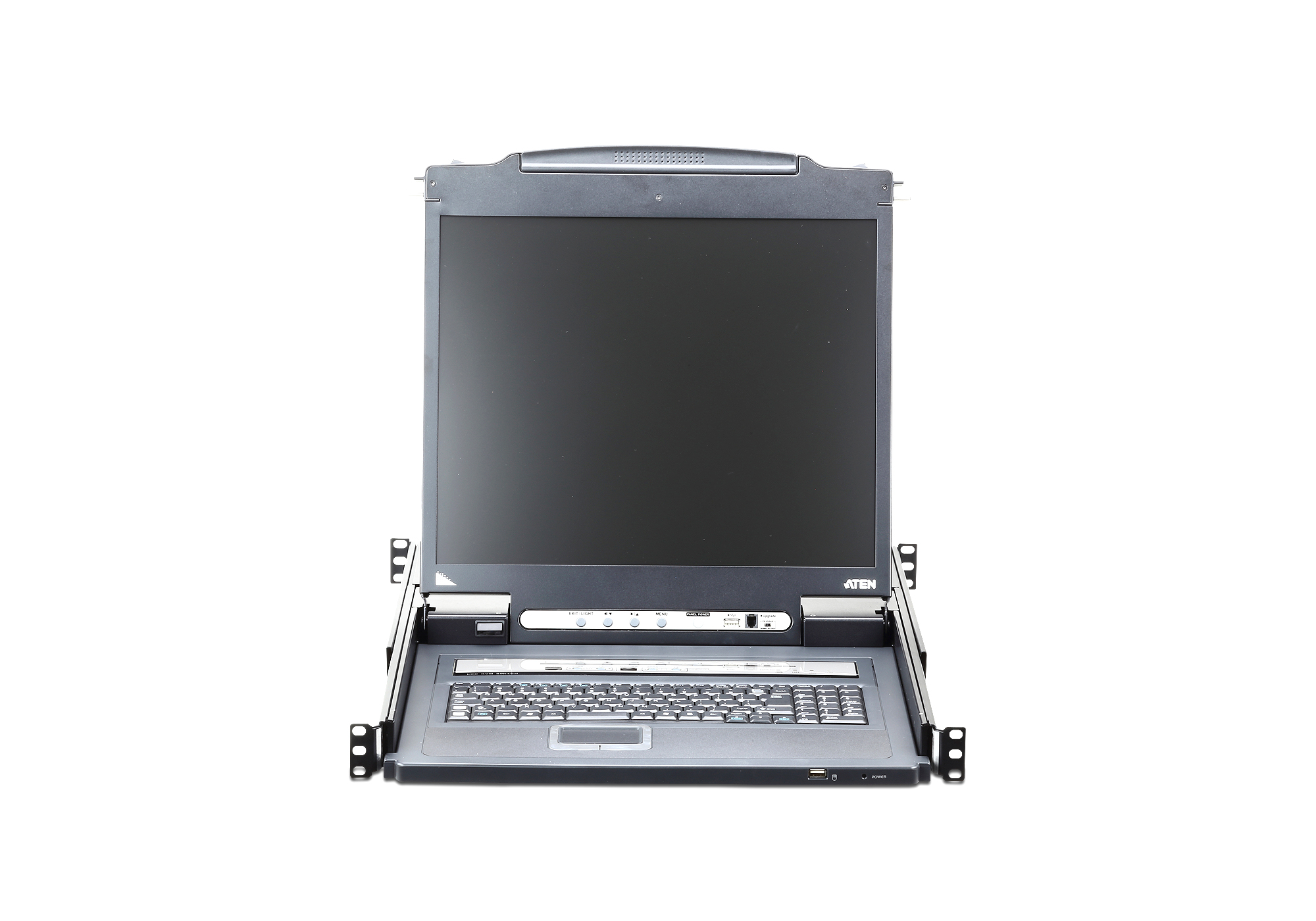

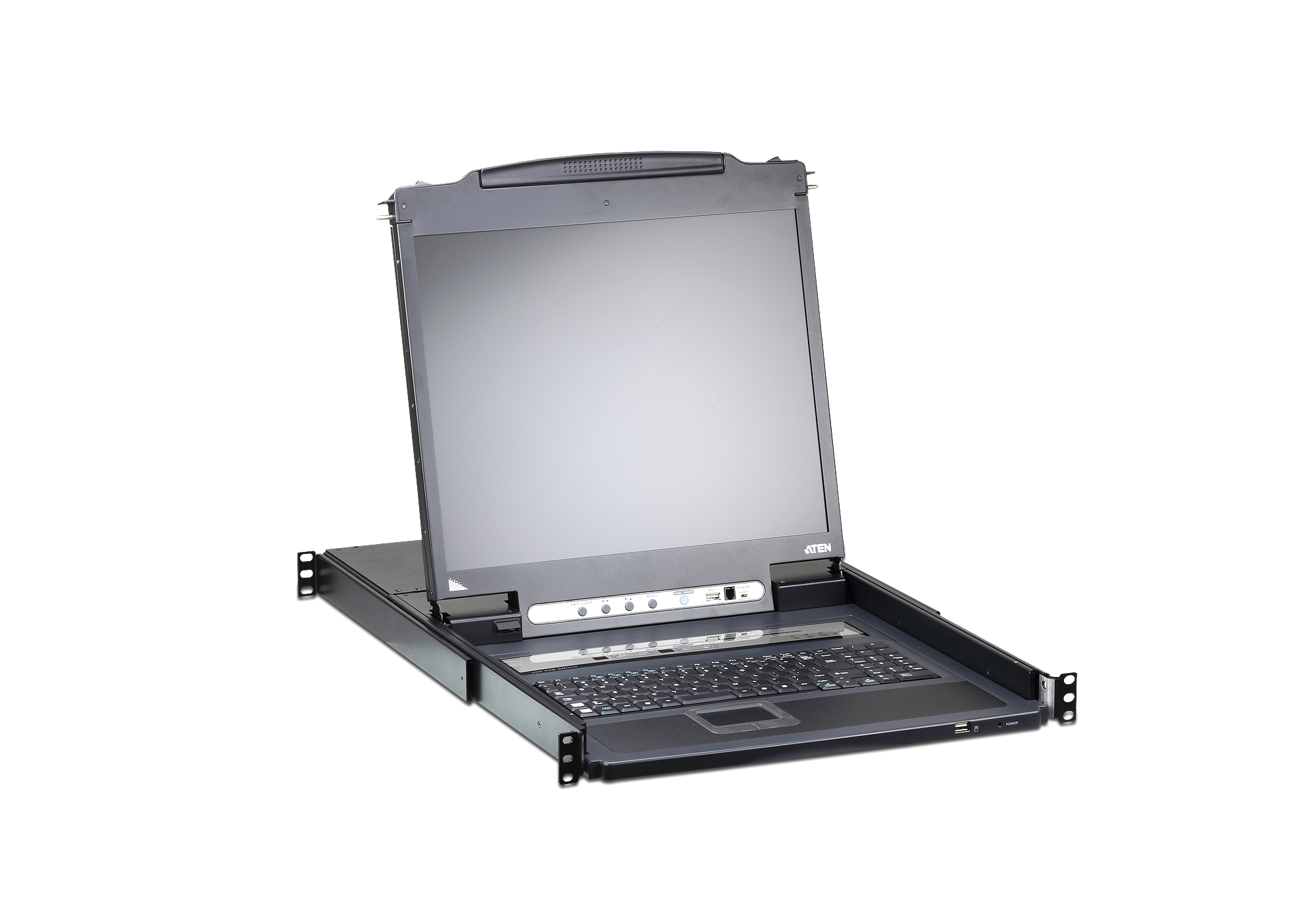

The CL5708I offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17″ or 19″ LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. In addition, since the CL5708I is built on a modular design, the KVM section can be detached from the switch section for convenient maintenance and repair.
Among CL5708I’s other outstanding features, the Panel Array Mode provides the ability to monitor the video output of the servers on the installation; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.
The CL5708I supports the highest security protocols, such as TLS 1.2 encryption for the browser, and RC4 encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CL5708I also supports authentication and authorization via 3rd party authorized servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below or the link: LCD KVM Optional Rack Mount Kit
CL5708IM: 17″ LCD
CL5708IN: 19″ LCD
Spesification
| Function | CL5708IM | CL5708IN |
| Console Connections | ||
| Local | 1 (Share Remote Bus) | 1 (Share Remote Bus) |
| Remote | 1 | 1 |
| Computer Connections | ||
| Direct | 8 | 8 |
| Maximum | 128 (via Daisy-chain) | 128 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbutton | OSD, Hotkey, Pushbutton |

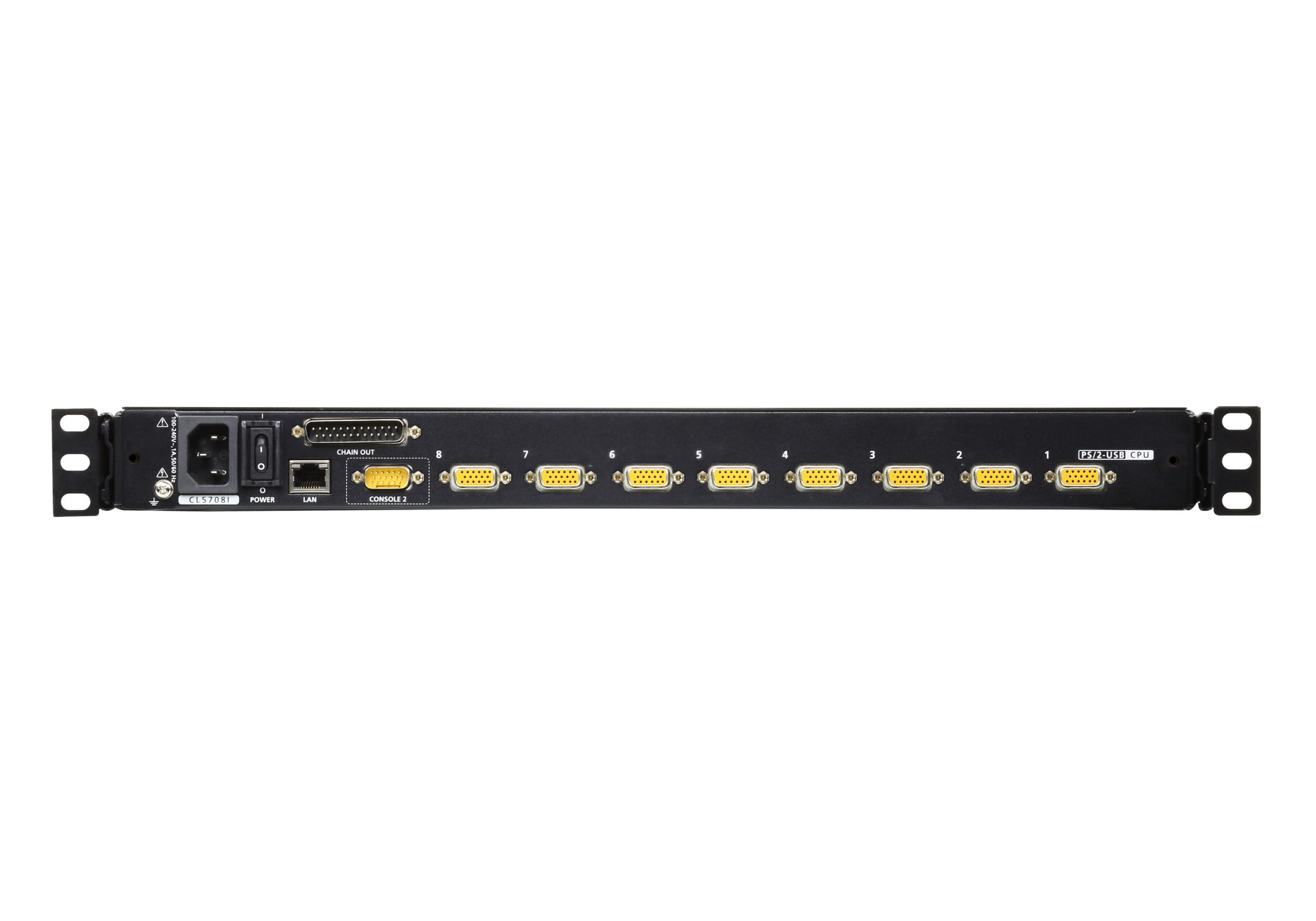

| Connectors | ||
| External Console Ports | 1 x SPHD Male (Yellow) | 1 x SPHD Male (Yellow) |
| External Mouse Port | 1 x USB Type-A Female | 1 x USB Type-A Female |
| USB Port | 1 x USB Type-A Female | 1 x USB Type-A Female |
| KVM Ports | 8 x SPHD Female | 8 x SPHD Female |
| Daisy Chain Ports | 1 x DB-25 Male | 1 x DB-25 Male |
| Firmware Upgrade | 1 x RJ-11 Female | 1 x RJ-11 Female |
| LAN Ports | 1 x RJ-45 Female | 1 x RJ-45 Female |
| Power | 1 x IEC 60320/C14 | 1 x IEC 60320/C14 |
| Switches | ||
| Port Selection | 2 x Pushbuttons | 2 x Pushbuttons |
| Station Selection | 2 x Pushbuttons | 2 x Pushbuttons |
| Reset | 1 x Semi-recessed Pushbutton | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Switch | 1 x Switch |
| Power | 1 x Rocker Switch | 1 x Rocker Switch |
| LCD On/Off | 1 x LED Pushbutton (Orange) | 1 x LED Pushbutton (Orange) |
| LCD Adjustment | 4 x Pushbuttons | 4 x Pushbuttons |
| LEDs | ||
| Online | 8 x (Orange) | 8 x (Orange) |
| Port ID | 1 x 2-digit, 7-segment (Yellow) | 1 x 2-digit, 7-segment (Yellow) |
| Station ID | 1 x 2-digit, 7-segment (Yellow) | 1 x 2-digit, 7-segment (Yellow) |
| 10/100 Mbps | 1 x (Orange/Green) | 1 x (Orange/Green) |
| Power | 1 x (Dark Green) | 1 x (Dark Green) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| Video | ||
| Remote | 1920 x 1200 @60 Hz | 1920 x 1200 @60 Hz |
| Panel Spec | ||
| LCD Module | 17″ TFT-LCD | 19″ TFT-LCD |
| Resolution | 1280 x 1024 @75 Hz | 1280 x 1024 @75 Hz |
| Pixel Pitch | 0.264 mm x 0.264 mm | 0.294 mm x 0.294 mm |
| Response time | 5 ms | 5 ms |
| Viewing Angle | 170° (H), 160° (V) | 170° (H), 160° (V) |
| Support Color | 16.7M colors | 16.7M colors |
| Contrast Ratio | 1000:1 | 1000:1 |
| Luminance | 250 cd/m² | 250 cd/m² |
| Emulation | ||
| Keyboard / Mouse | PS/2, USB | PS/2, USB |
| Scan Interval | 1-255 sec. | 1-255 sec. |
| Maximum Input Power Rating | 100-240V AC, 50-60Hz, 1A | 100-240 VAC, 50-60Hz, 1A |
| Power Consumption | AC110V:26.8W:138BTU/h AC220V:27.7W:143BTU/h Note: | AC110V:29W:149BTU/h AC220V:29.8W:153BTU/h Note: |
| Environmental | ||
| Operating Temperature | 0-50°C | 0-50°C |
| Storage Temperature | -20-60°C | -20-60°C |
| Humidity | 0-80% RH, Non-condensing | 0-80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal + Plastic | Metal + Plastic |
| Weight | 13.49 kg ( 29.71 lb ) | 13.41 kg ( 29.54 lb ) |
| Dimensions (L x W x H) | 48.00 x 64.27 x 4.40 cm (18.9 x 25.3 x 1.73 in.) | 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
