ATEN CL1000
Single Rail LCD KVM Console (PS/2-USB, VGA)

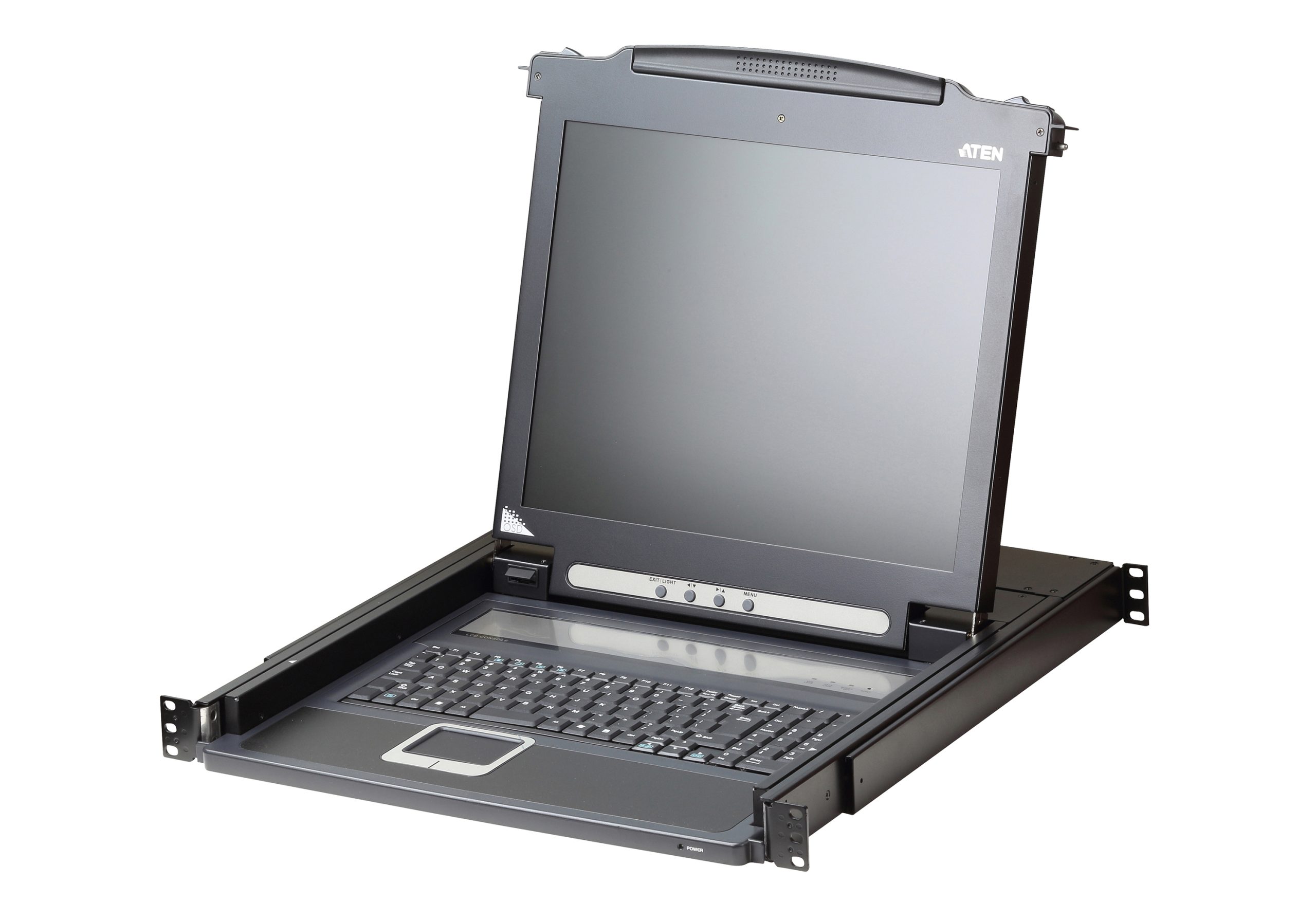

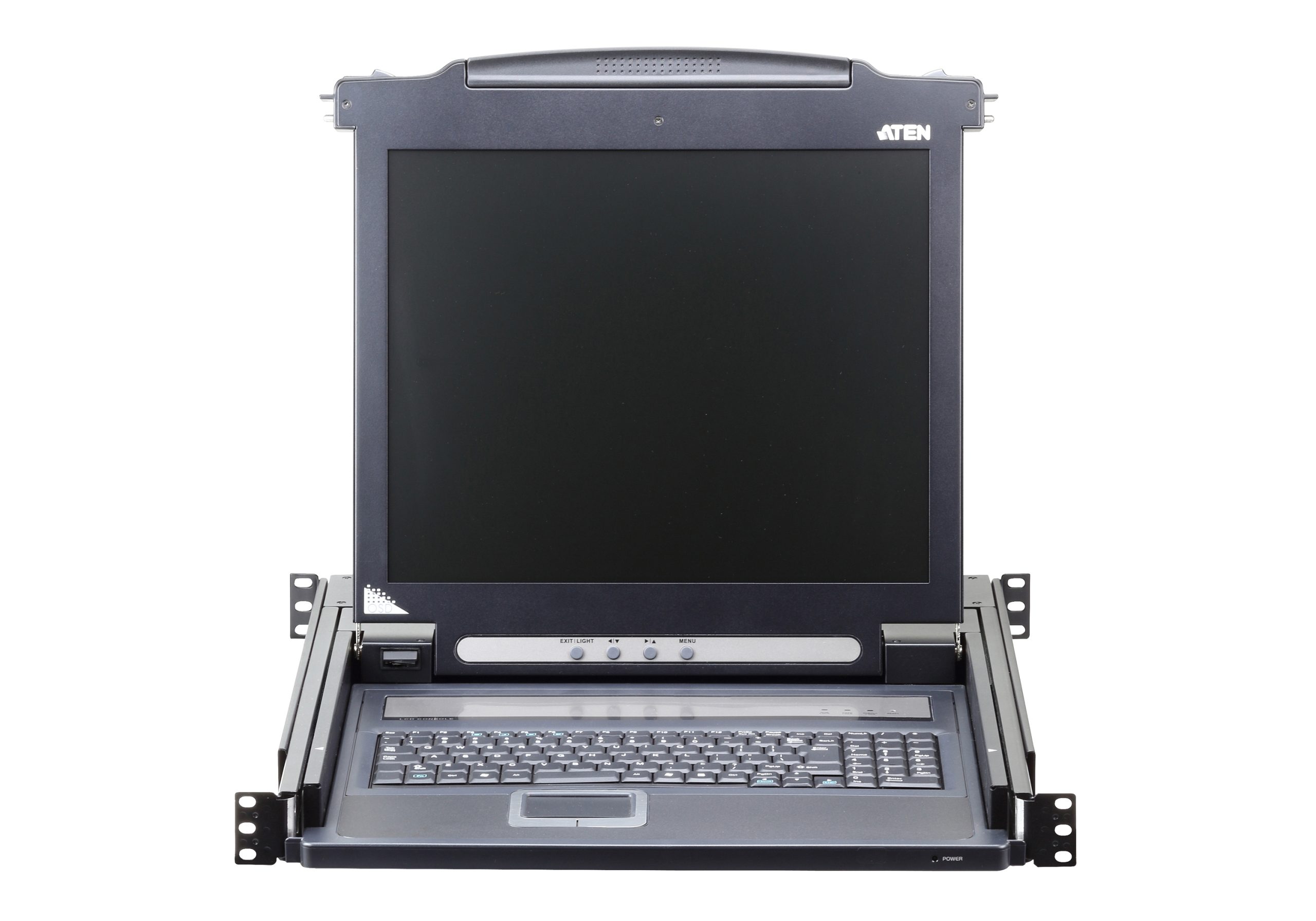

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17″ or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.

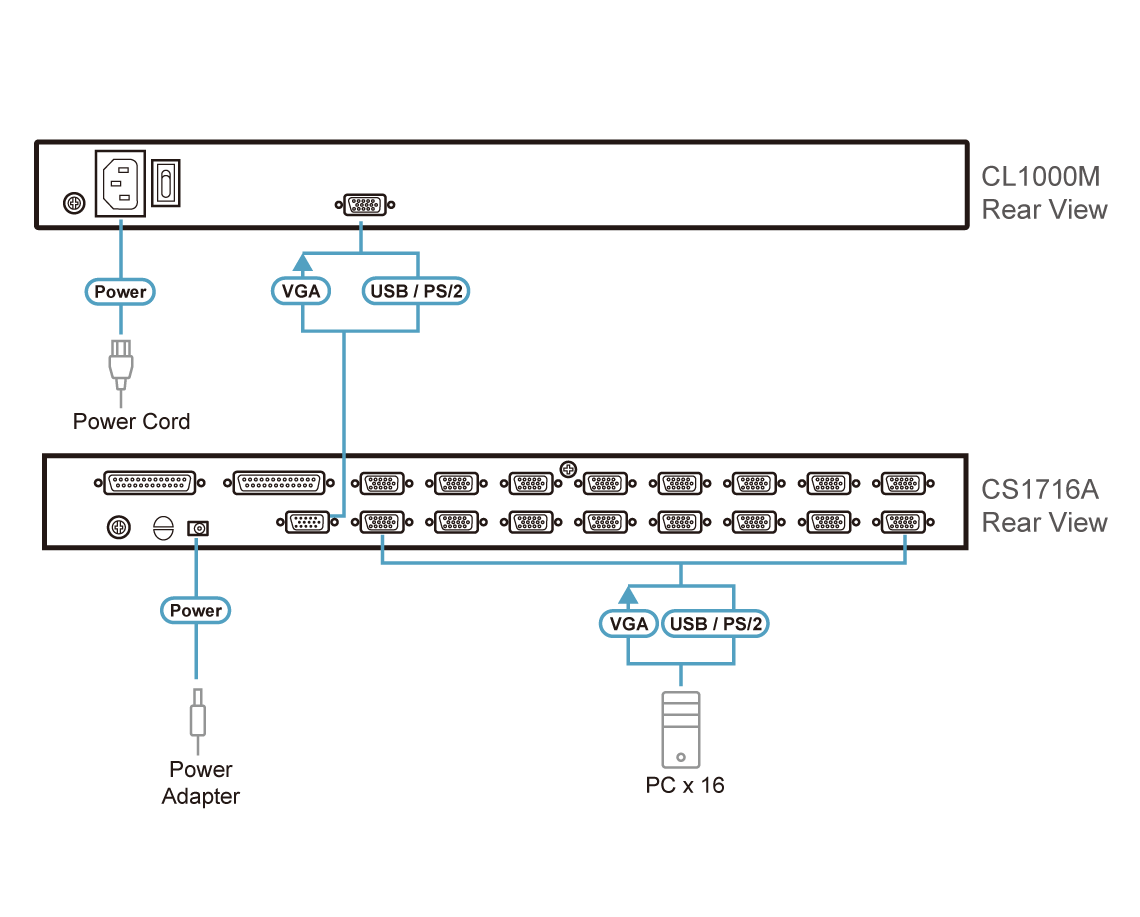

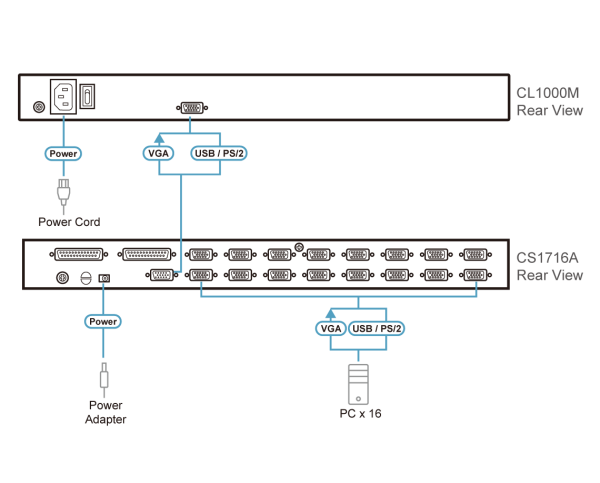

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
CL1000M: 17″ LCD
CL1000N: 19″ LCD
Spesification
| Function | CL1000M | CL1000N |
| Computer Connections | ||
| Direct | 1 | 1 |
| Connectors | ||

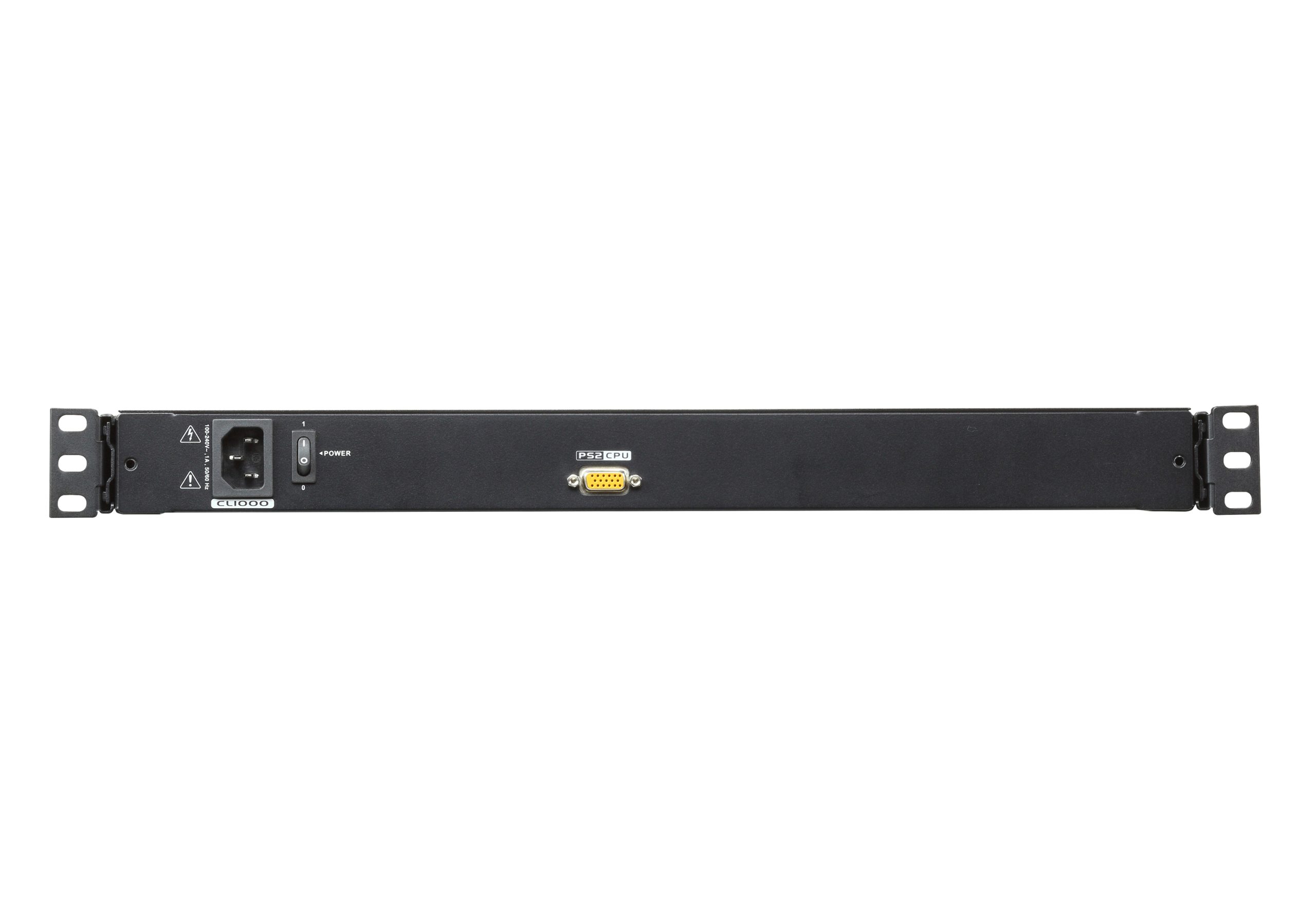

| KVM Ports | 1 x SPHD Female (Yellow) | 1 x SPHD Female (Yellow) |
| Power | 1 x IEC 60320/C14 | 1 x IEC 60320/C14 |
| Switches | ||
| Reset | 1 x Semi-recessed Pushbutton | N/A |
| Power | 1 x Rocker Switch | N/A |
| LCD Control | 4 x Pushbutton | 4 x Pushbutton |
| LCD Power | N/A | 1 x LED Pushbutton |
| LEDs | ||
| Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) | 1 x KVM Console (Dark Green) 1 x LCD (Orange) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |

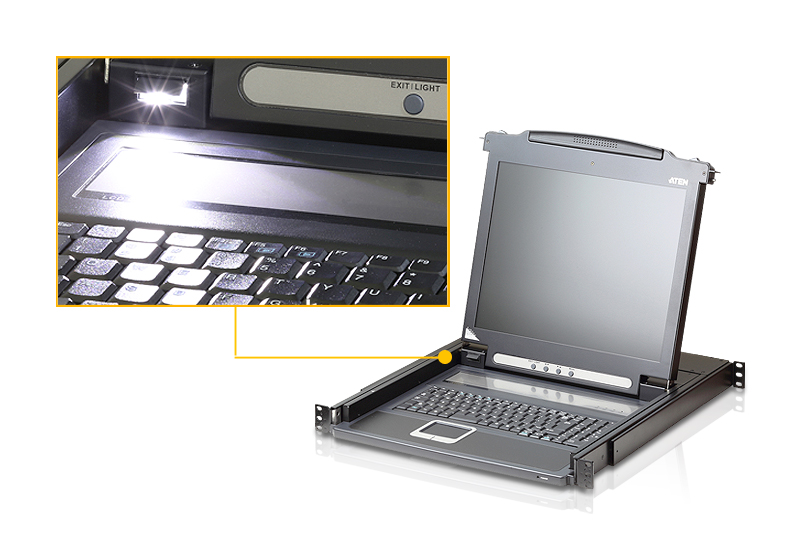

| LED Illumination Light | 1 x LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec | ||
| LCD Module | 17″ TFT-LCD | 19″ TFT-LCD |
| Resolution | 1280 x 1024 @ 75 Hz | 1280 x 1024 @ 75 Hz |
| Response time | 5 ms | 5 ms |
| Viewing Angle | 170° (H), 160° (V) | 170° (H), 160° (V) |
| Pixel Pitch | 0.264 mm x 0.264 mm | 0.294 mm x 0.294 mm |
| Support Color | 16.7M colors | 16.7M colors |
| Contrast Ratio | 1000:1 | 1000:1 |
| Luminance | 250 cd/m² | 250 cd/m² |
| Video | ||
| Input Video Resolution | up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B | up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B |
| Emulation | ||
| Keyboard / Mouse | PS/2, USB(via 2L-520xUP cables) | PS/2, USB(via 2L-520xUP cables) |
| Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1A | 100-240 VAC; 50-60 Hz; 1A |
| Power Consumption | AC110V:19.6W:92BTU/h AC220V:21.3W:100BTU/h Note: | AC110V:29.2W:137BTU/h AC220V:29.3W:137BTU/h Note: |
| Environmental | ||
| Operating Temperature | 0-50˚C | 0-50˚C |
| Storage Temperature | -20-60˚C | -20-60˚C |
| Humidity | 0-80% RH, Non-condensing | 0-80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal+Plastic | Metal+Plastic |
| Rail Type | Single Rail | Single Rail |
| Weight | 12.02 kg ( 26.48 lb ) | 11.06 kg ( 24.36 lb ) |
| Dimensions (L x W x H) | 48.00 x 53.83 x 4.40 cm (18.9 x 21.19 x 1.73 in.) | 48.30 x 58.52 x 4.40 cm (19.02 x 23.04 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
