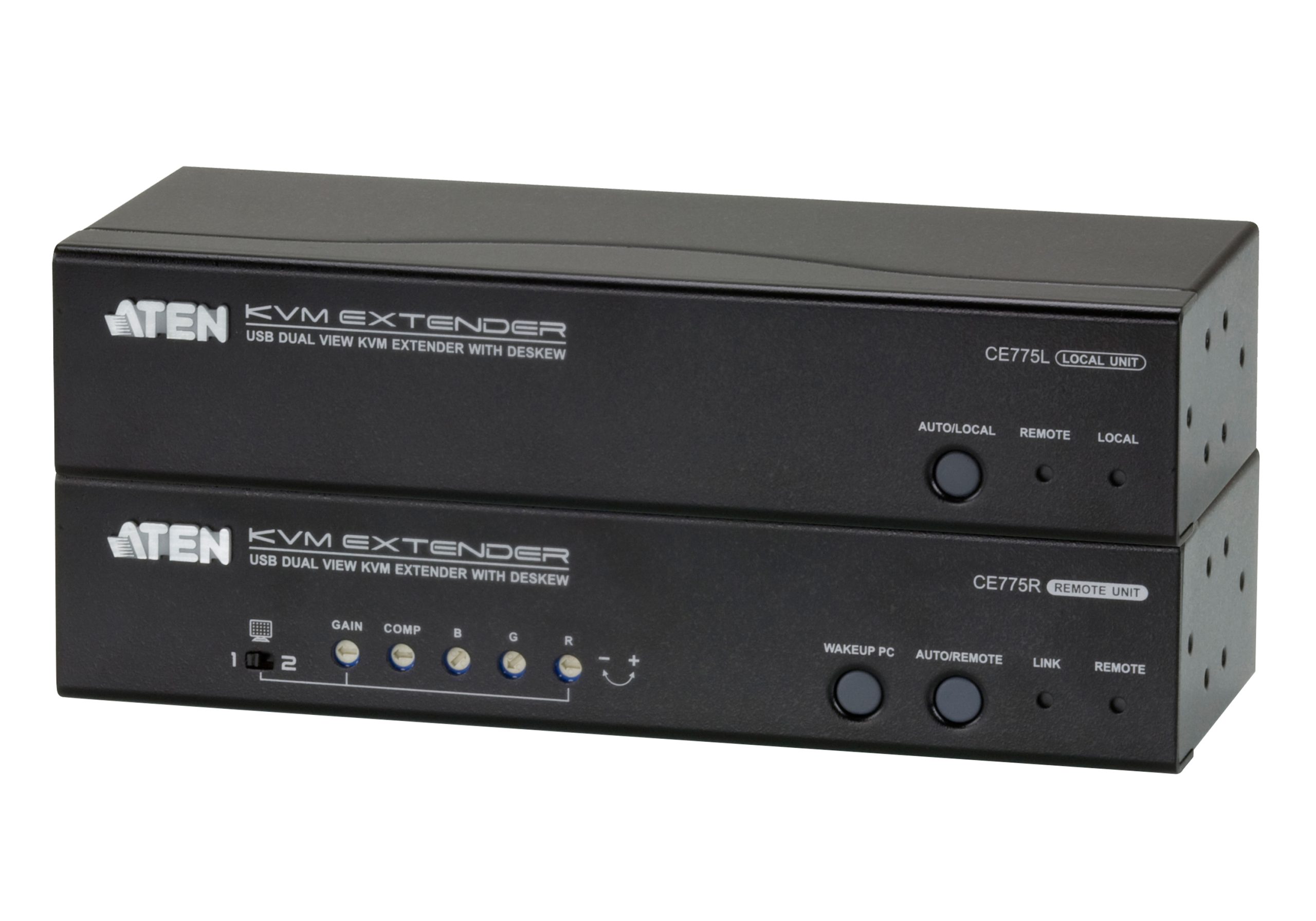

ATEN CE775-AT-G
USB VGA Audio Dual View KVM Extender /w RS-232 & Deskew; 1920×1200@60Hz (150 m), 1280×1024@60Hz (300m)

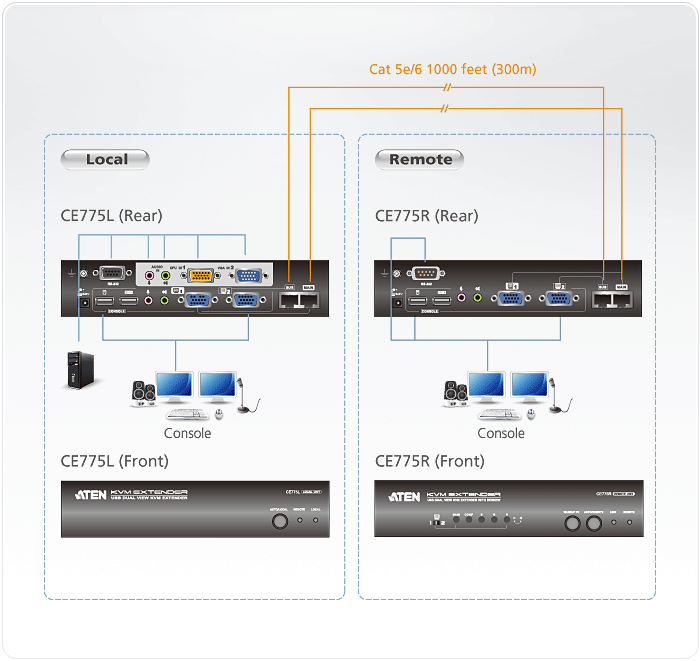

ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors.
Its advanced PC Wake – Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, efficient and flexible.
Use the improved built-in front panel tuners to easily adjust the picture quality. In addition, you can automatically synchronize the time delay of RGB signals in order to compensate for distance, easy and fast than ever.
Package Contents
- 1x CE775L USB KVM Extender (Local Unit)
- 1x CE775R USB KVM Extender (Remote Unit)
- 1x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
- 1x VGA Cable (1.8m)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
Specifications
| Function | CE775L | CE775R |

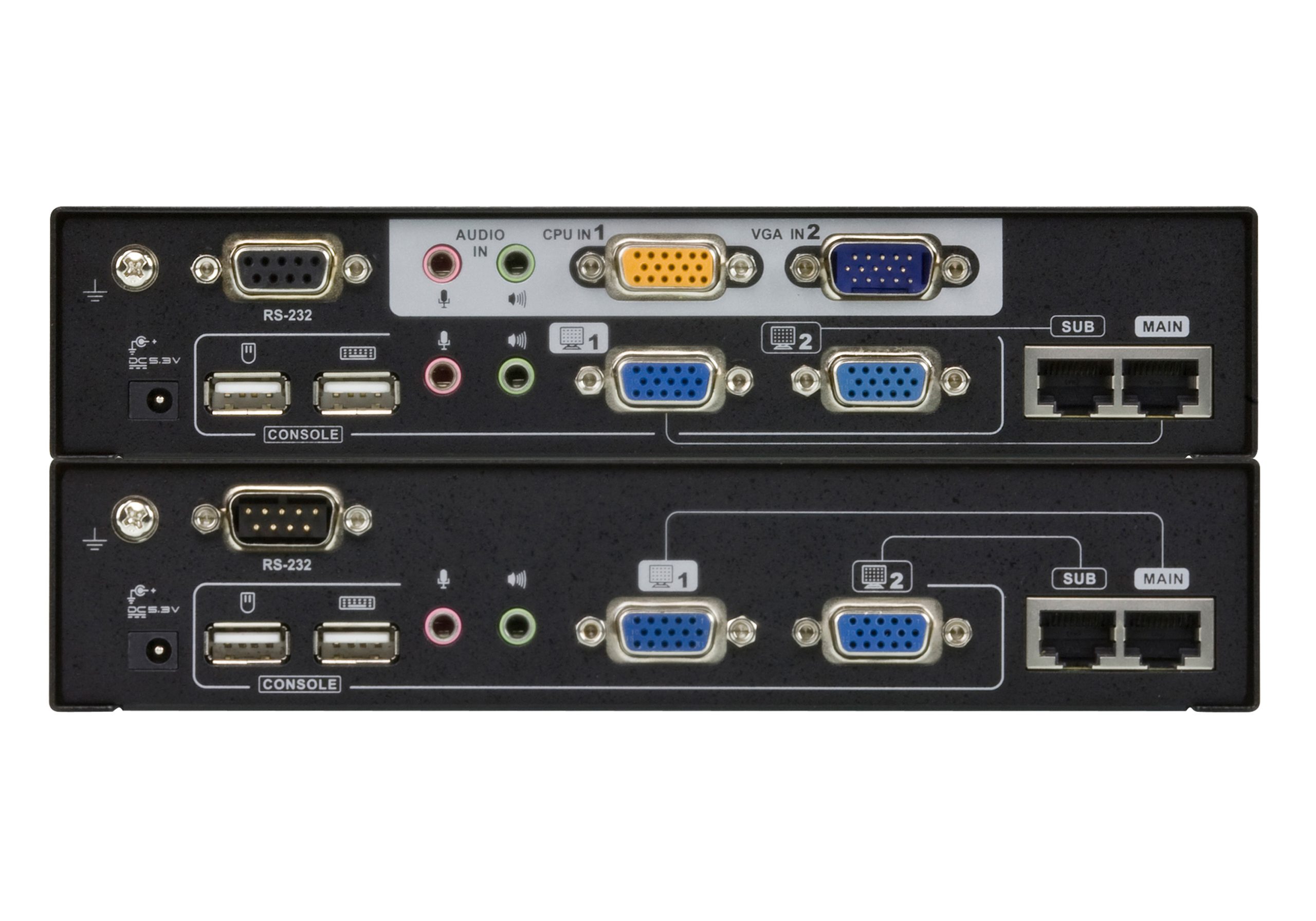

| Connectors | ||
| Console Ports | 2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) | 2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| KVM Ports | 1 x SPHD-17 Female (Yellow) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x HDB-15 Male (Blue) | N/A |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack (Black) | 1 x DC Jack (Black) |
| Unit To Unit | 2 x RJ-45 Female (Black) | 2 x RJ-45 Female (Black) |

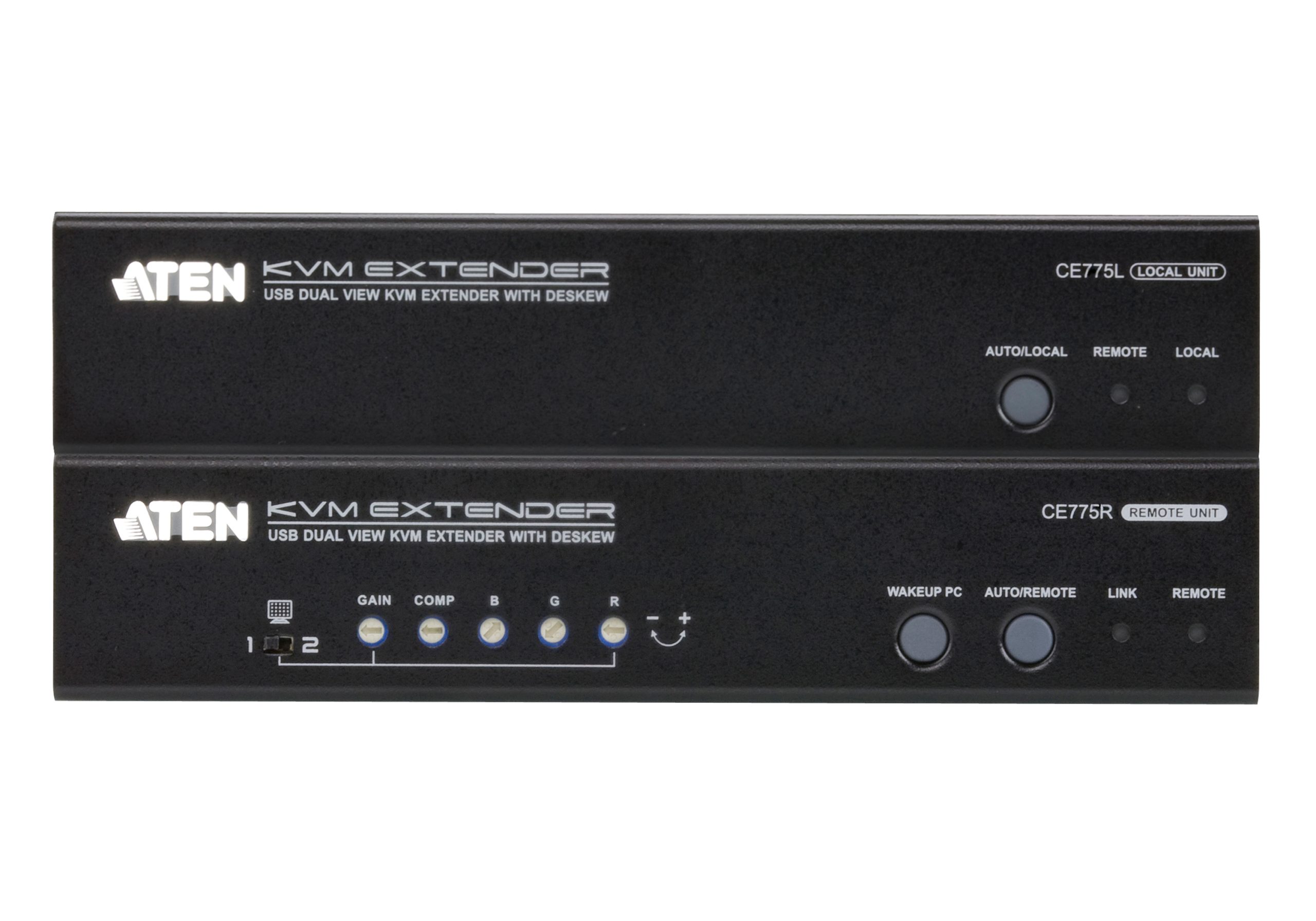

| Switches | ||
| Operation Mode Selection | 1 x Pushbutton | 1 x Pushbutton |
| Wakeup PC | N/A | 1 x Pushbutton |
| Video Output Port Selection | N/A | 1 x Slide Switch |
| Video Gain Tuner | N/A | 1 x Knob |
| Video Compensation Tuner | N/A | 1 x Knob |
| RGB Tuner | N/A | 3 x Knob |
| LEDs | ||
| Local | 1 (Green) | N/A |
| Remote | 1 (Green) | 1 (Green) |
| Link | N/A | 1 (Green) |
| Emulation | ||
| Keyboard / Mouse | USB | USB |
| Video | 1920 x 1200 @ 60Hz (150 m); 1280 x 1024 @ 60Hz (300 m) | 1920 x 1200 @ 60Hz (150 m); 1280 x 1024 @ 60Hz (300 m) |
| Power Consumption | DC5.3V:3.9W:23BTU/h Note: | DC5.3V:8.6W:45BTU/h Note: |
| Environmental | ||
| Operating Temperature | 0–50°C | 0–50°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.69 kg ( 1.52 lb ) | 0.69 kg ( 1.52 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.62 x 4.20 cm (7.87 x 3 x 1.65 in.) | 20.00 x 7.63 x 4.20 cm (7.87 x 3 x 1.65 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
