ATEN CE600-AT-G
DVI single link KVM Extender. 1920×1200 @60Hz (30m). RS232 & Audio enabled.

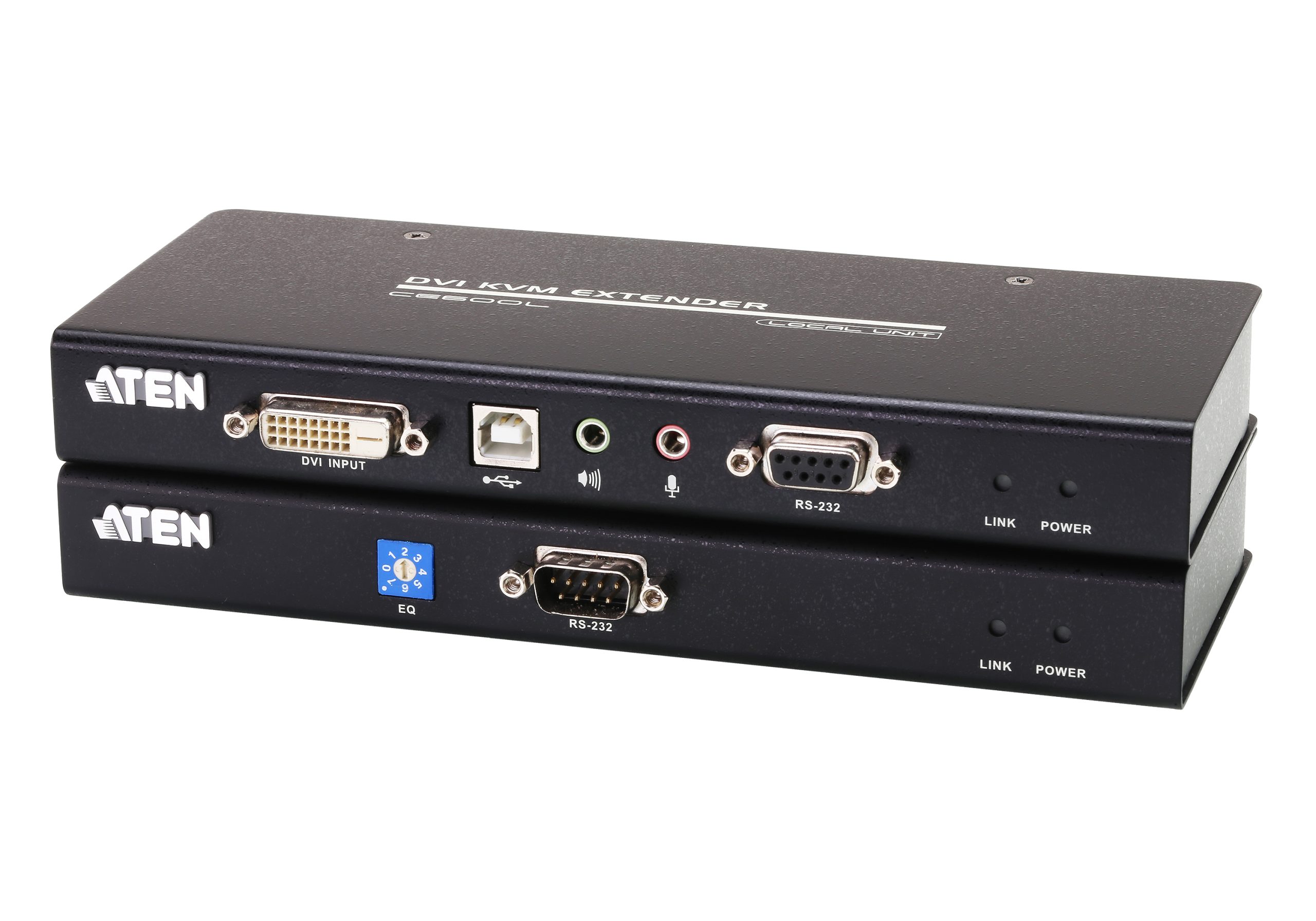

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse).
Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.

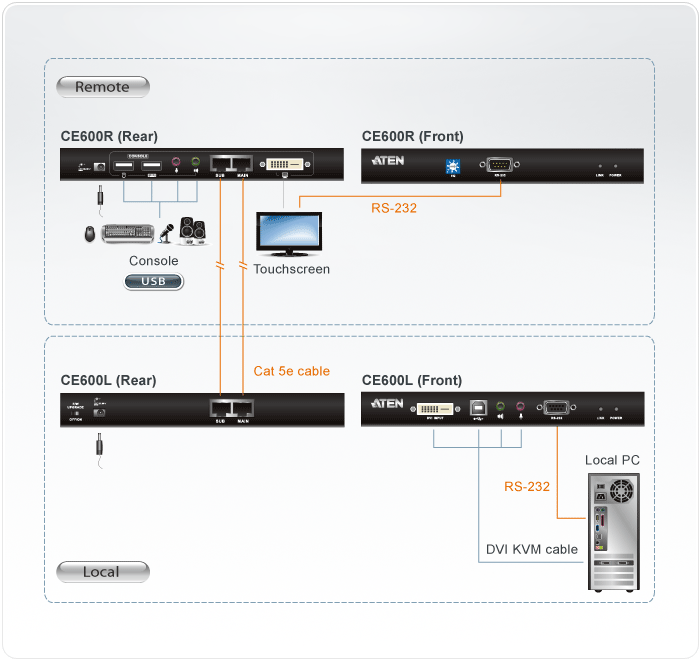

The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1200 video resolution *
* 1. The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals.
2. ATEN recommends using shielded cables, such as the ATEN 2L-2910 for environments that require high electromagnetic interference (EMI) protection.
Package Contents
- 1x CE600L DVI KVM Extender (Local Unit)
- 1x CE600R DVI KVM Extender (Remote Unit)
- 1x Custom KVM Cable (DVI-D Single Link, USB, Audio; 1.8m/6ft)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
Specifications
| Function | CE600L | CE600R |
| Connectors | ||

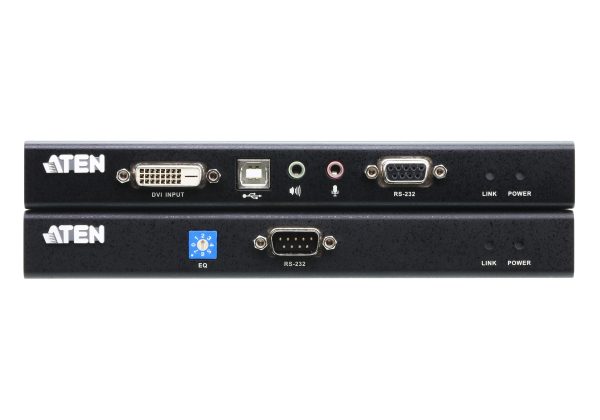

| Console Ports | N/A | 2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| KVM Ports | 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x USB Type B Female (White) | N/A |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack | 1 x DC Jack |

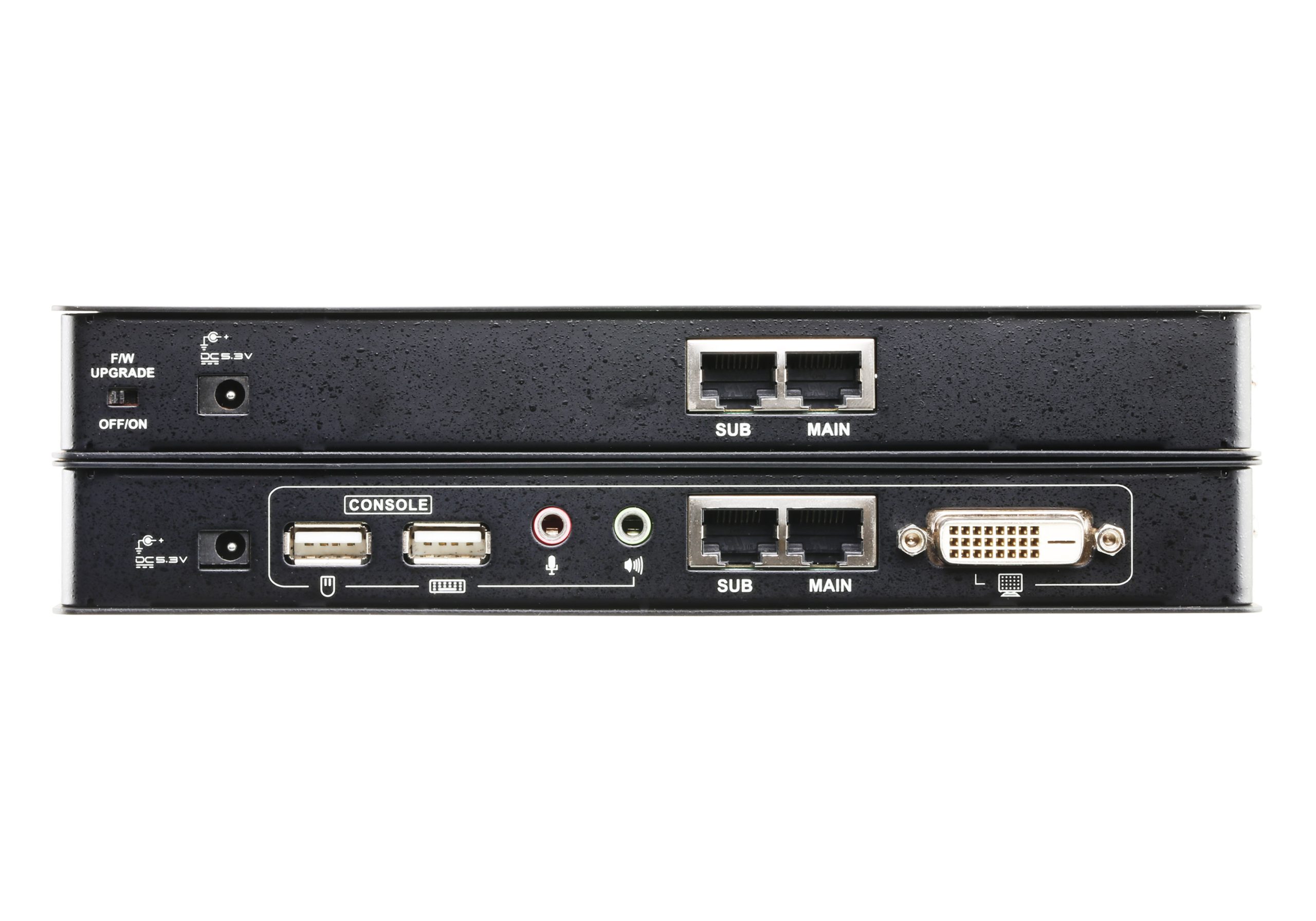

| Sub / Main | 2 x RJ-45 Female (Black) | 2 x RJ-45 Female (Black) |
| LEDs | ||
| Link | 1 (Green) | 1 (Green) |
| Power | 1 (Green) | 1 (Green) |
| Switches | ||
| EQ Switch | N/A | 1 x 8-position switch |
| Firmware Upgrade | 1 x Slide Switch | N/A |
| Emulation | ||
| Keyboard / Mouse | USB | USB |
| Video | 1920 x 1200 @ 60Hz (30 m); 1024 x 768 @ 60Hz (60 m); | 1920 x 1200 @ 60Hz (30 m); 1024 x 768 @ 60Hz (60 m); |
| Power Consumption | DC5.3V:1.92W:13BTU/h Note: | DC5.3V:1.69W:12BTU/h Note: |
| Environmental | ||
| Operating Temperature | 0–50°C | 0–50°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.48 kg ( 1.06 lb ) | 0.48 kg ( 1.06 lb ) |
| Dimensions (L x W x H) | 20.20 x 8.54 x 2.50 cm (7.95 x 3.36 x 0.98 in.) | 20.20 x 8.50 x 2.50 cm (7.95 x 3.35 x 0.98 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
