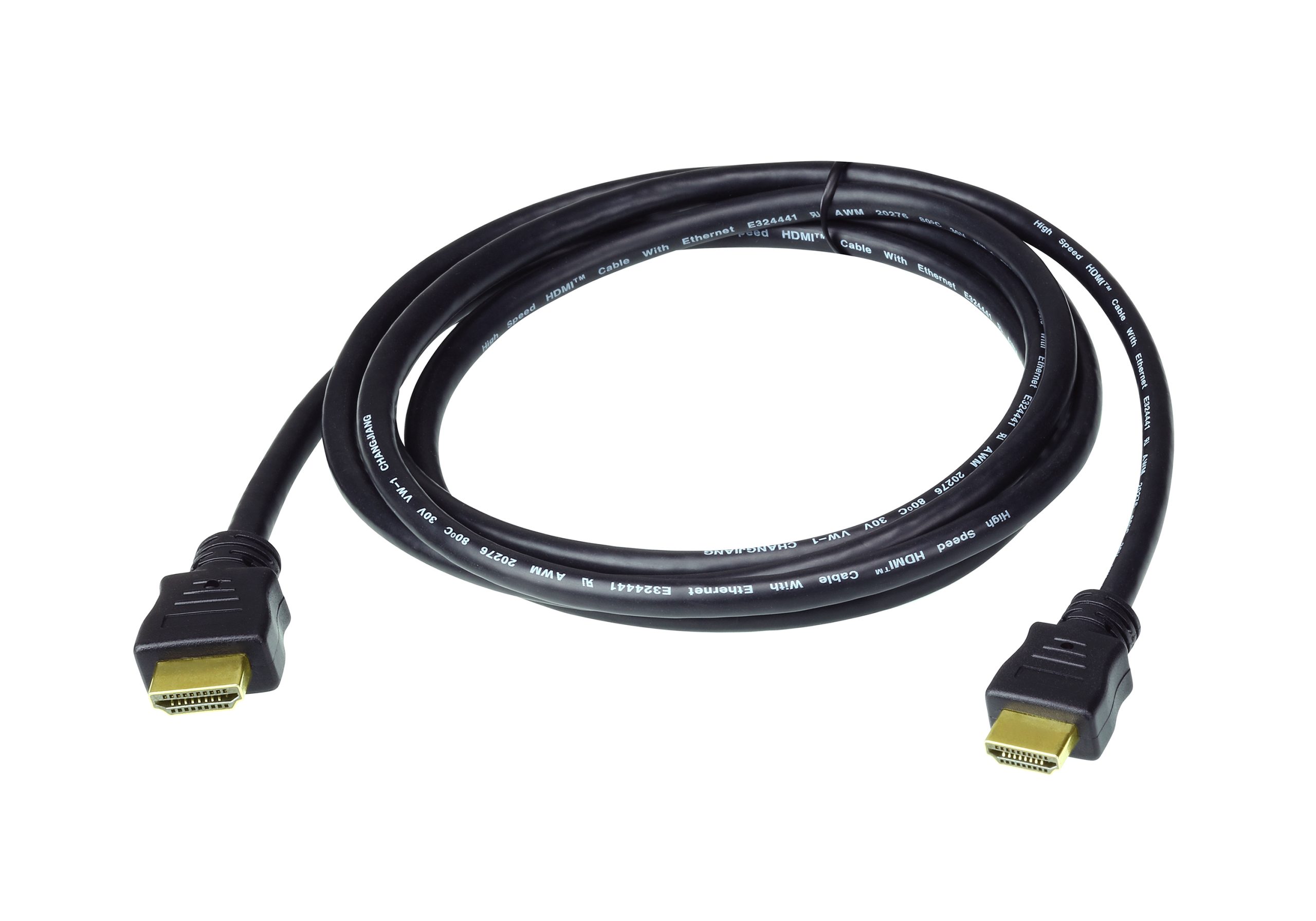

ATEN 2L-7D10H
10 m High Speed HDMI Cable with Ethernet
ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 5 to 20 meters with resolutions up to 4K (4096 x 2160 @30Hz).
Specification
| Max. Video Resolution | 4096×2160@30Hz |
| Physical Properties | |
| Cable Length | 10M |
| Cable Color | Black |
| Cable Outer Dimension | 8.0 ± 0.2mm |
| Conductor Gauge | 26AWG |
| Conductor Material | Tinned Copper |
| Connector Plating | Gold |
| Connector Type | HDMI (19pin) Male to Male |
| Cable Shield Type | Aluminum Foil |
| Cable Jacket Type | PVC |
| Environmental | |
| Operating Temperature | 80℃ |
| Rating | UL VW-1 (Flame rate), CSA |
Datasheet
2l-7d05h_10h_15h_20h_cable_ds_en.pdf (898.92 KB)
