EdgeDX AIB-TE1-04

Edge AI Video Analytics Device

The AIB-TE1-04 Edge AI Video Analytics Device is a powerful and compact edge-computing solution designed to bring advanced artificial intelligence capabilities directly to your video surveillance infrastructure. Instead of relying on cloud processing that can be costly, bandwidth-heavy, and latency-prone, the AIB-TE1-04 enables real-time video analysis at the network edge, closer to where video data is captured. This approach significantly reduces response time, enhances privacy, and increases efficiency, making it an ideal solution for organizations that need intelligent video analytics in mission-critical environments.

At its core, the AIB-TE1-04 supports up to four independent video channels, allowing multiple CCTV streams to be processed simultaneously. It can handle resolutions up to 4K at 30 frames per second, or higher frame rates at lower resolutions, ensuring crisp, detailed image analysis in diverse deployment scenarios. With compatibility for standard video formats such as H.264 and H.265, as well as integration protocols like RTSP and Onvif, this device is designed to seamlessly integrate into existing camera infrastructures without requiring costly replacements or major system overhauls.

One of its most powerful features is its ability to run multiple AI applications per channel. This means organizations can simultaneously deploy event detection, object recognition, pose estimation, scene understanding, and false alarm reduction. For example, in a retail environment, it can provide customer counting, queue management, and heat mapping, while at the same time monitoring for suspicious behavior. In security operations, it can distinguish between harmless motion (such as swaying trees) and genuine intrusions, drastically reducing false positives that waste time and resources.

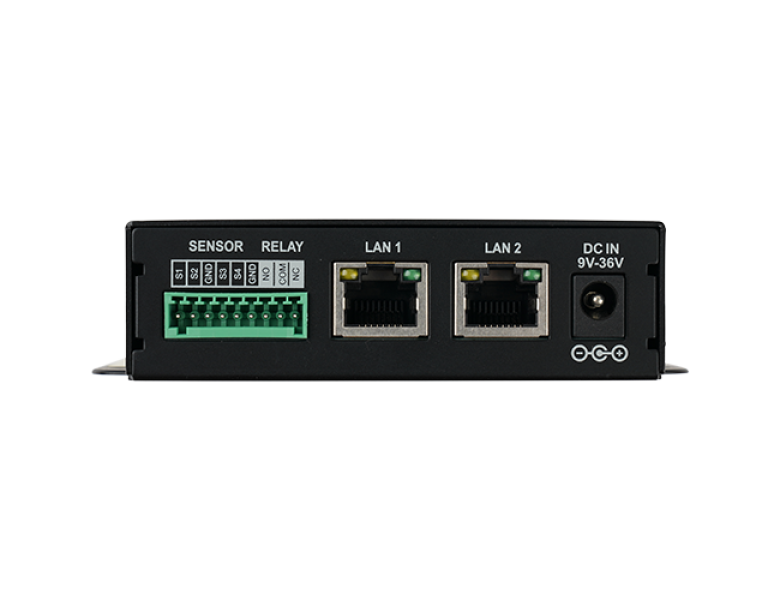

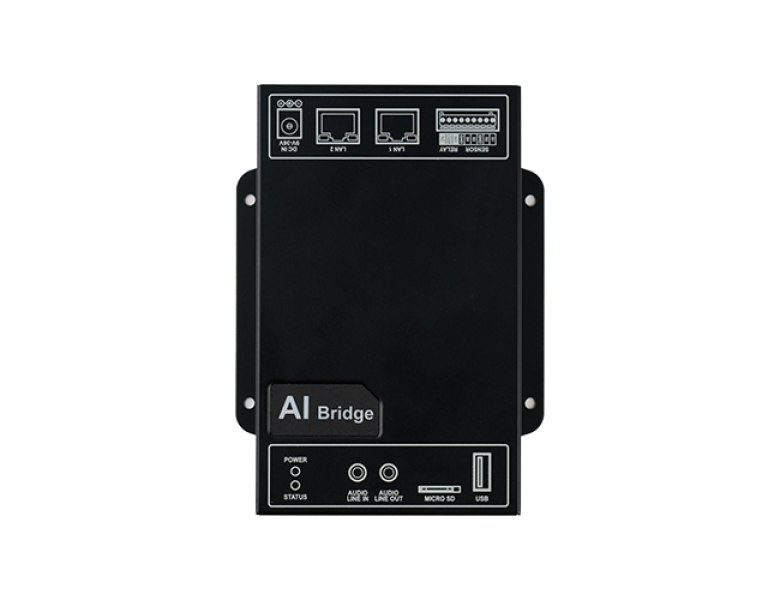

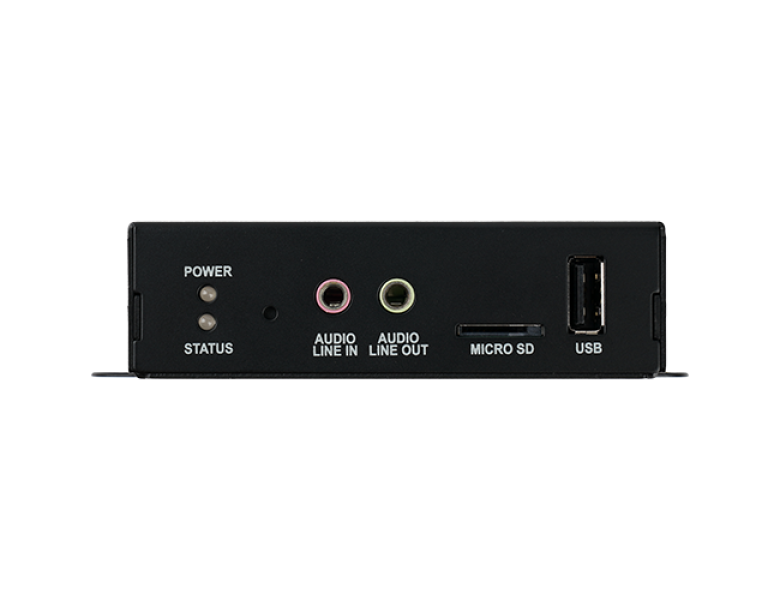

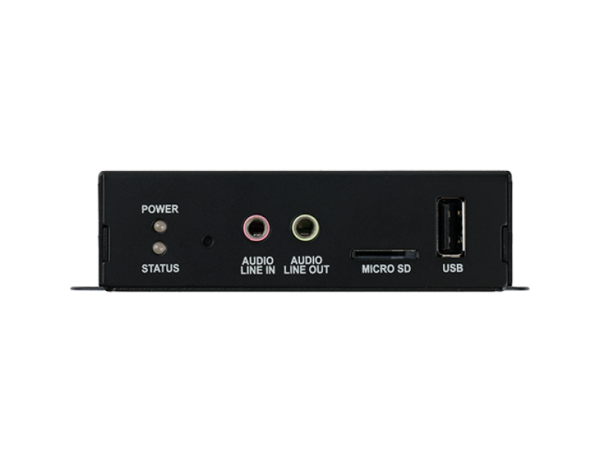

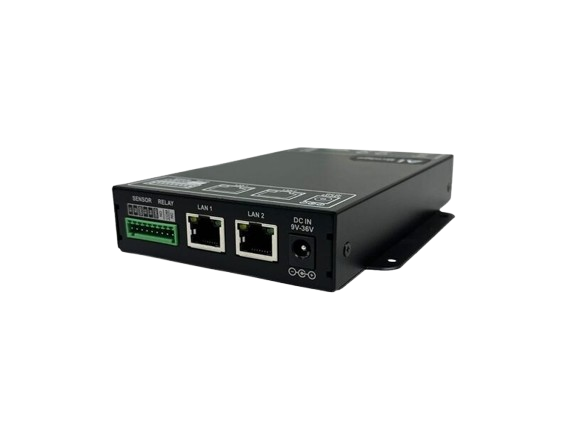

The device is designed with robust connectivity and control options. It comes with dual Gigabit LAN ports for reliable networking, audio in/out for enhanced monitoring, and digital I/O interfaces for alarm integration. A relay output allows the device to trigger external systems such as alarms or automated doors when specific AI-defined events occur. For storage, it includes both an internal SD slot and an M.2 NVMe SSD slot, offering flexibility for video archiving, AI model storage, and data backup.

From a hardware perspective, the AIB-TE1-04 is built to perform reliably in demanding environments. With a wide operating temperature range from -30°C to +70°C (depending on SSD usage) and low power consumption of only around 6–7 watts, it is suitable for outdoor enclosures, transport hubs, manufacturing sites, and other energy-conscious deployments. Its compact design, weighing less than half a kilogram, makes it easy to install on a desk, wall, or within an equipment rack. LED indicators provide clear visual feedback for system and power status, while a factory reset button ensures quick troubleshooting.

Security and compliance are key priorities for this device. It is designed to meet NDAA requirements and supports enhanced cybersecurity features to protect sensitive video streams. By processing video locally at the edge, the risk of exposing raw data to the cloud is minimized, ensuring greater data sovereignty and regulatory compliance.

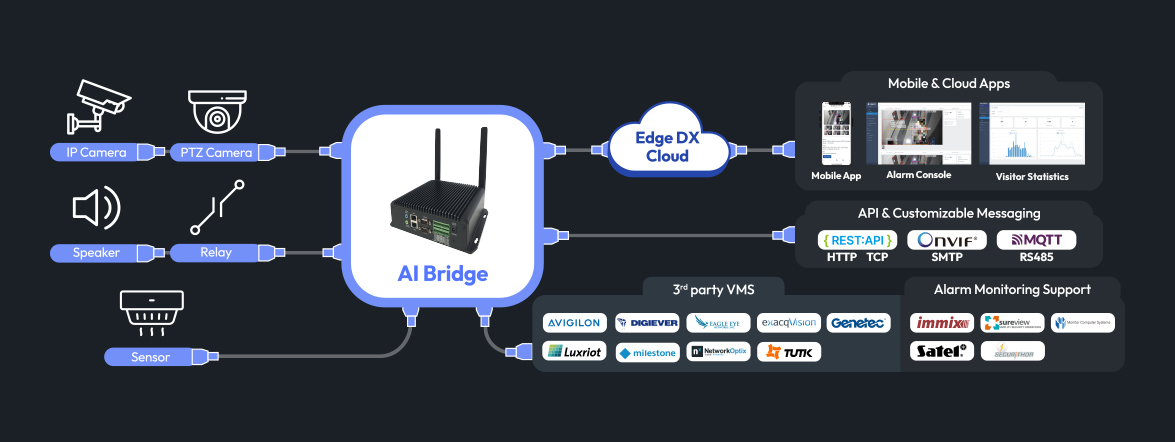

The AIB-TE1-04 is not only a piece of hardware but also a platform for scalable AI video analytics. With its web-based configuration interface, users can easily set up, manage, and deploy AI applications without deep technical expertise. It is compatible with a wide variety of industry-standard tools, making it flexible for integration into enterprise-level security systems, smart city infrastructures, and industrial automation environments.

In terms of applications, the device is extremely versatile. In healthcare facilities, it can monitor restricted areas, patient movement, or crowd density. In transportation hubs, it helps manage passenger flow, identify abnormal behavior, and ensure safety compliance. In banking and finance, it strengthens security while improving customer service analytics. In retail and commercial buildings, it provides customer insights while maintaining situational awareness. The combination of AI-driven intelligence and reliable hardware makes it suitable for virtually any industry where real-time video insights matter.

In conclusion, the AIB-TE1-04 Edge AI Video Analytics Device is a compact, energy-efficient, and highly capable solution that transforms conventional video surveillance into a proactive, intelligent system. By combining multi-channel support, advanced AI applications, strong connectivity, rugged hardware design, and compliance with modern security standards, it delivers exceptional value for organizations seeking to elevate their security and operational efficiency. Whether deployed in hospitals, factories, banks, apartment complexes, or smart cities, the AIB-TE1-04 empowers businesses and institutions to harness the power of AI at the edge, ensuring smarter decisions, faster responses, and safer environments.
