AV-9520 rev. PoE — 4K HDMI KVM over IP with USB/IR/RS232 via PoE Gigabit Ethernet

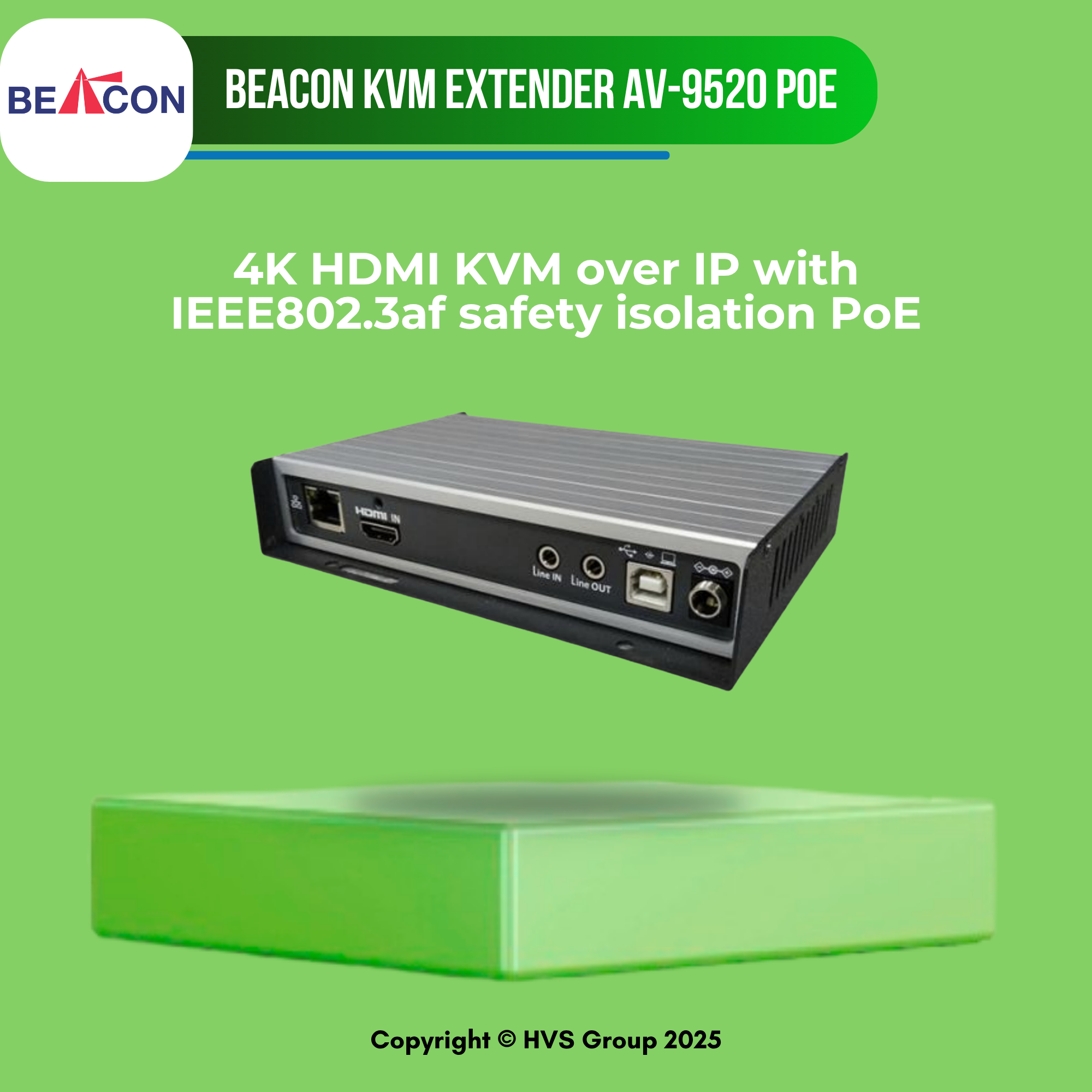

The AV-9520 rev. PoE is an advanced solution for transmitting 4K HDMI video, audio, USB, IR, and RS232 over standard Gigabit Ethernet with Power over Ethernet (PoE) support. This system includes the AV-9520LT-P Transmitter (Tx) and AV-9520R-P Receiver (Rx).
The Tx unit connects to a 4K HDMI source (e.g., PC or Blu-ray player) and converts HDMI, audio, USB, and control signals into IP packets. These are distributed via Multicast or Unicast through a Gigabit Ethernet switch.
The Rx unit receives the IP packets, converts them back to HDMI, audio, USB, and control signals, and outputs to a connected display, speaker, microphone, and USB peripherals.
Both Tx and Rx can be powered by either an external power adapter or directly via PoE-enabled network switches—eliminating the need for separate power supplies and simplifying installation.

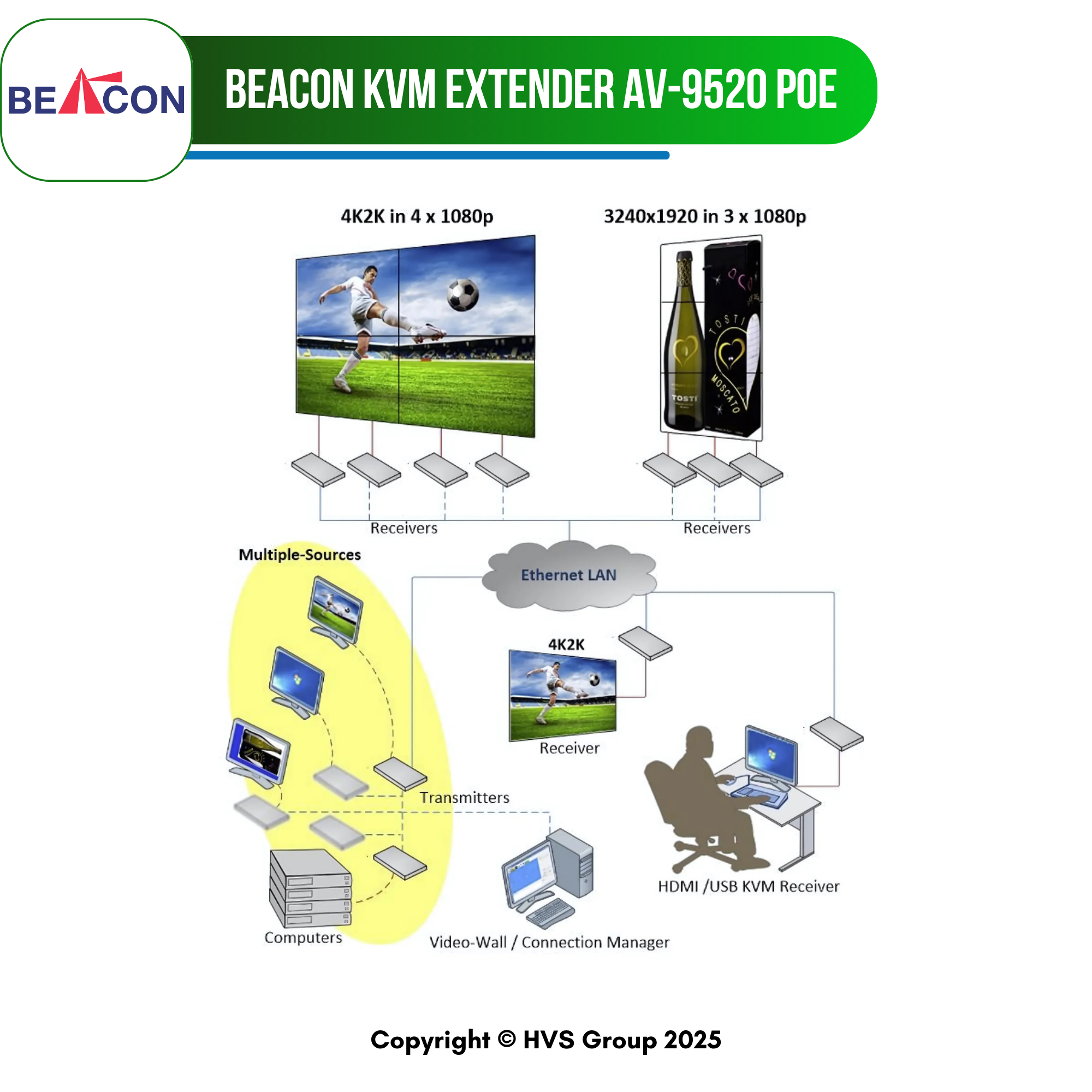

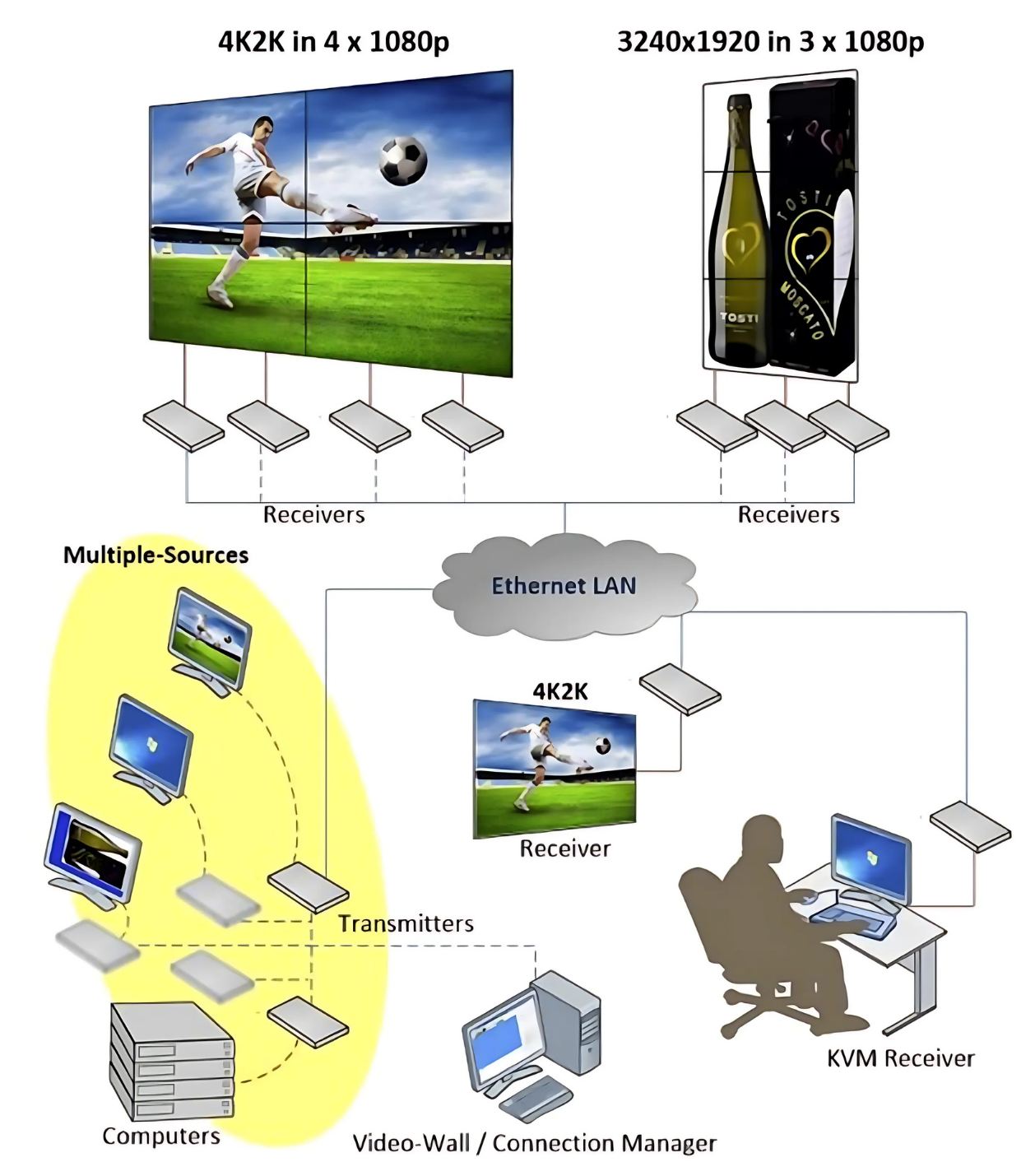

With an integrated 4K Encoder/Decoder engine and scaling functionality, the AV-9520 rev. PoE allows flexible deployment of multi-screen video walls by configuring multiple Rx units.
Ideal for:
AV broadcasting
KVM matrix switching
Video wall and informational displays
Central control rooms
Boardrooms and courtrooms
Military and medical visualization
Educational and entertainment signage
The AV-9520 rev. PoE delivers a powerful, scalable, and simplified AV-over-IP solution tailored for professional-grade installations.
