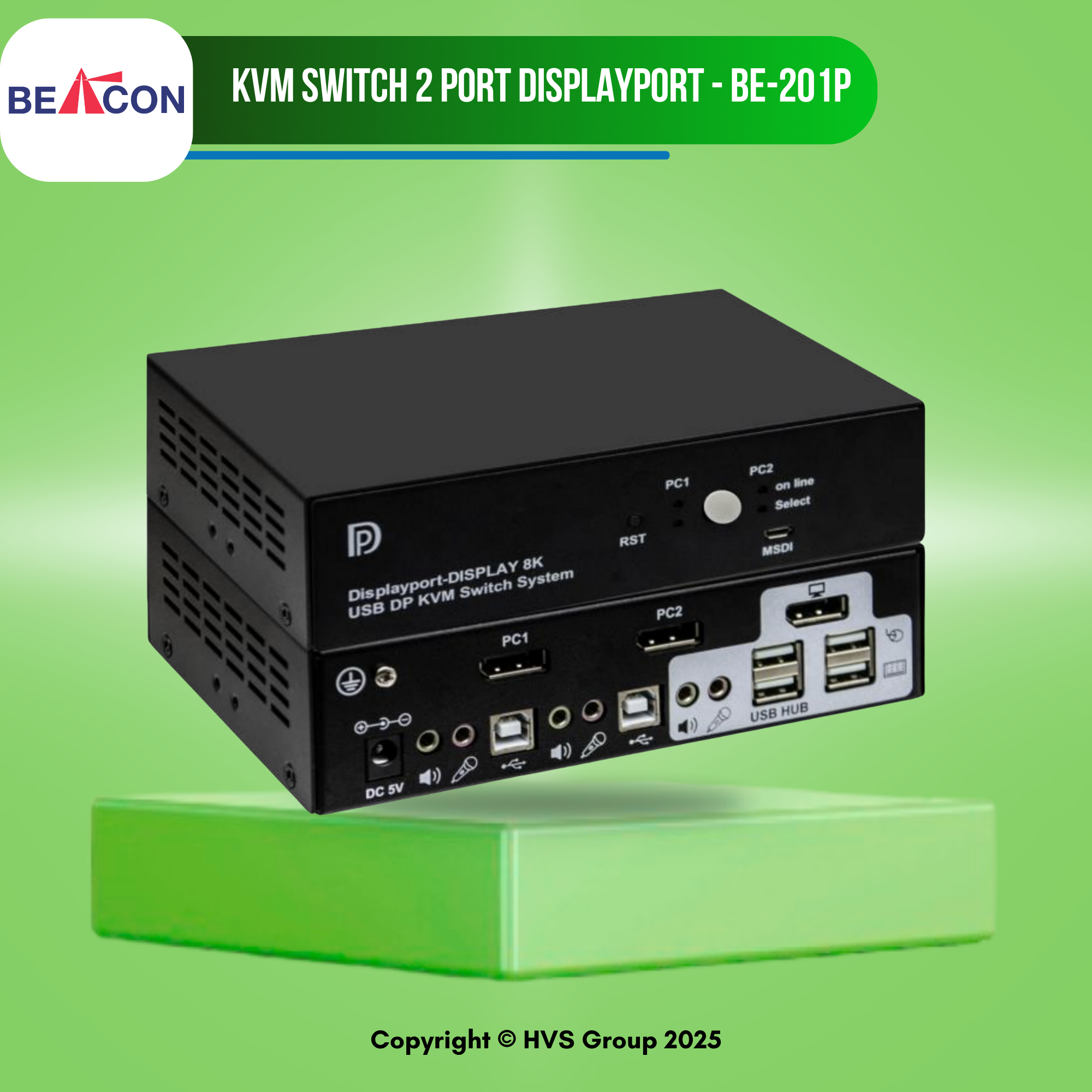

BEACON BE-201P 2-port DisplayPort KVM Switch

BEACON BE-201P 2-port DisplayPort KVM Switch

The BE-201P is a 2-port DisplayPort KVM switch that enables users to control two DP-enabled computers using one keyboard, mouse, monitor, and USB 2.0 devices. It supports high-resolution video (up to 4K@60Hz), external audio and mic, and flexible switching options, all in a plug-and-play hardware design.

Follow

Share

Facebook
Twitter
LinkedIn

As a KVM switch the BE-201P is a 2-port DisplayPort KVM switch and each port can connected to seperate computers to tehperipherals such as a dispaly port monitor, keyboard, external audio and a microphone.

Key Feature:

  • DisplayPort video switching for high resolution output is supported.
  • USB 2.0 hub for sharing peripherals is provided.
  • Enhanced audio and microphone stream control with dedicated ports is supported.

With easy to use design and efficient switching capability, the BE-201P design is best for workstations and office where multiple computers and systems need to to be controlled centrally from a single console.



  • Sharing a common Keyboard, Mouse, Speaker/Microphone and Monitor as
    well as USB 2.0 devices for 2 PCs with DP outputs.
  • Supported resolutions 4K60, 1920×1200@60, 1080p …
  • Console built with USB 2.0 HUB to support devices such Touch, Storage, …
  • Console support EDID learning feature.

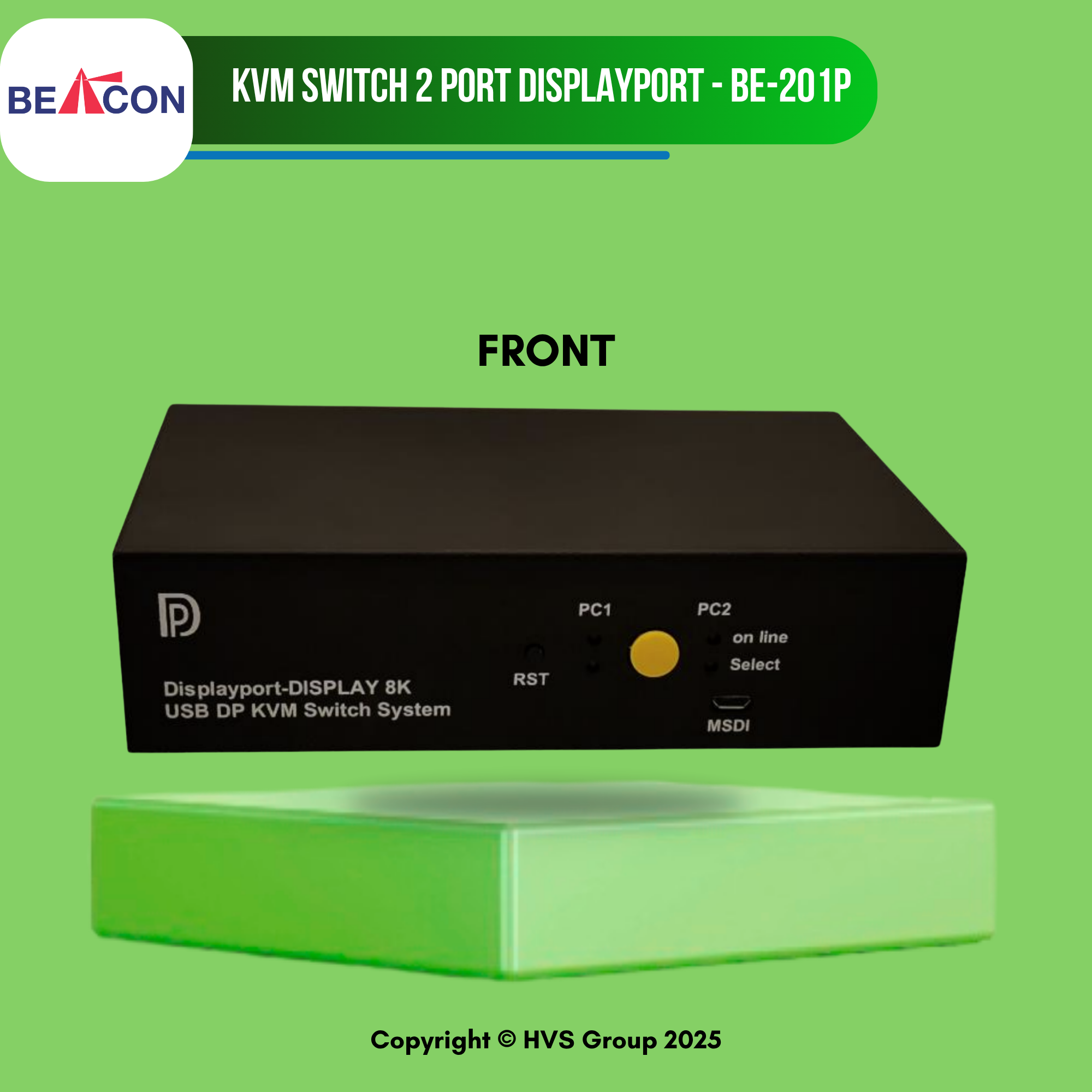

  • Support Port Switching via front panel SELECT button & keyboard hotkeys.
  • Support Port Switching via RS-232 (Optional).
  • Support external 3.5mm Audio and Microphone.
  • Support Online and Select status LED indicators.

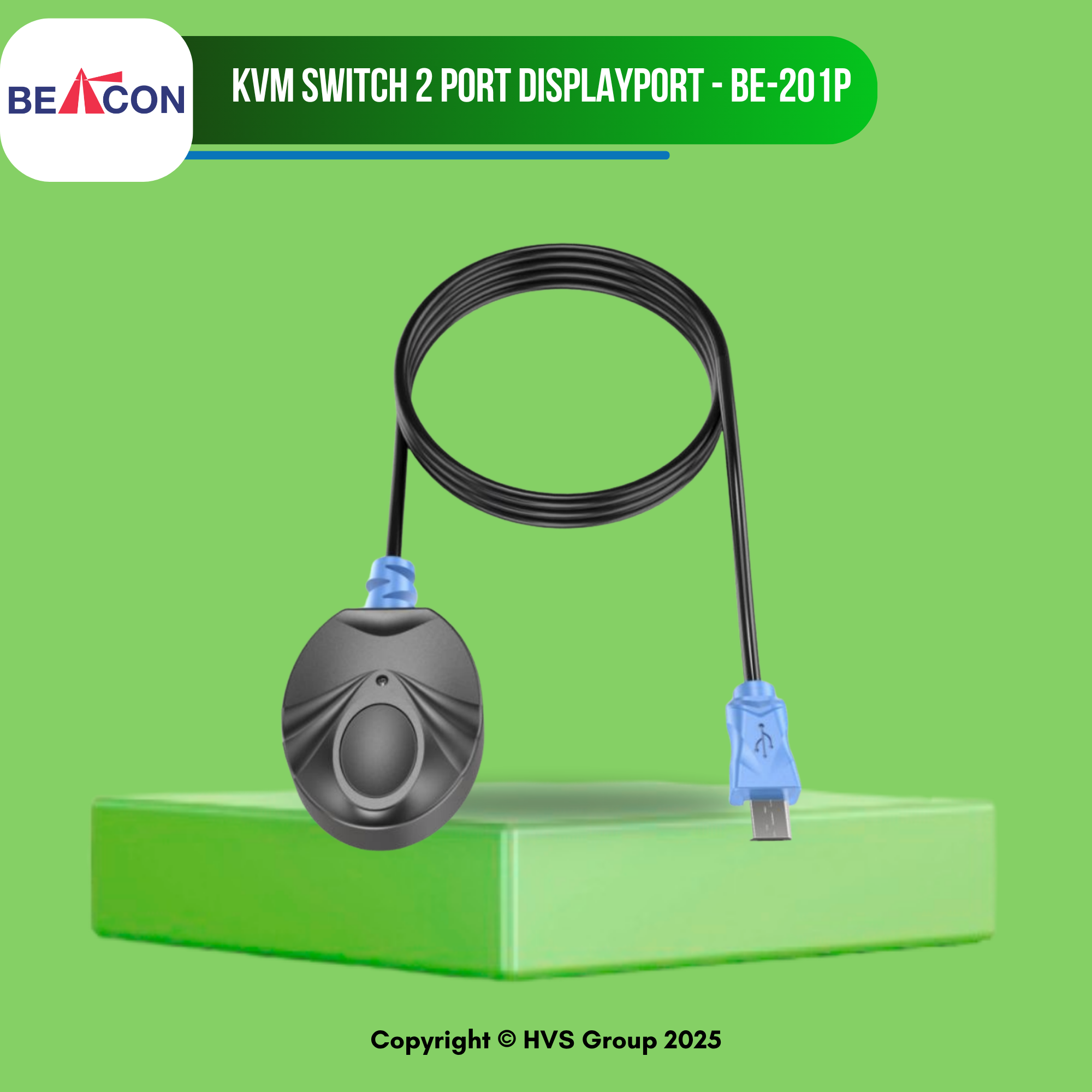

  • Front panel SELECT Button Extension Cable support.
  • Hot pluggable, no software or drivers required.
