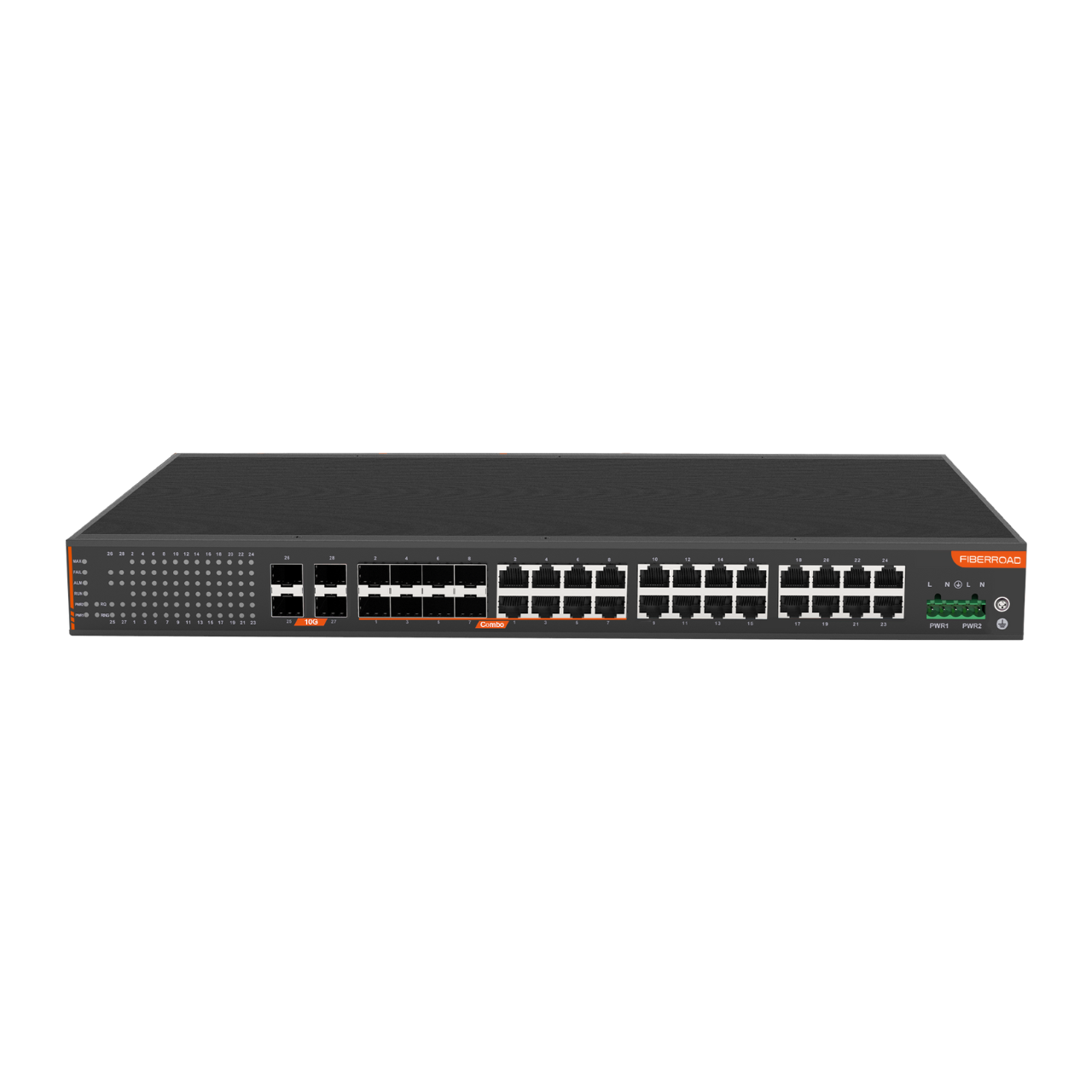

Fiberroad FR-9T44F8
L3 24G+4x10G SFP+ Managed Industrial Network Switch
Why the L3 10G Industrial Switch is a Game-Changer for Your Network Infrastructure

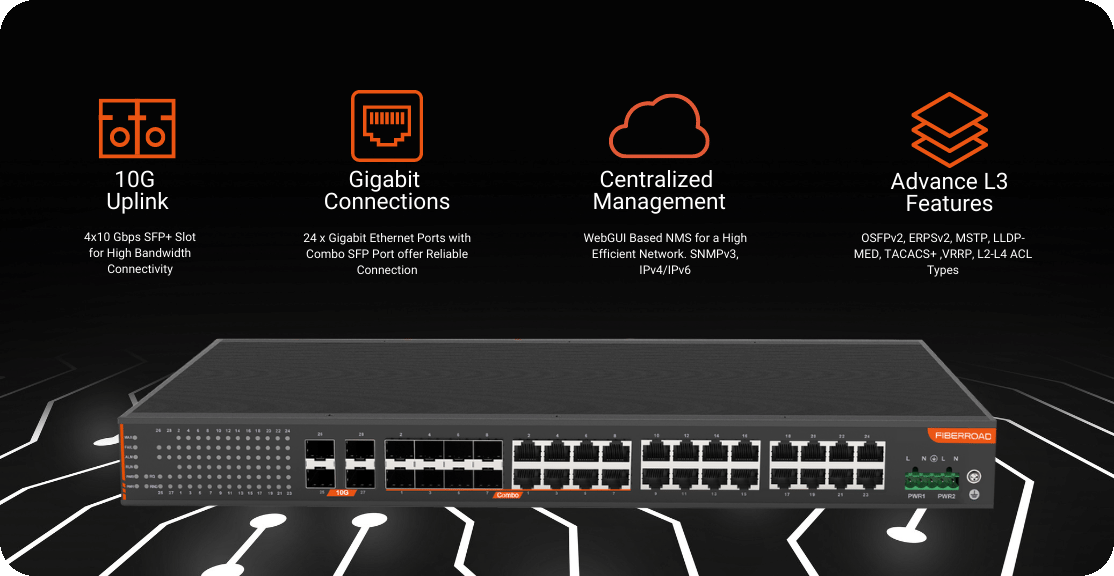

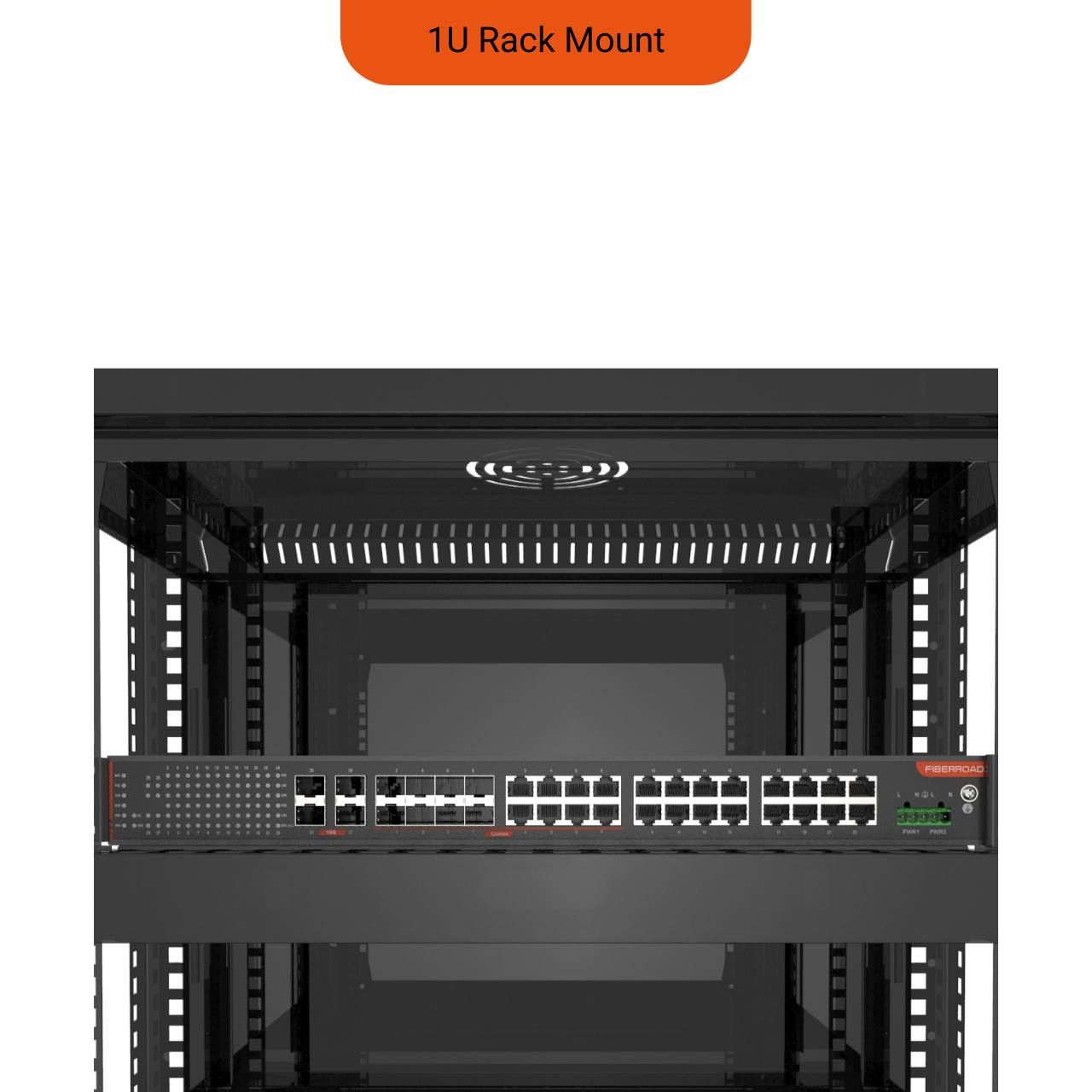

Fiberroad FR-9T44F8 is a L3 (Layer 3) Industrial Network Switch featuring 24×100/1000M SFP, 8 Gigage 10/100/100MBase-T Combo ports and 4 10G SFP+ ports, and supports Layer 3 IP routing in a 1U case. With 4 x 10Gbps uplinks, the FR-9T44F8 enables operators to handle thousands of data in a secure topology connected to an industrial backbone or high-capacity server. Dramatically modernizing industrial LANs will enable it to meet the ever-increasing bandwidth demands. In addition, it adopts a user-friendly “Front Access” design for easy cabling and maintenance of the FR-9T44F8 when placed inside a cabinet.
Highly Reliable and Multi-Service Support
1.Supports Spanning Tree Protocol (IEEE802.1d STP, IEEE802.1w RSTP, 802.1s MSTP standards)
2. Supports IPv4 and IPv6 multicast functions
3. Voice VLAN, Surveillance VLAN
4. Supports traffic classification from each L2/L3/L4 protocol header field
5. Supports IGMP v1/v2/v3, IGMP snooping, MLD
Advanced Network Configuration
1. Supports OSPFv2, RIPv2
2.Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to facilitate network planning
3. Supports LACP, ERPSv2
4.Class of Service (Port based, 802.1p, IP TOS Priority, IP DSCP), Trusted QoS, Rate Limiting
Safe and Simple Access
1.CLI(Console/Telnet(RFC854)), WebUI(HTTPS), SNMPv3
2.HTTPS/SSLv2v3,TLSv1 RADIUS, TACACS+,AAA SSHv1/v2
3. Supports DHCP Snooping, Option 43/82, 802.1X security access
4. Supports user hierarchy management
5. Supports DOS, port-based MAC filtering/binding, MAC whitelist
6. Supports IPv4/IPv6 ACLs
SMART POE FEATURES
1. Supports IEEE802.3af/at/bt standards automatically identify PoE devices for power supply without damaging non-PoE devices.
2. Supports up to 30W per port.
3. Priority mechanism for PoE+ Switch ports will supply power to high priority level ports first when the power budget is insufficient.
4. PoE output power allocation, PoE operation scheduling.
From Extreme Temperatures to High-Speed Data Transfer

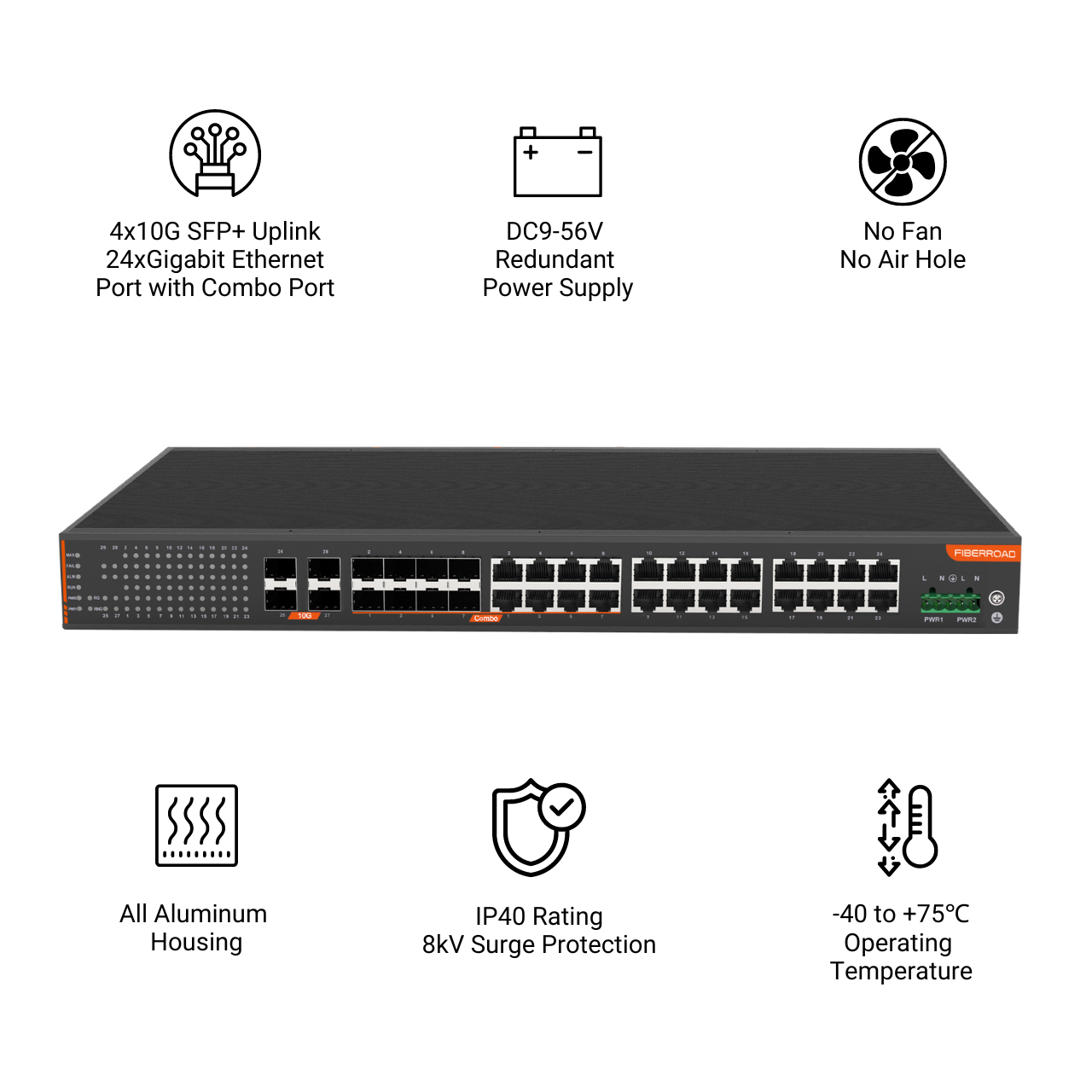

The L3 Industrial Ethernet Switch can provide non-blocking switch fabric and wire-speed throughput in a temperature range from -40 to 75 degrees C without packet loss and CRC errors. With its IP40 Durable Aluminum Housing and fanless design, it also provides efficient heat dissipation. The FR-9T44F8 provides a high level of immunity to electromagnetic interference and heavy power surges.

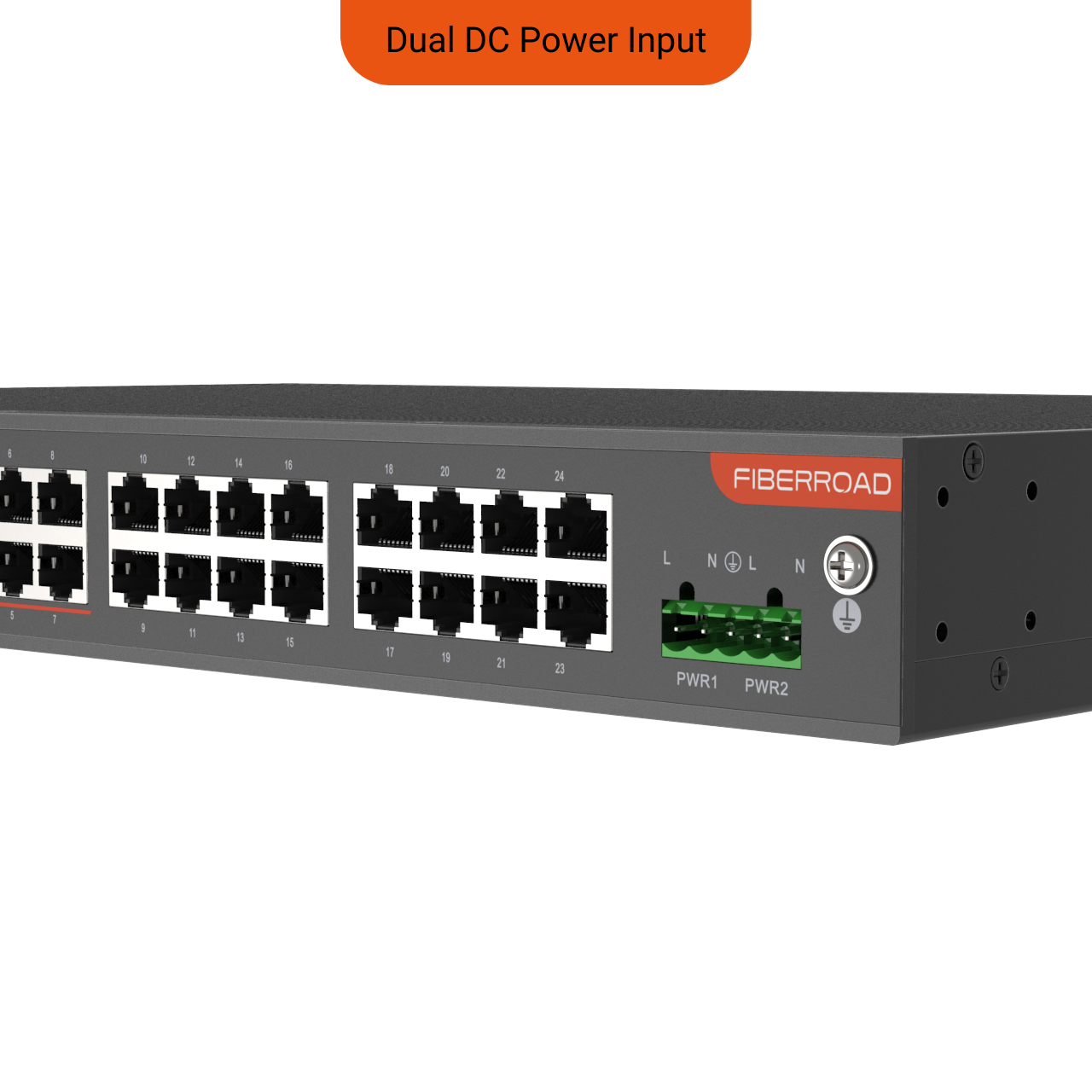

The FR-9T44F8 features dual 100-240V AC power supplies or dual 9-56V DC power supplies used as redundant power supplies to ensure continuous operation. Thus, its redundant power system is designed to meet the demands of high-tech facilities that require absolute power integrity.
Streamlining Your Industrial Network

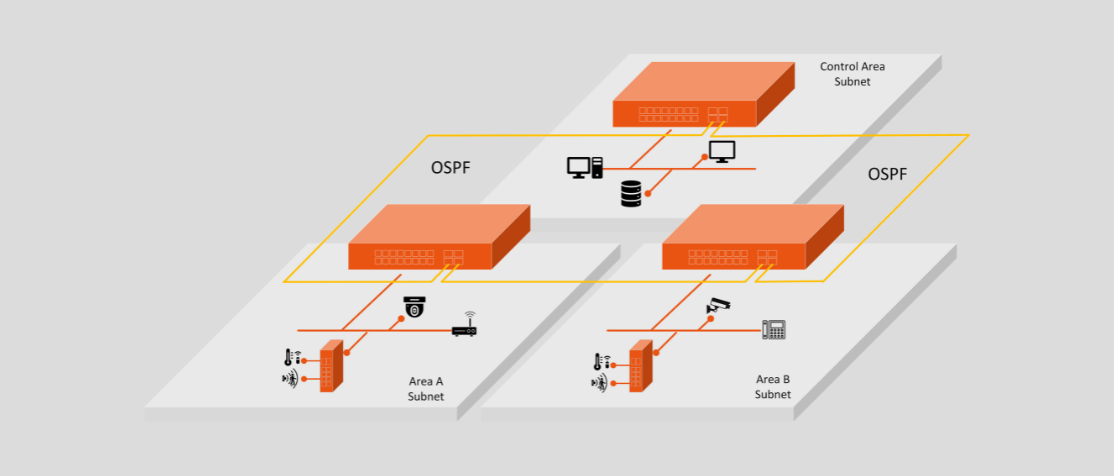

Using the L3 10G Industrial Ethernet Switch, administrators can easily improve network efficiency by automatically configuring Layer 3 static routing, RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings. RIP can use the number of hops as a routing metric and prevent routing loops by enforcing a limit on the number of hops allowed on the path from source to destination. Using OSPF, the autonomous system is based on dynamic link-state routing. As a result of the exchange of link states between Layer 3 switches, a protocol creates a link state database. The Shortest Path First algorithm then generates a routing table based on that database.
Revolutionize Your Industrial Processes with 10G L3 Industrial Switches

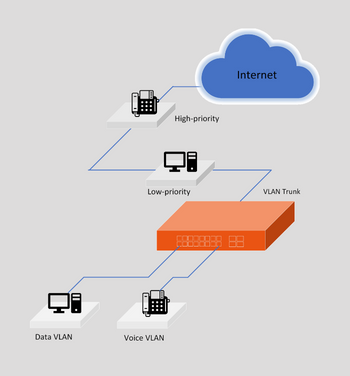

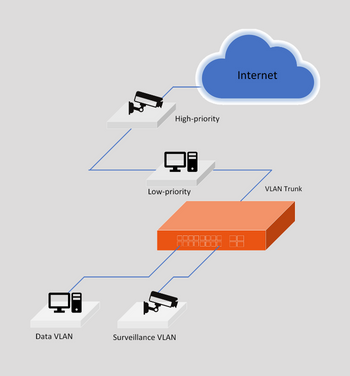

IP-based IoT and IIoT networks require voice and surveillance VLANs to ensure high-quality voice and video data transmission. Devices equipped with VoIP interfaces and IPcams can use Voice and Surveillance VLANs, a new addition to VLANs, to create a dedicated voice or surveillance VLAN exclusively for digital devices. This is a potentially disruptive feature, especially for industrial networking (IIoT) devices where digital industrial controllers are connected to analog devices.

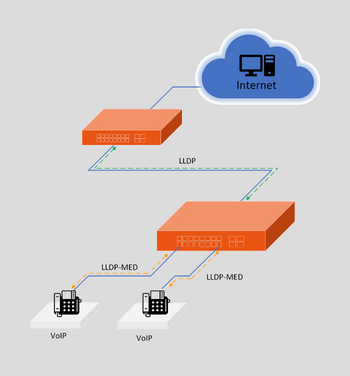

With LLDP-MED, which improves the automation/management of certain types of network devices such as IP Phones, etc. In LLDP-MED, the capabilities of the connected device are determined and whether those capabilities are enabled. It will then continue sending LLDP-MED packets until the remote device it is connected to is no longer LLDP-MED capable.
Efficient and Secure Network Management
For efficient management, the 10G L3 Industrial Network Switch includes console, web, and SNMP management. With its built-in web-based management interface, the FR-9T44F8 offers easy-to-use, platform-independent management and configuration. In addition to supporting Simple Network Management Protocol (SNMP), the 10G L3 Industrial Ethernet Switch can be managed with any standard management software. The FR-9T44F8 provides Cisco-like commands via Telnet or the console to reduce product learning time. Furthermore, the FR-9T44F8 offers secure remote management via SSH connections, allowing secure packet content across sessions.
