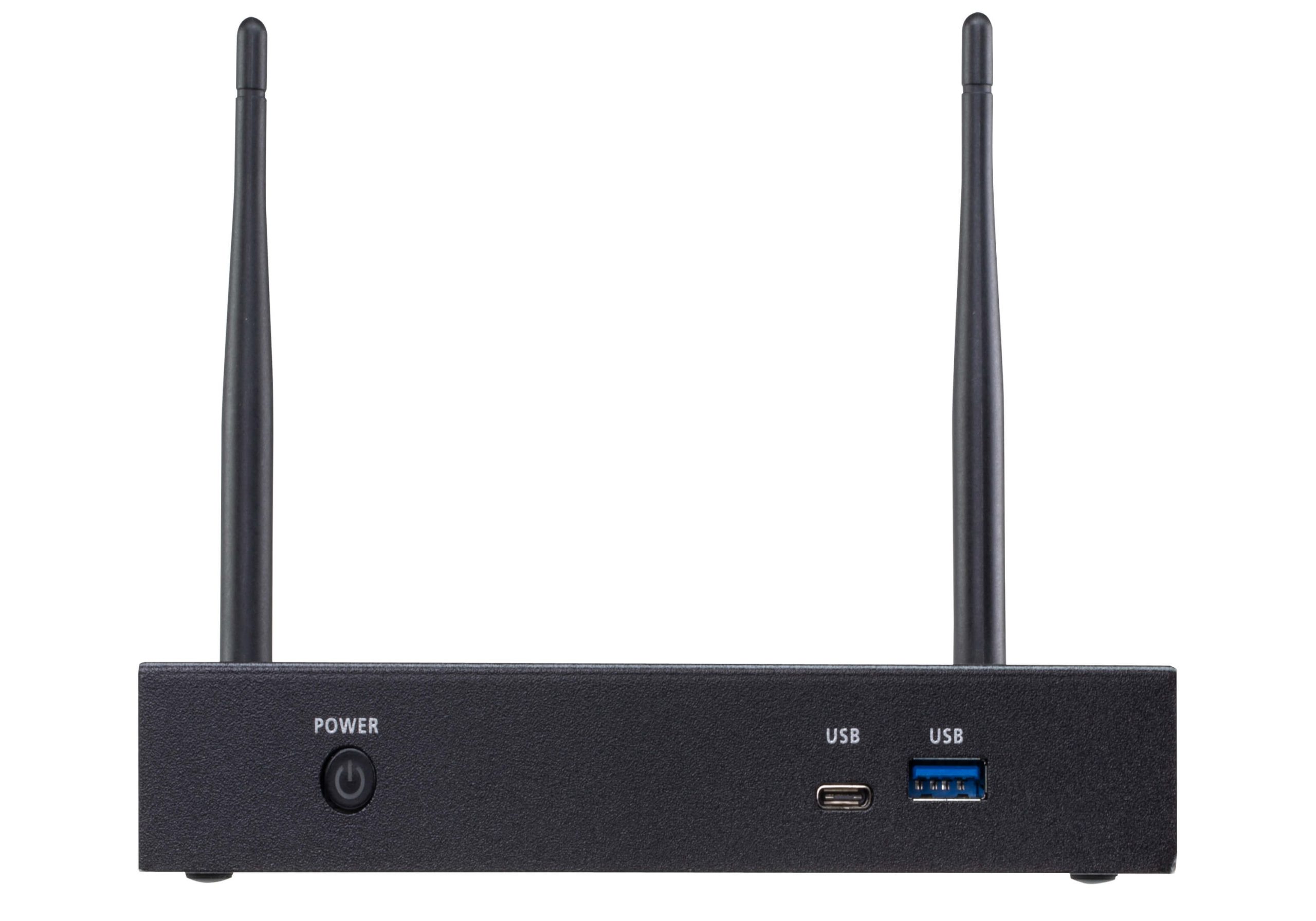

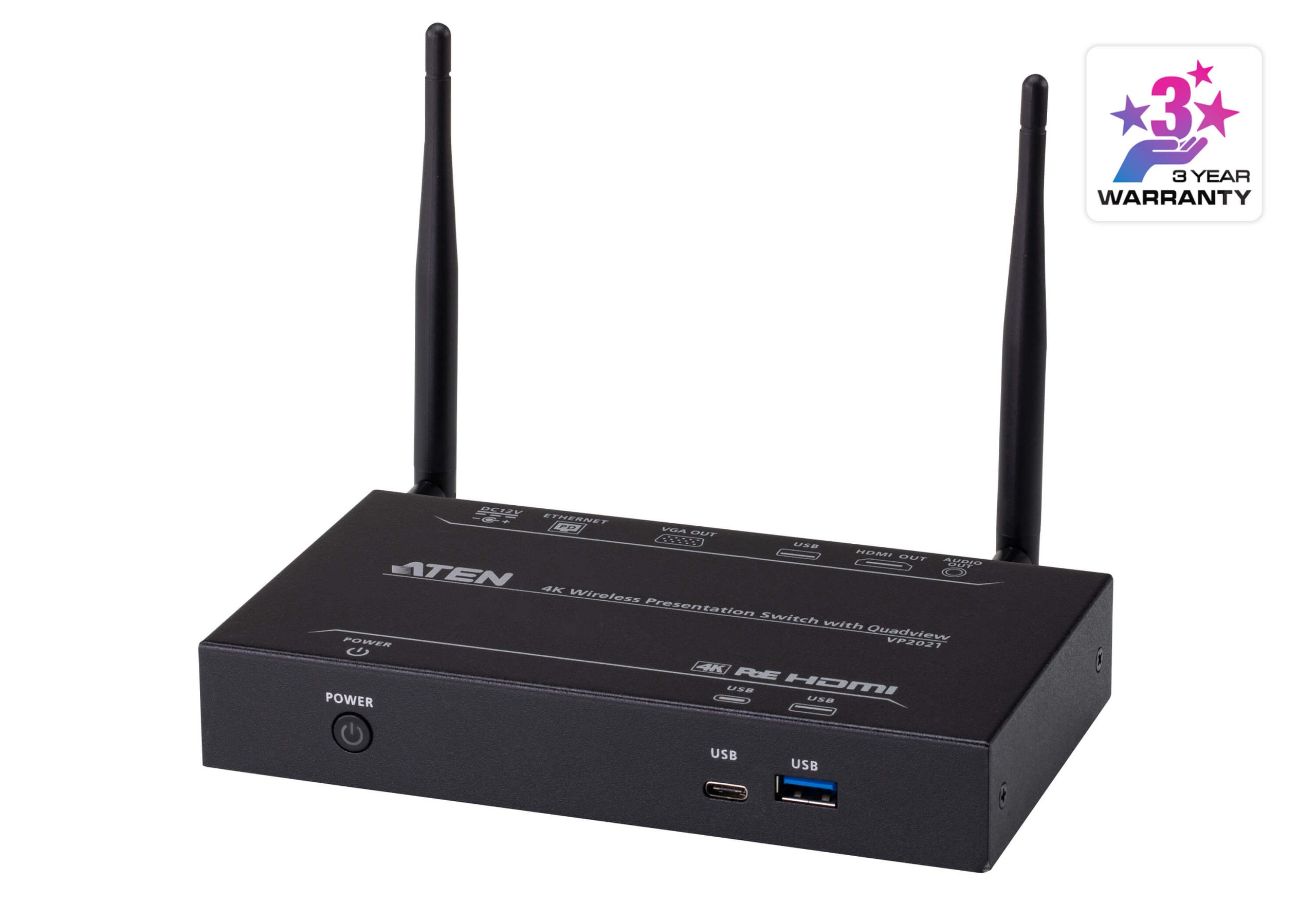

ATEN VP2021
4K Wireless Presentation Switch with Quad View
ATEN PresentON® VP2021 is a wireless BYOD solution that enables anyone, including visitors, to easily share content from a laptop or mobile device so that participants can actively collaborate for enhanced, efficient workflows.
The VP2021 features Multi-view and audio out, which are designed to increase content-sharing flexibility. Moreover, it is equipped with USB touch back and moderation mode functions, allowing presenters to easily control meetings. The VP2021 also has innovative collaboration tools that allow teams to enhance their productivity. This solution also features remote view for all participants to immerse themselves in the presentation. In addition, its PoE connectivity makes installation easy. It’s perfectly suited for both huddle spaces and large meeting spaces and is flexible enough for corporate or education use.
*The information contained is the property of ATEN International Co. LTD or their respective owners. All rights reserved. AirPlay® is a trademark of Apple Inc., registered in the U.S. and other countries and regions. Google Cast™ is a trademark of Google LLC. Any other brand names or marks are used for compatibility description only and are trademarks or registered trademarks of their respective owners.
Start Quad-view Sharing in a Snap
Quad view presentations make it feasible for cross-departmental collaboration to rapidly focus on key points and cross-reference information for discussion, helping to improve workflows and efficiency.
BYOD Wireless Sharing without Limitations
Wirelessly share BYOD presentation content with ATEN software on PC, mobile apps, and web browsers; compatible with Airplay* and Google Cast* for unlimited sharing and collaboration.
Get Control on Your Side with USB Touch Back
USB Touch Back can control remote laptops with a mouse or touchscreen, allowing the speaker to take the lead in meetings and be more efficient without having to move about just to access devices.
Manage Shared Content with Moderation Mode
Moderation Mode allows presenters to easily control and manage the content shared by other participants, including muting, stopping all sharing, and disconnecting a participant.
Flexible & Clear: Audio Your Way
With 3.5 mm audio output to increase the flexibility of use, not only is meeting audio crystal clear, but also it can be integrated with the audio system to enhance the audio-visual experience.
Bringing People Together to Share Ideas
Collaboration tools allow team discussions to illustrate ideas directly on the main screen, annotate, or quickly screen capture for record-keeping to enhance team productivity.
Spesification
| Video Output | |
| Interfaces | 1 x HDMI Type A female (Black) 1 x VGA (HDB-15) Female |
| Max. Distance | HDMI: Up to 5m VGA: Up to 15m |
| Video | |
| Max. Resolution | HDMI: Up to 4K@30Hz VGA: Up to 1080p |
| Audio | |
| Output | Stereo Audio: 1 x mini stereo Jack female (Black) |
| Network Transfer Speed | 10/100/1000 Mbps RJ 45 LAN ( Support PoE) |
| Wireless | |
| Authentication Protocol | AP mode: WPA2-PSK Station mode: WEP, WPA, WPA2, 802.1x EAP |
| Wireless Transmission Protocol | IEEE 802.11ac |
| Frequency Band | Switchable dual band 2.4GHz and 5GHz (DFS channels not supported) |
| Reach | 20m Transmission in 5GHz 30m Transmission in 2.4GHz |

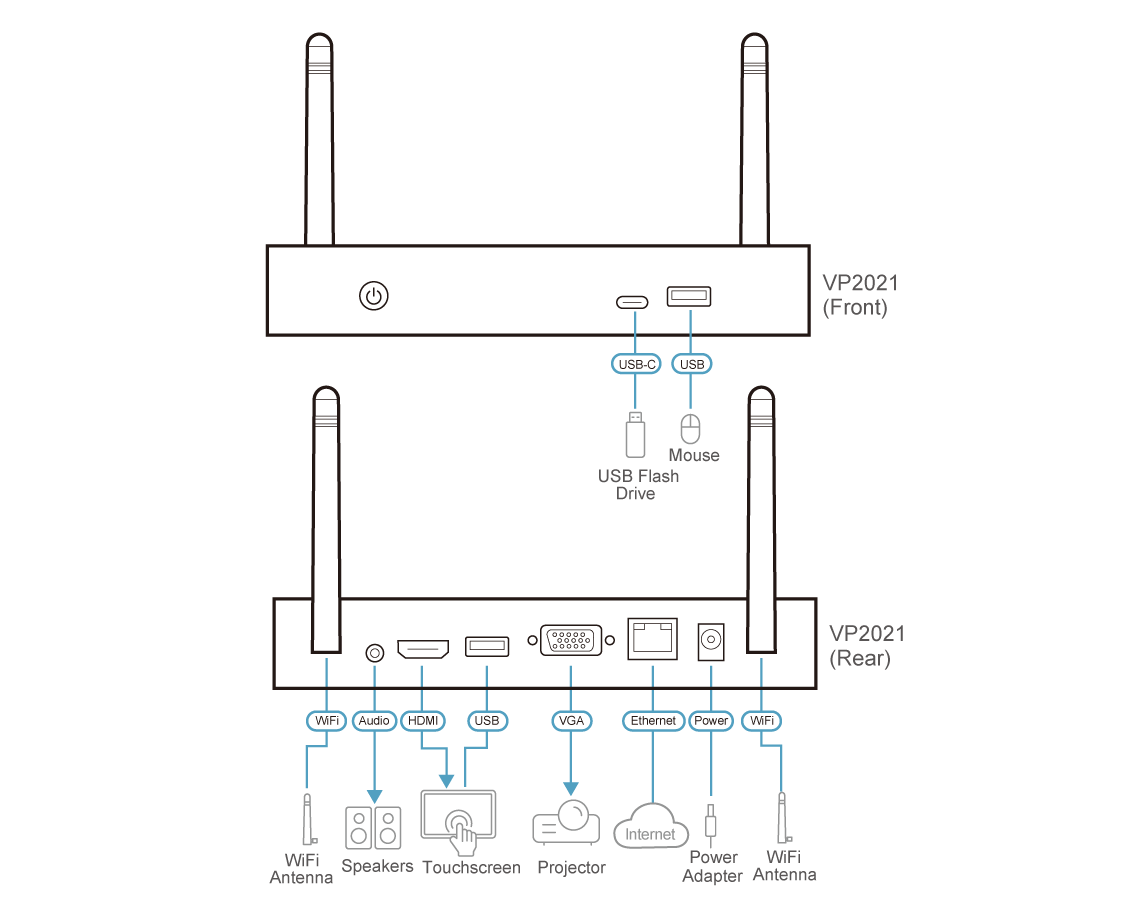

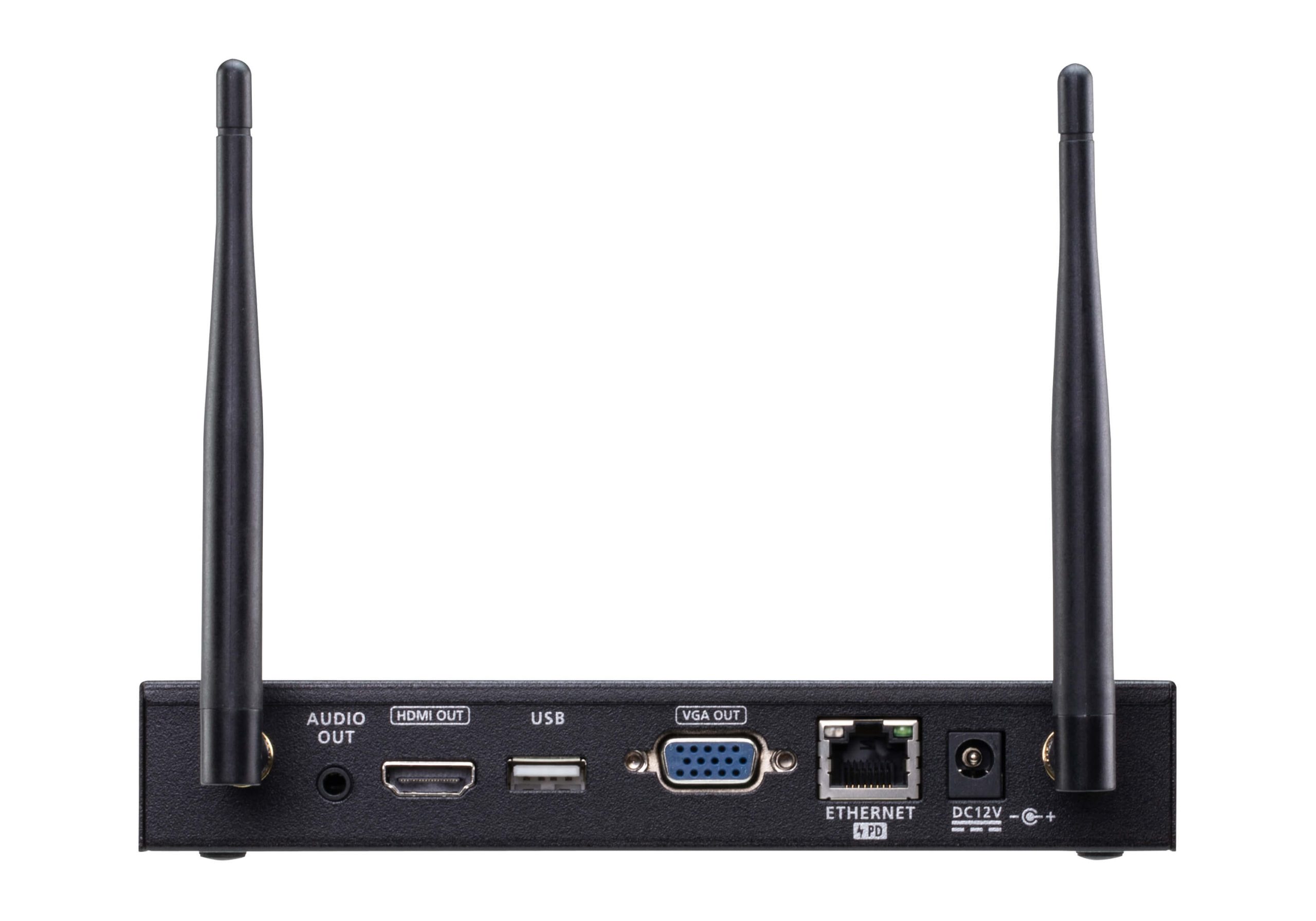

| Connectors | |
| Console Ports | USB 3.0: 1 x USB Type A Female (Blue) USB 2.0: 1 x USB Type A Female USB-C: 1 x USB Type C Female |
| Power | 1 x DC Jack (Black) |
| Switches | |
| Power | 1 x Pushbutton (LED: Blue) |
| Control | |
| Ethernet | 1 x RJ-45 Female (Silver) |
| Power Consumption | DC12V:12WBTU/h Note: |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) | 17.00 x 10.40 x 2.83 cm (6.69 x 4.09 x 1.11 in.) |
| Carton Lot | 5 pc |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Input Resolutions | 640 x 480 @ 60/67/72/75 Hz | 1600 x 1200 @ 60 Hz |
| 800 x 600 @ 56/60/72/75 Hz | 1680 x 1050 @ 60 Hz | |
| 1024 x 768 @ 60/70/75 Hz | 1920 x 1080 @ 50/60 Hz | |
| 1280 x 720 @ 50/60 Hz | 1920 x 1200 @ 60 Hz | |
| 1280 x 800 @ 60 Hz | 3840 x 2160p @ 30 Hz (RGB) | |
| 1280 x 1024 @ 60/75 Hz | ||
| 1440 x 900 @ 60 Hz |
