ATEN VK320
8″ Touch Panel

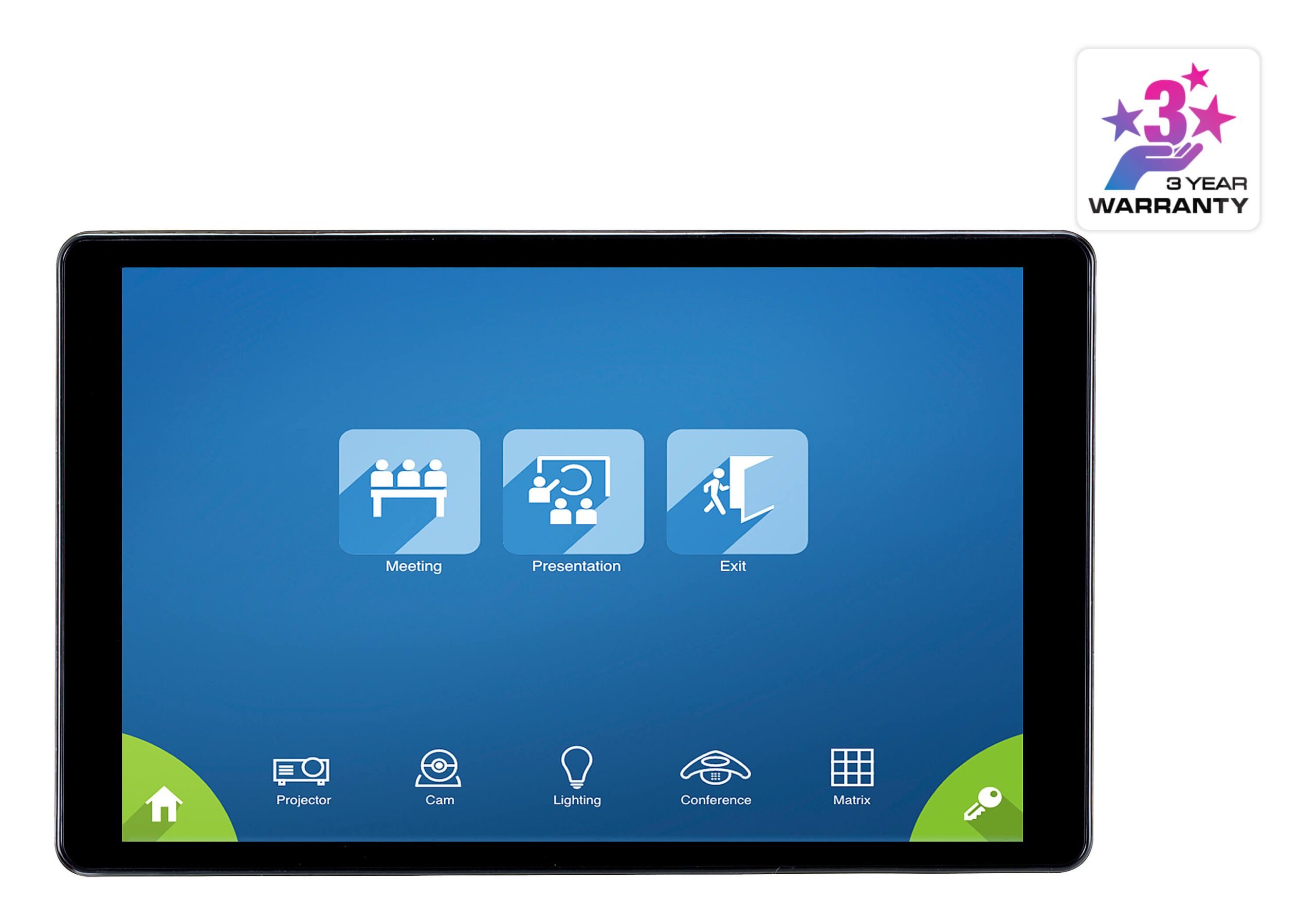

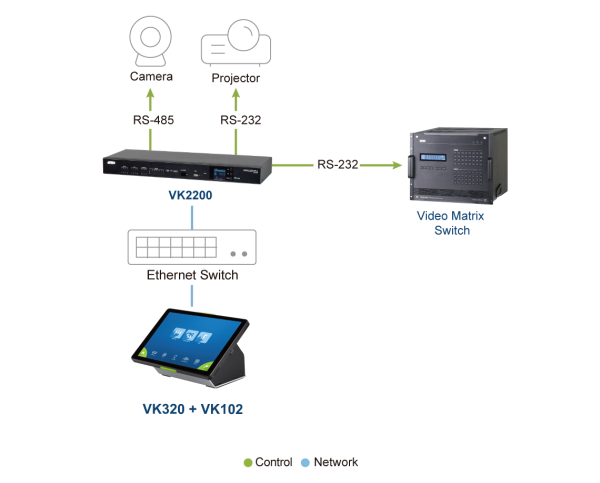

The ATEN VK320 is an 8” Touch Panel featuring capacitive multi-touch IPS-LCD screen with a narrow bezel. Natively installed with the ATEN Control System app, the touch panel is compatible with ATEN Control Boxes and Control Pads.
The VK320 supports Power over Ethernet (PoE), which allows power and data to be carried over a single Ethernet cable to the touch panel, making it perfect for applications that require solid and wired connections.

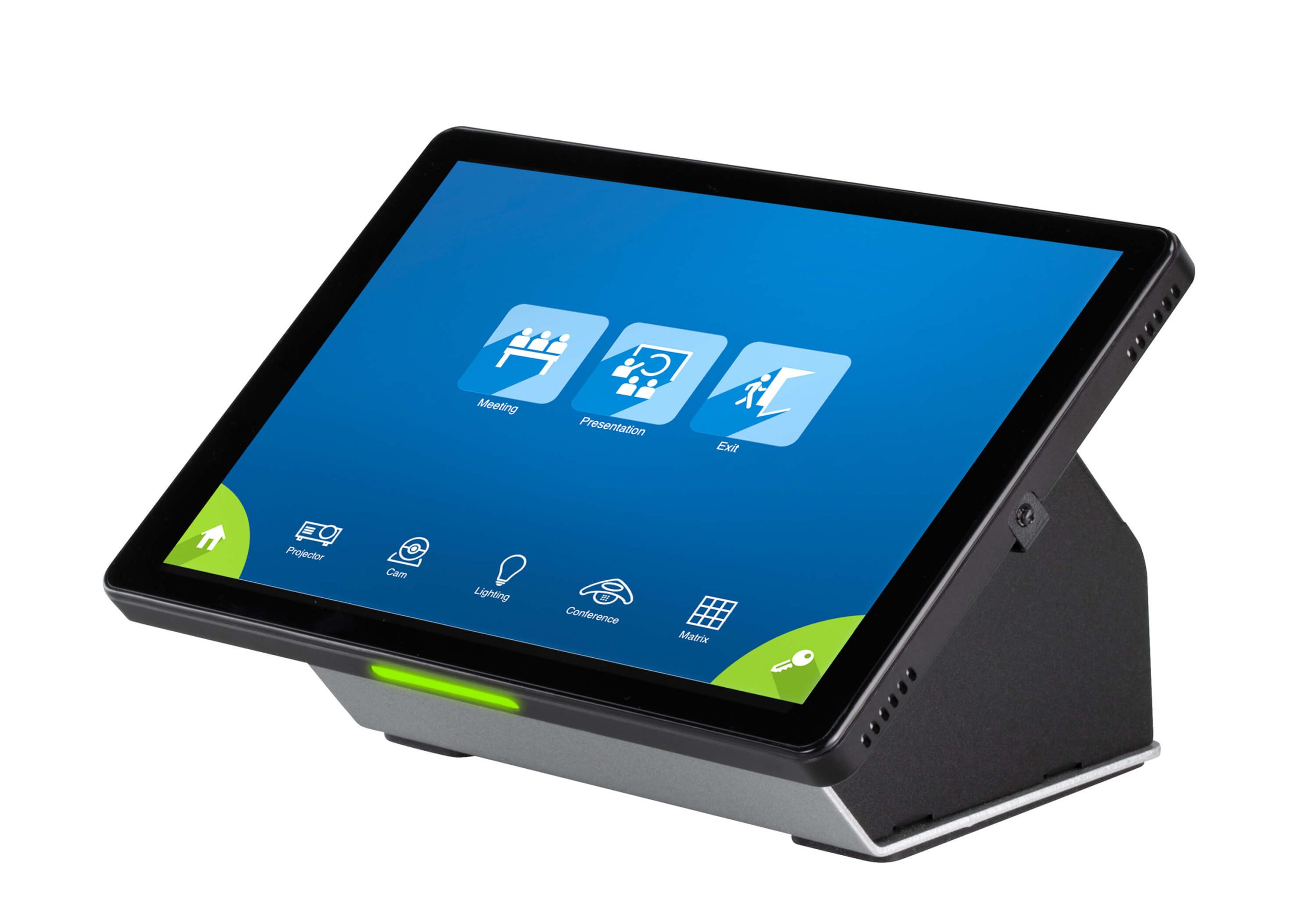

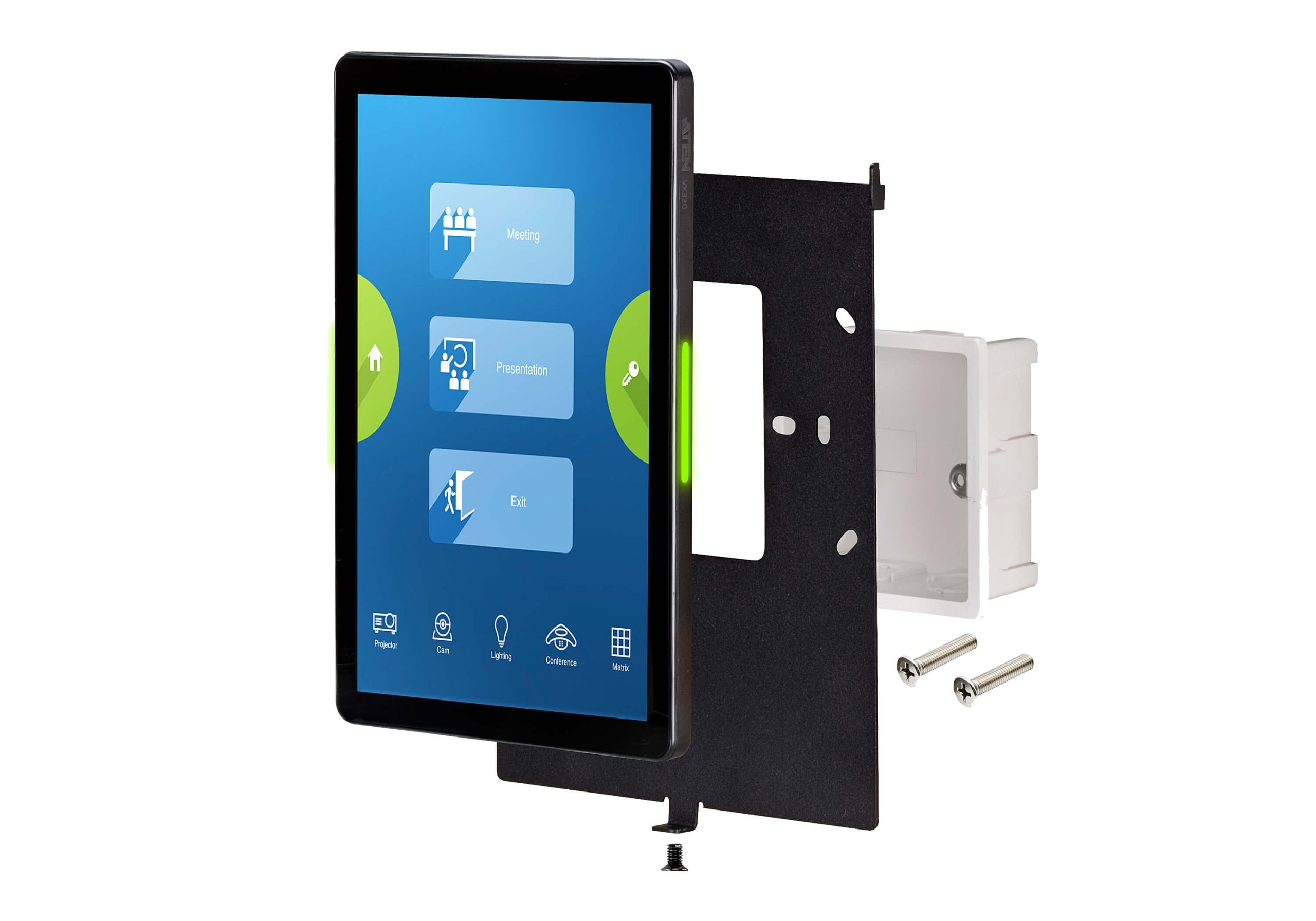

The Touch Panel VK320 features an in-wall design and a sophisticated touch panel that comes complete with an 86-type junction box, ensuring a versatile and efficient solution. The VK320 is also perfectly suitable for the smaller and compact scenarios such as digital podiums or lecterns. It is worth noting that the VK320’s mounting plate is compatible with standard decorator-style, 1-gang junction boxes of the US, EU, and MK type; it is also compatible with VK101 and VK102 Tabletop Kits to support desk mounting and wall mounting to meet versatile installation needs. The uniform equilateral design is suitable for flexible placement in either horizontal or vertical orientation.
Spesification
| Processor | Quad-core |
| Memory | |
| SDRAM | 2GB |
| Flash | 32GB |
| Panel Spec | |
| Display Type | IPS-LCD |
| Size | 8″ |
| Touch Screen | Capacitive |
| Resolution | 1280 x 800 |
| Aspect Ratio | 16 : 10 |
| Color Depth | 8 bit |
| Contrast Ratio | 800 : 1 |
| Backlight | LCD |
| Viewing Angle | ± 85° (H), ± 85° (V) |
| Luminance | 300 cd/m² |
| Interfaces | |
| Ethernet | 1 x RJ-45 Female, 10 / 100 BaseT |
| USB | 1 x USB Type C |
| Power Inputs | |
| Power over Ethernet (PoE) | 802.3 at PoE+ |
| Power Consumption | DC12V:12W:40.95BTU/h POE:14.1W:48.1BTU/h Note: |
| Environmental | |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | –10 – 55°C |
| Humidity | 10 – 75% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.33 kg ( 0.73 lb ) |
| Dimensions (L x W x H) | 20.01 x 12.46 x 3.77 cm (7.88 x 4.91 x 1.48 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
