ATEN VE807
HDMI/Audio Cat 5 Extender with MK Wall Plate (1080p @ 40m)

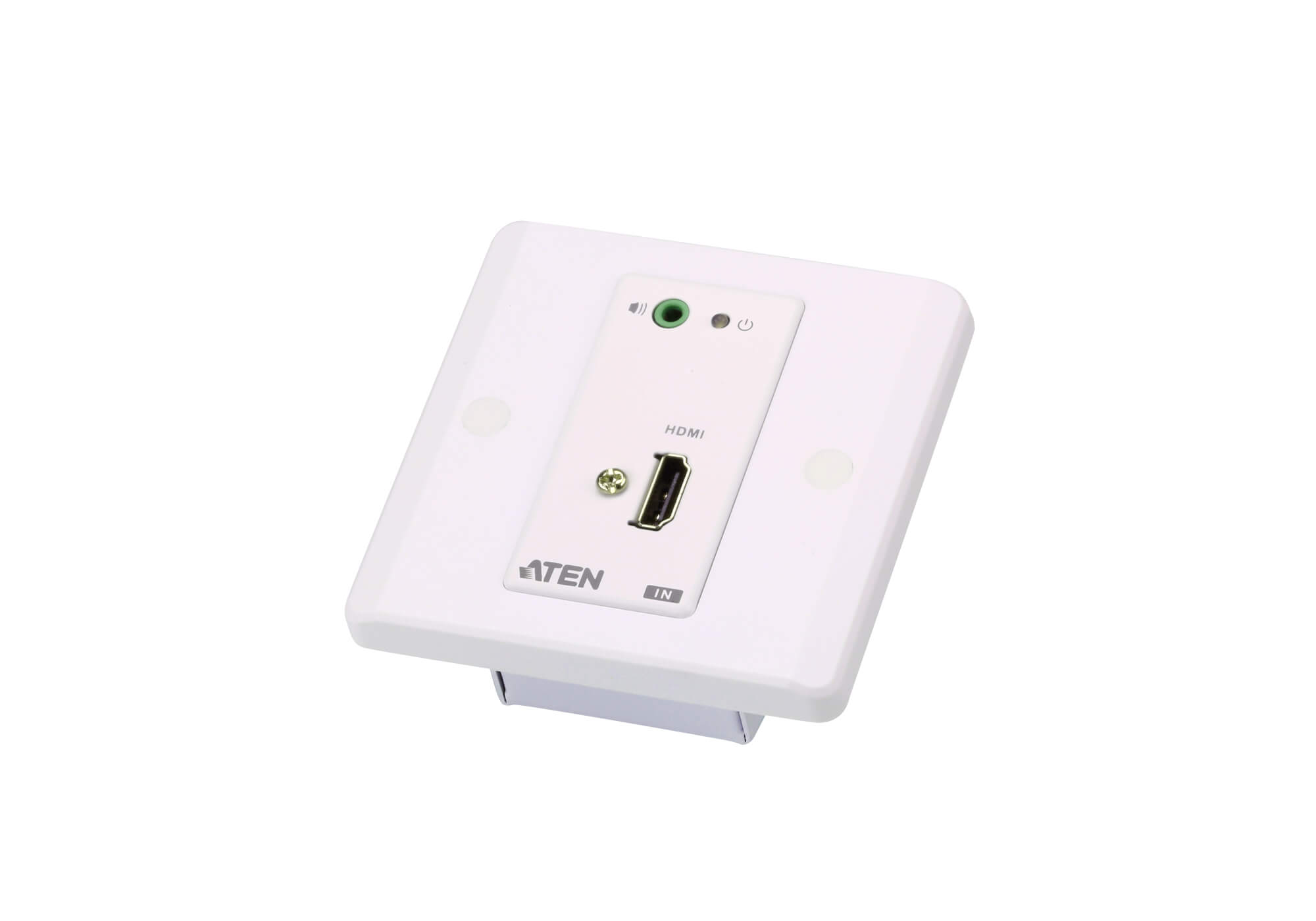

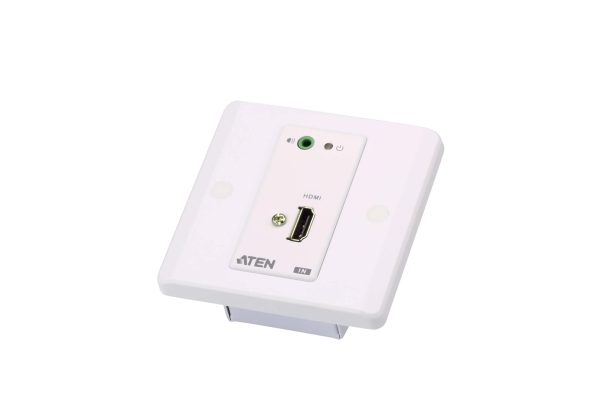

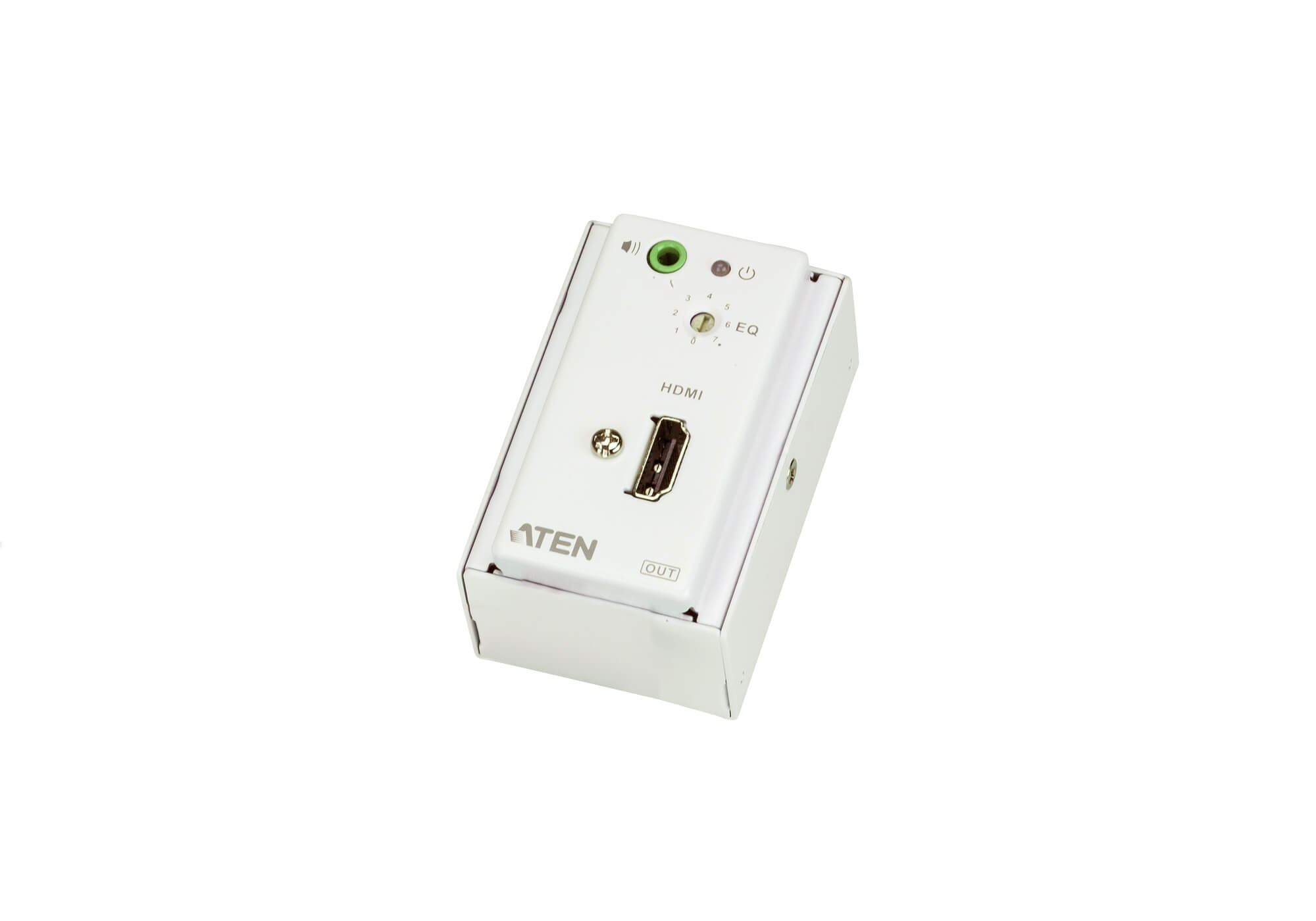

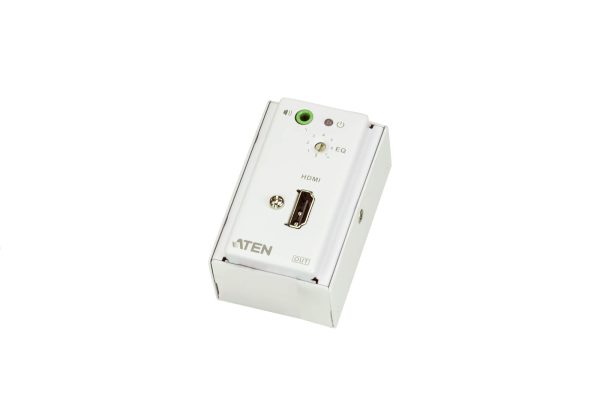

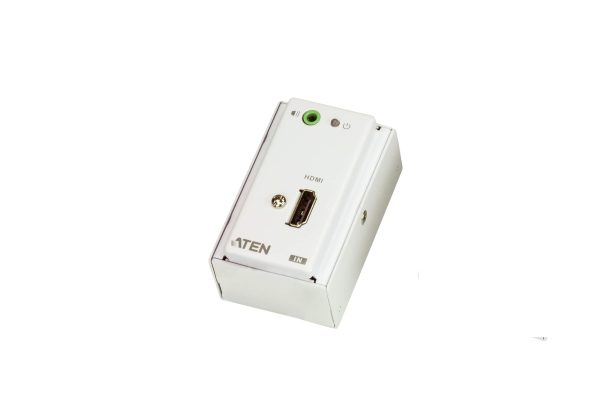

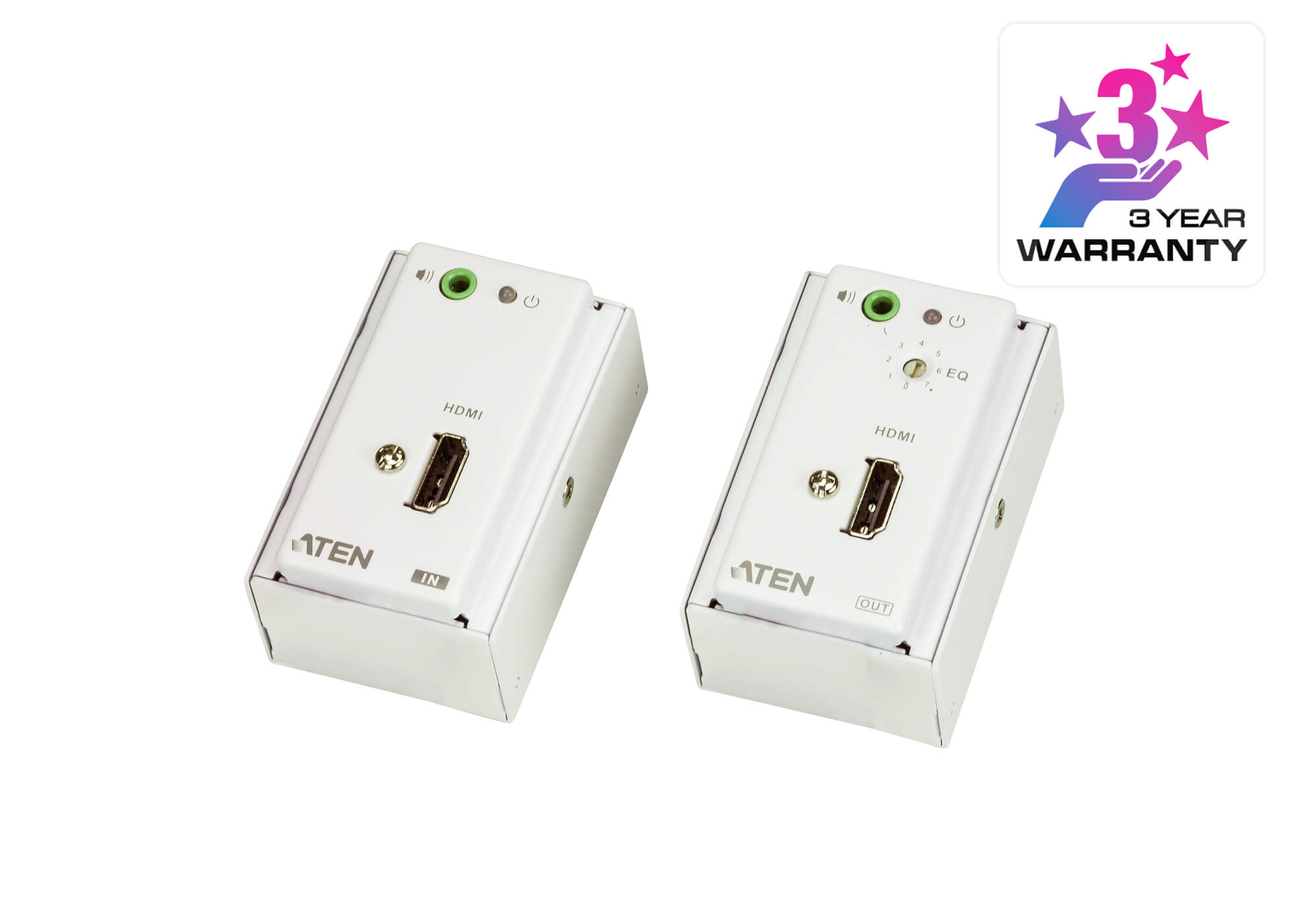

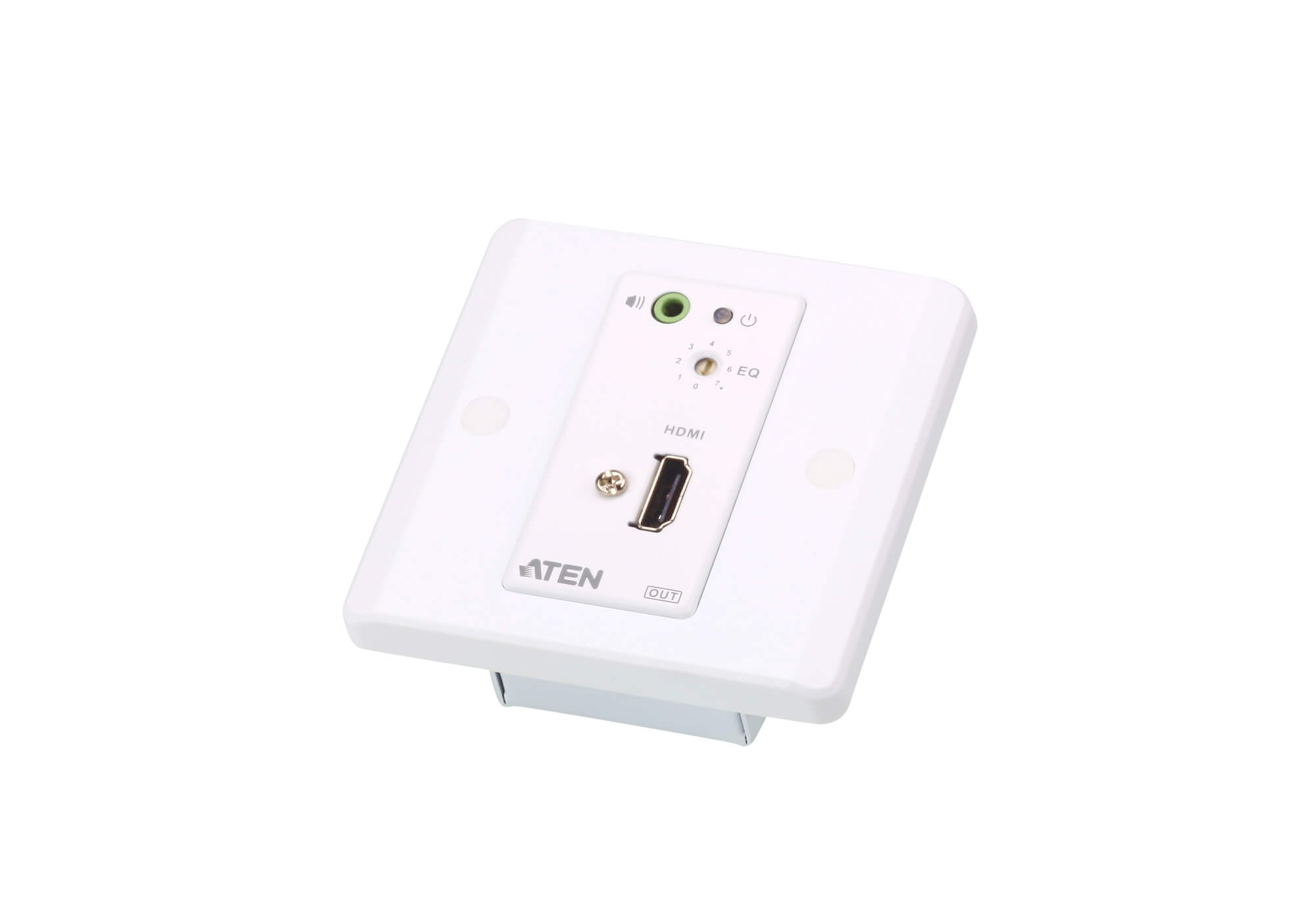

The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality.

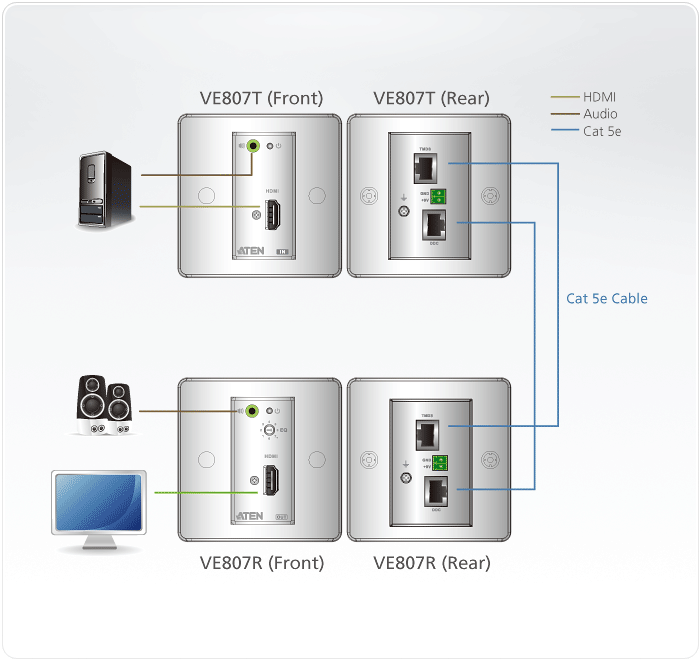

The VE807 can be either powered at Transmitter or Receiver side, and a second Cat 5e/6 cable is used for power signal transmission, real EDID bypass, and HDCP key authentication. The VE807’s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public’s view.
Spesification
| Function | VE807R | VE807T |
| Video Input | ||
| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 Ω |
| Max. Distance | N/A | 3 m |
| Video Output | ||
| Interfaces | 1 x HDMI Type A Female (Black) | N/A |
| Impedance | 100 Ω | N/A |
| Max. Distance | 3 m | N/A |
| Video | ||
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz | 225 MHz |
| Compliance | HDMI (3D, Deep Color) HDCP Compatible | HDMI (3D, Deep Color) HDCP Compatible |
| Max. Resolutions / Distance | Up to 1080p@40m; 1080i@60m | Up to 1080p@40m; 1080i@60m |
| Audio | ||
| Input | N/A | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | N/A |
| Connectors | ||
| Power | 1 x Terminal Block (Green) | 1 x Terminal Block (Green) |
| Power Consumption | DC9V:0.81W:4BTU/h Note: | DC9V:1.35W:6BTU/h Note: |
| Environmental | ||
| Operating Temperature | 0 – 50°C | 0 – 50°C |
| Storage Temperature | -20 – 60°C | -20 – 60°C |
| Humidity | 0-80% RH, Non-Condensing | 0-80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.18 kg ( 0.4 lb ) | 0.18 kg ( 0.4 lb ) |
| Dimensions (L x W x H) | 6.86 x 4.44 x 4.00 cm (2.7 x 1.75 x 1.57 in.) | 6.86 x 4.44 x 4.00 cm (2.7 x 1.75 x 1.57 in.) |

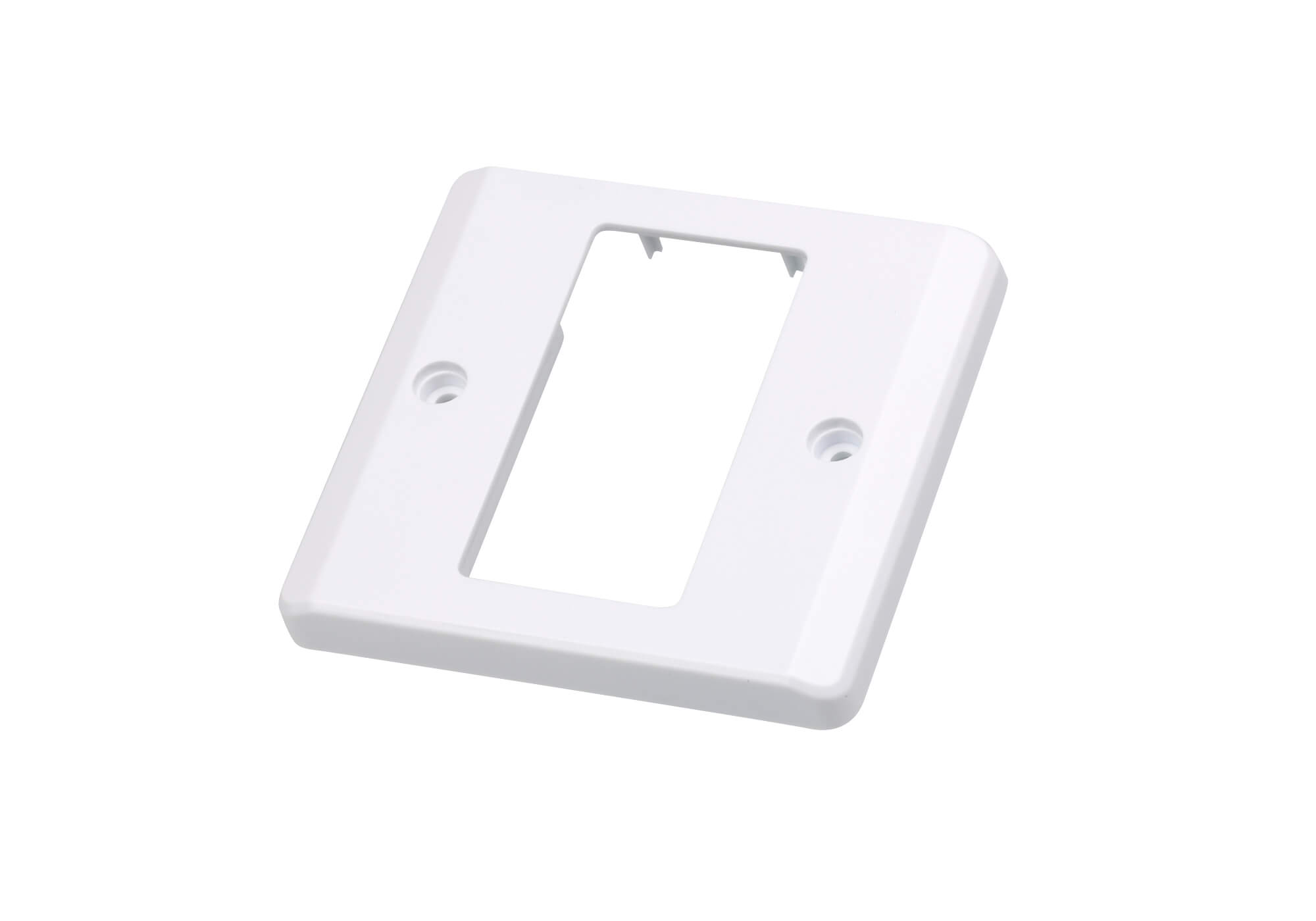

| Faceplate Dimensions (L x W x H) | 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.) | 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.) |
| Carton Lot | 5 pcs | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
